[HELP]random relay. prior owner of car is pissing me off
#1
Full Member
Thread Starter
[HELP]random relay. prior owner of car is pissing me off
hi guys earlier i was taking a look around my car and i noticed a random *** relay and a some wires i can not identify. but it goes into the harness. noted my fuel pump shuts off when i crack the engine over and turns back on when i stop. i can hear it do all that. its a walboro. i hooked it up correctly

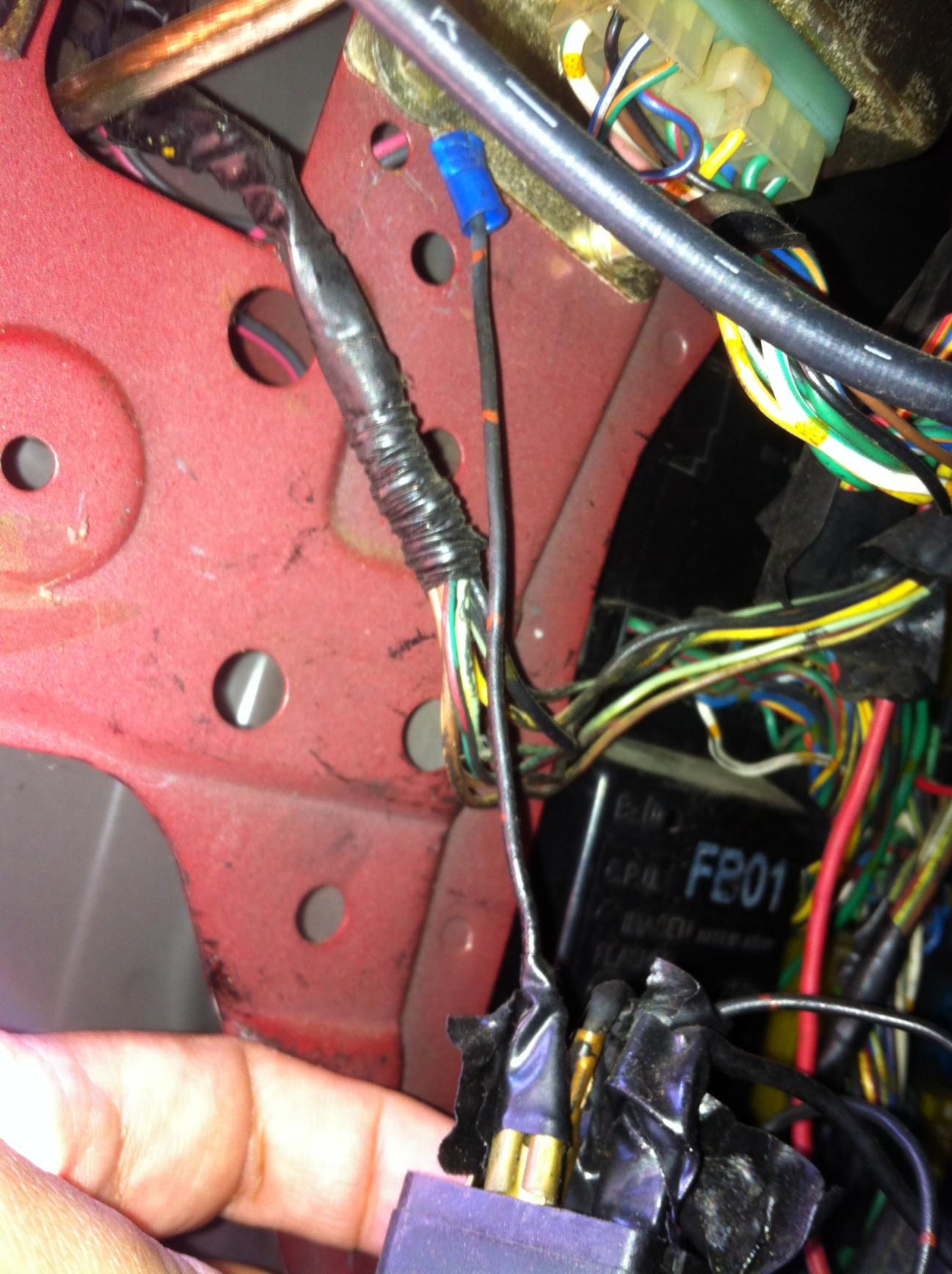

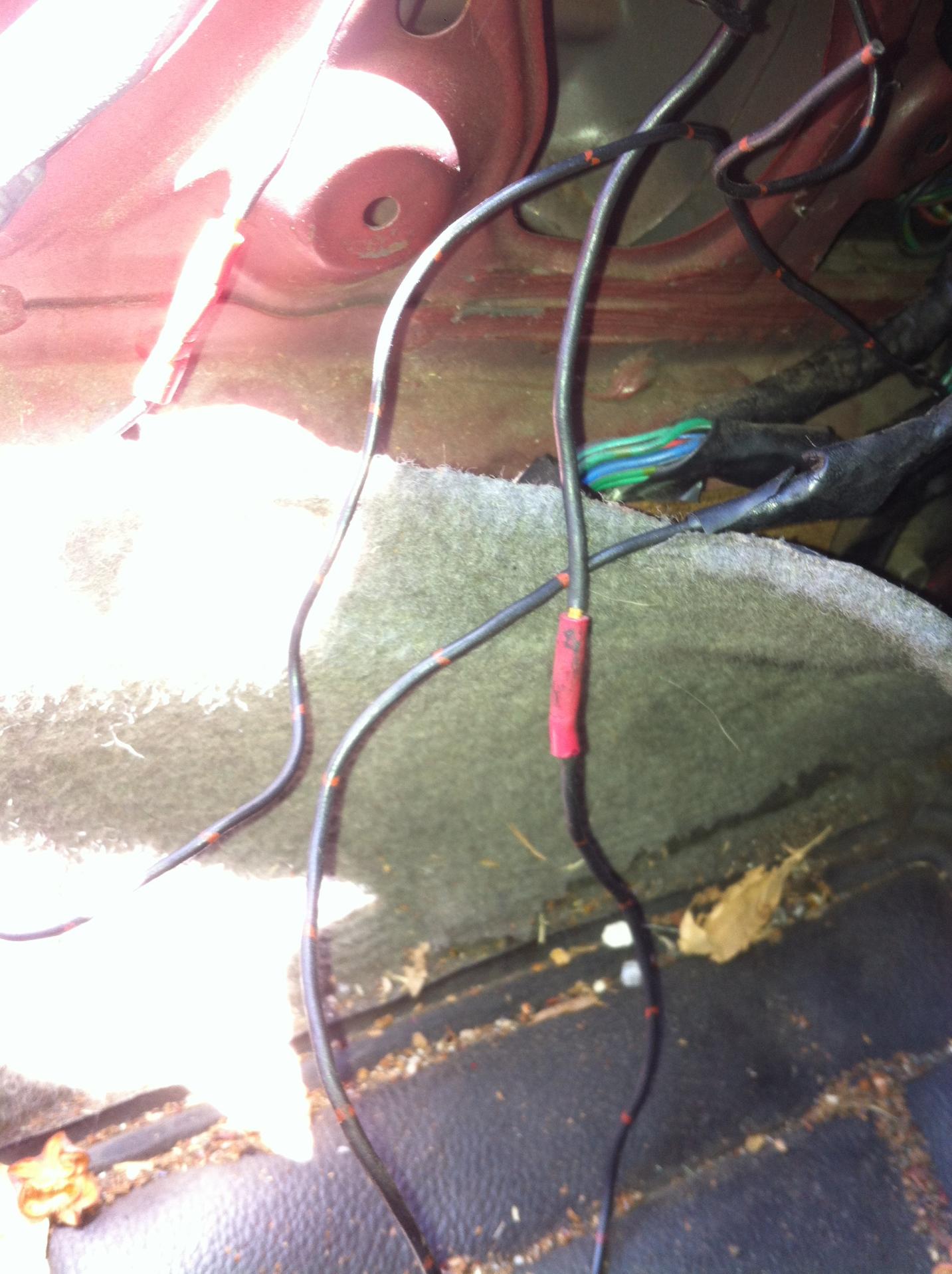

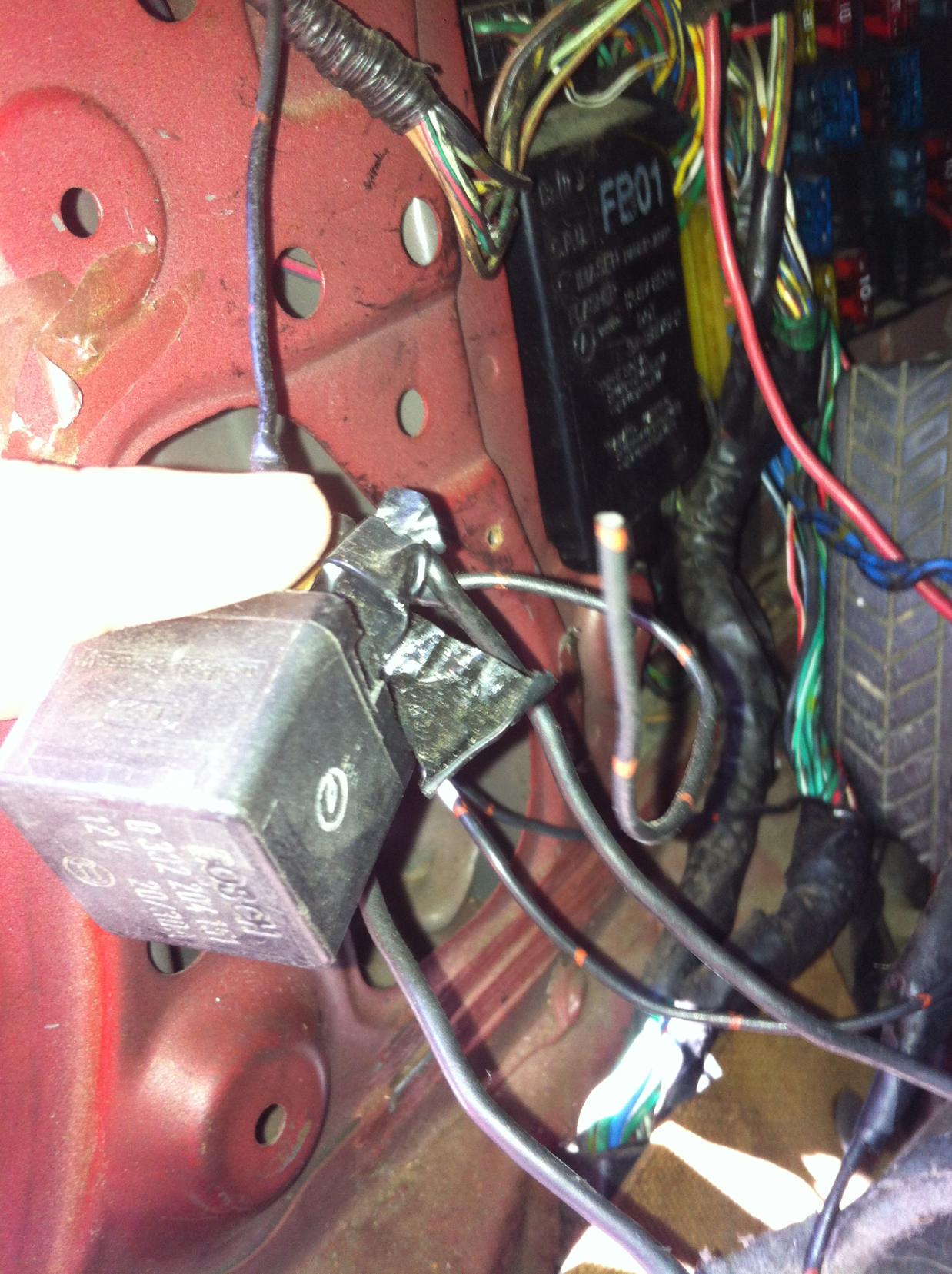

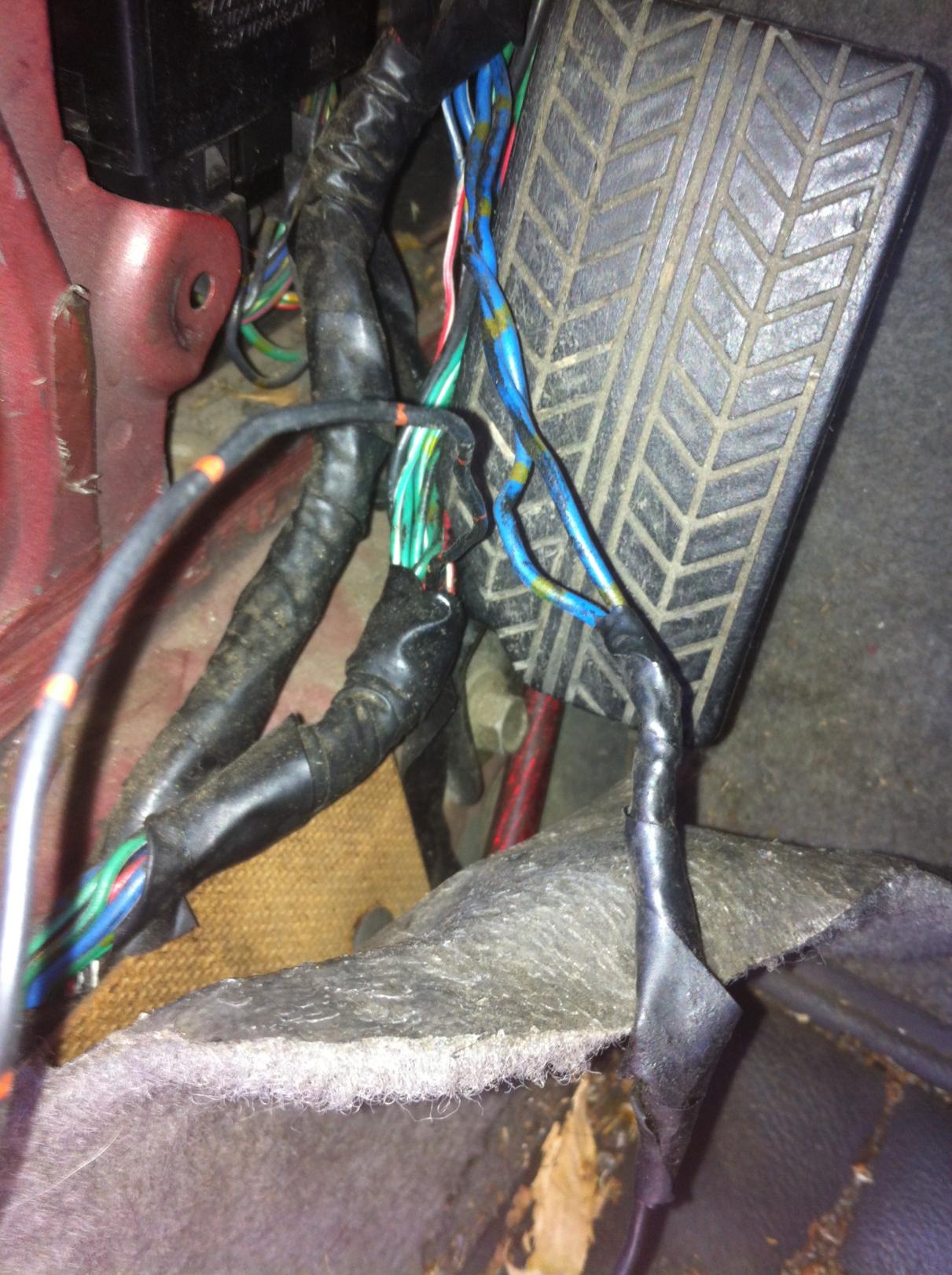

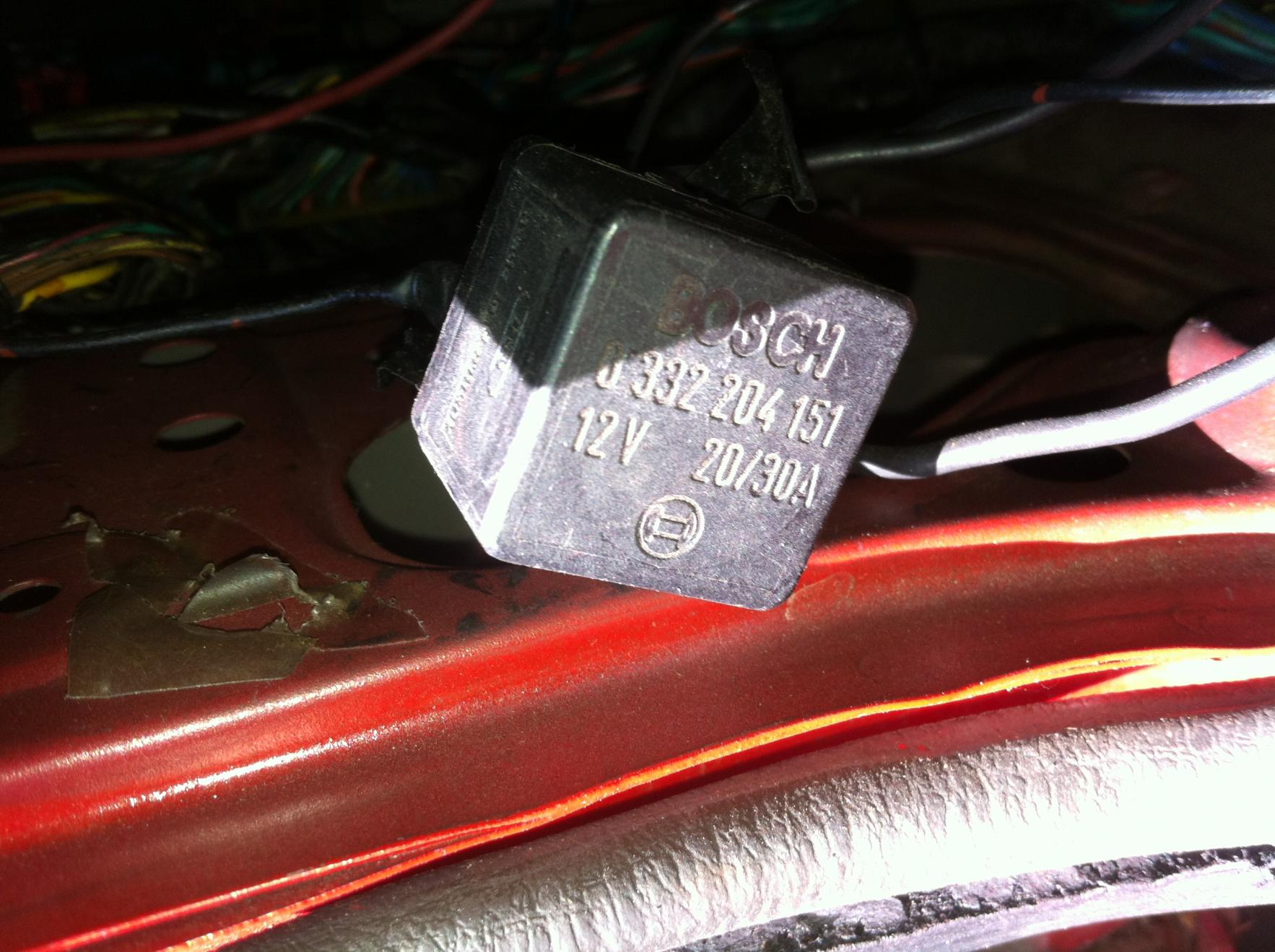

i dont know what the previous owner was thinking but this is really making me mad. here are some pictures to help. the relay and wires was found near the fuse box on the driver side. 87 fc NA s4.
i dont know what the previous owner was thinking but this is really making me mad. here are some pictures to help. the relay and wires was found near the fuse box on the driver side. 87 fc NA s4.
#2
Moderator
iTrader: (1)
The Circuit Opening Relay is Yellow and Black and located to the right of the steering column just under the dash. The Blue wire runs to the pump. By reading the voltage on this wire will tell you if the pump is being fed voltage or not.
You need to illustrate how many wires are running to the non-stock relay and what each wire color is.
You need to illustrate how many wires are running to the non-stock relay and what each wire color is.
#3
Sit and Spin
Join Date: Mar 2001
Location: Latrobe, Pa
Posts: 472
Likes: 0
Received 0 Likes
on
0 Posts
Sooo, does your car run? I thought you had this car running.
It is probably for an amp, or a security system.
If you could let us know what the wire colors are and where they are going, that would help us diagnose the problem. It is kinda tough to tell from the picture.
Otherwise, the free downloadable factory manual will tell you everything about the wiring once you learn how to use it.
It is probably for an amp, or a security system.
If you could let us know what the wire colors are and where they are going, that would help us diagnose the problem. It is kinda tough to tell from the picture.
Otherwise, the free downloadable factory manual will tell you everything about the wiring once you learn how to use it.
#4
Full Member
Thread Starter
The Circuit Opening Relay is Yellow and Black and located to the right of the steering column just under the dash. The Blue wire runs to the pump. By reading the voltage on this wire will tell you if the pump is being fed voltage or not.
You need to illustrate how many wires are running to the non-stock relay and what each wire color is.
You need to illustrate how many wires are running to the non-stock relay and what each wire color is.
the 2 blue/green seem to be spliced to a single wire which is to a black/ red dot wire the to that random relay then it leads back to a black/ red dot wire back into the harness
#5
Full Member
Thread Starter
Sooo, does your car run? I thought you had this car running.
It is probably for an amp, or a security system.
If you could let us know what the wire colors are and where they are going, that would help us diagnose the problem. It is kinda tough to tell from the picture.
Otherwise, the free downloadable factory manual will tell you everything about the wiring once you learn how to use it.
It is probably for an amp, or a security system.
If you could let us know what the wire colors are and where they are going, that would help us diagnose the problem. It is kinda tough to tell from the picture.
Otherwise, the free downloadable factory manual will tell you everything about the wiring once you learn how to use it.
#6
Moderator
iTrader: (1)
Dots or hash marks on the wires are somewhat irrelevant as all the factory wiring involves either solid colors or solid colors w/a stripe (dots and hash marks do not constitute a stripe).
At the Circuit Relay the top left wire should have voltage w/key to start thus causing the Blue wire to have power. If this wire has power w/key to start but the Blue wire does not have power then check the solid Black wire, lower left position, for a ground. The top row center position wire has voltage w/key to on/start ,again, causing the Blue wire to be powered.
At the Circuit Relay the top left wire should have voltage w/key to start thus causing the Blue wire to have power. If this wire has power w/key to start but the Blue wire does not have power then check the solid Black wire, lower left position, for a ground. The top row center position wire has voltage w/key to on/start ,again, causing the Blue wire to be powered.
Last edited by satch; 08-22-13 at 04:56 PM.
#7
Full Member
Thread Starter
Dots or hash marks on the wires are somewhat irrelevant as all the factory wiring involves either solid colors or solid colors w/a stripe (dots and hash marks do not constitute a stripe).
At the Circuit Relay the top left wire should have voltage w/key to start thus causing the Blue wire to have power. If this wire has power w/key to start but the Blue wire does not have power then check the solid Black wire, lower left position, for a ground. The top row center position wire has voltage w/key to on/start ,again, causing the Blue wire to be powered.
At the Circuit Relay the top left wire should have voltage w/key to start thus causing the Blue wire to have power. If this wire has power w/key to start but the Blue wire does not have power then check the solid Black wire, lower left position, for a ground. The top row center position wire has voltage w/key to on/start ,again, causing the Blue wire to be powered.
