Old 08-09-16, 12:07 AM
  #1151
Full Member


Hygoog's Avatar

Join Date: Jun 2015
Location: Alabama
Posts: 141
Received 9 Likes on 4 Posts
Yours look pretty clean compared to some of the other ones I've seen. It just needs a little touch up. That cooling panel look sick. I want to get one too eventually. When I first got mine it was pretty dirty. The previous owner didn't take good care of it. It came a long way to look like the way it is today. Too bad it's NA. Since I don't have the funds to make power yet, I'm just focusing on making it clean and reliable.
Old 08-09-16, 04:38 PM
  #1152
Full Member
iTrader: (1)

Akaviri's Avatar

Join Date: Aug 2015
Location: Philadelphia
Posts: 196
Received 10 Likes on 10 Posts
Originally Posted by Hygoog
Yours look pretty clean compared to some of the other ones I've seen. It just needs a little touch up. That cooling panel look sick. I want to get one too eventually. When I first got mine it was pretty dirty. The previous owner didn't take good care of it. It came a long way to look like the way it is today. Too bad it's NA. Since I don't have the funds to make power yet, I'm just focusing on making it clean and reliable.
Thank you. I cleaned it up quite a bit from the previous owner, but I didn't go too in-depth. If you get a cooling panel be sure to get one that has a vent for the intake tube.

I didn't know you could pressure wash an engine bay, nor have I heard of steam cleaning one. Did you do that yourself or take it somewhere to get done?
Old 08-09-16, 05:02 PM
  #1153
Full Member


Hygoog's Avatar

Join Date: Jun 2015
Location: Alabama
Posts: 141
Received 9 Likes on 4 Posts
Originally Posted by Akaviri
Thank you. I cleaned it up quite a bit from the previous owner, but I didn't go too in-depth. If you get a cooling panel be sure to get one that has a vent for the intake tube.

I didn't know you could pressure wash an engine bay, nor have I heard of steam cleaning one. Did you do that yourself or take it somewhere to get done?
Sweet ok. Yes you can lol just be careful when you do. Cover up your sensors and electrical stuff. I covered up my sensors, battery, and alternator. Just spray lightly. Dont soak it completely. Make sure the car is cold when you start cleaning. I used a pressure washer and steam cleaner from harbor frieght. It gets the job done for the price.
Old 08-12-16, 09:10 PM
  #1154
Full Member


Pietro931's Avatar

Join Date: Sep 2012
Location: Florida
Posts: 185
Received 12 Likes on 10 Posts

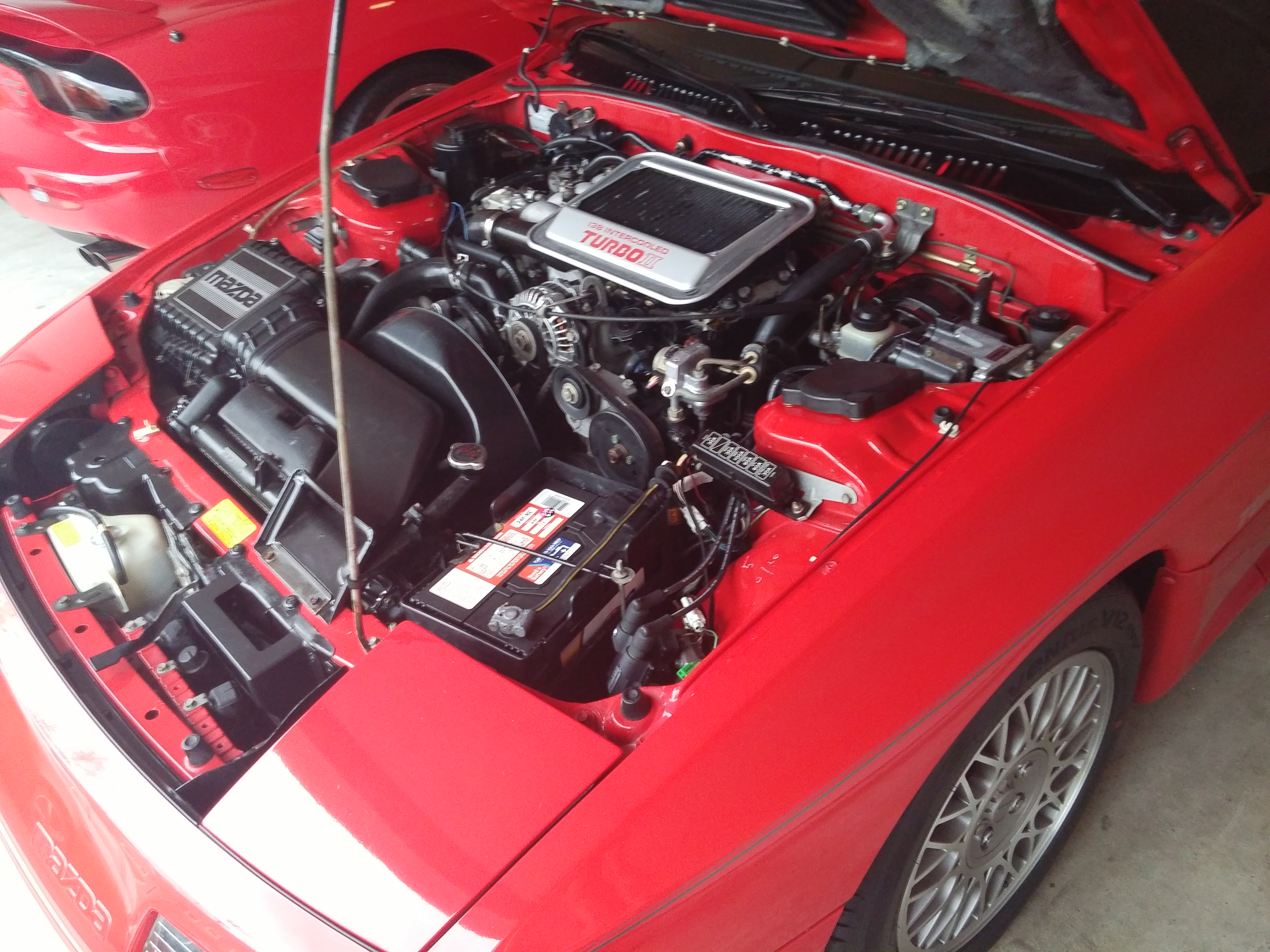

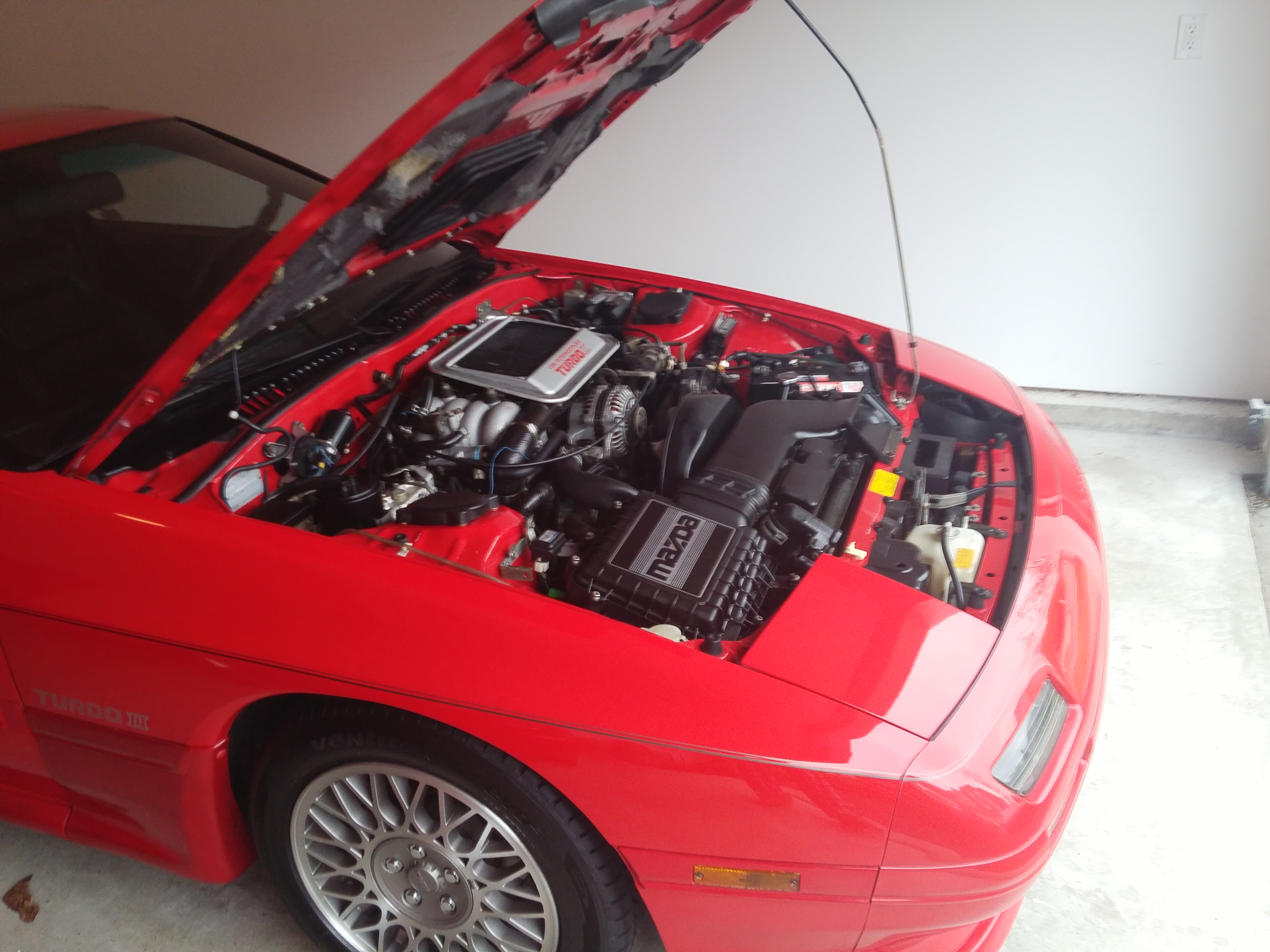

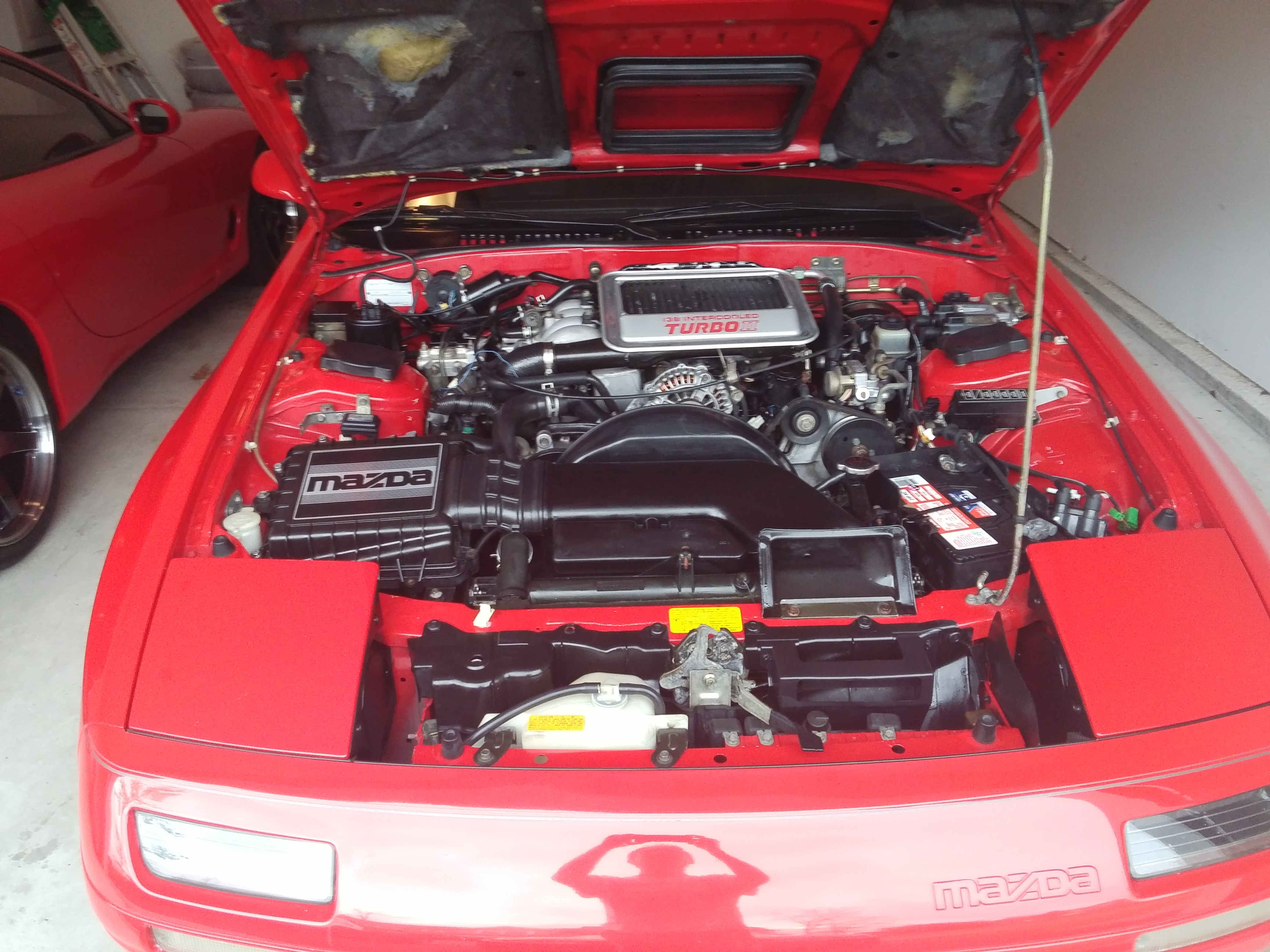

89 Turbo II

All Stock
Attached Thumbnails Post pics of your engine bay-20160508_074917.jpg   Post pics of your engine bay-20160508_074843.jpg   Post pics of your engine bay-20160508_074901.jpg
Old 08-12-16, 10:13 PM
  #1155
Full Member


Hygoog's Avatar

Join Date: Jun 2015
Location: Alabama
Posts: 141
Received 9 Likes on 4 Posts
Nice. A clean stock engine is hard to beat. I wished mine was turbo...sigh. You have a fc and fd! Ohhhh yeaa!
Old 08-13-16, 05:55 AM
  #1156
Full Member


Pietro931's Avatar

Join Date: Sep 2012
Location: Florida
Posts: 185
Received 12 Likes on 10 Posts
Originally Posted by Hygoog
Nice. A clean stock engine is hard to beat. I wished mine was turbo...sigh. You have a fc and fd! Ohhhh yeaa!
Thanks. One of each and both red and black. FC 59k miles, FD 28k miles.
Old 08-13-16, 07:40 PM
  #1157
SSS-TUTUTU

iTrader: (7)

ILoveJDM's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 398
Likes: 0
Received 1 Like on 1 Post
Old 08-16-16, 12:39 PM
  #1158
Full Member

infernosg's Avatar

Join Date: Aug 2016
Location: Richmond, VA
Posts: 138
Likes: 0
Received 5 Likes on 4 Posts
Work in progress...

Old 08-27-16, 01:44 PM
  #1159
Rotary Enthusiast

ben.farnath's Avatar

Join Date: Sep 2010
Location: new zealand
Posts: 804
Received 8 Likes on 5 Posts
^^^^^^^^^^^^



Current situation. Deloomed. Only wired left are power wire to insulated power stud for remote start and from the oil level and pressure senders. Next is painting motor and finish the ecu wire up. Tidy up the brake lines from abs delete then piece it all back together.
Old 08-27-16, 09:41 PM
  #1160
Full Member

infernosg's Avatar

Join Date: Aug 2016
Location: Richmond, VA
Posts: 138
Likes: 0
Received 5 Likes on 4 Posts
Originally Posted by ben.farnath
^^^^^^^^^^^^
Hopefully it'll run as good as it looks! I love the Gilmer setup. It's too bad there's not a compatible FFE trigger kit otherwise I'd be running them as well.
Old 08-28-16, 01:49 AM
  #1161
Rotary Enthusiast

ben.farnath's Avatar

Join Date: Sep 2010
Location: new zealand
Posts: 804
Received 8 Likes on 5 Posts
Originally Posted by infernosg
Hopefully it'll run as good as it looks! I love the Gilmer setup. It's too bad there's not a compatible FFE trigger kit otherwise I'd be running them as well.
What's the purpose/benefit of the ffe trigger setup over factory cas? I had never seen it before.

The Gilmer kit was out of necessity at the time somehow managed to shear off two of the main crank pulley bolts and warped the pulley. Now I need a replacement matched pair stock pulley and hub to do timing for the microtech. Fml.
Old 08-28-16, 07:57 AM
  #1162
Perfectly Broken

iTrader: (7)

GuiltySoul's Avatar

Join Date: Jul 2010
Location: Dirty Jerz
Posts: 1,288
Received 4 Likes on 3 Posts

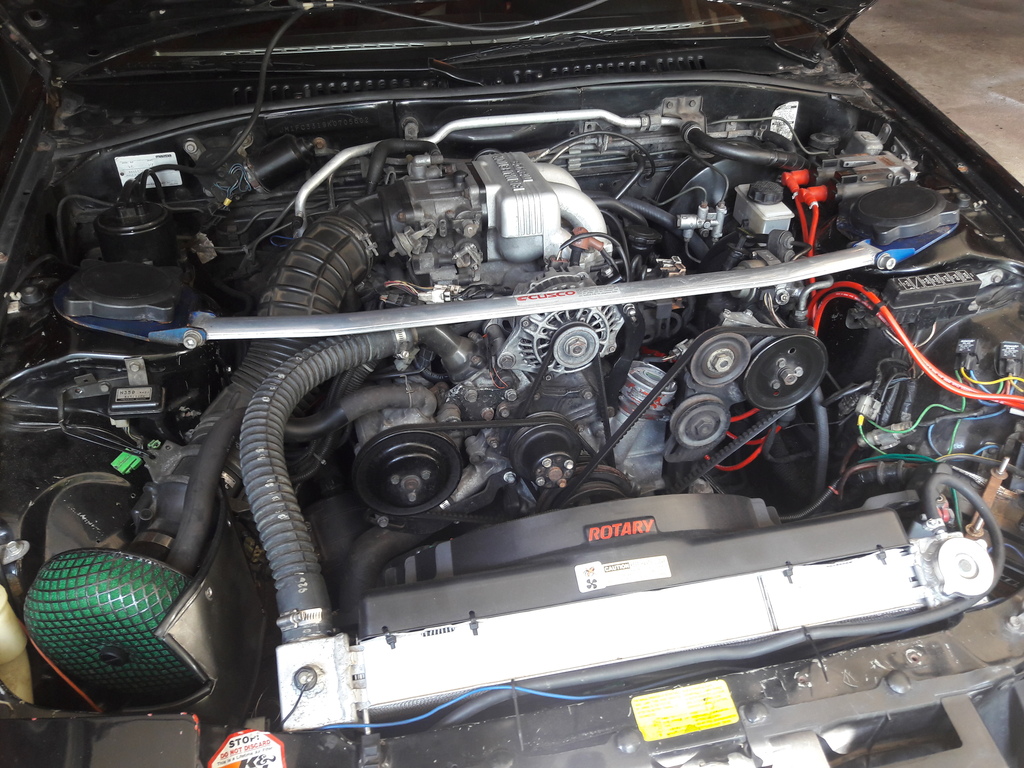

My stock na
Name:  20160721_162841_zpsmnf200hq.jpg
Views: 316
Size:  399.2 KB
Old 08-28-16, 07:27 PM
  #1163
Full Member

infernosg's Avatar

Join Date: Aug 2016
Location: Richmond, VA
Posts: 138
Likes: 0
Received 5 Likes on 4 Posts
Originally Posted by ben.farnath
What's the purpose/benefit of the ffe trigger setup over factory cas? I had never seen it before.

The Gilmer kit was out of necessity at the time somehow managed to shear off two of the main crank pulley bolts and warped the pulley. Now I need a replacement matched pair stock pulley and hub to do timing for the microtech. Fml.
It's a higher fidelity crank angle signal, which gives me more accurate and minute control over fuel and spark. Considering my rotating assembly is balanced for over 10,000 RPM and I have ceramic apex seals I didn't want to take any chances.
Old 08-29-16, 01:42 AM
  #1164
Rotary Enthusiast

ben.farnath's Avatar

Join Date: Sep 2010
Location: new zealand
Posts: 804
Received 8 Likes on 5 Posts
Well fair enough! 10000rpm-mmmm that'll be some aural ecstasy
Old 10-13-16, 04:59 PM
  #1165
87 SE WITH S5 T2 SWAP

iTrader: (11)

joeylyrech's Avatar

Join Date: May 2004
Location: allentown pa
Posts: 2,071
Likes: 0
Received 3 Likes on 2 Posts
PA px

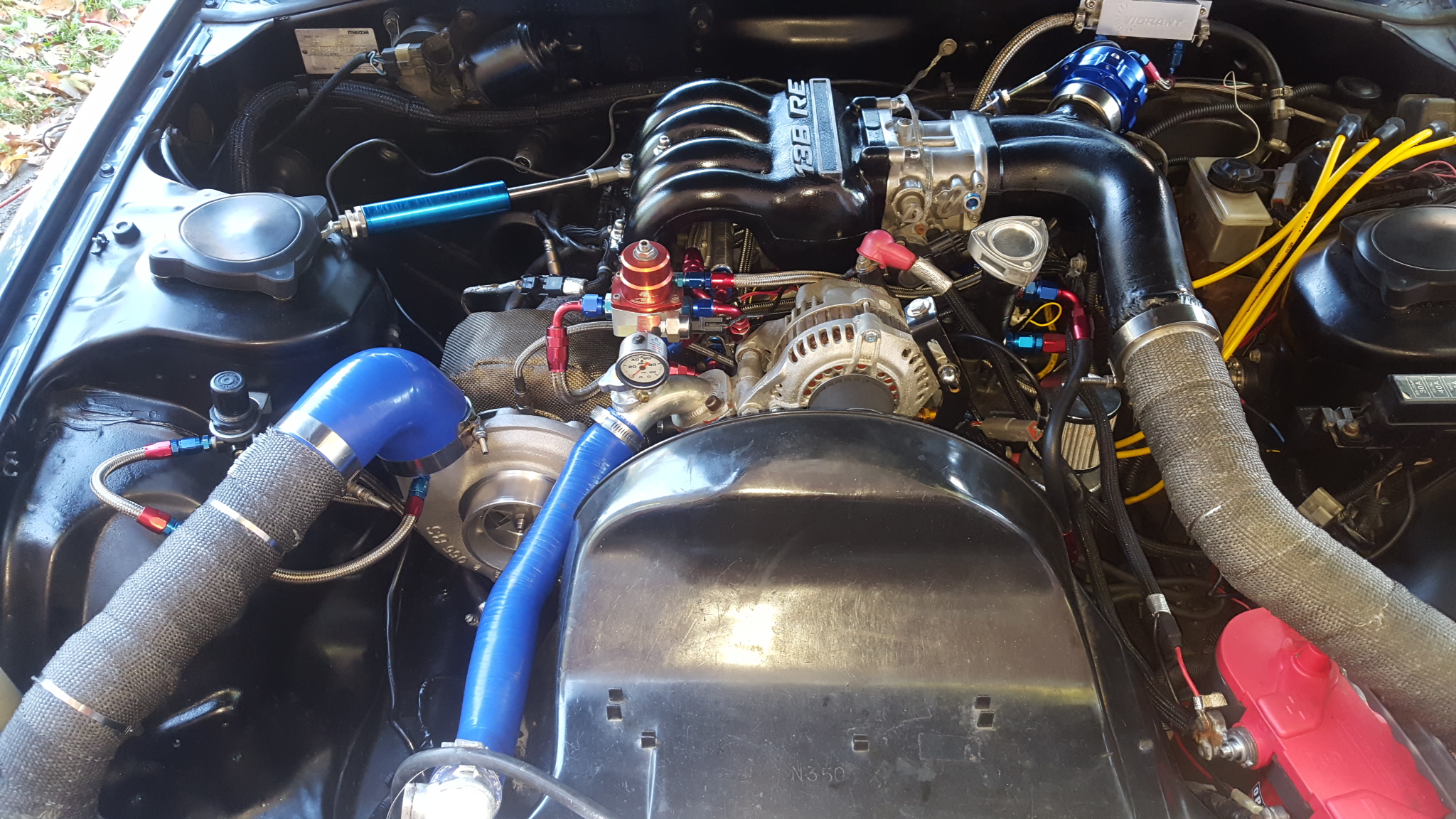

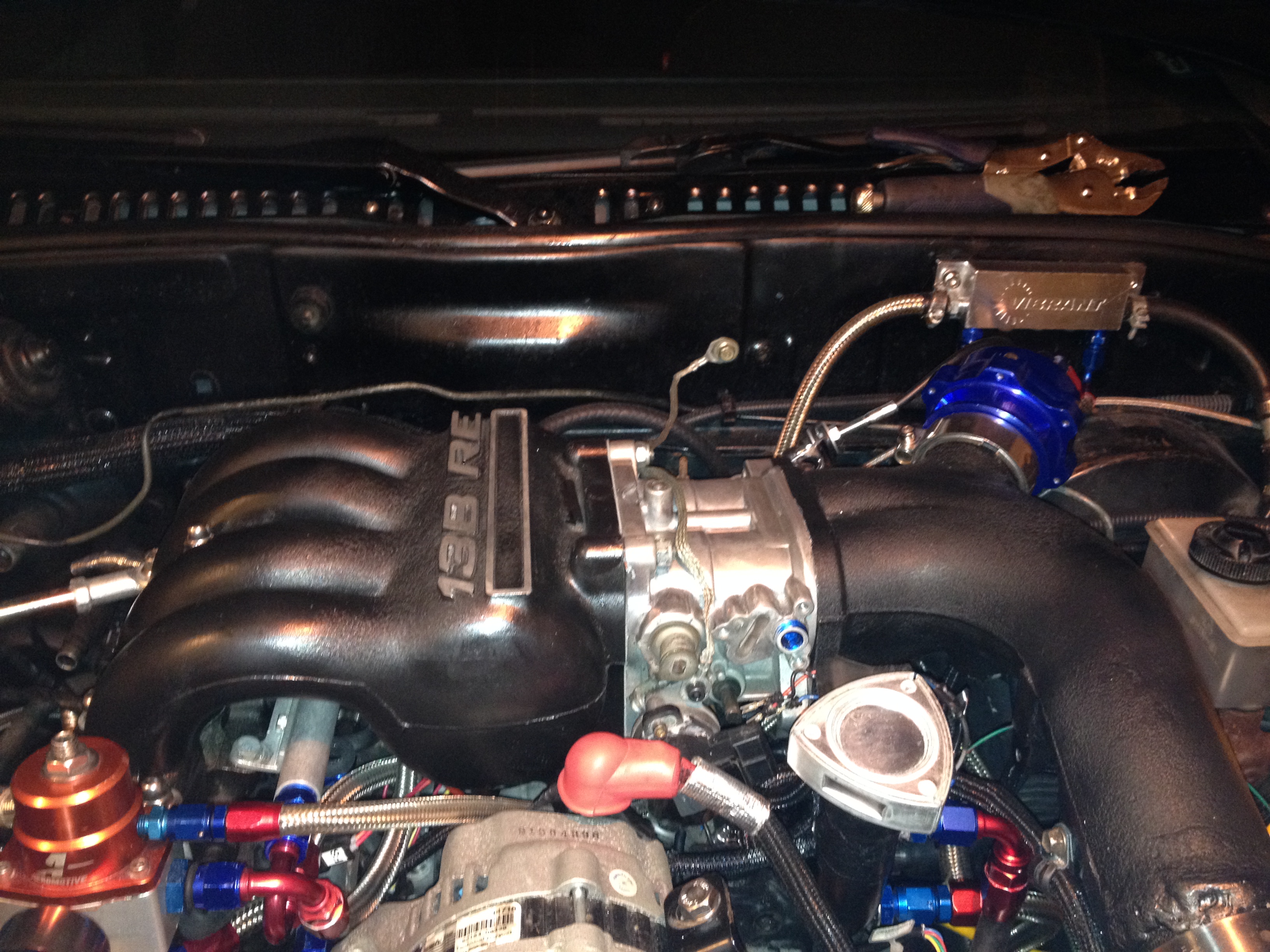

my fc engine bay
Attached Thumbnails Post pics of your engine bay-20161006_124310.jpg   Post pics of your engine bay-20161006_124333.jpg   Post pics of your engine bay-image2.jpg
Old 10-16-16, 03:26 PM
  #1166
Senior Member


GeenIdee's Avatar

Join Date: Apr 2009
Location: netherlands
Posts: 568
Received 41 Likes on 22 Posts
Old 10-17-16, 11:07 PM
  #1167
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
^
Very artfully arranged, this one.
Old 10-18-16, 11:15 PM
  #1168
Perfectly Broken

iTrader: (7)

GuiltySoul's Avatar

Join Date: Jul 2010
Location: Dirty Jerz
Posts: 1,288
Received 4 Likes on 3 Posts

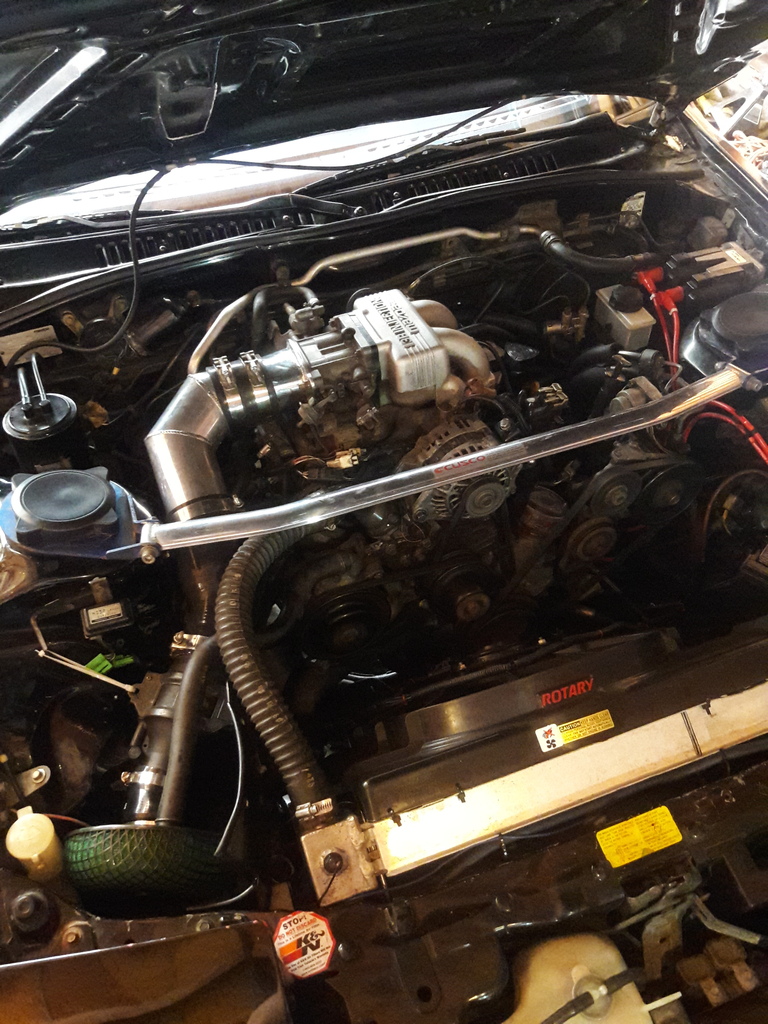

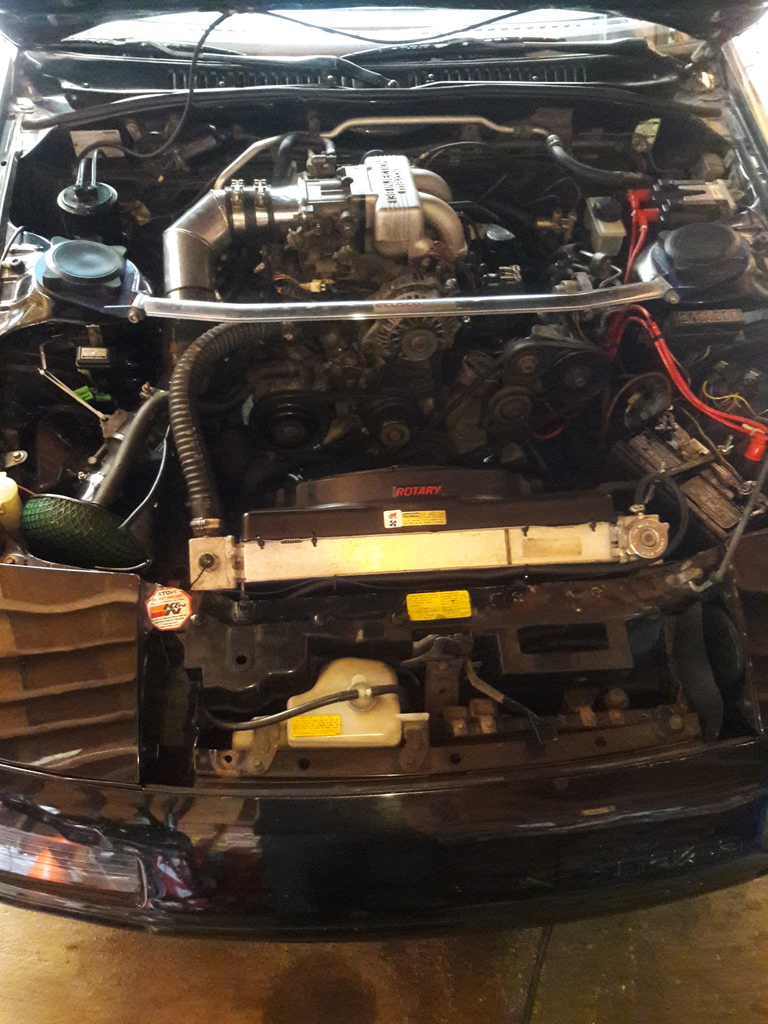

Lil update, installed a corksport intake, meant to fit s4 models but i modded it to work on s5
Name:  20161018_143603_zpseulysz0b.jpg
Views: 284
Size:  381.8 KB
Name:  20161018_143536_zpsif6hkzvr.jpg
Views: 288
Size:  406.4 KB
Old 10-28-16, 03:49 PM
  #1169
Senior Member

iTrader: (1)

rookie117's Avatar

Join Date: May 2005
Location: Mount Pleasant, Tx
Posts: 693
Likes: 0
Received 4 Likes on 1 Post
Old 10-28-16, 05:01 PM
  #1170
Senior Member


cib24's Avatar

Join Date: May 2015
Location: UK
Posts: 335
Received 13 Likes on 12 Posts
Originally Posted by Pietro931
All Stock
Beautiful. Have you had the engine bay resprayed? Looks new from afar in the photos.
Old 10-28-16, 05:02 PM
  #1171
Senior Member


cib24's Avatar

Join Date: May 2015
Location: UK
Posts: 335
Received 13 Likes on 12 Posts
Originally Posted by infernosg
Work in progress...

Lovely. Curious question. When you go to respray everything do you spray rust converter or stopper as a precaution before prepping and spraying a new coat of paint?
Old 11-03-16, 06:53 AM
  #1172
Full Member

infernosg's Avatar

Join Date: Aug 2016
Location: Richmond, VA
Posts: 138
Likes: 0
Received 5 Likes on 4 Posts
Originally Posted by cib24
Lovely. Curious question. When you go to respray everything do you spray rust converter or stopper as a precaution before prepping and spraying a new coat of paint?
I had the car chemically stripped down to the bare metal before having it resprayed. The worst rust spots were cut out and replace/patched then the whole thing was primed and painted. I spent WAY too much on the body work for this car. Hopefully it'll be a long time before any new rust appears. I hate to think how much I'd have spent if I went with a "show quality" paint. It just goes to show how expensive proper body work is.
Old 11-11-16, 02:54 AM
  #1173
Full Member

iTrader: (1)

Sash91's Avatar

Join Date: Aug 2012
Location: Edmonds, WA
Posts: 130
Received 21 Likes on 10 Posts
Originally Posted by rookie117
Originally Posted by GuiltySoul
Lil update, installed a corksport intake, meant to fit s4 models but i modded it to work on s5

What fan shrouds are you guys using?
Old 11-11-16, 08:57 PM
  #1174
Junior Member

profc3s's Avatar

Join Date: Jul 2014
Location: 沖縄
Posts: 40
Likes: 0
Received 0 Likes on 0 Posts
I'm loving all these clean engine bays! It's giving me great ideas for mine.
