Well damn I guess I didn't take any pics of the mounts. I will try to take some tomorrow. the upper mounts to the lower bolt holes for the original rad. The lower mounts to existing holes in the frame. For the fan, I am using a flex-a-lite black magic fan mounted as a puller. It hangs a little low but only about 1.5" below the stock bumper.



I think your BOV is in the wrong spot Shouldnt it be after the turbo?



He has it in the right spot. It is mounted on the intercooler then has it recirculated back into the intake.



goddamnit im a moron. i have the damn synapse and i should have known that it enters the side and exits the front...

thank you for clearing that up.



lol... All good. I do **** like that all the time



lol i too had to do a double take. then was waiting to see who would be the first to make the comment

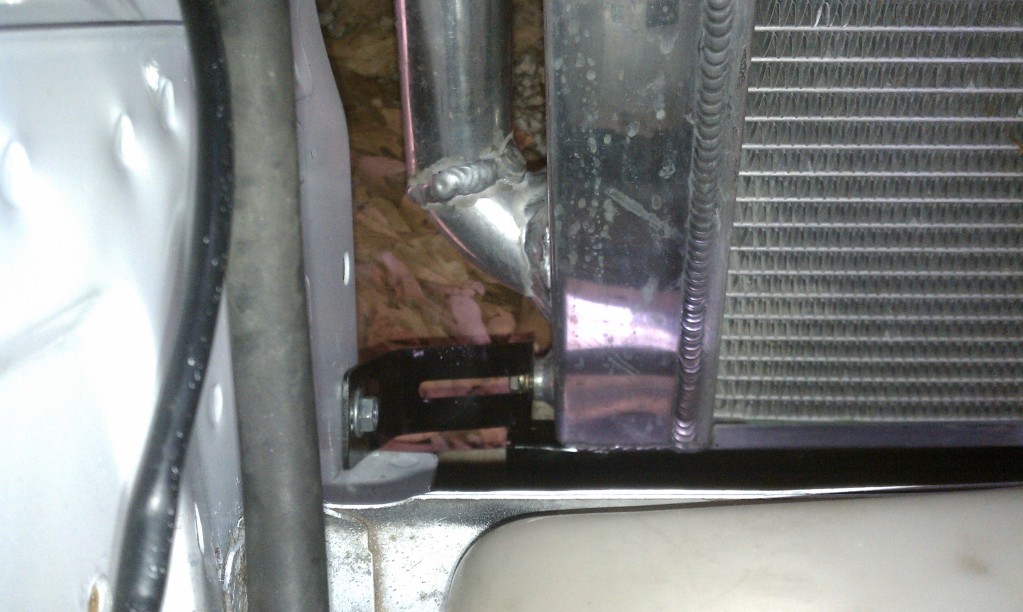

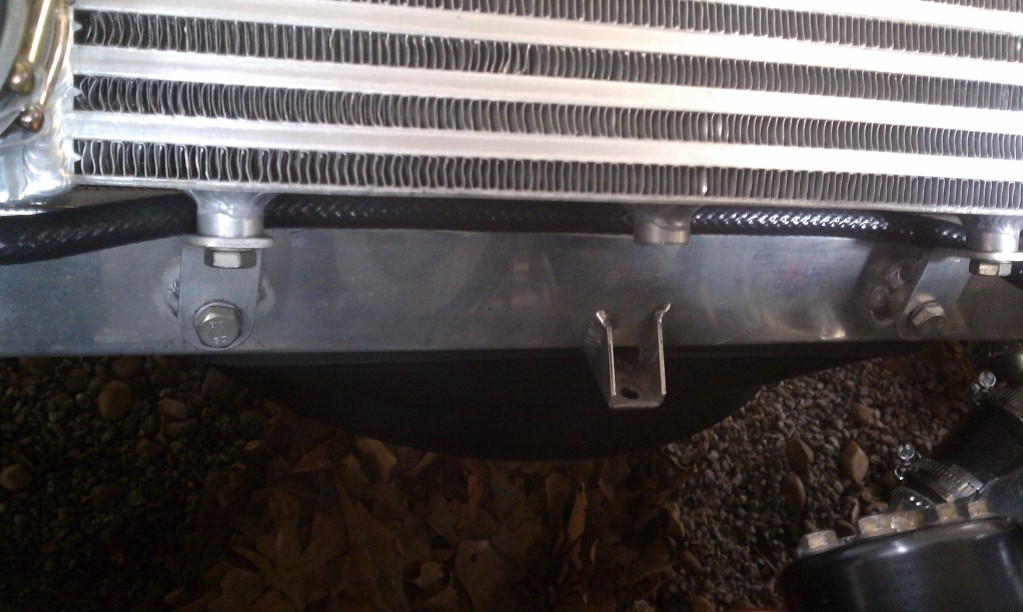

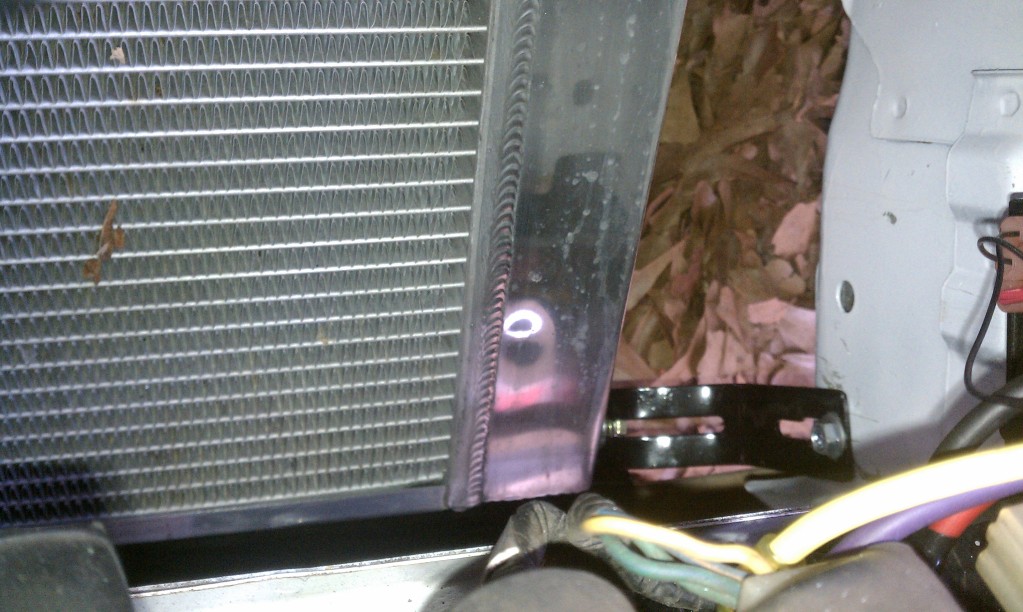

Ok here is the pics of the mounts. sorry for some of the blurry pics.

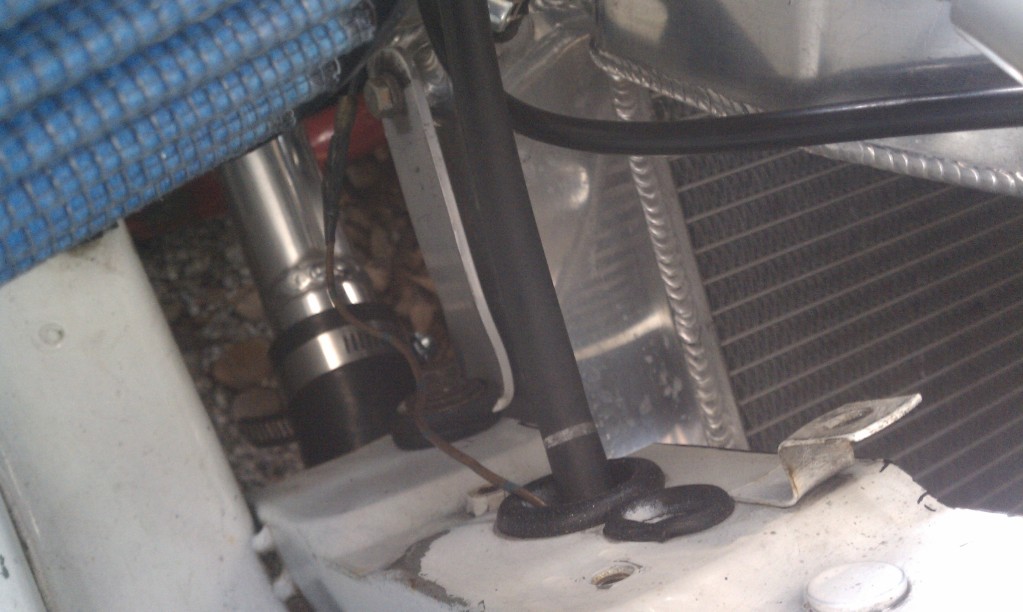

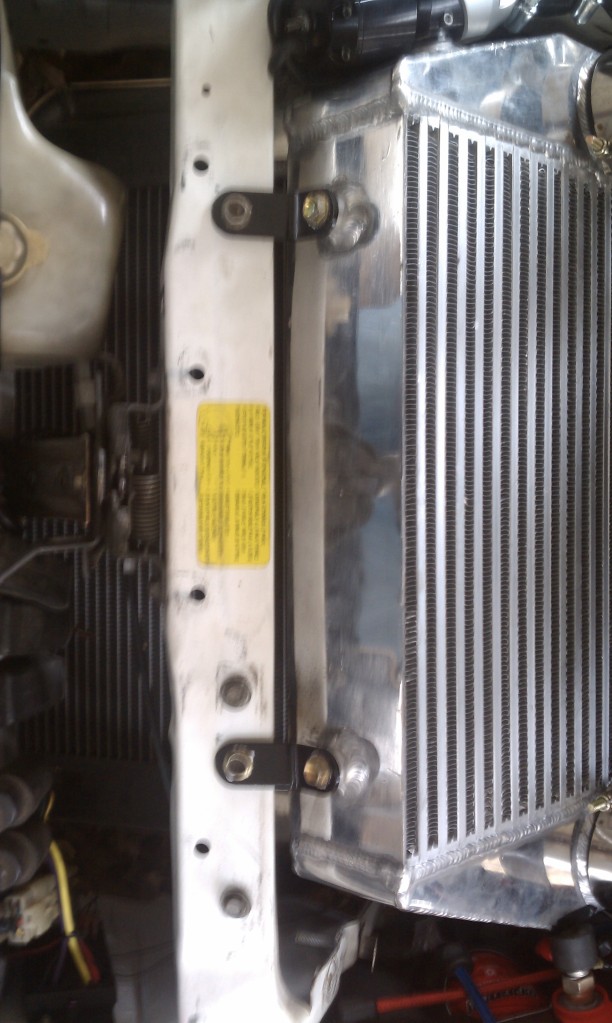

This is the upper mount. The driver side is exactly the same. Mounting this way gave the radiator a little bit of flex (room for error) and is solidly mounted with the intercooler.



looks good to me!!





^^So awesome! Definitely unique.

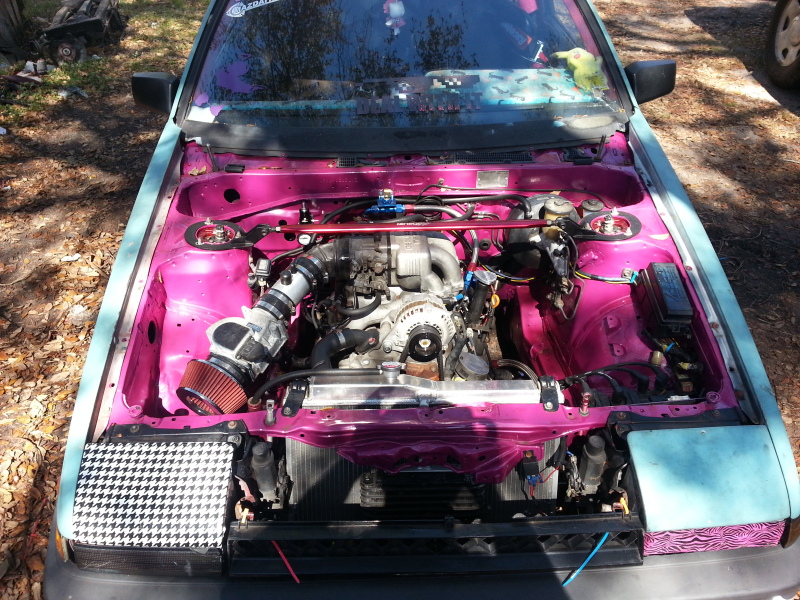

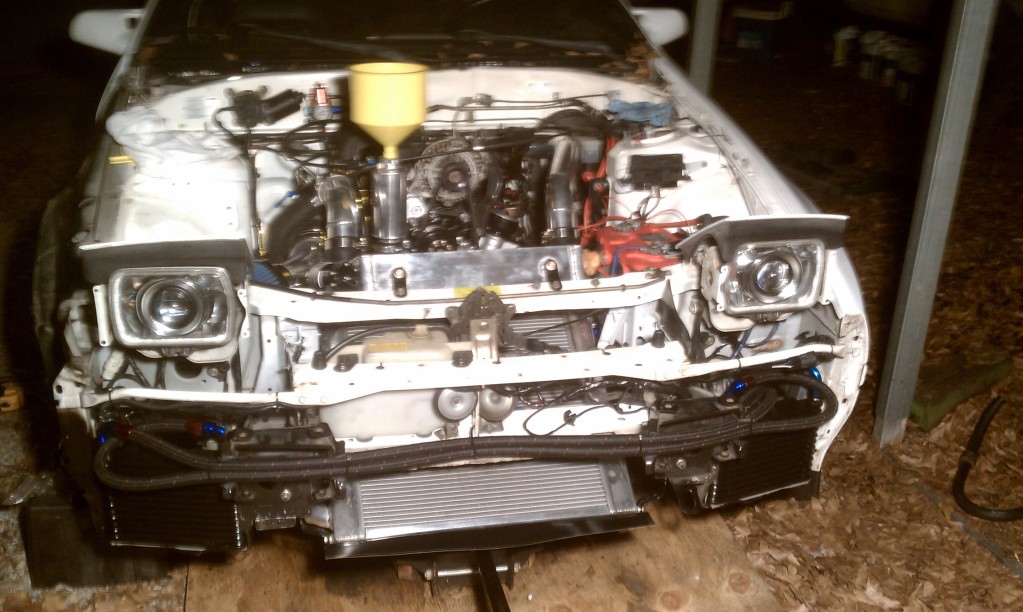

uhh, this is my bay right now.. something is missing.



Hey Duct Lover is that a custom set up or a kit? I'm going Vmount very soon and I'm gathering all parts and info on kits now. I've read bad things on one kit that I'm not goin to speak on, and that is due to fitment issues...
Any info will help, I'm not trying to copy your kit. I'm just looking for info for my future setup.
Thanks



I made it myself. You can copy it if you like, doesn't bother me.



clean



what kind of coating is on the turbo and manifold? i love it!!!



VHT wrinkel coat. Spray and bake. The finished product turned out better than I expected.



Ok thanks my bov will be ok the intake side and more than likely atmospheric instead of back in to the intake of the turbo. When mine is done ill give you full credit of what I do of you design...





wow very nice. I miss when mine looked like that.



Let the hate flow through you....



How long did your finger hover over the post reply button? I know it was a while... Anyway, nice motor bro. Does it BRAP? Or Bwaaaahhhhhhh? Or Raaaawr?



growwwl groowwwl. haha



wheres the snail?!



Wow! Very clean !! I was going to post a picure of my engine bay until I saw this .



I don't think I should put a snail on it. I'll get myself into trouble!



put something on it hurley, do it do it now


flame away
