I am trying to determine which front mount i want to use on my fc. with the pic can you specify which fmic you are using?



There is Corksport and then there is Greddy/Freddy. Only 2 options I am aware of.

The Freddy (knockoff greddy) is nice because it is cheap.
The Corksport is nice because it is more hidden behind the front bumper.

If I had to choose a fmic now, I'd make a custom one with no gap between the radiator and intercooler. Intercooler right behind or right in front of radiator. Lots of FD fmic kits are set up like this.



custom!

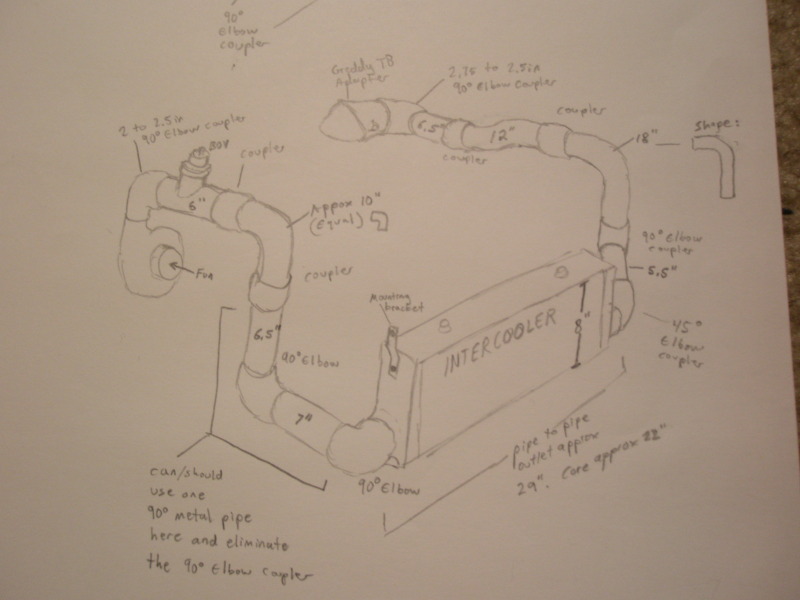

here is my awesome diagram!



I'll bomb this thread with my greddy elbow for sale that has been modified to eliminate the need for a 90* coupler. It's a great piece, but I went FD uim/tb and can't use it anymore. Would be great for a custom fmic or vmount.

https://www.rx7club.com/2nd-generati...urbo2-1009349/



i think the guy i bought mine of off said it was a corksport



In and out on the same side

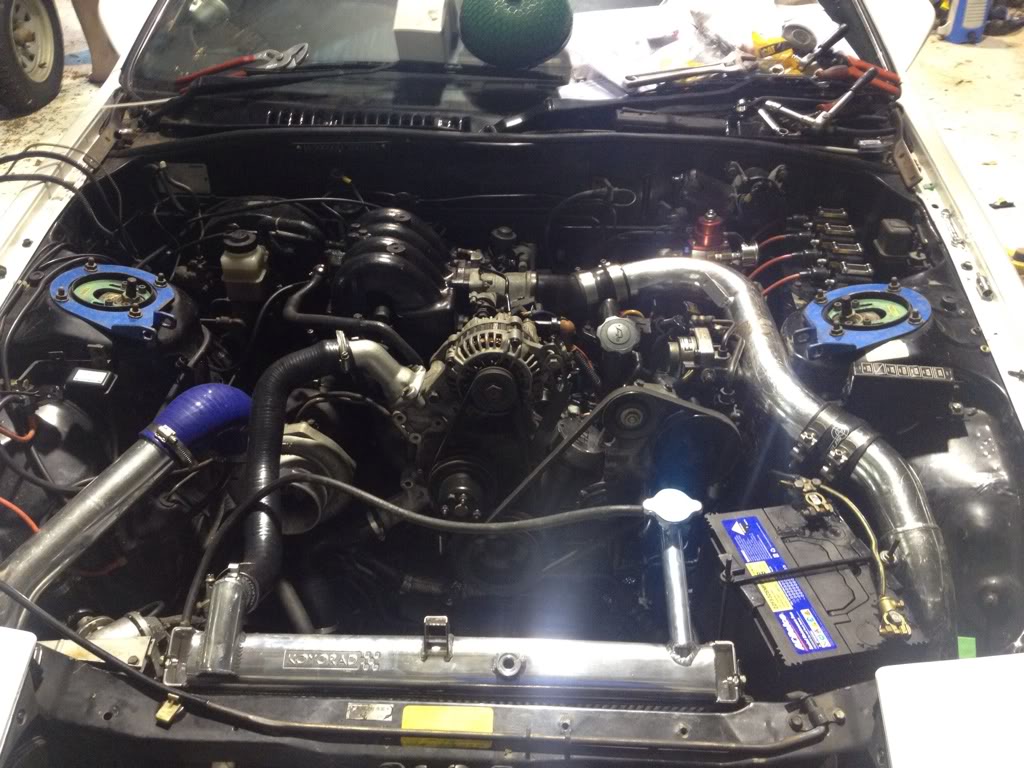

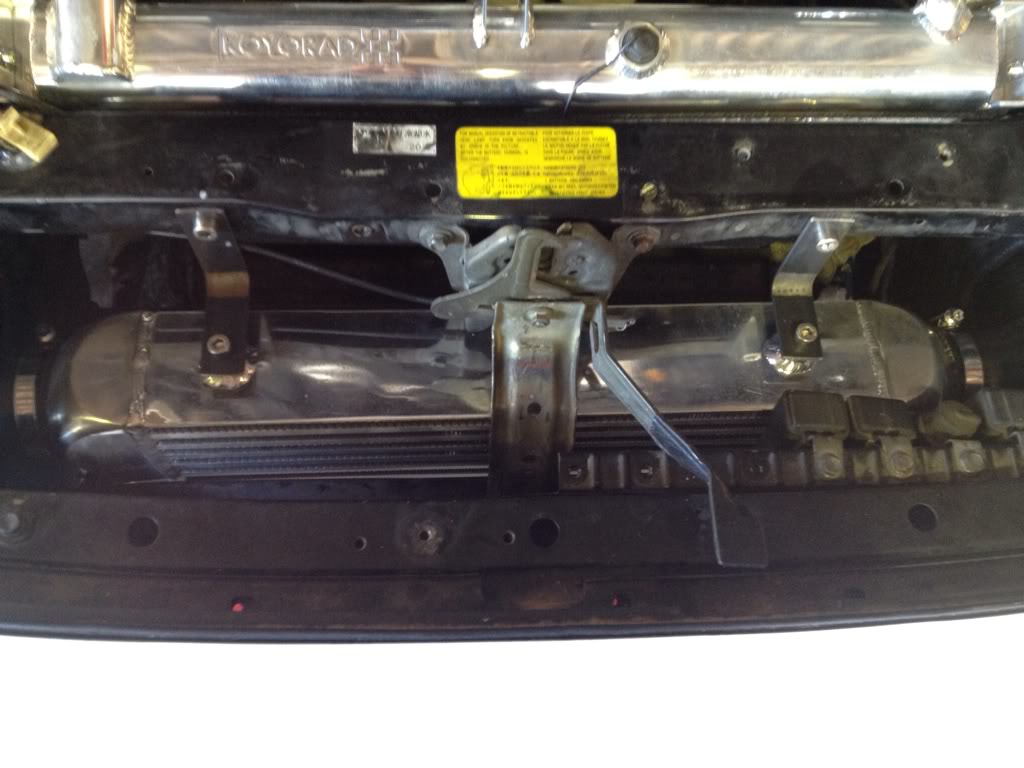

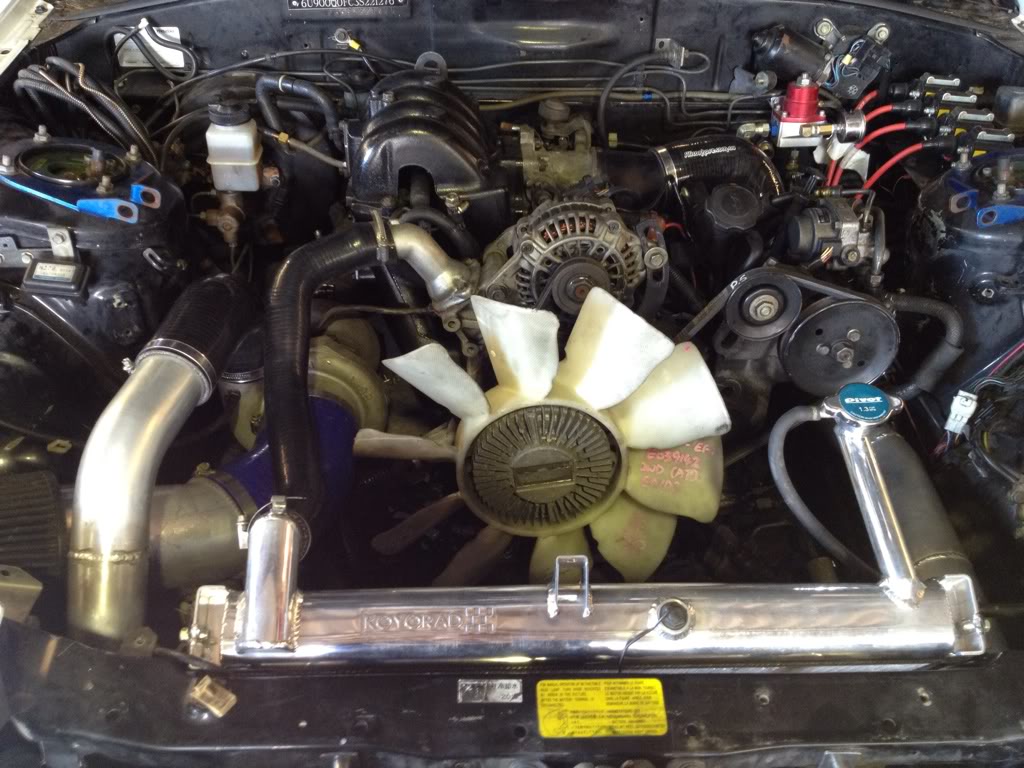

mine is the freddy lol. for now...




******* at the bar backed into me hence the paint crack. damnit!



its an emusa intercooler kit which is a knockoff of the greddy design. Super cheap but it works



it looks like the coupler says emusa but i can only see a few letters

good looking cars guys... im thinking about getting a 2 or 3 row greddy becuase im expecting to put down around 400-450

keep the pics coming please



emusa couplers yes but idk if they made the kit or not. and i would say my car is not far from those numbers(300-350) and my setup is great so far



That is not the corksport fmic kit. Their kit utilizes the factory compression tube and elbow coupler.

CORKSPORT 'Power Series' RX7 FMIC Kit
http://support.corksport.com/instruc...-6-125-WEB.pdf

Your kit looks like the classic Greddy/Freddy fmic kit judging by the first 2 pipes off the Greddy/Freddy compression tube.



Which fmic setup allows u to keep ac &ps cause the corksport says it doesn't work with ac

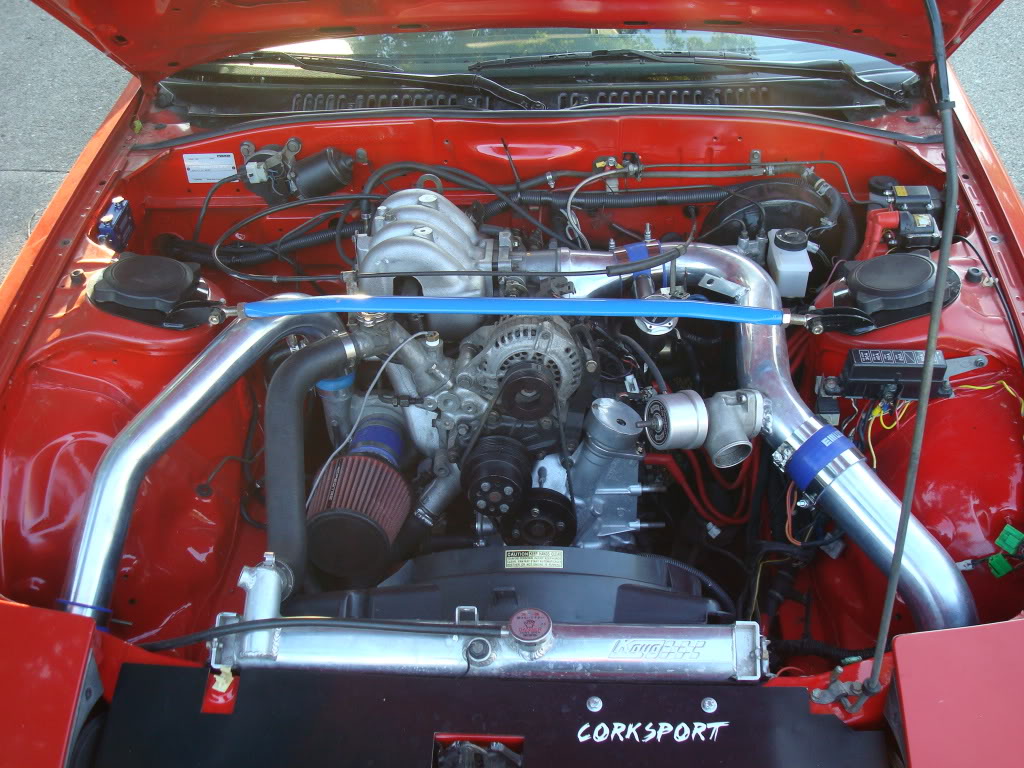

My set-up: GReddy Front Mount Intercooler Kit. I love it.



So the freddy kit would work also then? Where did get your cooling plate from



im glad someone knows i have been trying to figure out what it was for a while now



were you specifically after an off the shelf kit?

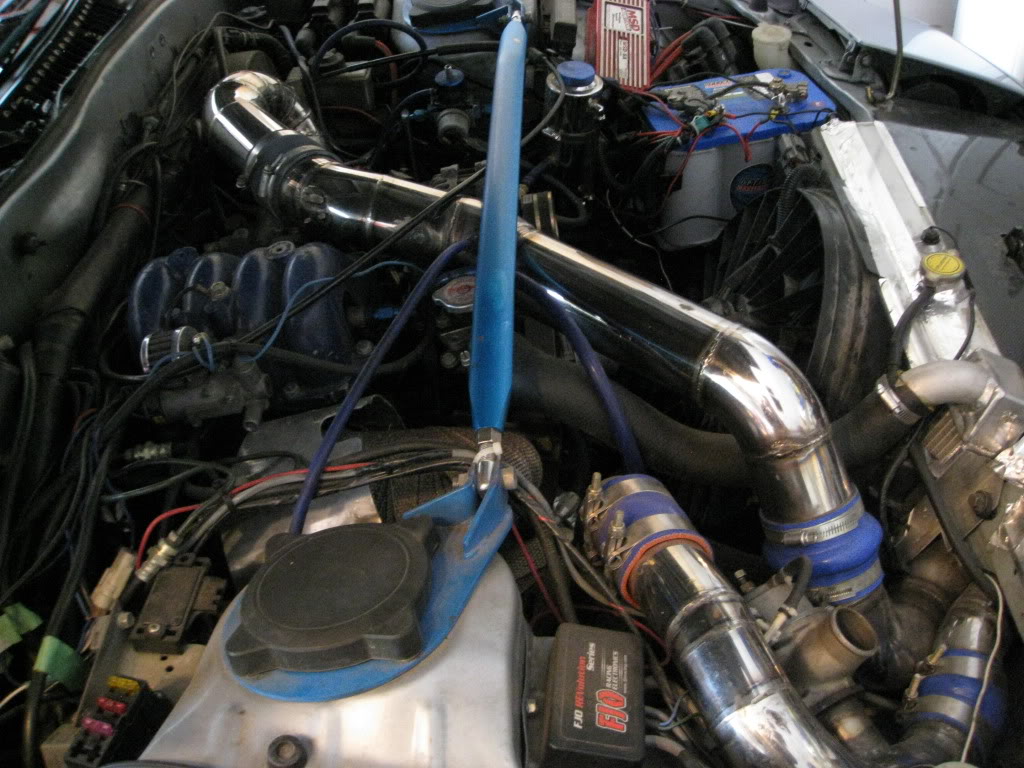

heres mine





i did have a freddy so to speak, i dont like how they fit, my new setup is much better and it can run a stock bumper


this was my other kit



what brand is the new kit. im looking for something where i can keep the bumper



here's mine greddy knock off I think. modified it to utilise stock throttle body hat.



its homemade, and nice and simple, me likey



Not so much homemade, I think you mean custom, I had a shop make it to what I wanted

Tig welding alloy is out of my skill set



Just a heads up. Ebay cores are garbage.
my brother tunes evos and he had one of his customers come back with an "upgraded" intercooler core that replaces the factory one in its stock location. THis cooler was nearly twice the size of the original and it made less whp. on AVG.

What i mean is. that it did make 5 more whp on the first highwaypull but everypull after that it made 20-40 less whp. INtake temps went through the roof and ecu pull timing naturally resulting in a slower car. my brother told him to go install the factory one back on- and the car was retuned and whp became consistent again. The kid and my brother eventually got True garrett cores that cost 600$ for just the core. garret cores own all cores.

Gl.



i think ill get just the core and have custom piping made



What kind of bumper is this? BN? Don't mean to thread jack just curious



^gp sports!



https://www.rx7club.com/2nd-generati...cooler-922171/
my setup some people was talking about oil cooler being restricted but i been driving with this for over 2 years and never had a oil temp problem

i still have a fog light and its a 3inch core that u can barely see it
