rotarygod

iTrader: (1)

They actually aren't as large as they appear to be. The Cosmo and FD intake ports enter the engine at a downward angle as opposed to straight in. Cut a pipe or tube at an angle and then look at how much the area appears to increase when viewed from straight on. They are larger but not as much as they look like they are.

Chaotic_FC

i think in that case, i might just do a full bridgeport on the engine, port the crap out of the intake and matching ports, a custom intake such as your car has, and i guess i'll have to do that t4 hotside.
and i'm poor, but horsepower is much more attractive to me than bad mileage is unatractive, so i can live.
This car is my daily driver, so i think i might be a little nuts to be doing this, but hey, why not?

does anybody here have any knowledge about this thing i've seen before on this forum; its where you remove the gap between the aux ports and the 5th+6th ports? is there any downside to this conversion?>> besides MPG, i already know thats gunna be bad..

84stock

iTrader: (5)

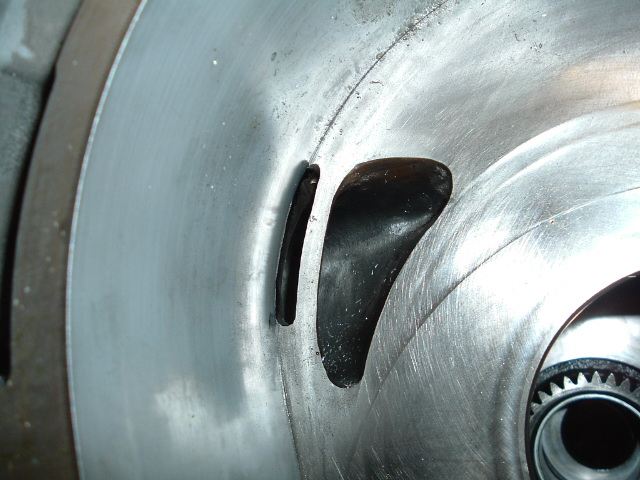

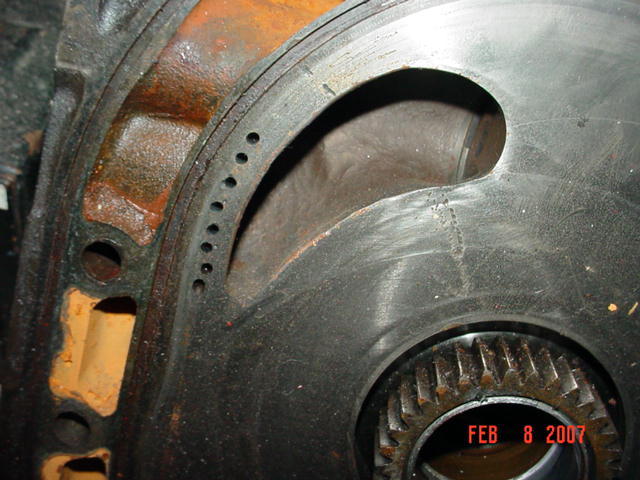

Don't remove the gap between the ports. That will make the port tooooo big and you will end up losing port velocity. Here is a pic of a torn down engine with that done, I call it the "Abomination Port". Compare it to the stock 6 ports and the streetport, there is just too much port for the intake to flow well. Leave the existing port alone, and add the bridge to the top portion of the endplates. It will be plentiful and strong and give the tradional brap (see my 4 port bridge pic, similar to what BDC does).

mikewoodkozar

I'd say it was a good deal for $900.00, how many motors have you rebuilt? Also, i am very jealous of you guys in warm climates, i cant do **** on my car till spring

mr2trd91

nice

PvillKnight7

iTrader: (16)

nice rims yo

Chaotic_FC

yeh, i guess i should bridgeport the aux and 5+6th ports, and do a full bridge on the secondarys
that should be good as a daily driver


i dont know what i would do if i lived up there..
down here, i can wear tanktops throughout the winter

Aaron Cake

iTrader: (1)

That makes very little sense, but I see what you are trying to say. Terminology needs to be cleared up though.

Full bridge = all intake ports bridged
Half bridge = intake ports on end iron bridged

If you are going to do a half bridge engine, you may as well go full bridge.

AlexG13B

iTrader: (7)

how did that drill port work out for you?

mikewoodkozar

still though, how many motors have you built?

Chaotic_FC

i was tired last night..
haha, i guess you got what i was saying
what i mean to say is FULL bridge

no, i have never built a motor before. I've done lots of car work though, just not on rotary engines.
however, i have lots of friends with rx-7s pushing 600+rwhp, and i only need to look at one of those engines once to see what i have to do.

Chaotic_FC

so its been a little bit since i updated this thread

i've come to my final conclusions on my engines rebuild

if anybody has any high compression rotors they'd like to trade for some TII rotors, let me know..

my funds are insufficient to get a standalone EM system (for now) so bridgeporting is out

so i decided to go with a pretty aggressive streetport (compare them to the pics of when the engine was torn apart)

heres what i have so far;





please do not remind me, i am not COMPLETELY done with them, i have yet to make the ports a mirror finish



does anybody have any advice, now that my primarys are ported up, how much should i port my secondarys; keep in mind that this is a 6 port

Mikey_240

good stuff good luck with the build

synergy7

iTrader: (20)

The plates you have do not look ported "AT ALL". The runners have been modified (HACKED UP) to accommodate the turbo manifold. The actual ports look like they have maintained the original opening and closing characteristics. The reason whoever did this, did not port the 5&6 ports into the primary ports is because of potential intrusion into the water jacket.

As far as port area 6 port motors already lean toward the larger side, I recommend new plates “Clean up” the runners and a mild “Street Port” primarily concentrating on enlarging the primary ports which are small on the 6 port motors. Bridges porting is not necessary for power since you are turbo charging. A good street will keep the car more daily drivable.

Aaron Cake

iTrader: (1)

You're going to need a standalone if you intend to run that engine with a larger turbocharger. Otherwise it will blow up again.

I suggest leaving the end irons alone. There is already plenty of port area.

Chaotic_FC

well, the overall port isn't that big, but the primarys are less than half the size that i made them stock, so i figure that that would be a good upgrade. along with a real nice polish on all 6 ports




for the moment i'm going to leave the turbo i have and keep it around 7-8psi of boost... my funds are insufficent to say the least..
but i already plan leaving the end irons' port area the same; i'm going to polish the living **** out of it though, cus it was pretty rough when i bought it.

Chaotic_FC

got a little bit more done today
cleaned out my engine bay a little more, relocated my battery to a storage bin

thinking about painting it a nice gloss black
does anybody have any recomendations on what steps i should use to prep for paint/what paint to use?

84stock

iTrader: (5)

engine bays look "stupid" if they are painted a color different from the body color in my opinion.

Chaotic_FC

i think that black matches everything wonderfully.

WadeMCarter

Black is the only color that you can get away with in the engine bay with a different body color, imo. But then again, I prefer white engine bays.

Chaotic_FC

Alright
so today i progressed a bit on the engine, its soon to be together now
i decided, due to the in-ablility to find 9.7-1 rotors, i'll just keep with my TII rotors
i have to pick up a set of oil control rings
and thats it!
all thats left otherwise is paint
heres where i am:


cleaned up rotor housings for painting;



same for upper intake, i have to do the lower tomorrow or something;



front cover..;




i heard that porting the TB was good for some ponies, so i did that too;




i took off the top piece to the stock intercooler, but this shouldn't be there for very long at all, so its just to compliment the rest of the engine...



got the fuel injection all ready for paint; defiantly going to get some better hose..



and heres my wonderful work area:




i plan on painting all the parts with that "metalcast" stuff that i've seen used before on the forum. going for a nice, black and silver metal flake, with some blue accents here and there

so whadaya think?

Chaotic_FC

I am almost ready to rebuild!

For the last 24 hours or so, i have been painting, painting, painting..

in these pics, the engine is not actually together, i just mocked it up for the pics:













very soon it should be running, and i'll take pics and videos

Latin270

You painted everything but the kitchen sink! Still looks good bro!

Chaotic_FC

haha, thanks man

Chaotic_FC

decided to mock up the intake on the engine;



Tell me whacha think!
