Lightweight FC Doors
Hi guys,
First and foremost, this modification is "race-only", don't do this to your daily driver and then blame me when you die.
Here is something I've been working on lately. I've been on a mission to drop some weight and started working on the doors. This weight is without any wiring, no window motors, no door panels, no glass (putting in lexan), the "webbing" all gone, as well as the side impact brace.
If anyone feels compelled to go out and weigh a power-window door, I would greatly appreciate it, since I didn't get a stock form weight. I eventually got the weight of each door down to ~27lbs.

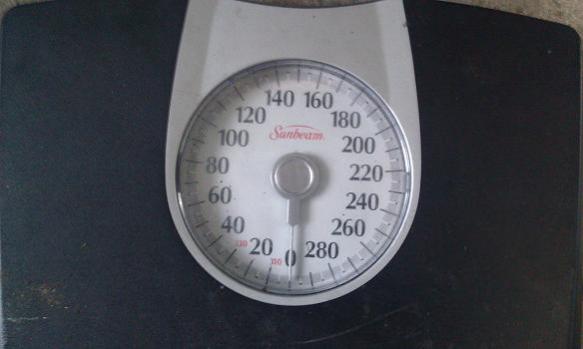

First pic is the scale "zero'ed".

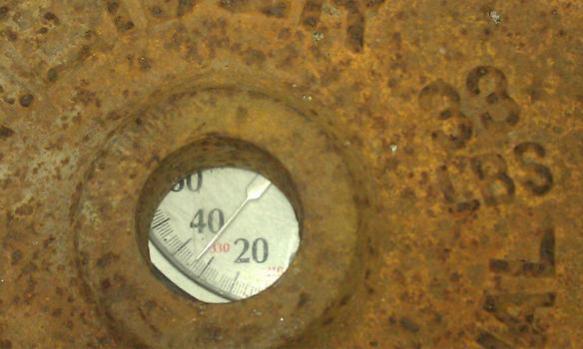

2nd pic is with a 33lb weight.

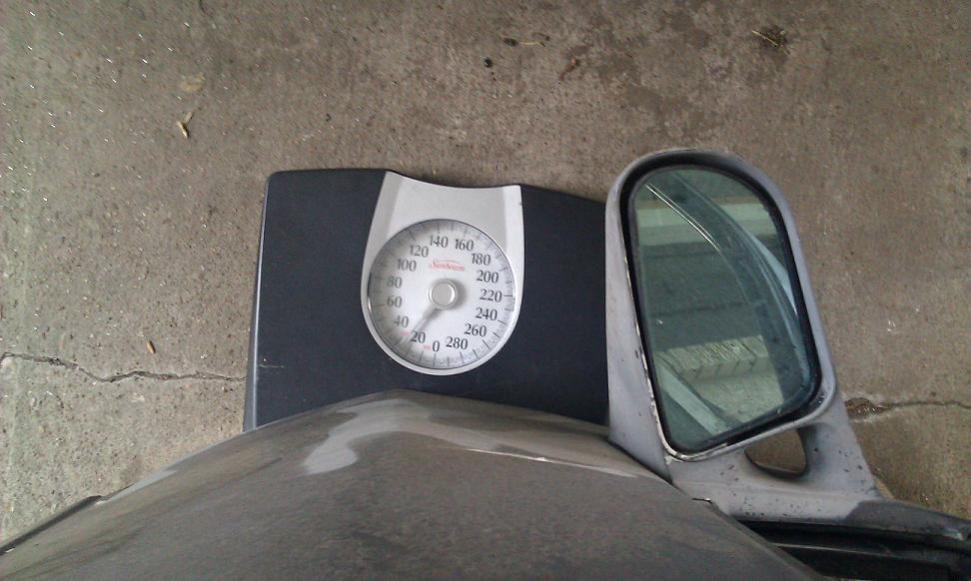

3rd pic is with door.
First and foremost, this modification is "race-only", don't do this to your daily driver and then blame me when you die.
Here is something I've been working on lately. I've been on a mission to drop some weight and started working on the doors. This weight is without any wiring, no window motors, no door panels, no glass (putting in lexan), the "webbing" all gone, as well as the side impact brace.
If anyone feels compelled to go out and weigh a power-window door, I would greatly appreciate it, since I didn't get a stock form weight. I eventually got the weight of each door down to ~27lbs.
First pic is the scale "zero'ed".
2nd pic is with a 33lb weight.
3rd pic is with door.
Last edited by bigdv519; 05-02-11 at 07:49 PM. Reason: spelling
05-03-11, 03:00 PM
#6
IFO Forced Induction Slo
Thread Starter
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
I dont know why, but I didnt weigh the doors in stock form.
Disclaimer: This isnt a show car. The car is primered. Yes there are plans to have a roll cage with drivers-side side-impact bar. Goals are to go fast, looking good comes second.
The work started out with an angle grinder and that seemed like overkill. I switched over to some handheld sheet metal snips. They worked great for the long straight cuts but were exponentially more difficult the tighter the curver became. The side-impact brace was first sliced vertically, then again a few inches away to create some wiggle room. Then the welds were drilled out. Theres some other thick metal bracing near the hinges and that was also removed. Also the guides for the window were also taken out.
I left some material for the stock inside door handle to be attached in the stock location.
The doors now are a little flemsy, but only on the hinge side. I figured I could remove more material here since the hinges would hold the door in place. On the handle side, I left more material and its still fairly strong.
In the first pic, just the webbing was cut out. Also the glass, window motor, and wiring harness. This opening was expanded out.

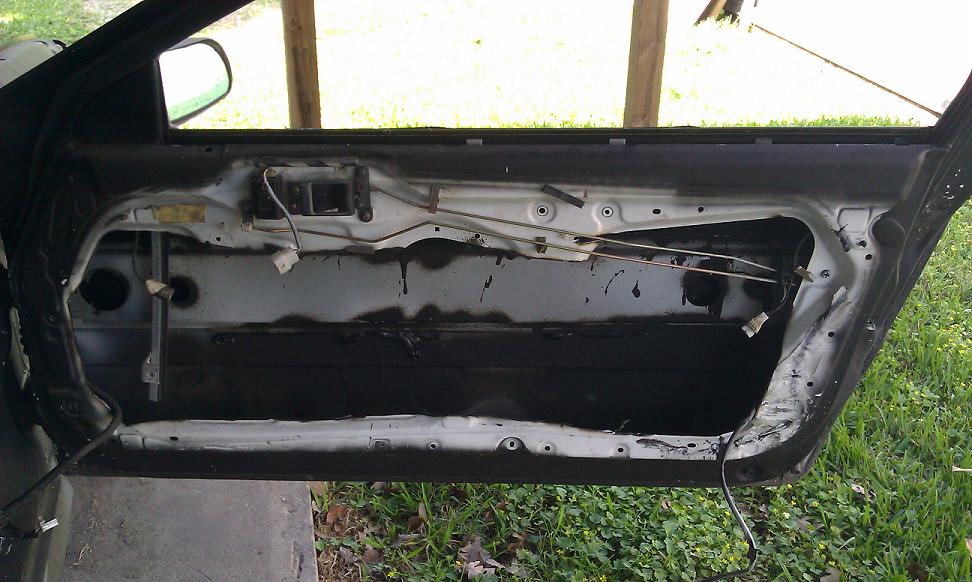

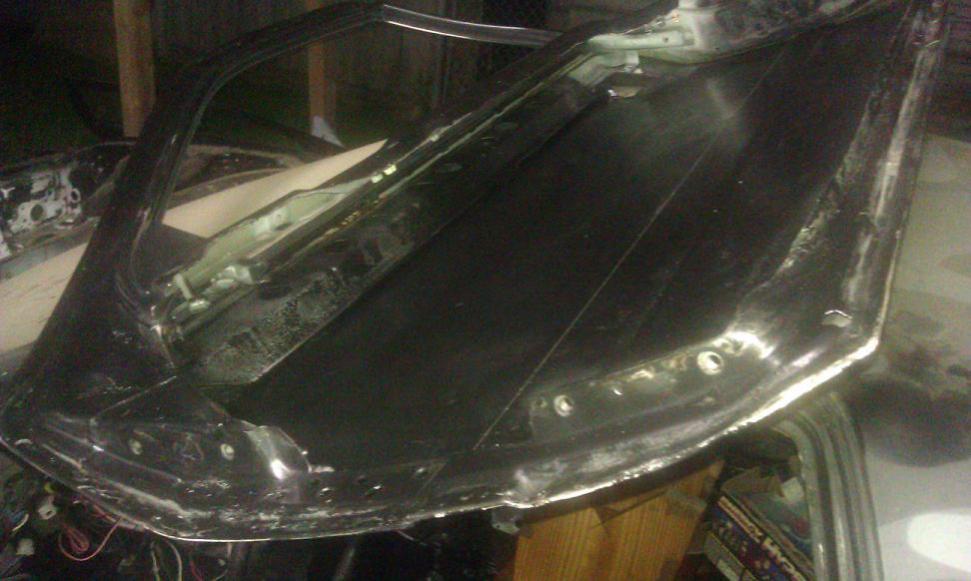

The second pic is the "final product", painted with some regular black spray can paint. The cutout area between the mounting holes for the hinges is the flemsy area. I dont think it will move too much once its bolted in place on the frame of the car.
Disclaimer: This isnt a show car. The car is primered. Yes there are plans to have a roll cage with drivers-side side-impact bar. Goals are to go fast, looking good comes second.
The work started out with an angle grinder and that seemed like overkill. I switched over to some handheld sheet metal snips. They worked great for the long straight cuts but were exponentially more difficult the tighter the curver became. The side-impact brace was first sliced vertically, then again a few inches away to create some wiggle room. Then the welds were drilled out. Theres some other thick metal bracing near the hinges and that was also removed. Also the guides for the window were also taken out.
I left some material for the stock inside door handle to be attached in the stock location.
The doors now are a little flemsy, but only on the hinge side. I figured I could remove more material here since the hinges would hold the door in place. On the handle side, I left more material and its still fairly strong.
In the first pic, just the webbing was cut out. Also the glass, window motor, and wiring harness. This opening was expanded out.
The second pic is the "final product", painted with some regular black spray can paint. The cutout area between the mounting holes for the hinges is the flemsy area. I dont think it will move too much once its bolted in place on the frame of the car.
Trending Topics
05-08-11, 07:12 PM
#9
100,000rpm redline
Join Date: Mar 2009
Location: whore house aka your mom's house
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
you could also get rid of the side mirrors and foam the inside of the door. It will not add for protection but at least stiffen it up. I think i'm talking about sea foam or something or "hard stuff"
05-08-11, 10:50 PM
#10
DILLIGAF
iTrader: (13)
Join Date: Sep 2006
Location: Houston tx
Posts: 1,873
Likes: 0
Received 0 Likes
on
0 Posts
like this? http://compare.ebay.com/like/3902000...=263602_309572
i use this **** to reinforce my bodykits. **** is awesome
i use this **** to reinforce my bodykits. **** is awesome
05-09-11, 03:26 PM
#11
IFO Forced Induction Slo
Thread Starter
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Sorry for not going into further detail. One of my other goals is to have the car look fairly stock from the outside. When I go to the Texas Mile, I might want to remove the mirrors. Thanks for the tip though.
05-12-11, 11:50 AM
#15
get an air nibbler and a die grinder to smooth out the sharp edges, that will allow you to take off more material easier and quicker. gut out the mirrors and epoxy the glass in place where you need them aimed. i would also get some compressed cardboard(i forget what is called) and make some makeshift door panels, i made some for the repu and they really don't weigh much and i would much rather have them on there to keep myself from getting sliced up on the raw metal in case of a real accident which likely will happen.
05-12-11, 12:09 PM
#16
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
our last tech inspection on the race car, the inspector had us either roll the edge of the inner door, or put some kind of protector on it, so its not sharp.
05-12-11, 02:03 PM
#17
IFO Forced Induction Slo
Thread Starter
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Karack - Awesome advice. I didnt plan on going into the mirrors, but I will now.
j9fd3s - Wow, I hope they let me pass with mine. I removed 98% of the burrs with a sanding wheel on a angle grinder. Maybe I'll add a split silicone hose to that edge. It would make it look really nice and take away any sharp edges.
Rob XX 7 - I remember seeing a show, I think myth busters, about how driving with the windows down decreased the fuel economy with additional drag and turbulence (sp).
j9fd3s - Wow, I hope they let me pass with mine. I removed 98% of the burrs with a sanding wheel on a angle grinder. Maybe I'll add a split silicone hose to that edge. It would make it look really nice and take away any sharp edges.
Rob XX 7 - I remember seeing a show, I think myth busters, about how driving with the windows down decreased the fuel economy with additional drag and turbulence (sp).
05-13-11, 01:53 PM
#19
trying to build a racecar
Here's what I did for my door actuator.
Cheap, simple, easy to make.
-edit- I'm a noob and can't figure out how to re-attach an image that I already posted to the forum
http://www.rx7club.com/forum/attachm...chmentid=75179
Cheap, simple, easy to make.
-edit- I'm a noob and can't figure out how to re-attach an image that I already posted to the forum
http://www.rx7club.com/forum/attachm...chmentid=75179
06-02-11, 01:05 AM
#24
IFO Forced Induction Slo
Thread Starter
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
UPDATE:
Well guys I finally got around to getting a weight of a stock similiar door. This would be a leather door panel, electric windows and mirrors, coupe door. Completely stock.
The door weighed in at a whooping 76lbs. So my doors at 27lbs achieve a total weight loss of
<drumroll>
98 LBS!!!
If we were to calculate lbs per horsepower, my car at last official (its much lower now) weight (2525lbs) and dyno (353rwhp) would achieve a ratio of 7.15 lbs per horsepower. At the new weight (2525 - 98 = 2427), and same hp, the car yeilds a 6.875 lbs per horsepower ratio.
Rough math equivilent of a 14.25rwhp gain (2525lbs / 367.25hp = 6.875 lbs/hp).
I'd say it was a lot of effort to "gut" the doors. On a difficulty scale of 1 to 10, maybe a 3 or 4 for me. I also spent about 8 total hours working on them. If I had to do it again, I could easily cut that time in half.
