Lets talk engine paints
#6
i just looked up on google about metalcast, didnt know people had success using it on engines.. looks pretty sick.
I bought a can of rustoleum high heat flat aluminum today and have yet to use it, thinking about it now I might not like flat aluminum.. would perfer a semi gloss silver on some stuff, wonder if i can exchange it.
I bought a can of rustoleum high heat flat aluminum today and have yet to use it, thinking about it now I might not like flat aluminum.. would perfer a semi gloss silver on some stuff, wonder if i can exchange it.
#9
F-IT
iTrader: (5)
Join Date: Jun 2006
Location: ocala,fl
Posts: 995
Likes: 0
Received 0 Likes
on
0 Posts
i have used just about every kind of spray paint on engines, with that being said they all have held up and they all have failed. even cheap $.99 paint works. its all in the prep weather or not the paint is going to adhere.
#13
rx7 almost a religon
iTrader: (1)
Join Date: May 2010
Location: aurora colorado
Posts: 524
Likes: 0
Received 0 Likes
on
0 Posts
I like that keg that was shown here a while ago. it was black/and gold rotor housing where gold.
to lazy to look, but the thread title said something with the word keg in it
to lazy to look, but the thread title said something with the word keg in it
#14
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,791
Likes: 0
Received 113 Likes
on
95 Posts
As mentioned, DupliColor MetalCast is what I used on my Project Tina RX-7. It has held up well. A little chipping here and there from mishandling but I have not seen any negative effects from heat.

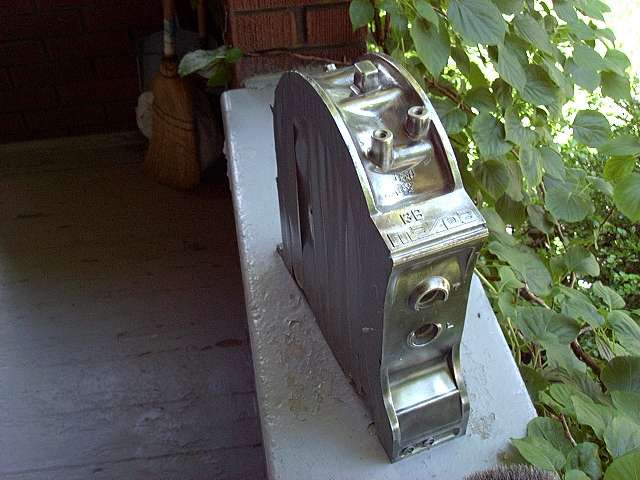

MetalCast is designed to be sprayed over polished metal. If you are using it to paint plastic or something else then there is also a high metal flake silver base coat that gives you a similar, though different, effect. MetalCast is a candy, so it is simply coloured toner with no solids. Generally all it takes is a quick wire brushing to polish up a part.

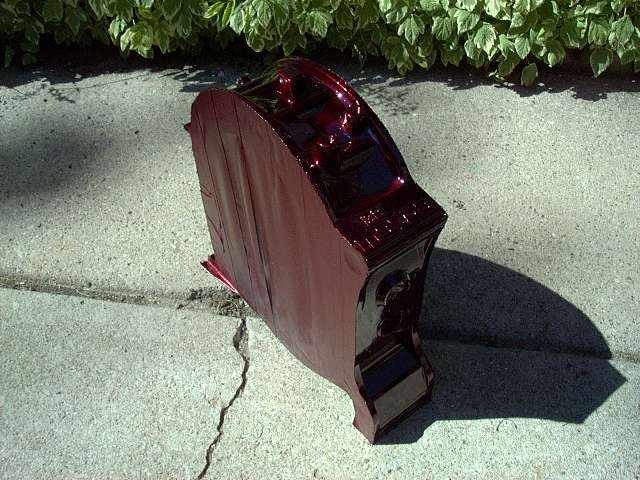

Then add coats of MetalCast until you have the colour as deep as you like.

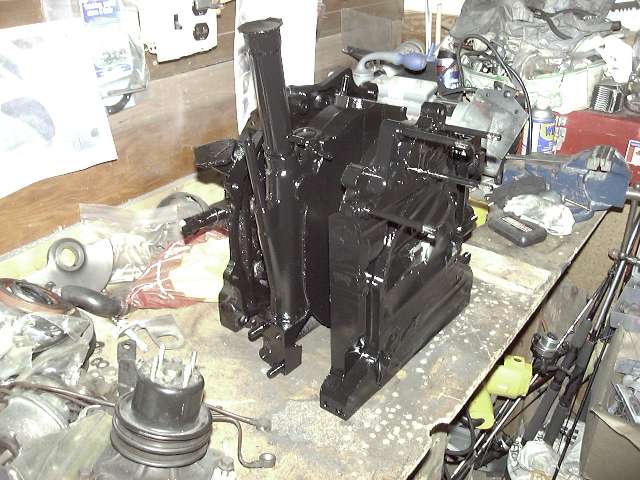

My irons were just painted with VHT Caliper Enamel. I have found the caliper enamel to kind of weak unless the parts are baked afterwards. On a caliper the heat of braking does this but on engine bay parts, they need to go in the oven.
For my latest engine that is going into my '76 Cosmo (can you believe I have only ever built two engines for myself? The RX-7 and the Cosmo...), I used POR-15 engine enamel. While I have never used it before, if it is anything like the other POR-15 products I have used, it will be good stuff. Prep is either to blast, or to thoroughly clean, etch with MetalReady and then undercoat with POR-15 prior to painting with the engine enamel. If your surface is rust free then you can skip the POR-15 base coat. This is a "premium" enamel with a high solid count and low solvent count, so it is 24 hours between recoats and needs 6 days to cure. But the result is a coating that looks like powder coat. Here's that paint process on video:
http://www.youtube.com/watch?v=v-0Yl_Jlx1w
MetalCast is designed to be sprayed over polished metal. If you are using it to paint plastic or something else then there is also a high metal flake silver base coat that gives you a similar, though different, effect. MetalCast is a candy, so it is simply coloured toner with no solids. Generally all it takes is a quick wire brushing to polish up a part.
Then add coats of MetalCast until you have the colour as deep as you like.
My irons were just painted with VHT Caliper Enamel. I have found the caliper enamel to kind of weak unless the parts are baked afterwards. On a caliper the heat of braking does this but on engine bay parts, they need to go in the oven.
For my latest engine that is going into my '76 Cosmo (can you believe I have only ever built two engines for myself? The RX-7 and the Cosmo...), I used POR-15 engine enamel. While I have never used it before, if it is anything like the other POR-15 products I have used, it will be good stuff. Prep is either to blast, or to thoroughly clean, etch with MetalReady and then undercoat with POR-15 prior to painting with the engine enamel. If your surface is rust free then you can skip the POR-15 base coat. This is a "premium" enamel with a high solid count and low solvent count, so it is 24 hours between recoats and needs 6 days to cure. But the result is a coating that looks like powder coat. Here's that paint process on video:
http://www.youtube.com/watch?v=v-0Yl_Jlx1w
#16
Trunk Ornament
iTrader: (11)
How does powdercoating affect the housings? Is there any adverse consequenses to curing them in an oven at 400 degrees for 20+ minutes?
By the way, this is how well the DEI paint holds up. This is only after a few hundred miles.
Then I mixed some powders to make it resemble aluminum, and powdercoated it. Holds up much better.
Turbo compressor too:
Can't stop there, I had to make a shifter, but bare steel is hot on your hands:
Hell, why not do the whole damn thing? Charge pipes, pulleys, whatever I can:
By the way, this is how well the DEI paint holds up. This is only after a few hundred miles.
Then I mixed some powders to make it resemble aluminum, and powdercoated it. Holds up much better.
Turbo compressor too:
Can't stop there, I had to make a shifter, but bare steel is hot on your hands:
Hell, why not do the whole damn thing? Charge pipes, pulleys, whatever I can:
#17
Make It Happen!
iTrader: (11)
Join Date: Jun 2010
Location: Ontario, Canada
Posts: 522
Likes: 0
Received 0 Likes
on
0 Posts
I used metal cast. It seems to hold up pretty well. I rushed them on before they were 100% dry. You can see some paint missing. I will redo them using media blast which will hopefully allow better adhesion of paint.
These are yet to be installed
These are yet to be installed
Last edited by AmT_T; 01-08-11 at 02:48 PM.
#19
Cake or Death?
iTrader: (2)
Before painting any cast alloy part I'd recommend a thorough solvent clean followed by time in an oven (150°) to draw out any oil/contaminants that are deep in the pores.
Then clean/wash again.
I've seen lots of seemingly clean/well prepped parts suffer paint failure as the part heats up in service and trapped dirt bubbles up under the paint surface.
Then clean/wash again.
I've seen lots of seemingly clean/well prepped parts suffer paint failure as the part heats up in service and trapped dirt bubbles up under the paint surface.
#21
Rotary Enthusiast
#23
powdercoated 2 coates, 1 chrome base coat, 1 candy blue coat on the housings, 1 single mirror black on the housings.
as far as baking the housings and irons, i didnt see any adverse effects.

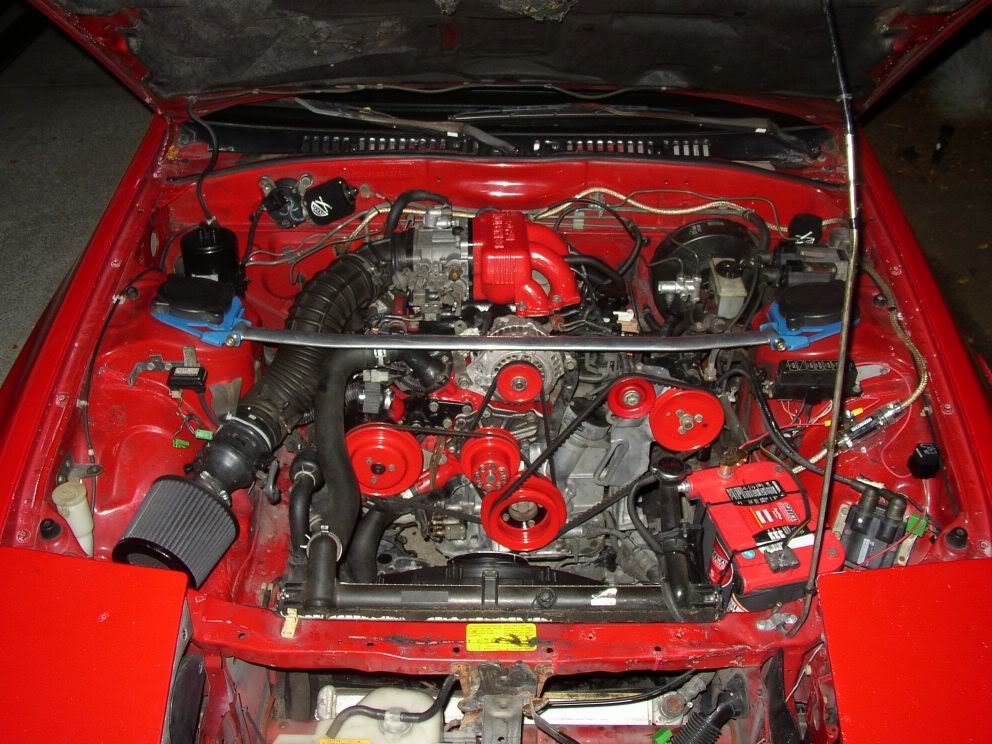

all powdercoated 1 single stage red. again, no problems found. the runners were 1/2 black, 1/2 red.
really, the best way to color engine parts is powdercoat. it wont start flaking, it wont fade, its super easy to clean off, but a bitch to get done, and usually kinda expensive, which is why alot of people prefer paint.
i mean really, its 100% up to you, but if i ever color any engine parts, its all powdercoat.
