I need a little bit of help

I dont know much about 2nd gens I picked up a t2 trans or what I think is a t2 trans for a 13b-rew swap into a 1st gen can someone tell me if it is a t2 trans n what series it is

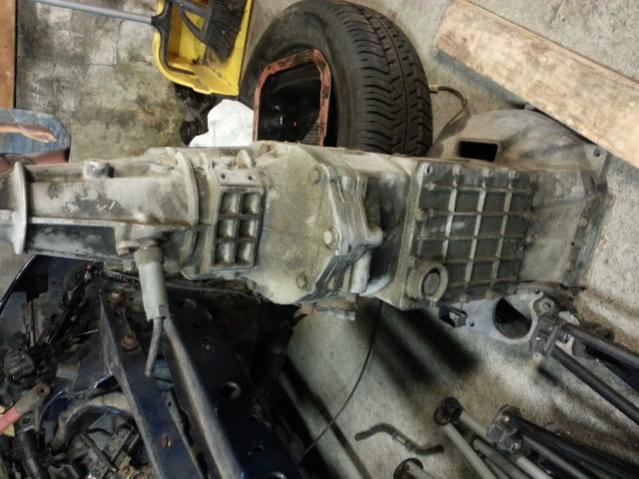

I need a little bit of help-forumrunner_20140420_103922.jpg

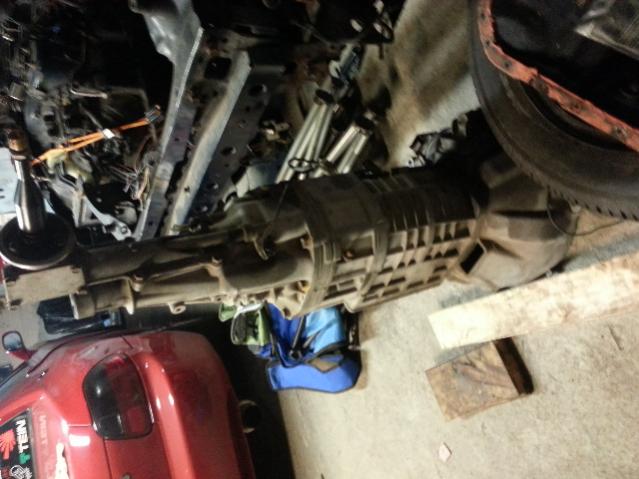

I need a little bit of help-forumrunner_20140420_103940.jpg

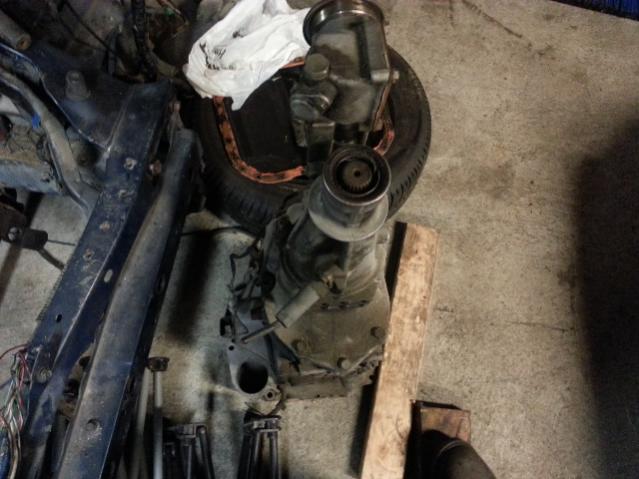

I need a little bit of help-forumrunner_20140420_103952.jpg

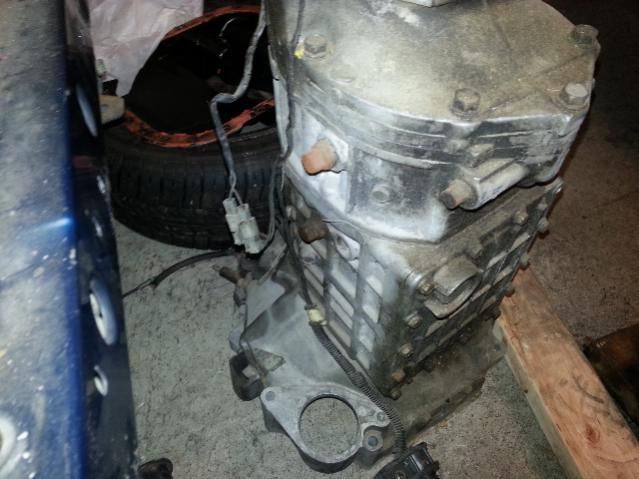

I need a little bit of help-forumrunner_20140420_104003.jpg

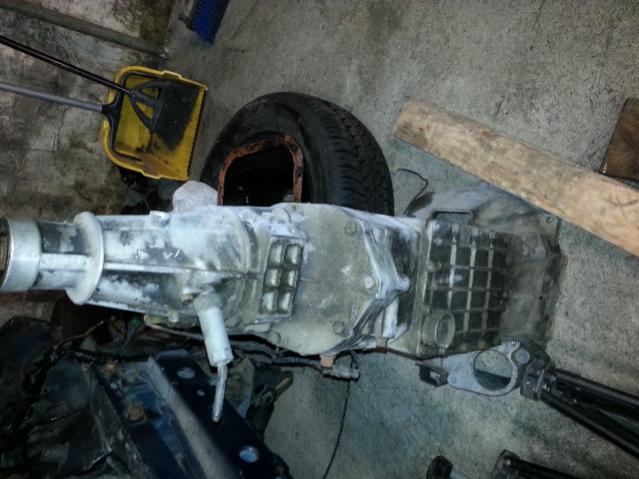

I need a little bit of help-forumrunner_20140420_104016.jpg

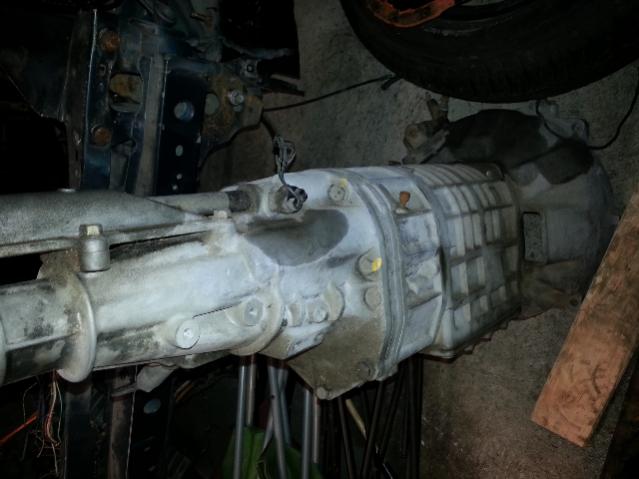

I need a little bit of help-forumrunner_20140420_104028.jpg

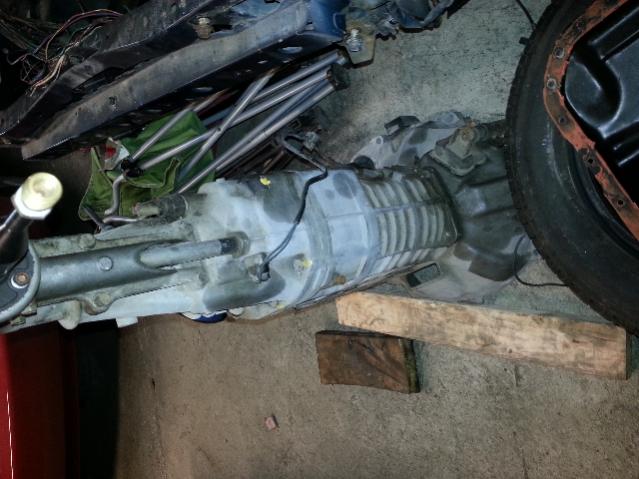

I need a little bit of help-forumrunner_20140420_104036.jpg
Old 04-20-14, 09:51 AM
  #2
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
Yes, the ribbed housing looks like a T2 tranny but no clue what year/model it came from.
Old 04-20-14, 10:03 AM
  #3
Junior Member

Thread Starter

oreo7510's Avatar

Join Date: Jan 2014
Location: bangor pa
Posts: 48
Likes: 0
Received 0 Likes on 0 Posts
Well thanks for confirming that for me i just gotta find out the series
Old 04-20-14, 12:37 PM
  #4
Senior Member


docholiday's Avatar

Join Date: Sep 2004
Location: Vancouver
Posts: 277
Likes: 0
Received 1 Like on 1 Post
It's an S5 tranny. The Ribs on the body of the box give it away. The closer together ones are S5, when they're further apart they're S4.
Old 04-20-14, 12:40 PM
  #5
Senior Member


docholiday's Avatar

Join Date: Sep 2004
Location: Vancouver
Posts: 277
Likes: 0
Received 1 Like on 1 Post
This is an S4 box (notice the ribs)

Name:  IMG_20130817_164638_313_zpse4465d46.jpg
Views: 52
Size:  111.8 KB

The bottom one is an S5 box.

Old 04-20-14, 02:51 PM
  #6
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
I think your last pic shows a S5 NA, not turbo, transmission.
Old 04-20-14, 02:56 PM
  #7
Senior Member


docholiday's Avatar

Join Date: Sep 2004
Location: Vancouver
Posts: 277
Likes: 0
Received 1 Like on 1 Post
As I said in my previous post, the bottom transmission in the 2nd picture (the one with 2 transmissions) is am S5 turbo. The top tranny in the picture with 2 trannies is an NA but the one with the ribs is turbo.
Old 04-20-14, 08:20 PM
  #8
Senior Member


docholiday's Avatar

Join Date: Sep 2004
Location: Vancouver
Posts: 277
Likes: 0
Received 1 Like on 1 Post
Since we're not allowed to edit posts on here I'll do this again.

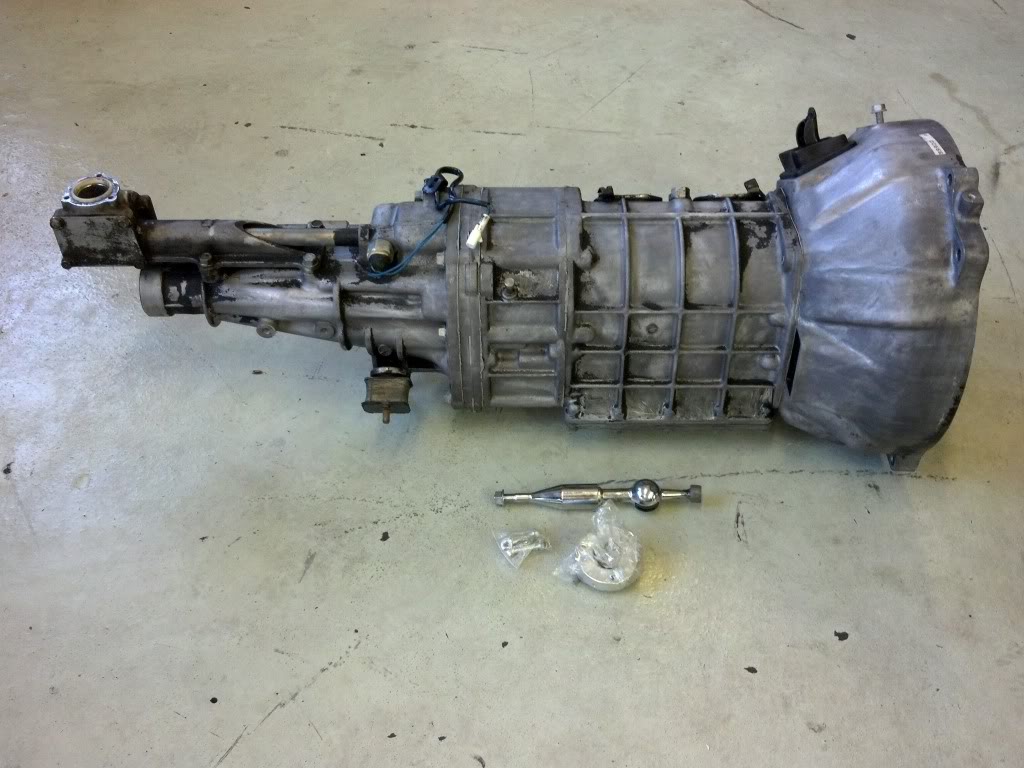

S4 Turbo, notice the wide spaces between the ribs.

Name:  IMG_20130817_164638_313_zpse4465d46.jpg
Views: 70
Size:  111.8 KB

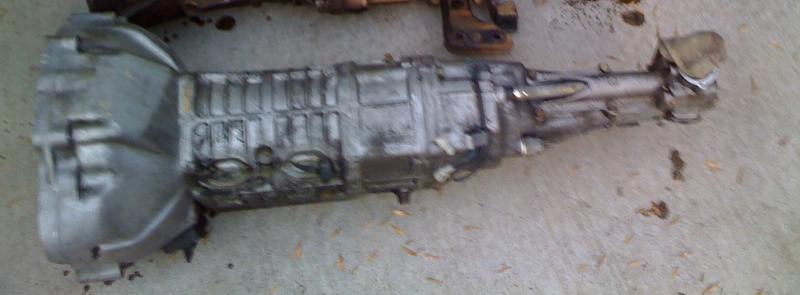

S5 turbo, notice the narrow spaces between the ribs.

Name:  IMG_09461.jpg
Views: 52
Size:  28.8 KB
Old 04-21-14, 08:11 AM
  #9
Junior Member

Thread Starter

oreo7510's Avatar

Join Date: Jan 2014
Location: bangor pa
Posts: 48
Likes: 0
Received 0 Likes on 0 Posts
Thank you for showing me the difference between n letting me no what I have
