Gauging interest: Sport aluminum belly pan reproduction
07-14-11, 04:37 PM
#26
I'd be down for the reproduction rear piece but...
Why is there such a demand for a metal front piece? what possible benefit could there be? more weight? more tedious fitment? more prone to mounting point breakage? ability to be dented/ misshapen?
Why is there such a demand for a metal front piece? what possible benefit could there be? more weight? more tedious fitment? more prone to mounting point breakage? ability to be dented/ misshapen?
07-14-11, 05:48 PM
#29
Auto-Ex Noob
iTrader: (1)
Join Date: Nov 2003
Location: new hampshire
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
in all honesty your best be would to to find a sheet metal fab company, i've been a welder/fabricator for about 8 years now and that is deff a peice that would require a pressbrake of sorts and some special dies to form, im currently stationed in pensacola for AM "A" school but when i get back the the shop if someone with a pan could take measurements i could give ya a realistic price on one. not trying to jack the thread but there would have to be about 150 or more people to get the price down to 60 a peice.
--joe
--joe
07-15-11, 01:36 AM
#32
07-15-11, 05:58 PM
#34
Waiting patiently
iTrader: (3)
Join Date: Dec 2003
Location: Yucaipa
Posts: 75
Likes: 0
Received 0 Likes
on
0 Posts
Hmm I'd be down for the front and rear. Let us know when you have a price....$60 would be cool but hard to do. I agree with Fast87t2 about calling a sheet metal shop. It will be a lot cheaper than doing it with CNC as they will just need to press, bend and cut a flat sheet into the correct shape. lol and if you can get it for $60 let me know where cuz I got some work for them...
HozzmanRX7 - If what you say is true, would it be better to make them out of fiberglass? Or do you think that would also be too ridged?
haha - we can always make them out of carbon kevlar!! =) but that would be expensive but definitely not a $60 part hehe....???
HozzmanRX7 - If what you say is true, would it be better to make them out of fiberglass? Or do you think that would also be too ridged?
haha - we can always make them out of carbon kevlar!! =) but that would be expensive but definitely not a $60 part hehe....???
07-17-11, 06:05 PM
#37
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
Hmm I'd be down for the front and rear. Let us know when you have a price....$60 would be cool but hard to do. I agree with Fast87t2 about calling a sheet metal shop. It will be a lot cheaper than doing it with CNC as they will just need to press, bend and cut a flat sheet into the correct shape. lol and if you can get it for $60 let me know where cuz I got some work for them...
HozzmanRX7 - If what you say is true, would it be better to make them out of fiberglass? Or do you think that would also be too ridged?
haha - we can always make them out of carbon kevlar!! =) but that would be expensive but definitely not a $60 part hehe....???
HozzmanRX7 - If what you say is true, would it be better to make them out of fiberglass? Or do you think that would also be too ridged?
haha - we can always make them out of carbon kevlar!! =) but that would be expensive but definitely not a $60 part hehe....???
09-23-11, 11:01 AM
#42
Too bad animals that have become roadkill would be the only ones to see it.
One a more serious note, cf or fiberglass would be way easier to produce on a small run than the aliminum the stock one was made of. I think this thread has shown there is interest for anyone that wants to take up the reigns and make this in CF/FG.
Also, since this bolts to the subframe only, vs the various mounting surfaces of the plastic undertray, you shouldn't have the flexibility/fit issues unless your subframe is tweaked. Assuming the part is made correctly.
One a more serious note, cf or fiberglass would be way easier to produce on a small run than the aliminum the stock one was made of. I think this thread has shown there is interest for anyone that wants to take up the reigns and make this in CF/FG.Also, since this bolts to the subframe only, vs the various mounting surfaces of the plastic undertray, you shouldn't have the flexibility/fit issues unless your subframe is tweaked. Assuming the part is made correctly.
09-23-11, 06:07 PM
#44
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
Too bad animals that have become roadkill would be the only ones to see it. One a more serious note, cf or fiberglass would be way easier to produce on a small run than the aliminum the stock one was made of. I think this thread has shown there is interest for anyone that wants to take up the reigns and make this in CF/FG.
Also, since this bolts to the subframe only, vs the various mounting surfaces of the plastic undertray, you shouldn't have the flexibility/fit issues unless your subframe is tweaked. Assuming the part is made correctly.
One a more serious note, cf or fiberglass would be way easier to produce on a small run than the aliminum the stock one was made of. I think this thread has shown there is interest for anyone that wants to take up the reigns and make this in CF/FG.Also, since this bolts to the subframe only, vs the various mounting surfaces of the plastic undertray, you shouldn't have the flexibility/fit issues unless your subframe is tweaked. Assuming the part is made correctly.
I have to believe Mazda went aluminum for this part to deal with heat issues that plastic, cf, or fiberglass couldn't. The main belly pan has good air spacing from heat sources that this oil pan belly pan wouldn't. For that reason, aluminum or other metal is the practical way to go.
09-23-11, 10:03 PM
#45
The Blue Blur
Join Date: Dec 2006
Location: Virginia
Posts: 716
Likes: 0
Received 0 Likes
on
0 Posts
They make those bumper guards out of cf, as close as that is to the exhaust im sure that runs hotter than the temp coming off the bottom of the oil pan, heat does after all rise. BUT the only possible reason i can see for making this out of cf would be aesthetic reasons, which are utterly pointless at this location. Aluminum would be just as light and better priced to have road grime and rocks thrown at it and oil dripping on it.
10-24-14, 09:48 AM
#48
The lip on the cutout needs to dealt with. The factory one is rolled up and hard to replicate by hand. Sharp edges there will make oil changes a hazardous experience.
The factory tray has vents and embossing which are also hard to do by hand. Their necessity is up for debate, though.
Keep up the good work!
10-24-14, 12:20 PM
#49
Auto-Ex Noob
iTrader: (1)
Join Date: Nov 2003
Location: new hampshire
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts

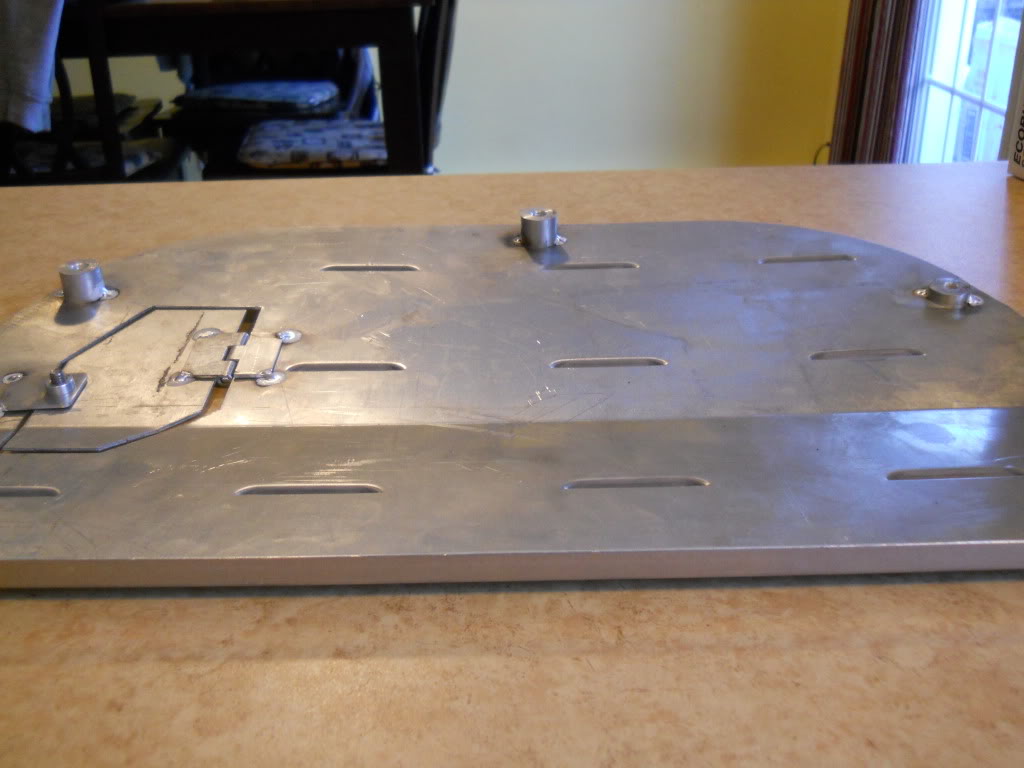

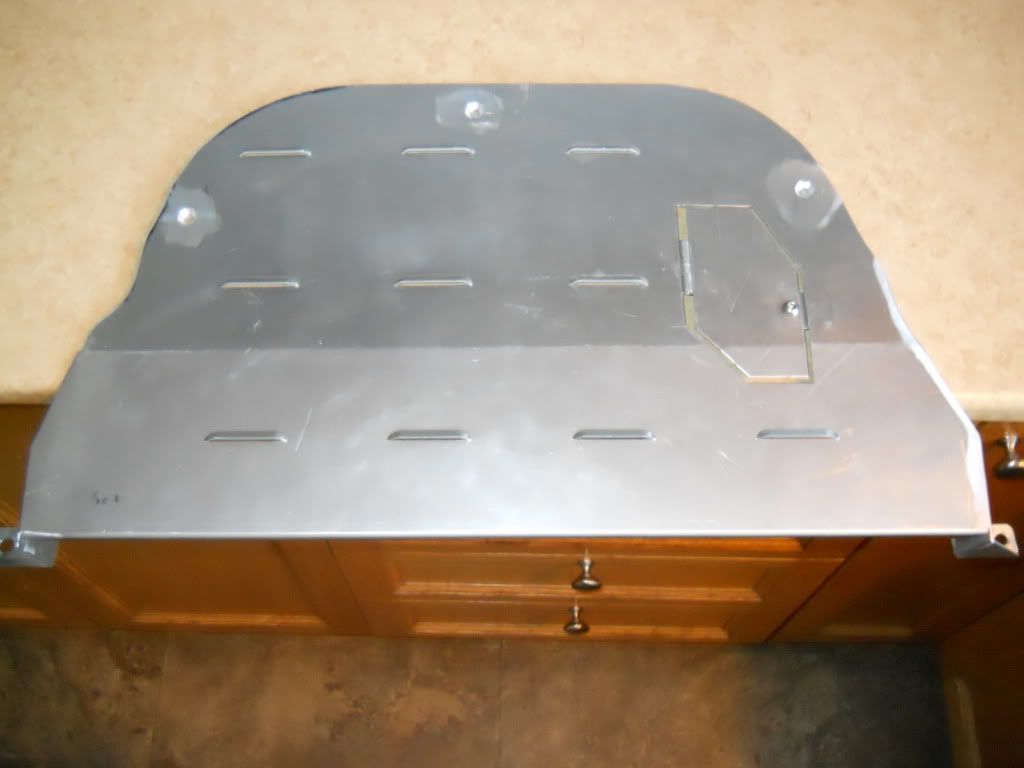

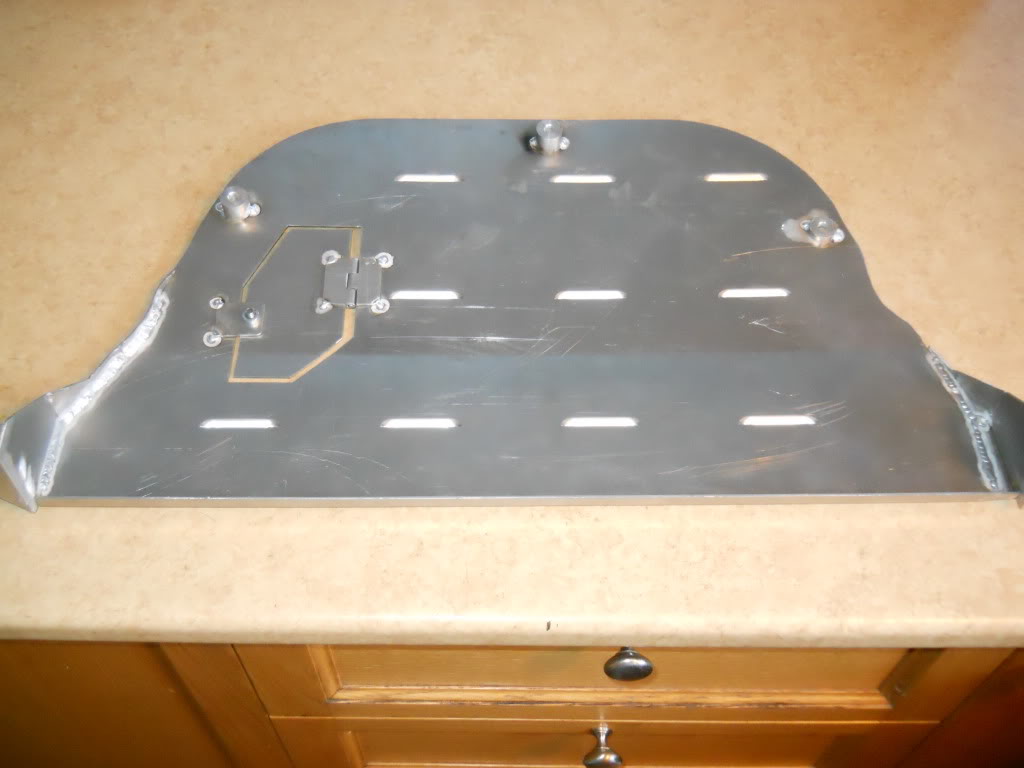

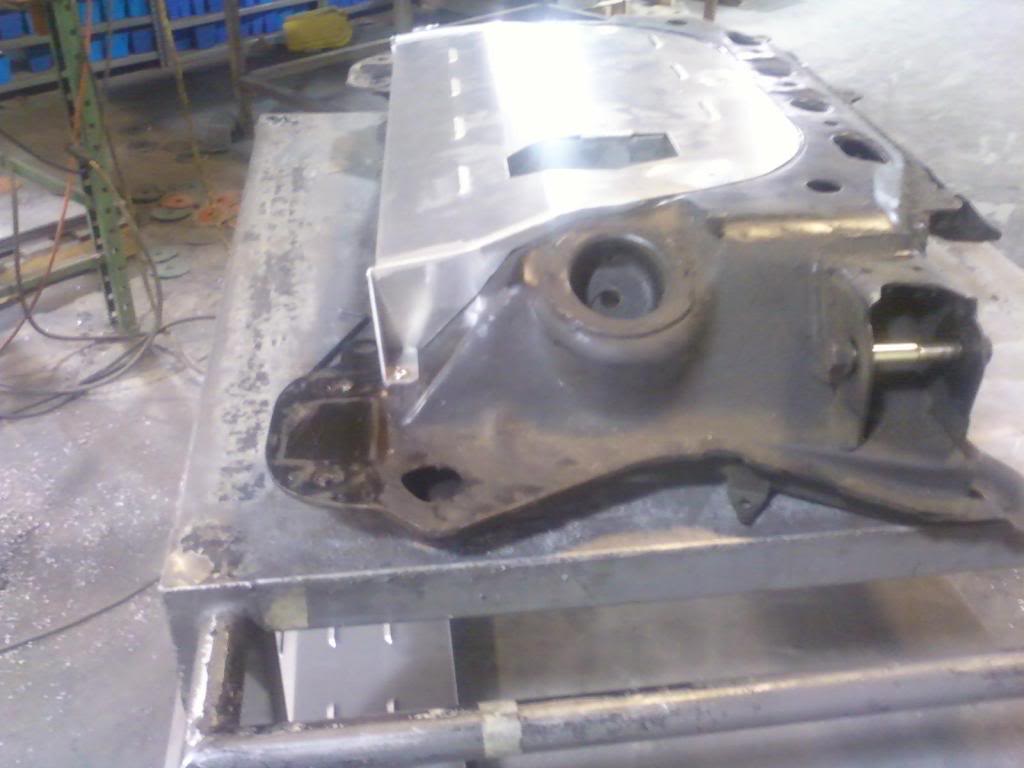

keep in mind you need spacers to make it sit flush with the sub-frame, the factory one is embossed to make up the height difference. i made one a few years ago and was going to do a group buy but i changed jobs and no longer have access to a punch press.
10-24-14, 07:47 PM
#50
Sweet- forum's not as dead as I thought LOL.
We'll be using 0.080" aluminum, CNC plasma cut.
Good call on the spacer blocks-- I'd spec'd some nylon ones out from mcmaster carr, I'll have to test them in terms of how they hold up from the ambient heat of everything. We'll see.
Hope to hae a proto this weekend!
We'll be using 0.080" aluminum, CNC plasma cut.
Good call on the spacer blocks-- I'd spec'd some nylon ones out from mcmaster carr, I'll have to test them in terms of how they hold up from the ambient heat of everything. We'll see.
Hope to hae a proto this weekend!
