fd intake to fc---how do I it them? h e l p me with my project.
hello,

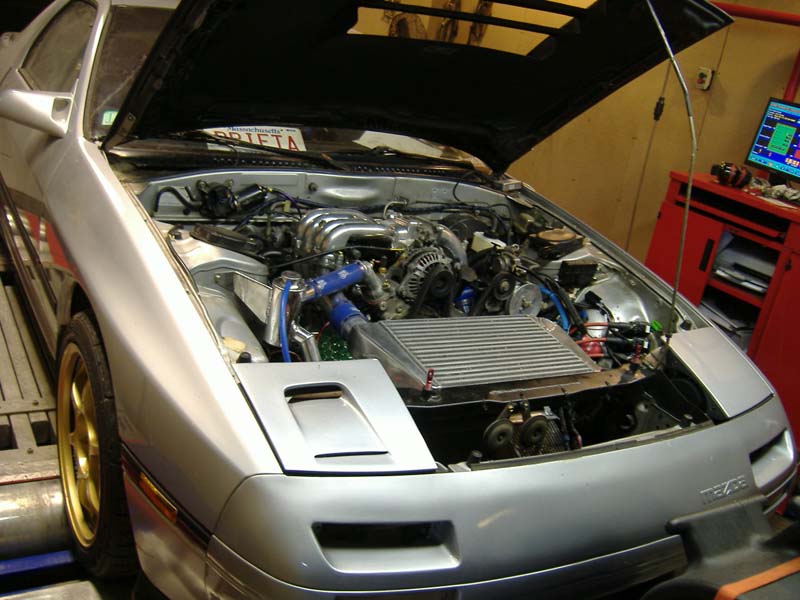

I both a upper and lower intake with throttle body from a 94 fd.I have a 86 s4 series .how can i fit the intake?please help me .Thanks
I both a upper and lower intake with throttle body from a 94 fd.I have a 86 s4 series .how can i fit the intake?please help me .Thanks
#2
The LIM from the FD doesn't fit on the S4 or S5 blocks. You are either going to have to machine an alumium adaptor to bolt the FD LIM on the block or the other(most common) option is to use a S5 TII LIM and either port match the FD UIM to it or make or abtain an adaptor between the S5 LIM/FD UIM. Since your profile says Romania it would probably be easier to have a alumium adaptor machined/made between the FD LIM and S4 block.
There is lots of info on this, if you do a search it should net you some more info(but it's all on the second method I mentioned above).
There is lots of info on this, if you do a search it should net you some more info(but it's all on the second method I mentioned above).
Last edited by The Griffin; 02-28-08 at 04:07 PM.
#3
Junior Member
Thread Starter
Join Date: Jan 2006
Location: Romania
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
ok,Thanks man,I do have a s5 lim .
so let me see that i understand right.
Now I have a s4 block and need a s5 lim and with a fd uim will work.
right?Between Fd uim and s5 lim will require a aluminium adaptor?what other modifications Do i HAVE TO MAKE?
thanks
so let me see that i understand right.
Now I have a s4 block and need a s5 lim and with a fd uim will work.
right?Between Fd uim and s5 lim will require a aluminium adaptor?what other modifications Do i HAVE TO MAKE?
thanks
#4
iRussian
iTrader: (3)
Join Date: Oct 2006
Location: midwest IL, USA
Posts: 947
Likes: 0
Received 0 Likes
on
0 Posts
How about "simplifying" the manifolds? I have see this one guy cut and reweld a lot of the stuff on the lower manifold, all kinds of extra crap you dont need, and it looked a lot cleaner withought it all on there.
#5
Junior Member
Thread Starter
Join Date: Jan 2006
Location: Romania
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
I Like the ideea of simplify the things.can you give more info??
#6
You can port match the FD UIM to the S5 LIM manifold and not have to use an adaptor, But it's not the best way.But saying that neither is using an adaptor as that increases the length of the runners. The best way of doing it is not using an adaptor and fill welding the FD UIM with aluminum and then port matching to the S5 LIM to keep the inner runners the same shape and diameter(if you don't the inner FD ports will be oval and larger). Just take a S5 TII gasket and match it around the center hole of the FD UIM and you will see exactly what is needed.
By the way this should be in the 2nd. gen section and not here. This is for pictures and non-tech. stuff.Good luck.
By the way this should be in the 2nd. gen section and not here. This is for pictures and non-tech. stuff.Good luck.
#7
Stay running...please??
Join Date: Aug 2003
Location: MA
Posts: 510
Likes: 0
Received 0 Likes
on
0 Posts
I did that swap. I used a S5 lim with a S6 uim and throttle body on a S4 block. The ports are matched and I am using an adapter between the two manifolds. As far as finding an adapter, I forgot who makes them, but I'll do a quick search.
Trending Topics
#8
Stay running...please??
Join Date: Aug 2003
Location: MA
Posts: 510
Likes: 0
Received 0 Likes
on
0 Posts
On mazdarotaryclub.com, jetpilot made a bunch of adapters. It was about 2 years ago, but try pm'ing him.
On this thread, one is for sale:
https://www.rx7club.com/showthread.p...nifold+adapter
I am sure you can find more if you search.
On this thread, one is for sale:
https://www.rx7club.com/showthread.p...nifold+adapter
I am sure you can find more if you search.
#9
Junior Member
Thread Starter
Join Date: Jan 2006
Location: Romania
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
On mazdarotaryclub.com, jetpilot made a bunch of adapters. It was about 2 years ago, but try pm'ing him.
On this thread, one is for sale:
https://www.rx7club.com/showthread.p...nifold+adapter
I am sure you can find more if you search.
On this thread, one is for sale:
https://www.rx7club.com/showthread.p...nifold+adapter
I am sure you can find more if you search.
