help identifying part

Thread Tools

Search this Thread

Old Jul 9, 2019 | 11:21 PM
  #1
hap's Avatar
hap
Thread Starter
Junior Member
Tenured Member 15 Years

Joined: Jan 2004
Posts: 23
Likes: 0
From: Alberta
help identifying part

Reply
Old Jul 9, 2019 | 11:24 PM
  #2
hap's Avatar
hap
Thread Starter
Junior Member
Tenured Member 15 Years

Joined: Jan 2004
Posts: 23
Likes: 0
From: Alberta
This is the story behind the picture:

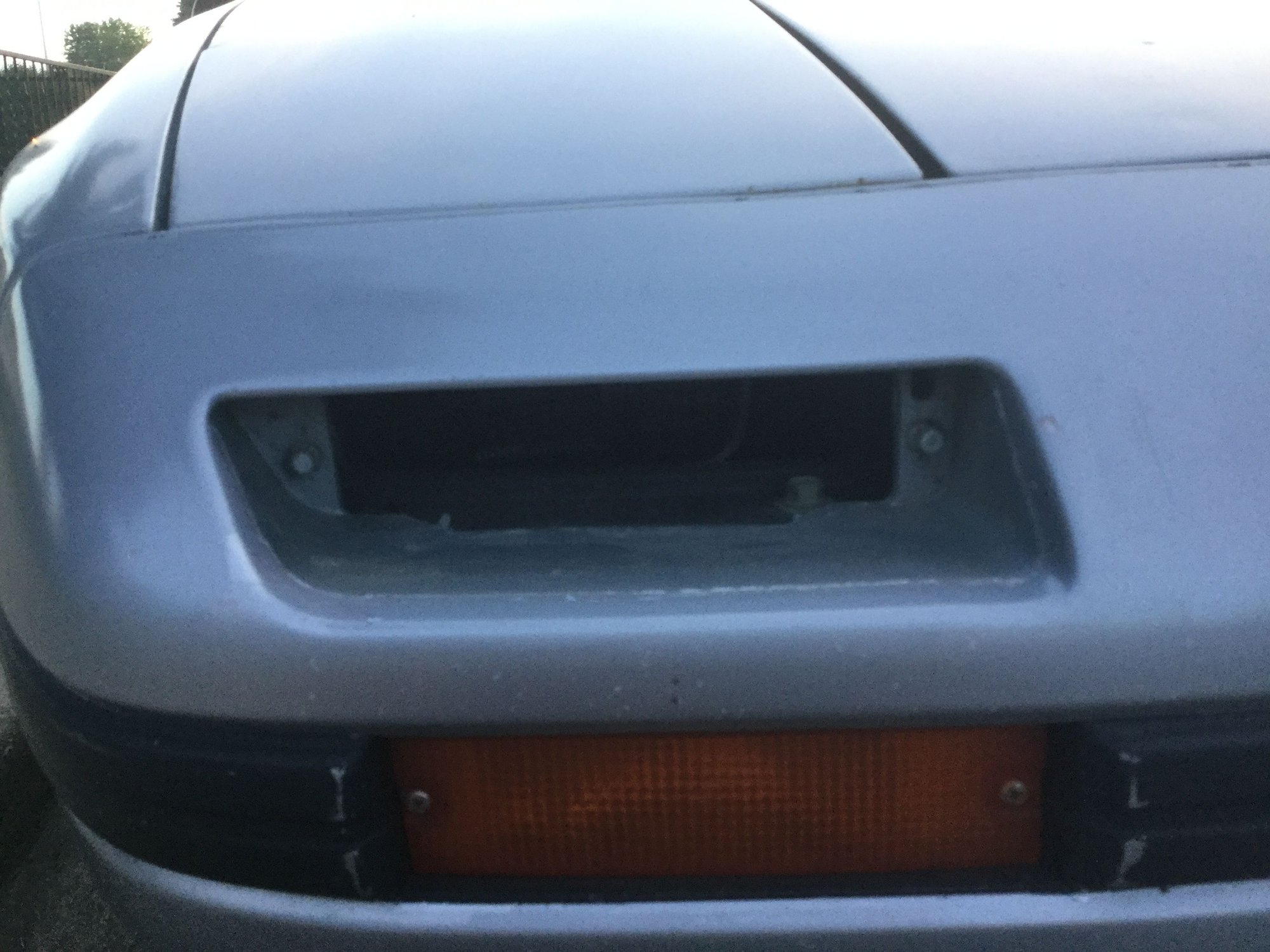

Something happened to a part of my 1987 RX-7. It’s just above the signal light & just below the headlight. I’m not sure what it’s called, but I took a picture of it (passenger side) broken out & another picture of the driver’s side one (still good). Whatever happened now the passenger headlight doesn’t go up. Can someone tell me what it’s called & where I can get another one? I’ll try to attach a picture here.
Reply
Old Jul 10, 2019 | 01:40 AM
  #3
clokker's Avatar
Cake or Death?
Tenured Member 10 Years
iTrader: (2)

Joined: Jan 2007
Posts: 10,249
Likes: 64
From: Mile High
You're missing the "flash to pass" lens. It's just a plastic lens, there is no mechanism involved and it's not connected to the headlight in any way.
Reply
Old Jul 10, 2019 | 07:44 AM
  #4
jjandros's Avatar
Senior Member
Tenured Member: 10 Years
Liked
iTrader: (7)

Joined: Dec 2012
Posts: 280
Likes: 14
From: Virginia
The missing FTP lens shouldn't stop the headlight from going up or down though. Looks like you have two issues. 1. Your missing the FTP lens. 2. Your headlight motor isn't working properly. The issues aren't connected. I recommend testing the headlight motor.
Reply
Old Jul 10, 2019 | 09:23 AM
  #5
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
Originally Posted by clokker
You're missing the "flash to pass" lens. It's just a plastic lens, there is no mechanism involved and it's not connected to the headlight in any way.
lens is FB01-51-360B for the right, and FB01-51-370B for the left
