whoopsie, the dowels are different.

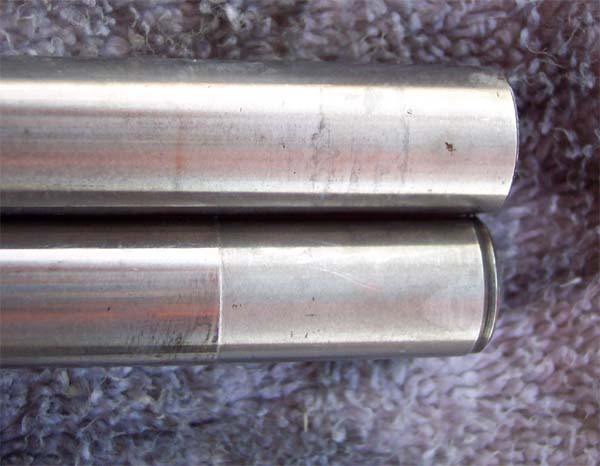

my bad... i wasn't paying attention when it all came apart and 2 of the dowels have a little machining done.
can anyone be a dear and tell me what positions they go back in? thanks!!!
can anyone be a dear and tell me what positions they go back in? thanks!!!
#3
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
thanks.. but the thin part seemed a little loose in the front side housing... could it be the fat end goes there and the thin end goes into the fat intermediate?
Last edited by GUITARJUNKIE28; 04-20-05 at 06:20 PM.
#4
Rotary Freak
iTrader: (1)
yes that's the way it goes.
this allows for the front iron to align itself
its hard to explain but the rear half of the motor (rear 2 rotors) determine the shafts location
then the front rotor and housing mate up to the back half.
on later motors they didn't use these pins (better standards?)
matt
this allows for the front iron to align itself
its hard to explain but the rear half of the motor (rear 2 rotors) determine the shafts location
then the front rotor and housing mate up to the back half.
on later motors they didn't use these pins (better standards?)
matt
