What 20b "#" do you have?
#51
I'll blow it up real good
iTrader: (1)
Originally posted by now
ps. rx-heven i dont think i seen your motor number posted.
ps. rx-heven i dont think i seen your motor number posted.
Next time I talk to him, end of the week or so, I will ask if he can look at the numbers for me.
#52
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,792
Received 2,572 Likes
on
1,828 Posts
my numbers are stamped in all of the housings, not just the rotor housings
mike
mike
#58
Lapping = Fapping
iTrader: (13)
I know (I just hope I can see it under all the junk on this stock engine). Where do you look on the rest of the housings?

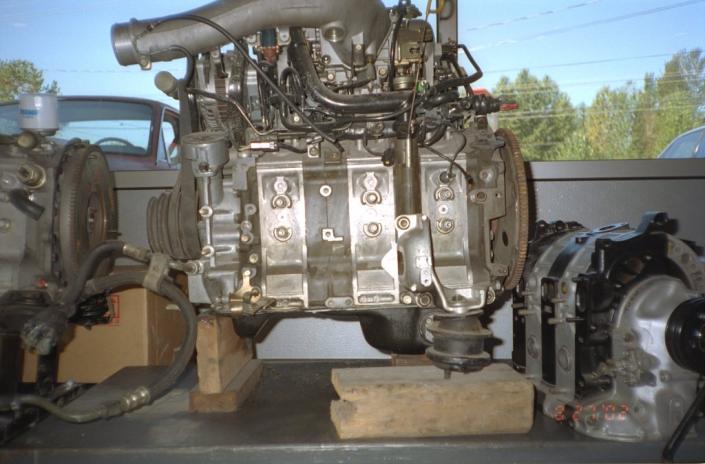

wptrx7, Even if it does come with mounts, it's still a good idea to replace them. The one in the pic has messed up studs. It's probably quite common because of how they stick out at the bottom. If I got this engine, I'd replace the mounts.
wptrx7, Even if it does come with mounts, it's still a good idea to replace them. The one in the pic has messed up studs. It's probably quite common because of how they stick out at the bottom. If I got this engine, I'd replace the mounts.
#59
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,792
Received 2,572 Likes
on
1,828 Posts
mine came with mounts but they were bad, they were leaking wierd fluid everywhere.
the numbers are tough to see, but its in every housing so you should be able to see one
mike
the numbers are tough to see, but its in every housing so you should be able to see one
mike
#60
Lapping = Fapping
iTrader: (13)
Ok next time I'm there, I'll give it a good look.
They're fluid damped? I guess that's a good idea for a luxury car. I think I'll relocate and use the stock rubber mounts from my Cosmo. I'm also going to fab a torque brace. I've decided against solid mounts because too much noise may be transfered inside. I just want the exhaust to be loud.
They're fluid damped? I guess that's a good idea for a luxury car. I think I'll relocate and use the stock rubber mounts from my Cosmo. I'm also going to fab a torque brace. I've decided against solid mounts because too much noise may be transfered inside. I just want the exhaust to be loud.
#61
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,792
Received 2,572 Likes
on
1,828 Posts
Originally posted by Jeff20B
Ok next time I'm there, I'll give it a good look.
They're fluid damped? I guess that's a good idea for a luxury car. I think I'll relocate and use the stock rubber mounts from my Cosmo. I'm also going to fab a torque brace. I've decided against solid mounts because too much noise may be transfered inside. I just want the exhaust to be loud.
Ok next time I'm there, I'll give it a good look.
They're fluid damped? I guess that's a good idea for a luxury car. I think I'll relocate and use the stock rubber mounts from my Cosmo. I'm also going to fab a torque brace. I've decided against solid mounts because too much noise may be transfered inside. I just want the exhaust to be loud.
mike
#63
Former Rx7 *****
Join Date: Nov 2001
Location: Mississauga
Posts: 4,534
Likes: 0
Received 0 Likes
on
0 Posts
people use FD housings for the 20B rebuild, why don't you just port the housings that came with the 20B instead? what is the advantage of using FD housings over ported housings?
#64
I'll blow it up real good
iTrader: (1)
With the rotor housings, the exhaust sleeves can't really be ported due to a hollow spot in the bulge that directs the exhaust gases. So either replacing the sleeves, which is somewhat risky, or replace the housing altogether is the only option. I was told the reason that replacing the housing is the better choice of the two is because the exhaust sleeve is secured with spring steel pins and usually have to be drilled out. Since the housing is aluminum, this presents a potential problem. It has been done (Kurgan) but the labor cost quoted to me didn't really present an advantage over the security of new housings. I elected for new housings because the thought of loose sleeves did not sit well with me. Then again maybe my engine builder is lazy which would explain the eternity he has taken on my engine.
With the other housings, as mentioned earlier in this thread, I guess it is the reinforced area around the dowell pins.
With the other housings, as mentioned earlier in this thread, I guess it is the reinforced area around the dowell pins.
#65
Newb Photog
Join Date: Jul 2001
Location: new jersey
Posts: 2,171
Likes: 0
Received 0 Likes
on
0 Posts
see i like you guys. you always give good info and always direct and responsive. this is the best section on this forum. i am still confused wether to go all out and invest in a 20b conversion, but everytime i come in and see how informative you guys are i feel like i'm in good hands and i could take a project like a 20b on.
thanx
luigi
thanx
luigi
#66
Rotary Enthusiast
iTrader: (1)
Join Date: Jun 2001
Location: Apex, NC, USA
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by wptrx7
see i like you guys. you always give good info and always direct and responsive. this is the best section on this forum. i am still confused wether to go all out and invest in a 20b conversion, but everytime i come in and see how informative you guys are i feel like i'm in good hands and i could take a project like a 20b on.
thanx
luigi
see i like you guys. you always give good info and always direct and responsive. this is the best section on this forum. i am still confused wether to go all out and invest in a 20b conversion, but everytime i come in and see how informative you guys are i feel like i'm in good hands and i could take a project like a 20b on.
thanx
luigi
Instead of investing in a 20B conversion, though, you can have instant gratification. Look at www.cris.com/~Asam/20B.html and let me know if you're interested.
#67
Newb Photog
Join Date: Jul 2001
Location: new jersey
Posts: 2,171
Likes: 0
Received 0 Likes
on
0 Posts
i saw it the first time you posted it. 2 problems though: i am not a fan of convertibles (no matter what car) and i don't have the asking price or even 25k less than that. i just want to be able to have a rx7 (no matter what generation, because i am that big of a fan). i am totally into the fc, especially after being introduced to re-a white fc with thier 2k kit. and also check out the vid when you get a chance. 19 minutes long but it will you a fan to.
luigi
luigi
#68
George> don't feel bad about not knowing everything
and not doing all your own work, I wish I had the income
to afford having someone else do the work for me
you are not the only 20b loving person who gets most of
is work done by others, warren or 3 rotor.com seems to
have his own crew working for him, I am sure he
could do the work himself, but it doesn't make much
sense to do your own work on cars when you make
enough to pay someone else, and still have money left
over to do what you want...
matt
and not doing all your own work, I wish I had the income
to afford having someone else do the work for me
you are not the only 20b loving person who gets most of
is work done by others, warren or 3 rotor.com seems to
have his own crew working for him, I am sure he
could do the work himself, but it doesn't make much
sense to do your own work on cars when you make
enough to pay someone else, and still have money left
over to do what you want...
matt
#69
Originally posted by wptrx7
see i like you guys. you always give good info and always direct and responsive. this is the best section on this forum. i am still confused wether to go all out and invest in a 20b conversion, but everytime i come in and see how informative you guys are i feel like i'm in good hands and i could take a project like a 20b on.
thanx
luigi
see i like you guys. you always give good info and always direct and responsive. this is the best section on this forum. i am still confused wether to go all out and invest in a 20b conversion, but everytime i come in and see how informative you guys are i feel like i'm in good hands and i could take a project like a 20b on.
thanx
luigi
project unless they are very capable at fabrication
and doing lots of work them selves.
On the other hand a 20b n/a project would be much
easier and has great potential with out the complexity
of turbos and the added expense and added work to
install the intercooler. but with that said you need to
either know someone who can do the rebuild for you, or
know how to rebuild a motor yourself.
matt
#70
Rotary Enthusiast
iTrader: (1)
Join Date: Jun 2001
Location: Apex, NC, USA
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by now
George> don't feel bad about not knowing everything
and not doing all your own work, I wish I had the income
to afford having someone else do the work for me
you are not the only 20b loving person who gets most of
is work done by others, warren or 3 rotor.com seems to
have his own crew working for him, I am sure he
could do the work himself, but it doesn't make much
sense to do your own work on cars when you make
enough to pay someone else, and still have money left
over to do what you want...
matt
George> don't feel bad about not knowing everything
and not doing all your own work, I wish I had the income
to afford having someone else do the work for me
you are not the only 20b loving person who gets most of
is work done by others, warren or 3 rotor.com seems to
have his own crew working for him, I am sure he
could do the work himself, but it doesn't make much
sense to do your own work on cars when you make
enough to pay someone else, and still have money left
over to do what you want...
matt
#71
Senior Member
Hi 20B fans!
Just want to tell you that i have 2 20B engines in my garage. Unfortanately was one disassembled and the steel plates O-ring liners fretten. I sold the only usable rotor housing to a guy who owns Swedens one and only JC Cosmo! The other engine is a complete shortblock with number A500 on all 3 rotor housings. I plan to make a N/A peripheral engine out of it with Weber 55 dco carbs.
Just want to tell you that i have 2 20B engines in my garage. Unfortanately was one disassembled and the steel plates O-ring liners fretten. I sold the only usable rotor housing to a guy who owns Swedens one and only JC Cosmo! The other engine is a complete shortblock with number A500 on all 3 rotor housings. I plan to make a N/A peripheral engine out of it with Weber 55 dco carbs.
#72
Rotary Enthusiast
iTrader: (1)
Join Date: Jun 2001
Location: Apex, NC, USA
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Attila the Fun
I wish you had mentioned this in the original post. Being perpetually in a hurry, I just grabbed the last three digits off the rotor housing and hurried off to my next task. There are other characters in from of the "392". I'll go and pay more attention, this time.
I wish you had mentioned this in the original post. Being perpetually in a hurry, I just grabbed the last three digits off the rotor housing and hurried off to my next task. There are other characters in from of the "392". I'll go and pay more attention, this time.
