i was going to email you but thought i would post instead as others could use your answer as a resource.
yesterday i finally was able to use my T56 for the first time. the car was up on jackstands but all seems well w my conversion... so far.
my question relates to the speedo. i do have an FD wiring book and there is of course the mazda trans wire loom. i would guess it contains pulsed speed wires, and a reverse light switch.
i have a Dakota Digital module to make the conversion. i also bought pigtailed fittings for the speedo and reverse.
i am primarily interested in knowing, if you remember, how you did it. did you locate the DD module near your ECU? do you remember what Mazda wires you used?
any help appreciated.
howard
yesterday i finally was able to use my T56 for the first time. the car was up on jackstands but all seems well w my conversion... so far.
my question relates to the speedo. i do have an FD wiring book and there is of course the mazda trans wire loom. i would guess it contains pulsed speed wires, and a reverse light switch.
i have a Dakota Digital module to make the conversion. i also bought pigtailed fittings for the speedo and reverse.
i am primarily interested in knowing, if you remember, how you did it. did you locate the DD module near your ECU? do you remember what Mazda wires you used?
any help appreciated.
howard
10-01-10, 05:28 PM
#78
Rotary Enthusiast
iTrader: (3)
Join Date: Nov 2001
Location: michigan
Posts: 1,018
Likes: 0
Received 0 Likes
on
0 Posts

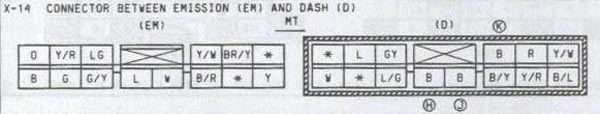

2B is the signal wire for the RX-7s tach
green (manual cars) or green w/ black stripe (automatic cars)...this wire went to the signal side of the RX-7's VSS sending unit, which was located in the driver's side of the RX-7 transmission's tailhousing. If you are tracing the dash harness half of this X-14 connector, this wire changes to yellow w/ red stripe.
...orange (manual cars) or blue (automatic cars)...this wire went to the ground side of the RX-7's VSS sending unit, which was located in the driver's side of the RX-7 transmission's tailhousing. If you are tracing the dash harness half of this X-14 connector, these wires change to yellow w/ white stripe.
...yellow w/ white stripe...this wire went to the rotary engine's water temp sending unit. If you are tracing the dash harness half of this connector, this wire changes to grey.
...black wire w/ red stripe (manual cars) or yellow w/ blue stripe (automatic cars)... comes from 15a fuse in underdash fusebox. This is the power source for the back-up lites. If you are tracing the dash harness half of this connector, these wires change to black w/ yellow stripe.
...yellow w/ red stripe (manual cars) or brown w/ blue stripe (automatic cars)... goes directly to the back-up lites. If you are tracing the dash harness half of this connector, these wires change to red.
...black wire (manual cars only)...this large gauge wire needs to be grounded to BOTH the chassis AND to the engine. If you are tracing the dash harness half of this connector, this wire changes to black w/ blue stripe. In the automatic cars, this circuit (black wire) goes thru RX-7 connector X-05.
green (manual cars) or green w/ black stripe (automatic cars)...this wire went to the signal side of the RX-7's VSS sending unit, which was located in the driver's side of the RX-7 transmission's tailhousing. If you are tracing the dash harness half of this X-14 connector, this wire changes to yellow w/ red stripe.
...orange (manual cars) or blue (automatic cars)...this wire went to the ground side of the RX-7's VSS sending unit, which was located in the driver's side of the RX-7 transmission's tailhousing. If you are tracing the dash harness half of this X-14 connector, these wires change to yellow w/ white stripe.
...yellow w/ white stripe...this wire went to the rotary engine's water temp sending unit. If you are tracing the dash harness half of this connector, this wire changes to grey.
...black wire w/ red stripe (manual cars) or yellow w/ blue stripe (automatic cars)... comes from 15a fuse in underdash fusebox. This is the power source for the back-up lites. If you are tracing the dash harness half of this connector, these wires change to black w/ yellow stripe.
...yellow w/ red stripe (manual cars) or brown w/ blue stripe (automatic cars)... goes directly to the back-up lites. If you are tracing the dash harness half of this connector, these wires change to red.
...black wire (manual cars only)...this large gauge wire needs to be grounded to BOTH the chassis AND to the engine. If you are tracing the dash harness half of this connector, this wire changes to black w/ blue stripe. In the automatic cars, this circuit (black wire) goes thru RX-7 connector X-05.
