Transmission Size and pics


(A) Length - Bell housing to Output shaft 25.6" (650mm)
(B) Length - Bell housing to End case 24.4" (620mm)
(C) Length - Bell housing to Centre of Shifter 29.7" (755mm)
Width - Bell housing 15.5" (395mm)
Width - Gear Case (maximum) 8.5" (215mm)
(D) Height - Bell housing 14.1" (358mm)
(E) Height - Gear Case (maximum) 10.63" (270mm)
(F) Input Shaft OD 1.33" (34mm)

(A) Drive plate Diameter 252mm
(B) Drive plate surface area 50mm

Dry Weight 51kg

IronMdnX

iTrader: (1)

More pictures and info
http://www.turbosupras.com/pages/en/...nical/V160.htm

IronMdnX

iTrader: (1)

The Bellhousing looks large.

Here are a few more pics I dug up.

RX-Heven

iTrader: (1)

Speedo options?

Howard Coleman

iTrader: (6)

comparative speed at 7500 rpm. 25.85 inch tire. no slip. top speeds of course only theoretical

-------FD-----supra------t56 C5------t56 ZO6/GTO-----supra w 3.13 rear gears

1-----40------36-------------52---------47------------------47

2-----69------59-------------78---------67------------------77

3----100------82------------107--------97-----------------107

4----140------107----------140--------140----------------140

5----194------139----------188--------174----------------181

6---------------176----------278--------224----------------230



observations: supra too short w stock rear gears but looks v good w 3.13.
i am going w the C5 T 56 w 07 shifting guts.

howard coleman

FDNewbie

iTrader: (10)

Howard, thanks for that side-by-side comparison

Also keep in mind guys that custom gear ratios ARE available w/ aftermarket gear sets

RX-Heven

iTrader: (1)

The Getrag trans is 4" shorter than the TII trans. That is absoutely perfect for me since I have moved the 20b back ~4". This is not counting the adapter plate thickness though. Couldn't be too hard to relocate the shifter though if needed.

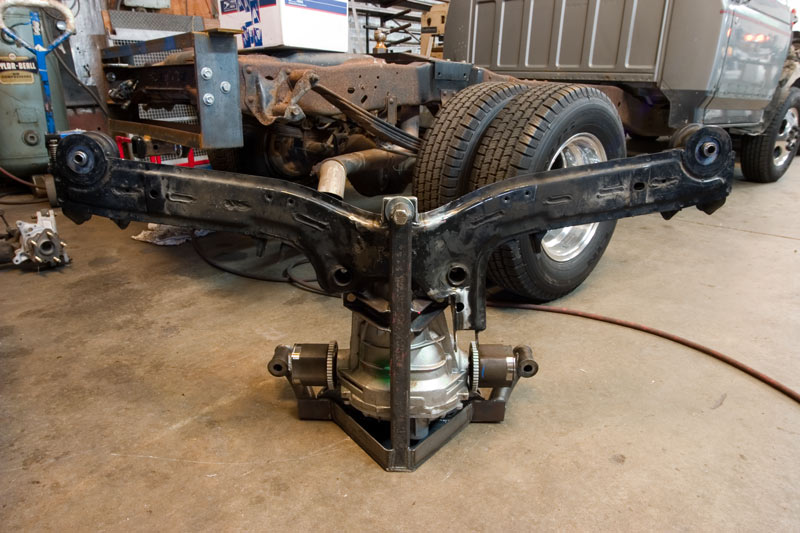

Plus, I just got in on a Cobra 8.8 IRS diff conversion for 2nd gens. Oh yeah baby....

WsUp_maNig

'Yo

Ya man this tread is very interesting indeed

WsUp

WsUp_maNig

[QUOTE=RX-Heven]The Getrag trans is 4" shorter than the TII trans. That is absoutely perfect for me since I have moved the 20b back ~4". This is not counting the adapter plate thickness though. Couldn't be too hard to relocate the shifter though if needed.

Plus, I just got in on a Cobra 8.8 IRS diff conversion for 2nd gens. Oh yeah baby....



'Yo Heaven

U do dat ?
Dat's just too kool
Were can I get 1

WsUp

Doc Holiday

iTrader: (2)

I disagree. Id rather have one overdrive gear than 2. Im a drag racer, so my opinion may differ, but I dont see a reason in having my car geared to do 180 in 4th (or 5th, whatever is 1:1). Id rather have shorter closer together gears, and more tire under the car so it stays hooked. Long gears are for getting groceries.

calculon

iTrader: (29)

except that the supra 6th isn't an overdrive at all. . .you NEED to change the diff gearing to realize any sort of benefit in terms of longer gears. . .

Doc Holiday

iTrader: (2)

According to this link it is.
http://www.turbosupras.com/pages/en/...nical/V160.htm

Howard Coleman

iTrader: (6)

Doc,

given your objectives i agree 100% w you. i should have posted that the gears are too short for me...

as to 6th being overdrive.... it certainly is. it is .79.... but yes, you do need to run a longer rear gear to stretch out top speed.

hc

carx7

iTrader: (31)

I'm in for a supra setup. I've been looking for a long time at them, and spoken to you (Carlos) about building my 20b. I know you've recomended the trans setup to me before, and I'm still collecting parts for the build.
I'm certainly interested, and willing to put down money if you'll do a group buy for the first few. Seems like you could sell them tomorrow.

-Chris

Turbo 3

iTrader: (3)

Where did you get the Cobra 8.8 IRS conversion for the 2nd gen?

RX-Heven

iTrader: (1)

http://www.torquecentral.com/showthr...7&page=1&pp=25

Already sourced my Getrag in need of a rebuild. I'm stuffing the dog ring gear set in it.

The going rate seems to be:
Used and neeeds a rebuild ~$1700
Used and in operable cond. ~$2800
Rebuilt ~$3200
New at cost ~$4500
New retail ~$6500

RX-Heven

iTrader: (1)

For those pm'ing me, I sourced the trans from one of the larger Supra forums.
http://www.supraforums.com/forum/index.php?
I don't think there are any others currently available there right now though.

There are several more forums btw and it does seem, at least from the browsing I did, the trannies are snapped up pretty quick when they do become available. I got the only available one I could find ad it happened to be just what I was looking for, i.e. in need of a rebuild. Then again I only looked for a few little bit. e-bay proved worthless fwiw.

Rhode_Dog

This might have been brought up before but the V160 (93-96) had shorter ratios than the V161 (96-02)

V160
First Gear: 3.830:1
Second Gear: 2.360:1
Third Gear: 1.680:1
Fourth Gear: 1.310:1
Fifth Gear: 1:1
Sixth Gear: 0.790:1

V161
First Gear: 3.724:1
Second Gear: 2.246:1
Third Gear: 1.541:1
Fourth Gear: 1.205:1
Fifth Gear: 1:1
Sixth Gear: 0.818:1

FDNewbie

iTrader: (10)

Is it the same tranny though (exterior-wise)? Cuz I may see if I can source a JDM one then Can someone post up the calculated theoretical top speeds for the JDM version (V161)?

Thanks!
~Ramy

Howard Coleman

iTrader: (6)

comparative speed at 7500 rpm. 25.85 inch tire. no slip. top speeds of course only theoretical


-------FD-----supra------t56 C5------t56 ZO6/GTO---------supra

---------------------------------------------------------------V160------V161
1-----40------36-------------52---------47--------------------47--------45

2-----69------59-------------78---------67--------------------77--------75

3----100------82------------107--------97-------------------107-------108

4----140------107----------140--------140------------------140-------140

5----194------139----------188--------174------------------181-------167

6--------------176-----------278-------224------------------230-------205


Supra: (V160 3.13 final drive, V161 w 3.36 rear gears to factor 140 in 4th gear)




howard coleman

Doc Holiday

iTrader: (2)

Explain to me why you keep trying to gear the car to do 140 in 4th? I realize that 4th with the FD trans is 140 with the numbers you put in, but why do you want the supra trans to run 140 in 4th?

Howard Coleman

iTrader: (6)

take your pick there are lots of ways to look at trans ratios.

since my interest is comparing ratios to the box i plan to use, the T56 C5, and it has a 1 to 1 4th i want to see if you put a rear ratio in that delivers a similar speed... what are the top speeds in each gear. further, i picked 140 as that's the number in the stock FD with which i am most familiar.

Doc, should you wish to do it a different way, please feel free.

howard coleman

crispeed

My opinion of a T-56 tranny is that it's just a waste of time gear ratio wise as a 6-speed. It's basically a 4-speed with two overdrives one of which is useless. Not to mention it was never designed for quick shifts at high rpms. Ask me how I know.
G-force and Liberity transmission do make some upgraded stuff that helps in the shifting department though.
The Getrag supra tranny is probably the best all around except for it's way too low 1st gear ratio for use with the final drive ratio of an rx-7 on a high horsepower application. Even the supra guys complain of this and often use second gear for hard launches especially if they are not using the stock final drive of the turbo 6-speed supra and did the conversion in a a supra that was either a 5-speed, automatic or NA application before. More positive points for the Getrag would be it's strength and high rpm shifting qualities something to which I also have experienced personally.
Richmond also makes a very good 6-speed transmission but the shifter location does require some serious surgery because it sits towards the driver's side of the transmission tunnel. Some very good ratios are available for this tranny though. On the downside this tranny also exibits poor high rpm shifting qualities even worse than the T-56 in stock form but also can be improved upon by the two companies listed above.
I'm going to be experimenting with one of these--->

http://www.g-forcetransmissions.com/tran_gt-5.asp

FDNewbie

iTrader: (10)

Crispeed, thanks for your input I've heard the same thing re: the T-56 and shifting @ high rpms over and over from different sources. I'm thinking a Getrag w/ a 3.9 (auto) rear would help quite a bit re: the Getrag's gearing. Plus it's a real simple job to do; no crazy fabrication of a different diff cradle and installing a new diff etc.

Of course, if one tries the 3.9 and finds it STILL not where one would want to be, THEN we can explore a more complicated setup that would allow us to run whatever rear we'd want (eg. Jimlab's 8.8" Cobra IRS rear).

The one thing I'm curious about is, what's the ratio on the TII or any other earlier RX-7 rear diffs? Any of them lower than 3.9?

~Ramy

RX-Heven

iTrader: (1)

3.9 is as tall as you'll get for RX7's that is out of cars equipped with an auto. Those gears will fit in the fd diff housing but not in the TII diff housing iirc.

I have found three sources that have plenty of rebuilt 6-speeds w/ 12 month warranties (sure ) for ~$3300 and one guy who only has new transimssions for $4400.

Unforrtunately the guy I found with the 6-speed in need of a rebuild decided not to sell it. I'll only put those PPG gears in one that needs a rebuild because of the cost difference. In the meantime, I'll keep looking....
