20b Into a FD
07-12-03, 11:00 AM
#26
Originally posted by tomaszjc7
SomeGuy sg, can you post some pics of your car, its sounds pretty amazing... atleast thats what i get from your sig
SomeGuy sg, can you post some pics of your car, its sounds pretty amazing... atleast thats what i get from your sig
08-06-03, 01:55 PM
#28
20B N/A Wide Body FC3S
I'm making my own, so far I think I've spent a couple days work and about $15 and I have the whole front 1/2 done with the rack droped and all the mounting etc done. The sub frame I'm making will be a hell of a lot stronger than the one Pettit or any one else sells that I've seen. I'll probably have a total of about $30 worth of steel and welding wire expense when all is said and done... In about 2 weeks after I finish up a couple of my customers cars I'm going to go knee deep in to my car and try to have the 20B in and running by somtime in early september..

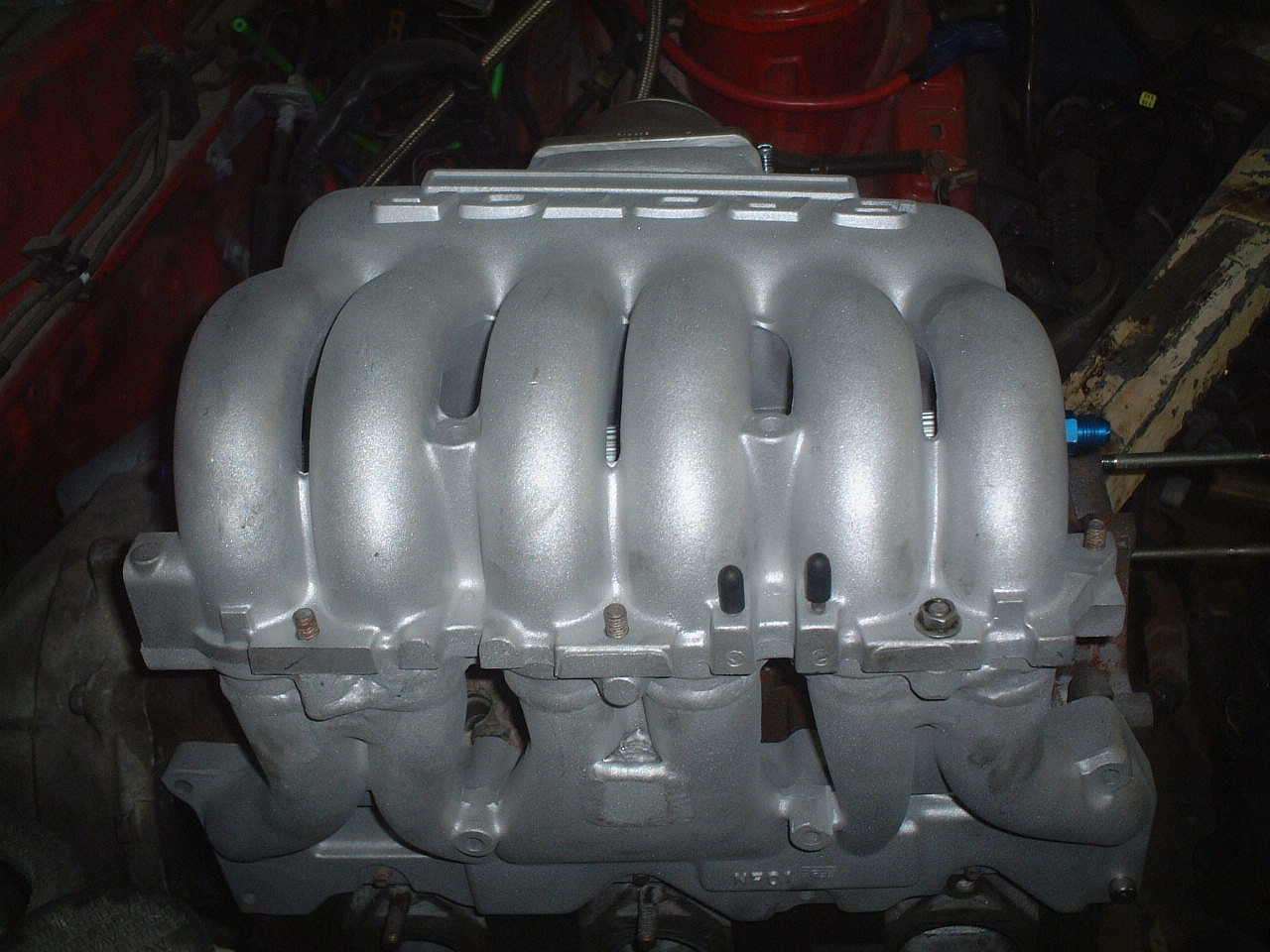

Here is a pic of the upper and lower intake manifolds I've modified, you can also see the fuel rails I've made for the 1680 secondary and 1000cc primary injectors.
Here is a pic of the upper and lower intake manifolds I've modified, you can also see the fuel rails I've made for the 1680 secondary and 1000cc primary injectors.
Last edited by Dragon; 08-06-03 at 02:04 PM.
08-06-03, 02:18 PM
#29
20B N/A Wide Body FC3S
It is a Holly 95mm Ford 5.0 throttle body mounted to the upper intake by the way.
I also ordered a microtec ltx12 that should be here next week and I will be running 6 Accel GM type coils and a 34 row and 25 row setrab oil coolers as well
I also ordered a microtec ltx12 that should be here next week and I will be running 6 Accel GM type coils and a 34 row and 25 row setrab oil coolers as well
08-07-03, 02:25 AM
#31
20B N/A Wide Body FC3S
It's going in my Yellow FD, I'm using my other Red FD (going to be a drag car eventually) to fabricate all the stuff so I'll have less down time with my car. I'm actually cutting up and rebuilding the stock subframe to make it stronger and to make the 20B fit.
08-07-03, 03:47 AM
#33
20B N/A Wide Body FC3S

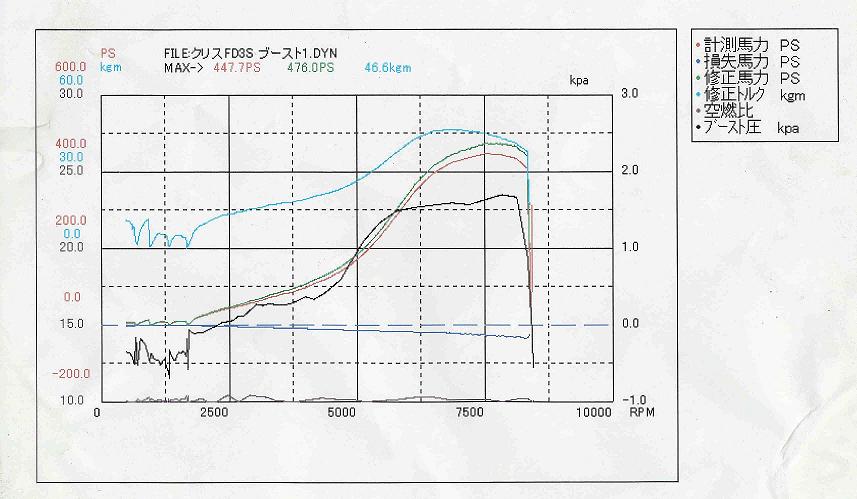

It'll be a daily driven drag car, I'm shooting for a easy 600 at first and I'd like to have a solid 700 to the wheels when all is said and done.. I'm not really worried about handling... On the large side ported 13B I was boosting 1.6-1.7 with a T70 a/r .84 compressor, P trim a/r 1.15 exaust for a while till is spun the front stationary gear bearing, and running 550 primarys, 1680 secondarys and 2 more 720's in the primary runners that came on line with the secondary injectors for 5,900cc's of fuel and I was hitting 78% on the injectors @ 3.8 kgcm of fuel pressure with dual walboro pumps.. I'm leaving the car down now and hitting it full on here in a week or two to get the 20B in and running...
Last edited by Dragon; 08-07-03 at 03:50 AM.
08-07-03, 03:50 PM
#35
Dorifto Tengoku No More
Join Date: Nov 2002
Location: On the mountain of Thessaloniki, Greece
Posts: 1,331
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Dragon
It'll be a daily driven drag car, I'm shooting for a easy 600 at first and I'd like to have a solid 700 to the wheels when all is said and done.. I'm not really worried about handling... On the large side ported 13B I was boosting 1.6-1.7 with a T70 a/r .84 compressor, P trim a/r 1.15 exaust for a while till is spun the front stationary gear bearing, and running 550 primarys, 1680 secondarys and 2 more 720's in the primary runners that came on line with the secondary injectors for 5,900cc's of fuel and I was hitting 78% on the injectors @ 3.8 kgcm of fuel pressure with dual walboro pumps.. I'm leaving the car down now and hitting it full on here in a week or two to get the 20B in and running...
It'll be a daily driven drag car, I'm shooting for a easy 600 at first and I'd like to have a solid 700 to the wheels when all is said and done.. I'm not really worried about handling... On the large side ported 13B I was boosting 1.6-1.7 with a T70 a/r .84 compressor, P trim a/r 1.15 exaust for a while till is spun the front stationary gear bearing, and running 550 primarys, 1680 secondarys and 2 more 720's in the primary runners that came on line with the secondary injectors for 5,900cc's of fuel and I was hitting 78% on the injectors @ 3.8 kgcm of fuel pressure with dual walboro pumps.. I'm leaving the car down now and hitting it full on here in a week or two to get the 20B in and running...
I think your best 150m with the yellow car was 6.5sec at 138kph?
08-08-03, 05:38 AM
#36
20B N/A Wide Body FC3S
Originally posted by FxF
What seals did you use on the 13B? Hp?
I think your best 150m with the yellow car was 6.5sec at 138kph?
What seals did you use on the 13B? Hp?
I think your best 150m with the yellow car was 6.5sec at 138kph?
08-08-03, 05:51 AM
#37
20B N/A Wide Body FC3S
Originally posted by t-von
Dragon, is it safe to assume that your modified stock sub-frame sits the engine a little higher? Is this the reason you cut the LIM to lower the UIM to clear the hood? You did cut and reweld the LIM didn't you? Thats what it looks like to me.
Dragon, is it safe to assume that your modified stock sub-frame sits the engine a little higher? Is this the reason you cut the LIM to lower the UIM to clear the hood? You did cut and reweld the LIM didn't you? Thats what it looks like to me.
I also want to be able and use a strut tower bar to help reenforce the front end of the car is the other reason. The rack and pinion has been droped aproximatly 10cm's, once everything is in the car I'm going to work on the spindle/lowered rack issue, but I'm thinking about modding the actual tie rods to include a couple of bends and then reenforcing those area's...
08-08-03, 02:10 PM
#40
Photo Diety
Join Date: Mar 2001
Location: Florida
Posts: 2,311
Likes: 0
Received 0 Likes
on
0 Posts
Chris,
Out of curiosity, does the 20B have the engine mount studs in the same place as the 13B RE and in the intermediate plate as well? Just curious as I may be able to just reuse my RE mounts with the 20B. I'm thinking stock subframe and 20B oil pan and modified intake manifold OR dry sump/modified engine mounts (to position even lower) and modified/aftermarket 20B intake manifold. If the studs aren't there I may reuse some of the Cosmo plates and go from there. Naturally the tranny would not be in the stock location but the front rotor would which is what I'm shooting for.
Out of curiosity, does the 20B have the engine mount studs in the same place as the 13B RE and in the intermediate plate as well? Just curious as I may be able to just reuse my RE mounts with the 20B. I'm thinking stock subframe and 20B oil pan and modified intake manifold OR dry sump/modified engine mounts (to position even lower) and modified/aftermarket 20B intake manifold. If the studs aren't there I may reuse some of the Cosmo plates and go from there. Naturally the tranny would not be in the stock location but the front rotor would which is what I'm shooting for.
08-08-03, 02:53 PM
#41
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,849
Received 2,613 Likes
on
1,852 Posts
Originally posted by rx7tt95
Chris,
Out of curiosity, does the 20B have the engine mount studs in the same place as the 13B RE and in the intermediate plate as well? Just curious as I may be able to just reuse my RE mounts with the 20B. I'm thinking stock subframe and 20B oil pan and modified intake manifold OR dry sump/modified engine mounts (to position even lower) and modified/aftermarket 20B intake manifold. If the studs aren't there I may reuse some of the Cosmo plates and go from there. Naturally the tranny would not be in the stock location but the front rotor would which is what I'm shooting for.
Chris,
Out of curiosity, does the 20B have the engine mount studs in the same place as the 13B RE and in the intermediate plate as well? Just curious as I may be able to just reuse my RE mounts with the 20B. I'm thinking stock subframe and 20B oil pan and modified intake manifold OR dry sump/modified engine mounts (to position even lower) and modified/aftermarket 20B intake manifold. If the studs aren't there I may reuse some of the Cosmo plates and go from there. Naturally the tranny would not be in the stock location but the front rotor would which is what I'm shooting for.
mike
