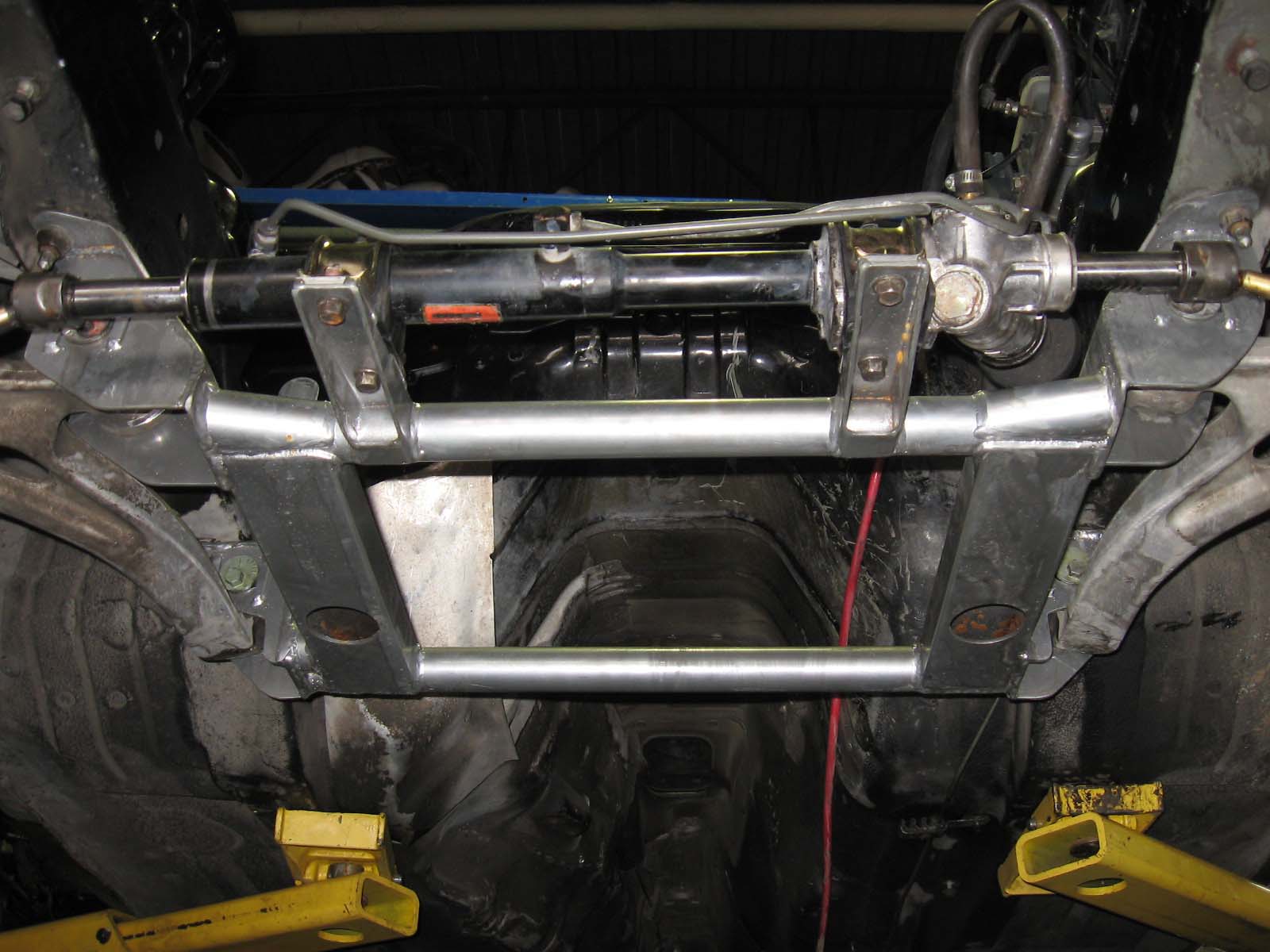

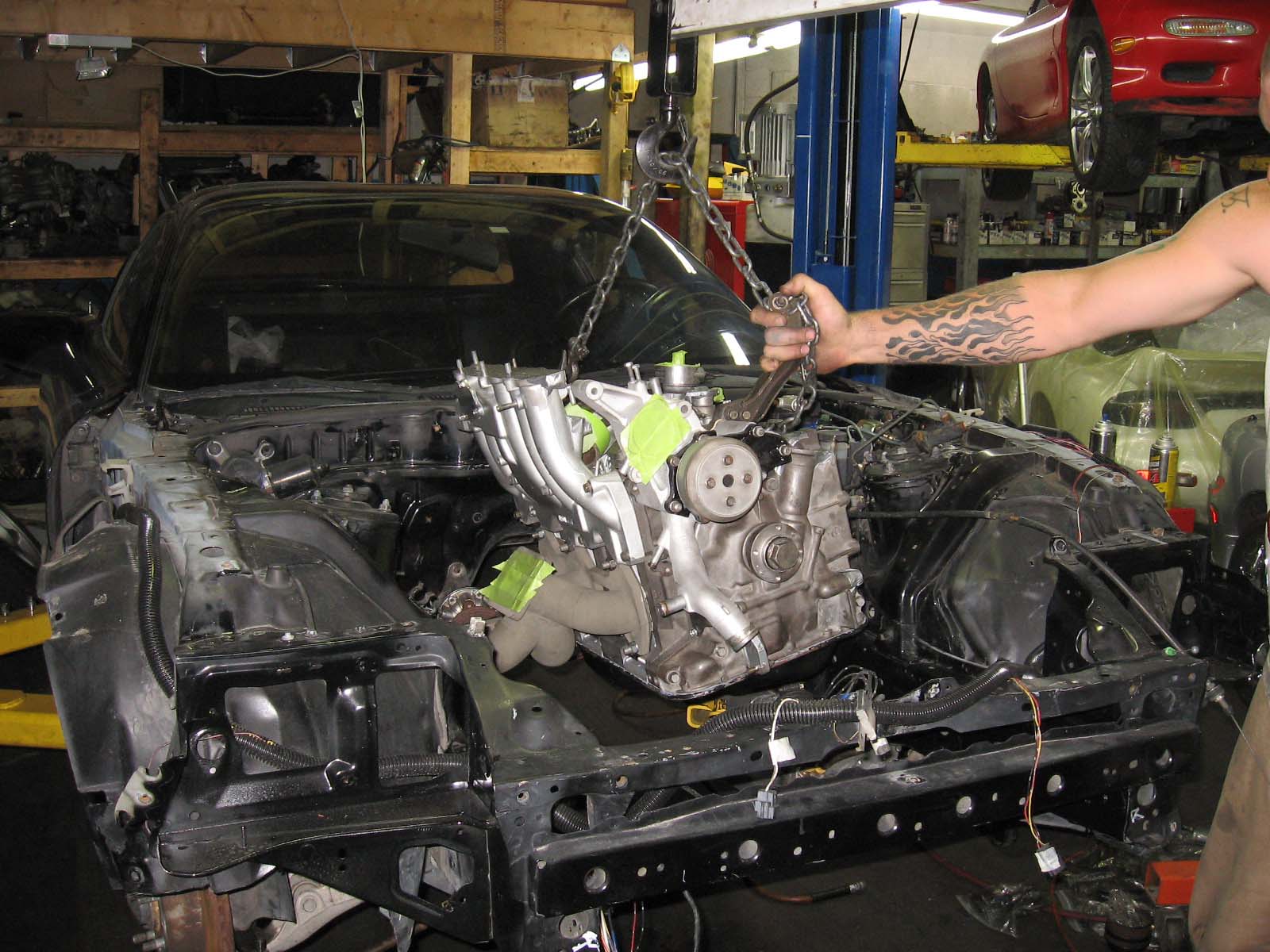

Here are some of the pics from my build

Enjoy

More to come



more



thats effing tight



Nice



looks like the inside of adams shop.
matt



Wonderful looking. That is not adam's 3 rotor though is it?



no, that is my 3 rotor but it was built by Adam, all the installation is being done by my roommate and I.



Nice work, but size of your oil coolers, damn. Are you going to stick with the stock tranny and what kind of clutch are you going to use?



gonna use the stock tranny till it breaks, putting in an RPS clutch for now, probably wont last long. Will put in an Exedy twin plate next spring.

Should have alot more finished after the weekend, will post more pics.



just in case you want the better clutch now:
http://forums.780tuners.com/showthre...threadid=43850

later
matt



Tell me about that massive cooling system you have..

I've been trying to get a radiator and intercooler for my 20b gt42r project but haven't had any luck.

Anyone?

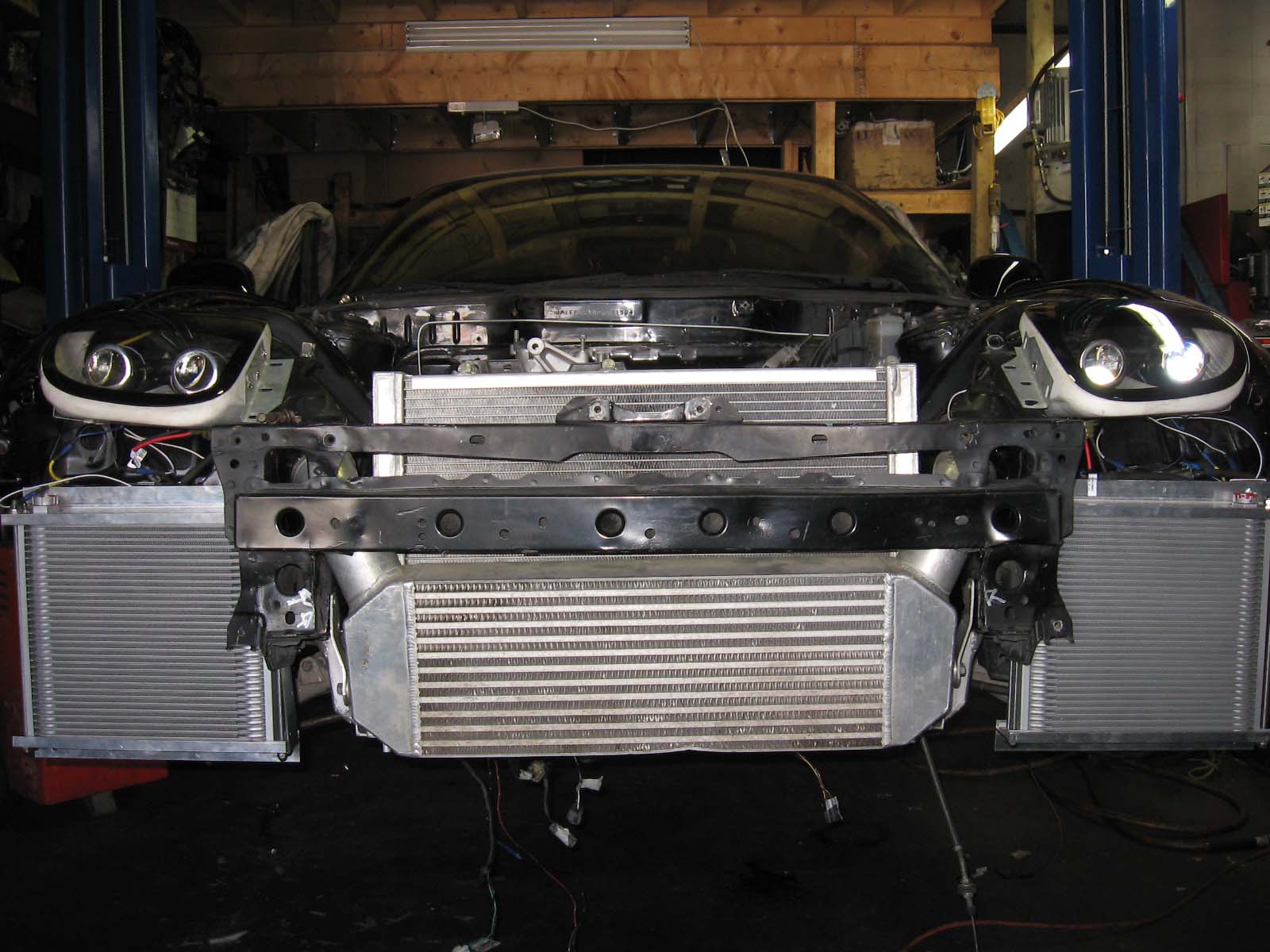

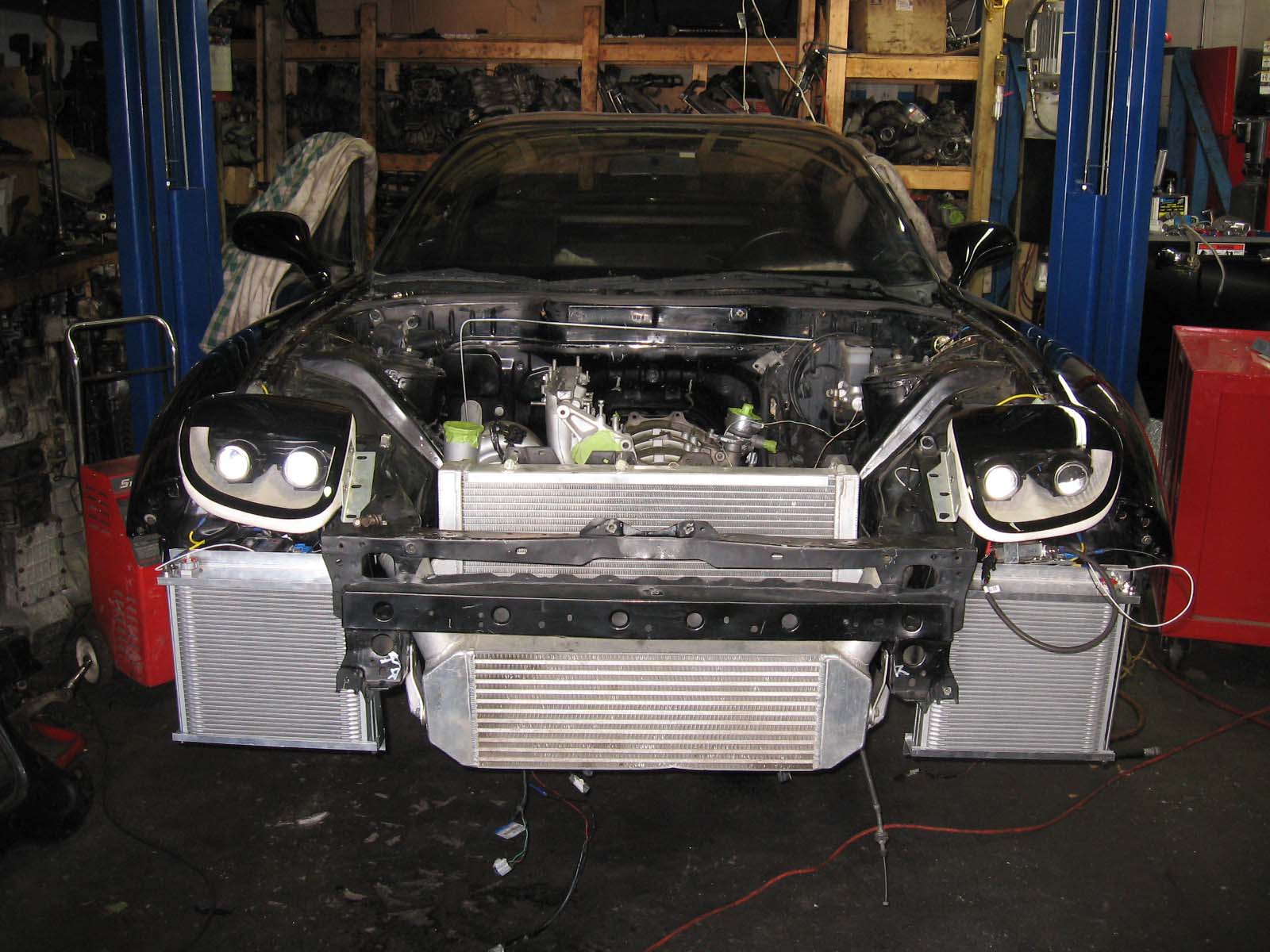

that looks kick ***! I love the last pic with all the oil coolers, intercooler, and the radiator. Looks like a god damn transformer or something.



Daaammm! Those oil coolers are huge! Adam is building my motor too



Jesus, those oil coolers make your intercooler look tiny......

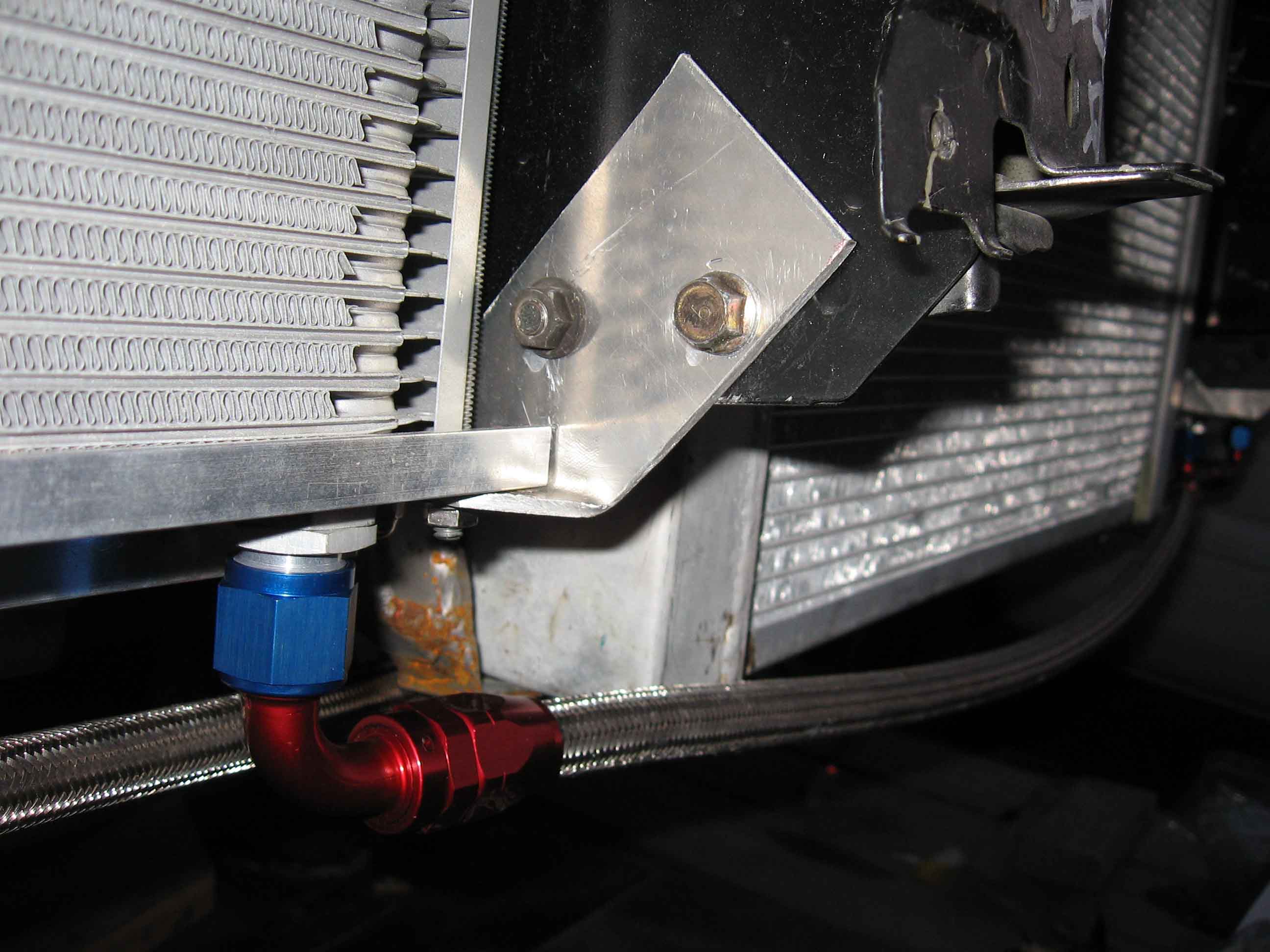

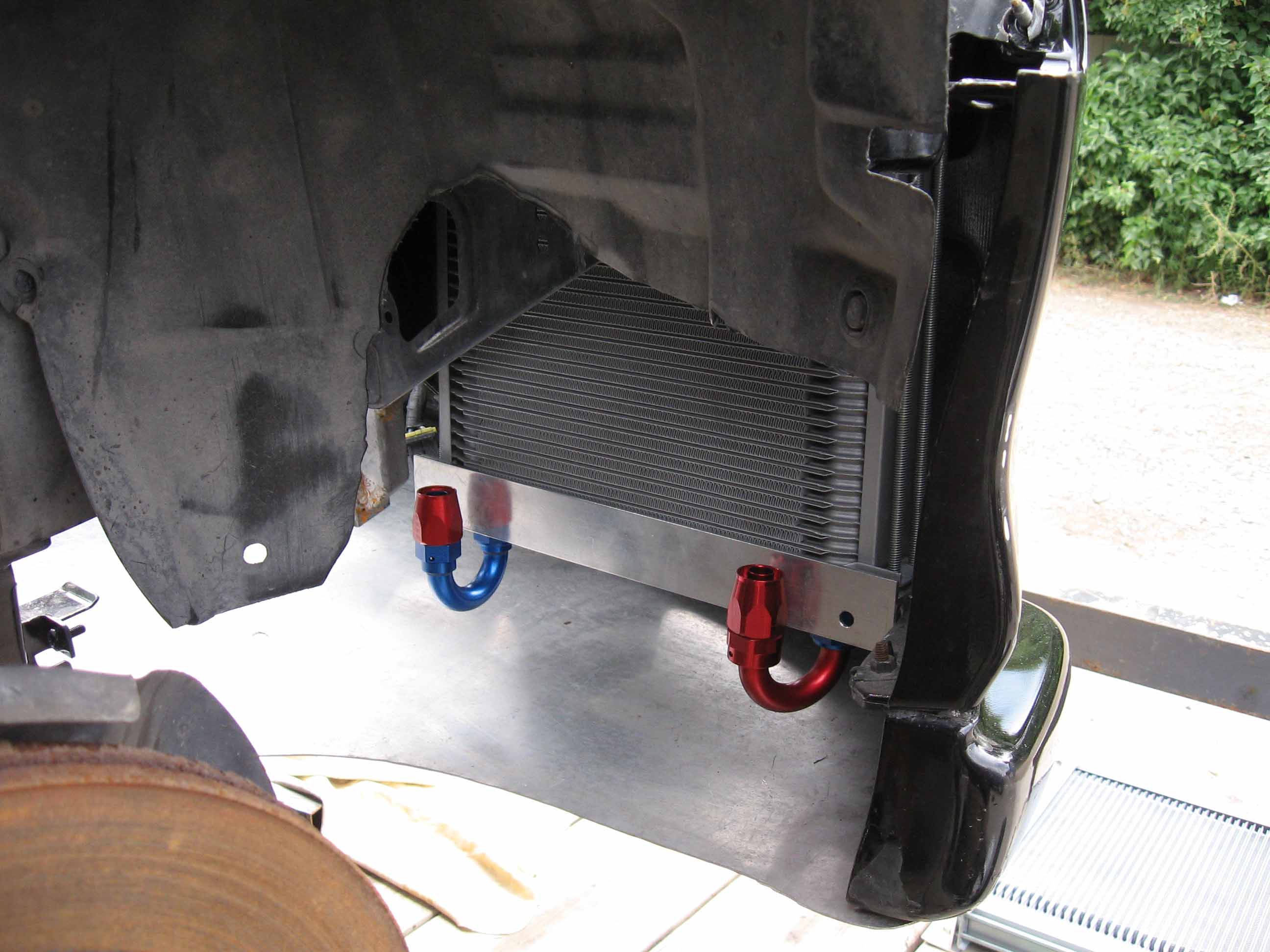

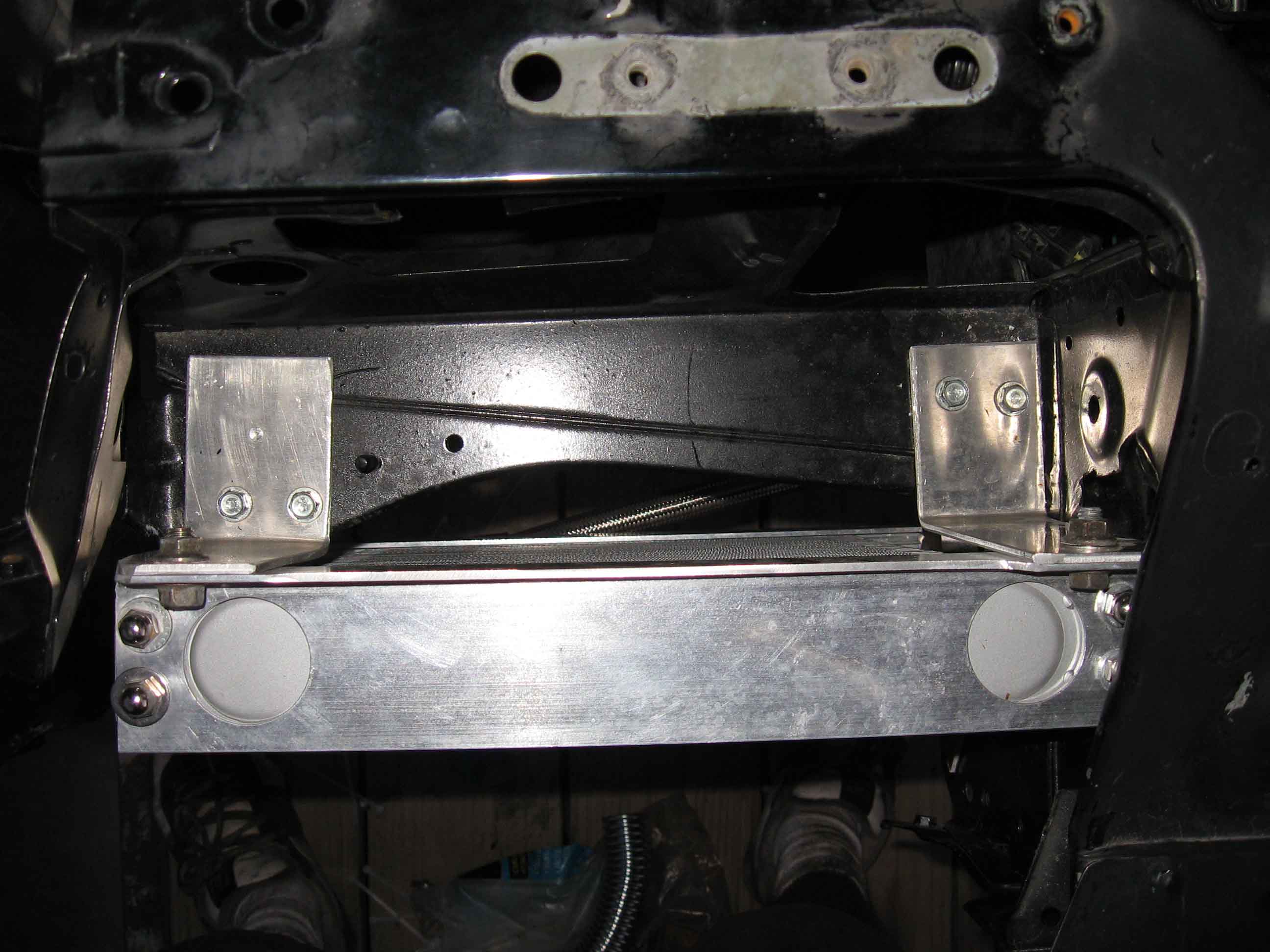

Decided to mount the coolers with the fittings on the bottom, actually using 90 degree fittings not the 180's shown in the pic.

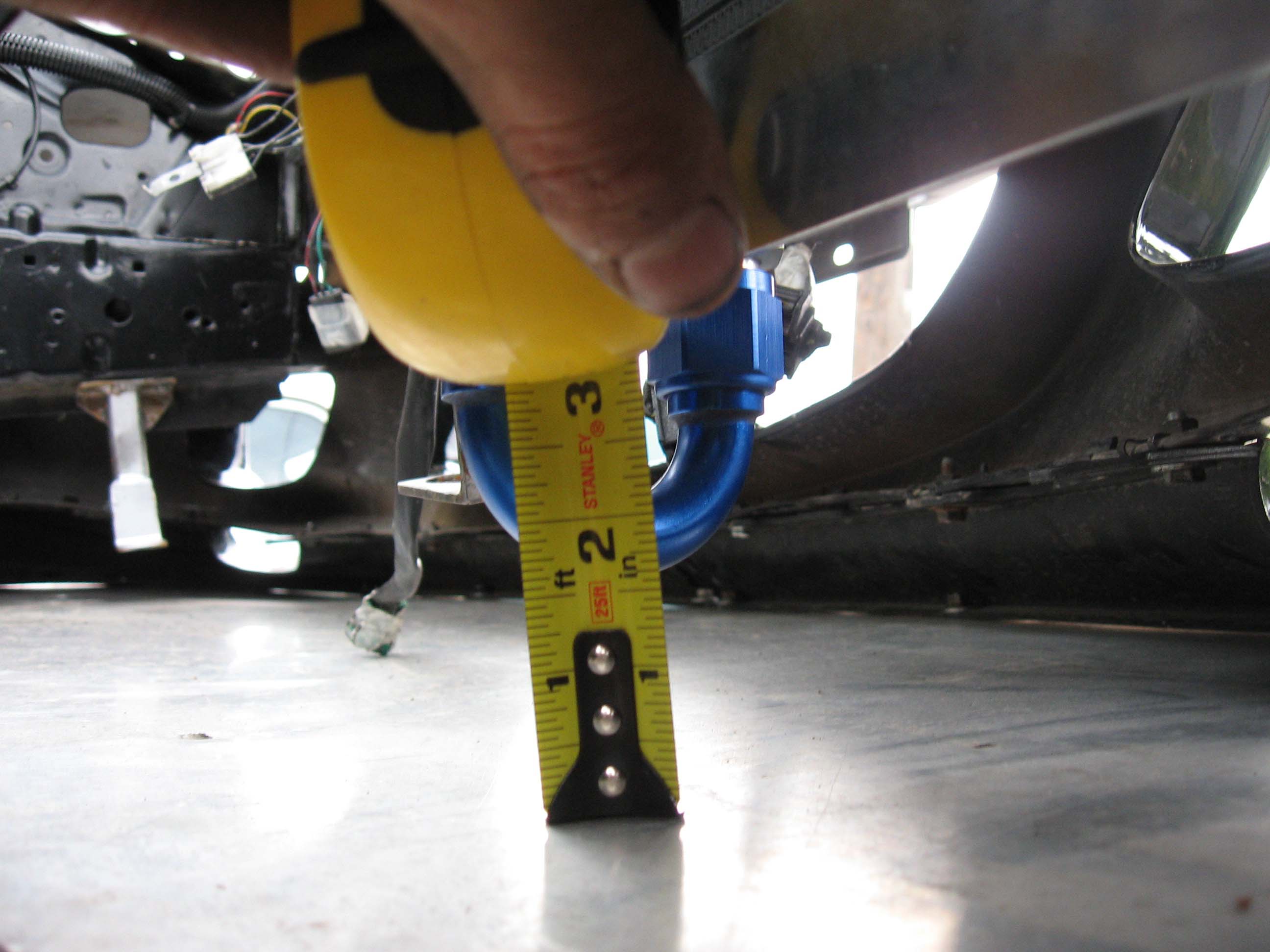

Also moved the coolers up, the bottom of the fittings are 2 inchs above the belly pan.

Will duct the oil coolers, IC and rad this weekend.



Are you sure those oil coolers are going to be big enough? haha, jk! Your swap looks great!!!!!



check ur pm's



Lookin good Eric........cant wait to go for a rip
u are gonna take me for a rip right?

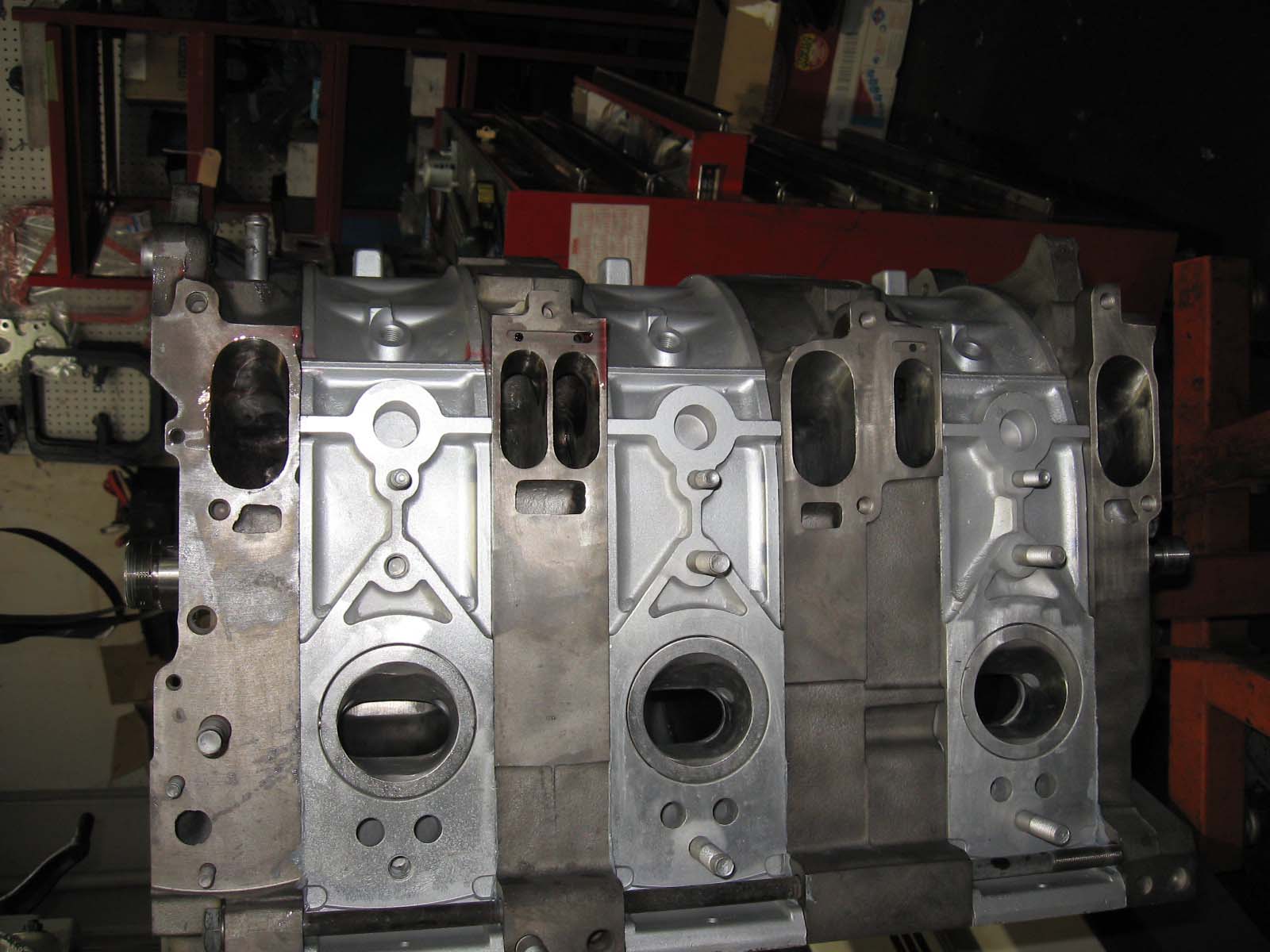

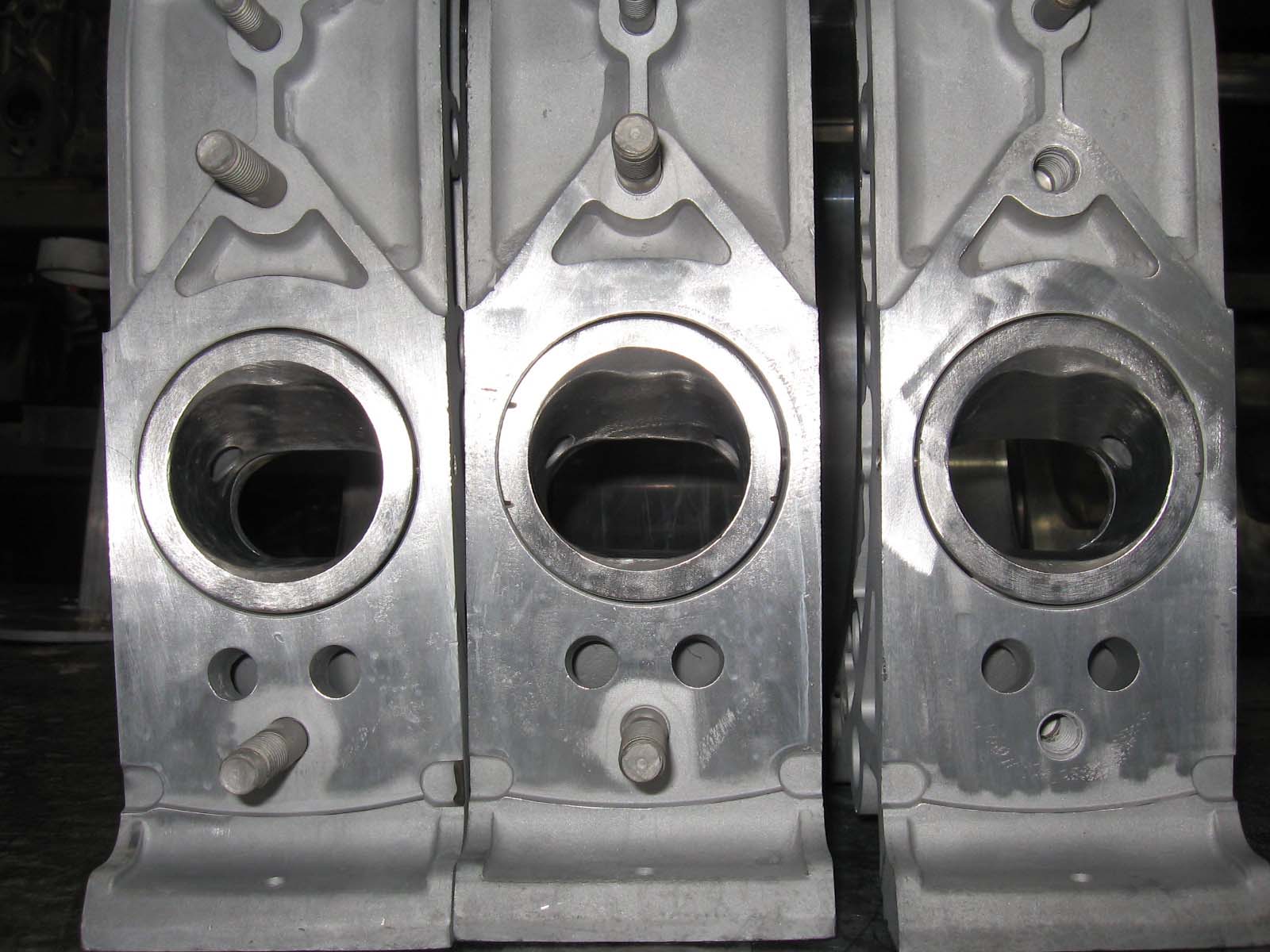

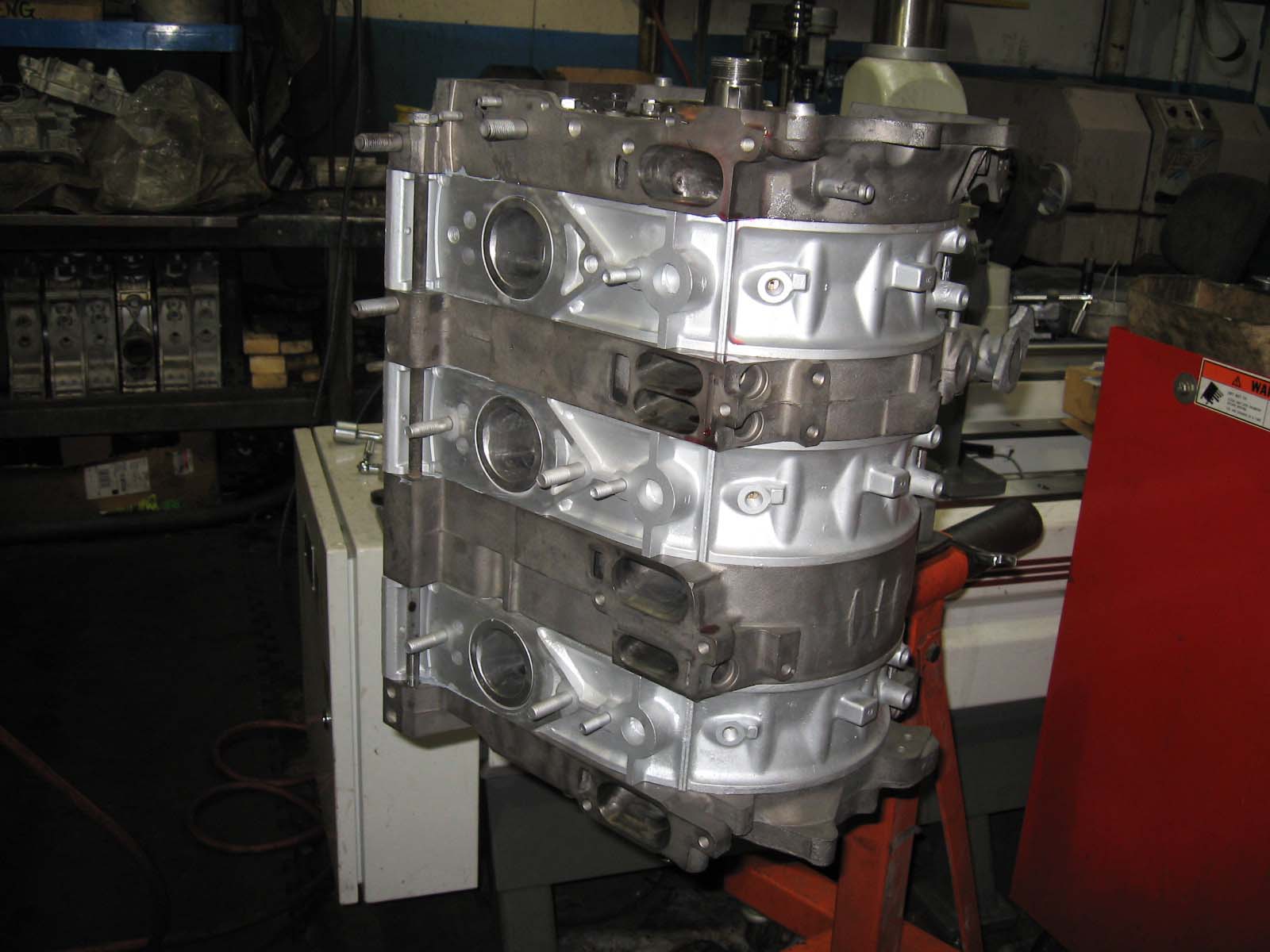

i hope you put a bevel on the closing edge of those exhaust ports......



yes, there is a bevel on the closing edge of the exhasust ports

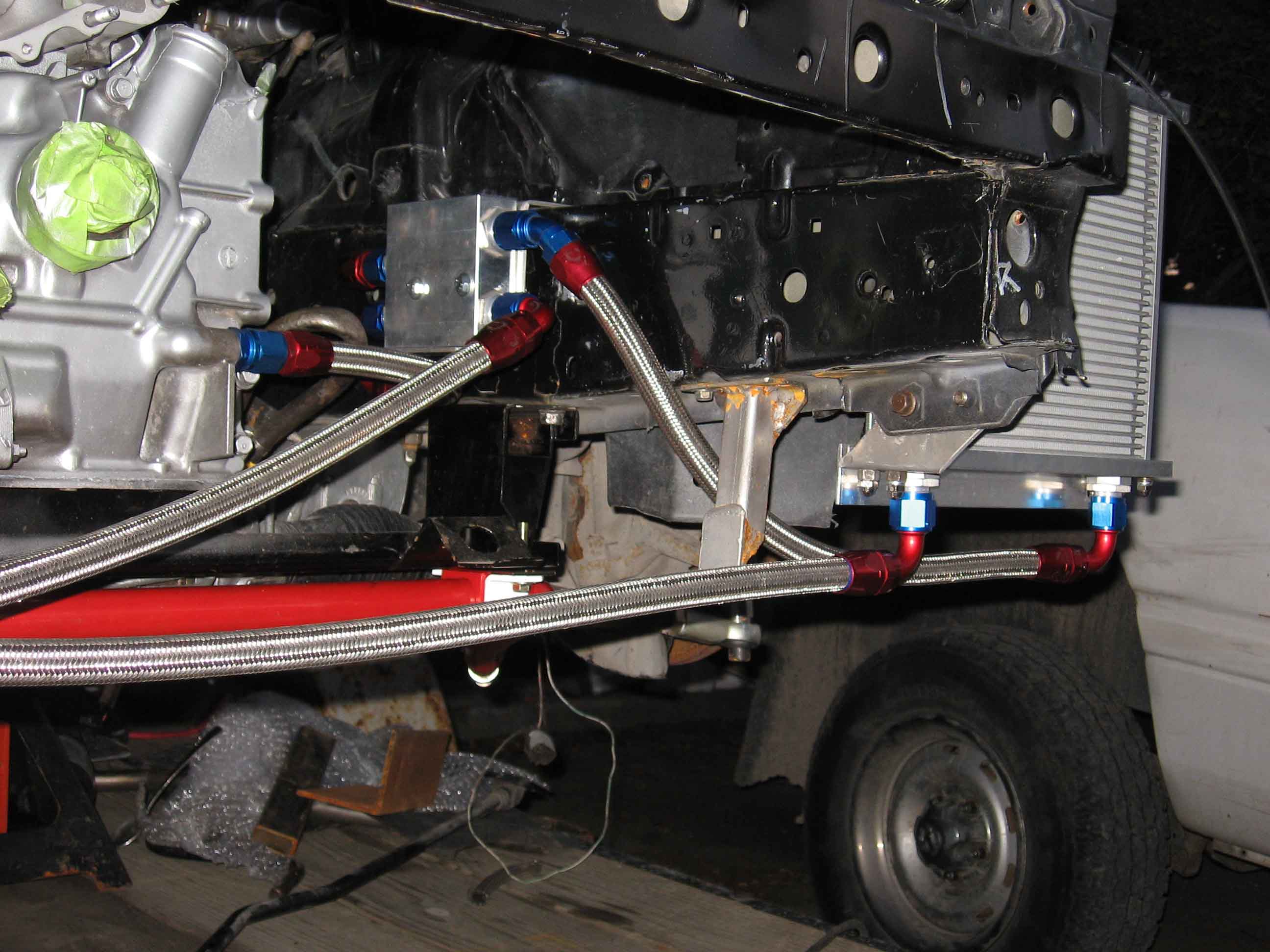

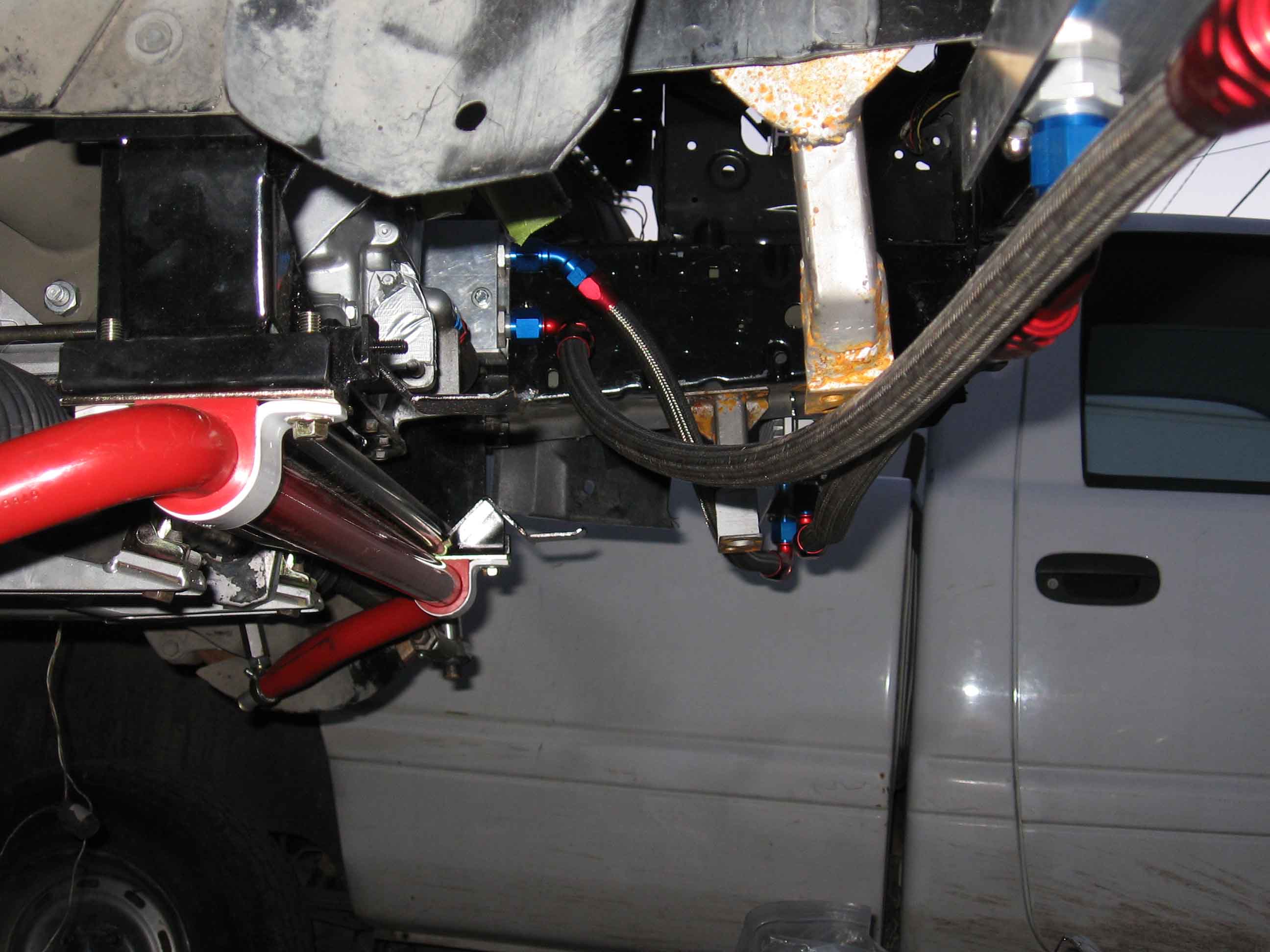

Most of the oil cooler lines are done, waiting for the an adaptor for the oil filter pedastil to complete them.



Why did you run the oil colers in series?
I would have done them in parralel after going through all that work.

I mounted my Earls t-stat in the same location too. Trick looking piece for sure.



Ran them in series basically just to make it easier to plum.

Do you have any pics of your set up?



I sold the dual Setrab oil cooler setup I had in my other widebody that the 20b was originally intended for. I decided to sell that car and keep the pop-up headlights in my vert which eliminated the space needed for the dual coolers I had. I hope this current setup will be sufficient for the 3-rotor. The oil cooler is from fluidyne. I have tracked the car with this cooler and the 400 rwhp 13b setup and saw a significant decrease in oil temps at the oil pan when compared to the stock oil cooler.

Here ya go.



Thanks for the pics, your setup looks great.

Nice work on the ducting!



BlackRx where did you pick up your radiator and intercooler?
