20B center bearing install
Short story

Installing new center bearing into stationary gear and i need to know which side goes notch to (side with ring gear or other one)

and if it has to be 100% flush with flat side or not? (mine was not)

If somebody has detailed pics of center gear with bearing installed , it would help

thanks!
hIGGI is offline
Reply Like
Old 06-17-10, 06:16 AM
  #2
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,826
Received 309 Likes on 180 Posts
Maybe this will help


Banzai-Racing is offline
Reply Like
Old 06-17-10, 07:32 AM
  #3
Moderator

Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,985
Received 17 Likes on 12 Posts
nope, this picture does not really help, as it is not showing notch
hIGGI is offline
Reply Like
Old 06-17-10, 08:48 AM
  #4
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,826
Received 309 Likes on 180 Posts

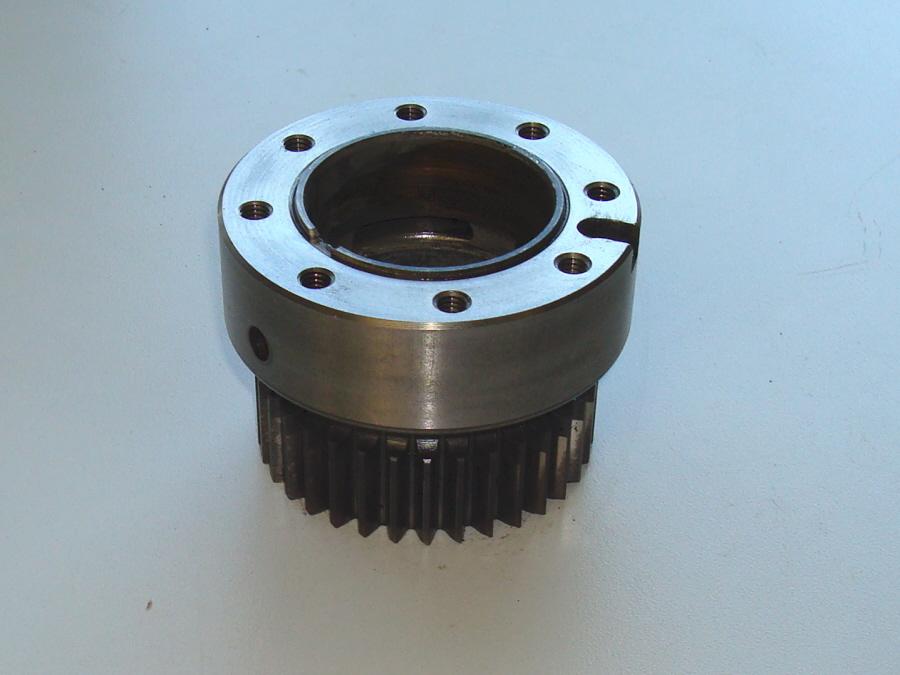

Just double checked one that I have on the shelf. The notch is on the bolt flange side and the bearing protrudes 1mm

Attached Thumbnails 20B center bearing install-20b_bearing.jpg
Banzai-Racing is offline
Reply Like
Old 06-17-10, 01:17 PM
  #5
Moderator

Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,985
Received 17 Likes on 12 Posts
weird , 20B i took apart had it about 1mm into stat.gear, not out of it..
hIGGI is offline
