KillaKitiie

Ok i bought a good electric aftermarket water temp guage but the sender they gave me is too big to fit in the stock location!!!

So i tried it on the top of the radiator with no luck it's now too small but still too big to fit inside a sleeve.

So now i was wondering if the drain plug on the bottom of the housing would work? What do you guy's think?

If all else fail's is there a smaller sender i can buy somewhere? this sender has a screw on the end!

warwickben

iTrader: (1)

i had kinda asked the same question not that long ago. u could just buy a 3 or 4 inch tube and get a bung put on it for the sender. then connect to one of the coolant tubes to the radiator. i forget who told me to do it.


i had a sunpro gauge in my car and the gauge went to 280 as soon as the car was on.

Siraniko

iTrader: (13)

coz you guys are lazy to search

KillaKitiie

Problem fixed...I just went to the local hardware store and bought the fitting's i needed.

It's going to look kinda odd though. I have a couple extra sender unit's laying around from various previous temp gauges ive had over the years. But none of them work with this gauge..lol

Its just odd how they make the hole soo damn small?

KillaKitiie

I know man but i work 10-12hr's a day and when i have time to do this stuff i dont have alot of time trying to find answer's. It seem's that every other day we have a "how do i get more hp out of my 12a" thread and that get's alot of replie's.

Im not trying to irritate anyone soo sorry to any, who i did too.

SIXSERIESCSI

Egh, No Search Required!

82transam

iTrader: (18)

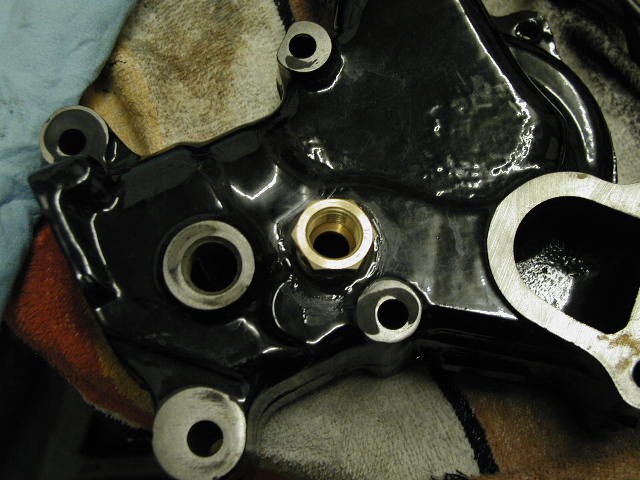

I drilled and tapped a hole in my water pump housing for my water temp gauge. Works great, and seems to be very accurate...

ray green

iTrader: (14)

Here are some other ideas:

From Jeff20B:



My version of Jeff's old school approach:



Details at:

https://www.rx7club.com/1st-generation-specific-1979-1985-18/second-water-temp-sender-tip-installation-question-631760/

KillaKitiie

Hey that's awesome!

Is that a second gen nozzle? I didnt know they fit. i have one im going to check it out!

warwickben

iTrader: (1)

ray green mind telling what gauge your useing , i think i mite go the way you did, looks better to me and give me reason to take that part off and paint it lol.

ray green

iTrader: (14)

Yeah it was a fun and inexpensive project and I agree it looks cool, almost as cool as Jeff's old school stock housing, which is where I got the idea. Nicest thing about it is that it is a mechanical sensor so it is immune to electrical gremlins and backs up the stock electrical gauge reliably.

I just took the stock 85 goose neck and drilled a big hole, then welded a pipe fitting in:

trochoid

iTrader: (6)

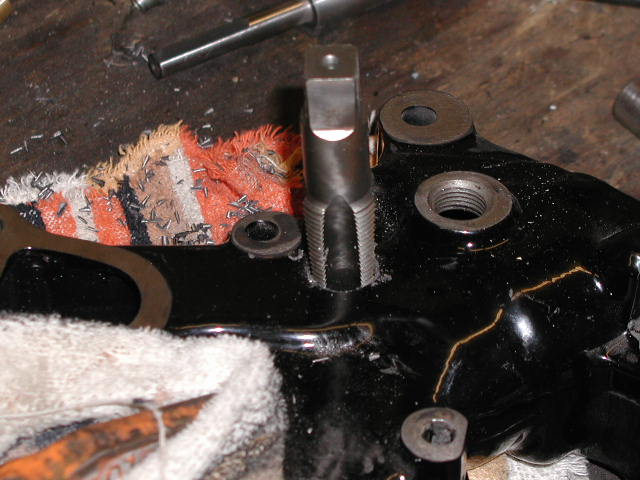

Keep an eye on the internal clearance when tapping. The FC wp housings are easier since there is an extra land where the tap can be made. 3/4" NPT tap.

kgray

****, that looks familiar.

trochoid

iTrader: (6)

Yep, it should.

blwfly

iTrader: (4)

i was gonna fit myn where the old choke sensor went. never did it since my engine blew.

RotaryRevn

What size is your temp sensor? If 1/8 npt, you could put it inside your heater hose with something like this?



http://www.egauges.com/vdo_acce.asp?...ptors&Manf=All


Or maybe in another stock location with something like these?



http://www.egauges.com/vdo_acce.asp?...apter_Bushings

http://www.egauges.com/vdo_agrp.asp?...pters_Bushings



http://www.autometer.com/cat_accesso...st.aspx?pid=11

Jeff20B

iTrader: (13)

I moved that thermostat housing, complete with fitting and guage, to the REPU.

Latin270

I just rethreaded the stock location in back of the water pump housing and never had a problem.

nick812

I like this 1.

Jeff20B

iTrader: (13)

I did that on the GLC. No problems.

Hey Latin, I noticed your temp sender in that location is compatible with the Edelbrock on an RB manifold. Was your spacer 1" or 3/4"?
