Wheel Adapters

Are they worth it. Whats the biggest disadvantages.

Unsprung weight?

Puts them out farther?

Weak?
Old 01-10-08, 08:51 PM
  #2
Full Member


budrud's Avatar

Join Date: Oct 2003
Location: Bellingham washington
Posts: 118
Likes: 0
Received 0 Likes on 0 Posts
I have heard varying opinions but I have been running them for years and love them. I got them at wheeladapters.com. The nice part is I can get wheels cheap off craigslist or whatever in any style. I converted to 4x114.5. I flared my fenders to allow wider tires but it isn't nessesary the adapters are 1.5" wide but honda wheels tend to come with bigger offsets in my experiance
Old 01-11-08, 04:36 PM
  #3
Full Member
Thread Starter
iTrader: (1)

markusj08's Avatar

Join Date: Nov 2007
Location: Wa
Posts: 224
Likes: 0
Received 0 Likes on 0 Posts
What did u pay for them? How big of wheels are u running?
Old 01-11-08, 05:46 PM
  #4
Full Member


budrud's Avatar

Join Date: Oct 2003
Location: Bellingham washington
Posts: 118
Likes: 0
Received 0 Likes on 0 Posts
They are about 300. bucks as I remember. I am running 15s
Attached Thumbnails Wheel Adapters-bmw_rx7_007.jpg
Old 01-12-08, 03:20 PM
  #5
Full Member


cjrx7's Avatar

Join Date: May 2006
Location: st.paul mn
Posts: 119
Likes: 0
Received 0 Likes on 0 Posts
I have a set myself and have no issues with them on the stock port 12a,I dont think they would break too easy anyway,I run the "phone dial" FC 4 lug rims on my Gs and really like the fact they stick out further and let you run FWD offsets. Mine were $290.

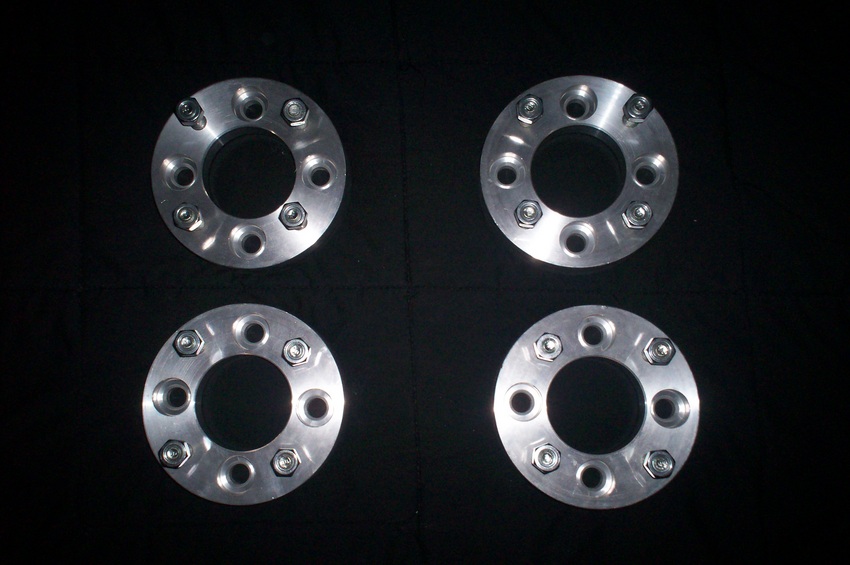

Attached Thumbnails Wheel Adapters-tmpphpkefpgo.jpg   Wheel Adapters-tmpphpdmii41.jpg
Old 01-12-08, 03:26 PM
  #6
PSHH! PSHH! HEAR ME NOW?

iTrader: (3)

bad 83's Avatar

Join Date: Nov 2005
Location: Statesville NC
Posts: 4,132
Likes: 0
Received 4 Likes on 4 Posts
I ran wheel adapters on my Turbo FB for about 4 years without any problems. I ordered mine for the 4x100 bolt pattern, and +35 offset. That way I could run about any tuner wheel out there. The company I purchased mine from was Excaliber wheels. At that time I paid about $250 for them.
Old 01-12-08, 09:12 PM
  #7
Brap, Brap, Ole!


mikewoodkozar's Avatar

Join Date: Apr 2005
Location: kalamazoo, mi
Posts: 1,461
Likes: 0
Received 0 Likes on 0 Posts
Wow, alot of people talk about adapters, but i had no idea there was anybody actually running them.
Old 01-12-08, 09:57 PM
  #8
FB+FC=F-ME


steve84GS TII's Avatar

Join Date: Jul 2004
Location: Rohnert Park CA
Posts: 3,353
Likes: 0
Received 4 Likes on 4 Posts
Right here.
Adapters and spacers arent all bad,but there are cheap ones out there and there are also people that install them wrong and/or dont understand the concept of re-torquing lug nuts.

I only run them out of neccesity, since my old-school Selectmaz front brake kit was only availible in 4x110MM back in 01'.I run the adaptors in the front to convert to 114.3MM and to push my 17" Advans out to the proper width.I use Grade 8 ARP studs in all the holes and have had no issues in 7+ years.Checked my wheel bearings recently and they are perfect after almost 50K miles.The extreme negative offset of my wheels reduces leverage on the bearings, despite the spacer pushing the hub/wheel interface out so far.

In the back I use high quality German made H&R slip on spacers, over ARP studs, to push the rear Advans out a little more.Even the 9" wide rear wheels have mostly negative offset which surprised me but I wasnt complaining since they are such rare wheels here in the States.





Old 01-12-08, 10:17 PM
  #9
7-less


85 FB's Avatar

Join Date: Dec 2005
Location: No. Virginia, USA
Posts: 2,053
Likes: 0
Received 0 Likes on 0 Posts
Wow, I love that front brake setup up front on the car, Steve. First time I've seen an actual side shot of the car, nice.

I always assumed that spacers had a negative affect on wheel bearings and axle-to-rim strength but shows what I know.
Old 01-12-08, 11:38 PM
  #10
FB+FC=F-ME


steve84GS TII's Avatar

Join Date: Jul 2004
Location: Rohnert Park CA
Posts: 3,353
Likes: 0
Received 4 Likes on 4 Posts
They can if you go too far out or use cheap materials/fasteners.Same can be said of wheels by themselves.If you run something with too much deep dish, it puts the stress too far out from the bearings.

The brakes are nice,nothing special nowadays since there are lots of TII conversion kits availible.Back then,these were the only thing out there.
Old 01-12-08, 11:50 PM
  #11
Turbo widebody FB

iTrader: (1)

Dan_s_young's Avatar

Join Date: May 2004
Location: Alberta Canada
Posts: 3,733
Likes: 0
Received 2 Likes on 2 Posts
I was going to run a massive spacer in the front, ended up being something like 2.5" in order to run the old front 17x10's I had. But I said screw it, a spacer that large is a safety issue IMO and extremely hard on the bearings. So I just had my rims made to fit from CCW. Honestly if you can get away without using spacers do it. Use them as a last resort.
Old 01-13-08, 12:22 PM
  #12
Full Member
Thread Starter
iTrader: (1)

markusj08's Avatar

Join Date: Nov 2007
Location: Wa
Posts: 224
Likes: 0
Received 0 Likes on 0 Posts
Thanks for all the imput. so how far out do they put the wheel?
Old 01-13-08, 12:35 PM
  #13
7-less


85 FB's Avatar

Join Date: Dec 2005
Location: No. Virginia, USA
Posts: 2,053
Likes: 0
Received 0 Likes on 0 Posts
IIRC, spacers are no more than 3/4" to 1" in width, not counting the studs. Most people compensate for this by changing the offset on the rims to give them a flush look.
Old 01-13-08, 12:46 PM
  #14
Full Member
Thread Starter
iTrader: (1)

markusj08's Avatar

Join Date: Nov 2007
Location: Wa
Posts: 224
Likes: 0
Received 0 Likes on 0 Posts
I just wanna make sure it wont stick outside the fender. And that the car can still be lowered. Without have a wide body kit.
Old 01-13-08, 01:55 PM
  #15
7-less


85 FB's Avatar

Join Date: Dec 2005
Location: No. Virginia, USA
Posts: 2,053
Likes: 0
Received 0 Likes on 0 Posts
Like I said, if you get rims with the proper backspacing, they'll still fit just right. Now, if you're going to use rims that do not have the proper backspacing, then they will, more than likely, stick out.
Old 01-13-08, 02:01 PM
  #16
Full Member
Thread Starter
iTrader: (1)

markusj08's Avatar

Join Date: Nov 2007
Location: Wa
Posts: 224
Likes: 0
Received 0 Likes on 0 Posts
how big is to big
Old 01-13-08, 03:22 PM
  #17
7-less


85 FB's Avatar

Join Date: Dec 2005
Location: No. Virginia, USA
Posts: 2,053
Likes: 0
Received 0 Likes on 0 Posts
Go to www.tirerack.com or www.discounttiredirect.com and look up how to measure for backspacing, offset, etc. This'll help you with figuring out what you can use.
