What's wrong with these pictures? Ignition
Hi all.

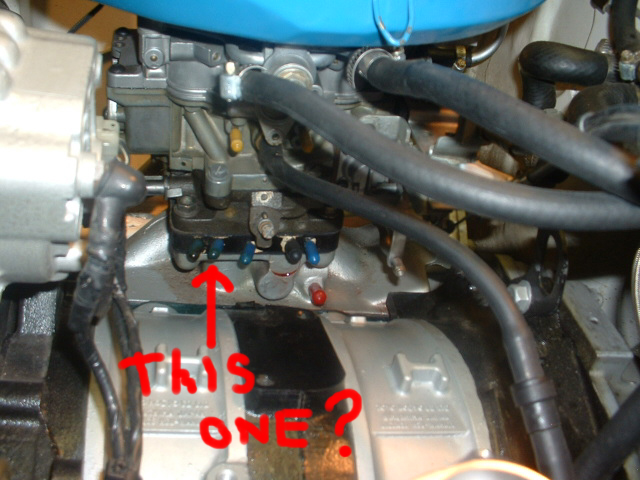

Looking at the FSM, I noticed my FB is missing the vacuum hoses to the vacuum units on the distributor. The rasts nest and other items that are not needed were removed on my fb, but I thing those hoses should be connected, right? Check out the pics. Now where on the carb should I run these hoses to? I have lots of open ports now as you can see on the pic.
Also, check out my coils. Does anyone know what the blue and white plugs corresponds to which coil? Trailing and leading? The coil closest to the headlight motor on my fb is the leading coil, when on the FSM that should be the trailing coil. Or does it matter? The wiring was done by the past owner and all of the wires are all electrical taped.
Thanks to everyone for your input. Trying to learn as much as I can about my RX7.
I want to do the 2ndgen coil, but want to make sure everything is how it should be.
Looking at the FSM, I noticed my FB is missing the vacuum hoses to the vacuum units on the distributor. The rasts nest and other items that are not needed were removed on my fb, but I thing those hoses should be connected, right? Check out the pics. Now where on the carb should I run these hoses to? I have lots of open ports now as you can see on the pic.
Also, check out my coils. Does anyone know what the blue and white plugs corresponds to which coil? Trailing and leading? The coil closest to the headlight motor on my fb is the leading coil, when on the FSM that should be the trailing coil. Or does it matter? The wiring was done by the past owner and all of the wires are all electrical taped.
Thanks to everyone for your input. Trying to learn as much as I can about my RX7.
I want to do the 2ndgen coil, but want to make sure everything is how it should be.
#2
love the braaaap
Those vacuum fittings on the distributor should be connected to the second fitting from the left on that plate between the carb and the intake manifold, according to your pic. I believe thats how it goes anyway.
As for the coils, I don't have the coloured plugs on my car anymore, but look at the colour of the wires. I can't remember which ignitor is the leading on the distributor, but the coloured wire on the leading ignitor plug should lead to the + side of the leading coil. The other wire on the plug is black with a white stripe I believe, and this wire is the same on both leading and trailing ignitors, along with the wire that leads around the distributor to a bullet style plug on the other side., Basically, just find out which ignitor is the leading, and trace the wires by colour from there.
As for the coils, I don't have the coloured plugs on my car anymore, but look at the colour of the wires. I can't remember which ignitor is the leading on the distributor, but the coloured wire on the leading ignitor plug should lead to the + side of the leading coil. The other wire on the plug is black with a white stripe I believe, and this wire is the same on both leading and trailing ignitors, along with the wire that leads around the distributor to a bullet style plug on the other side., Basically, just find out which ignitor is the leading, and trace the wires by colour from there.
#3
WWW.SUPERCHARGED-RX7.COM
Thread Starter
Originally Posted by 85rotarypower
Those vacuum fittings on the distributor should be connected to the second fitting from the left on that plate between the carb and the intake manifold, according to your pic. I believe thats how it goes anyway.
#5
WWW.SUPERCHARGED-RX7.COM
Thread Starter
Originally Posted by 85rotarypower
As for the coils, I don't have the coloured plugs on my car anymore, but look at the colour of the wires. I can't remember which ignitor is the leading on the distributor, but the coloured wire on the leading ignitor plug should lead to the + side of the leading coil. The other wire on the plug is black with a white stripe I believe, and this wire is the same on both leading and trailing ignitors, along with the wire that leads around the distributor to a bullet style plug on the other side., Basically, just find out which ignitor is the leading, and trace the wires by colour from there.
#6
WWW.SUPERCHARGED-RX7.COM
Thread Starter
Originally Posted by 85rotarypower
Yes, that one you have the arrow pointed to. Don't quote me on it, but I am fairly sure thats the right vacuum fitting.
Guess I will keep on reading.
Thanks for your help!
#7
Lives on the Forum
Well, a lot of people don't understand the function of them. Although the car will run fine without them, it will run better with them. They simply allow the dizzy to adjust the timing slightly to give more torque when needed. Better power band, better gas mileage. I hope your not counting on a sudden cure to some issue that you are having, because that is probably not the cause. Still, better gas mileage can't hurt any. Good luck with your 7!
