What's the Diff?
#1
Junior Member
Thread Starter
Join Date: Dec 2009
Location: Central Washington
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
What's the Diff?
I have studied many results of searching here and elsewhere for info on when Mazda went to the larger axles, and I'm confused. Some say the '83-'85 open diffs are all the same, some indicate there was a midyear change, some say axles are small.
It's an '83 GS, mfg 7/83, drum brakes, open diff (AFAIK). It's all original/stock. We have to replace the diff (goes chuk, chuk, chuk...). I just want to replace the pumpkin without "upgrading" anything; does my car have the larger axles?
TIA
It's an '83 GS, mfg 7/83, drum brakes, open diff (AFAIK). It's all original/stock. We have to replace the diff (goes chuk, chuk, chuk...). I just want to replace the pumpkin without "upgrading" anything; does my car have the larger axles?
TIA
#2
No distributor? No thanks
iTrader: (6)
Join Date: Oct 2003
Location: Outskirts of Road Atlanta
Posts: 3,438
Likes: 0
Received 6 Likes
on
4 Posts
Some will argue, but I've personally seen 83s with big axles and with small axles, with beehives and with standalones. Anyway....
A 7/83 car is nearly guaranteed to be a big-axle car. The easiest way to check is to look at the pinion flange which the driveshaft bolts to. If you have thru-holes with bolts that pass through the holes, then uses nuts to tighten then it's a big-bearing. If the pinion flange is threaded and you just have bolts that thread into the holes (no nuts on the back side of the flange) then it's a small-bearing.
A 7/83 car is nearly guaranteed to be a big-axle car. The easiest way to check is to look at the pinion flange which the driveshaft bolts to. If you have thru-holes with bolts that pass through the holes, then uses nuts to tighten then it's a big-bearing. If the pinion flange is threaded and you just have bolts that thread into the holes (no nuts on the back side of the flange) then it's a small-bearing.
#3
Respecognize!
but to add to that... you can still have a small spline differential as i discovered. My 3rd member i had was from an 83, never checked the bearings, but the flange was not threaded. But the differential was a small spline.
you can also swap out third member from some different vehicles for some gearing selection as well. i through it in a video vlog i have, but i did a side by side of the b2600, kia sportage and the stock mazda
http://www.youtube.com/watch?v=2ypp6UPxKFk
you can also swap out third member from some different vehicles for some gearing selection as well. i through it in a video vlog i have, but i did a side by side of the b2600, kia sportage and the stock mazda
http://www.youtube.com/watch?v=2ypp6UPxKFk
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,853
Received 2,616 Likes
on
1,853 Posts
Some will argue, but I've personally seen 83s with big axles and with small axles, with beehives and with standalones. Anyway....
A 7/83 car is nearly guaranteed to be a big-axle car. The easiest way to check is to look at the pinion flange which the driveshaft bolts to. If you have thru-holes with bolts that pass through the holes, then uses nuts to tighten then it's a big-bearing. If the pinion flange is threaded and you just have bolts that thread into the holes (no nuts on the back side of the flange) then it's a small-bearing.
A 7/83 car is nearly guaranteed to be a big-axle car. The easiest way to check is to look at the pinion flange which the driveshaft bolts to. If you have thru-holes with bolts that pass through the holes, then uses nuts to tighten then it's a big-bearing. If the pinion flange is threaded and you just have bolts that thread into the holes (no nuts on the back side of the flange) then it's a small-bearing.
i think they did it for the 12at cars, that way big or small axle everything 83-85 can use the same driveshaft.
to the OP, 83 has the big driveshaft flange and small diff side gears to make it a small axle. you can use an earlier diff, and swap the driveshaft or driveshaft flange. or use a later diff and swap in the diff side gears from yours
#5
Senior Member
iTrader: (13)
The diff flange, where the driveshaft bolts up, is not a good reference to see if you have a small or large bearing diff. The best thing to do is take the pumpkin out and count the splines. I bought an 83 parts car last year that had the driveshaft bolted to the flange with seperate bolts and nuts thinking it would be a large axle diff, since that`s what I needed. It turned out to be a small axle diff. I didn`t think to check the manufacturing date of the car though.
edit: j9fd3s and I posted almost at the same time. His explanation makes alot of sense in my case. It`s exactly what I had in my 83 parts car.
edit: j9fd3s and I posted almost at the same time. His explanation makes alot of sense in my case. It`s exactly what I had in my 83 parts car.
#6
Junior Member
Thread Starter
Join Date: Dec 2009
Location: Central Washington
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts

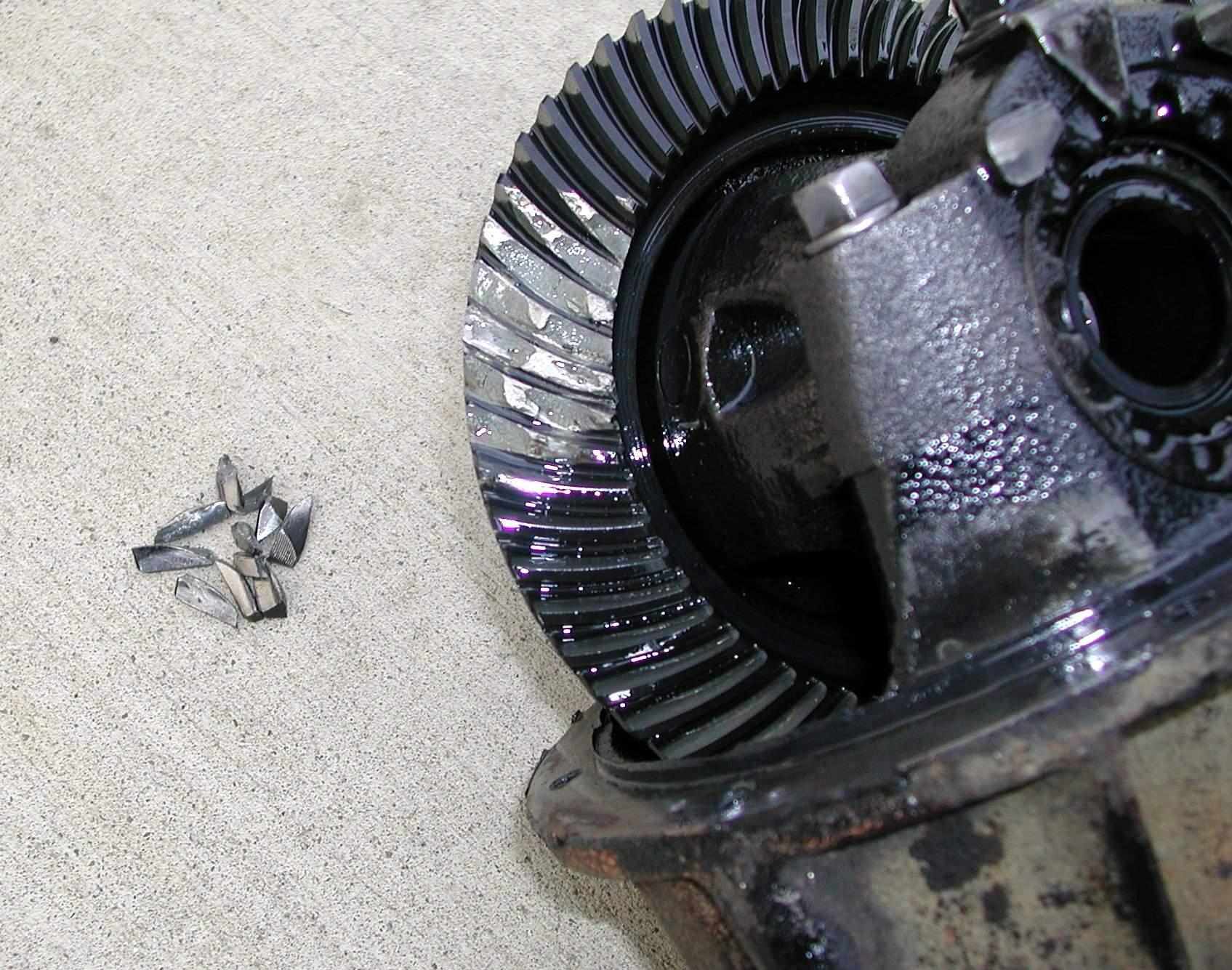

Got it apart today, that sukka is toast. The pinion gear shaved the ring big time; the pic shows about half of the large fragments of ring gear on the ground. We got the housing all cleaned up, all we now need is a big axle pumpkin.
Trending Topics
#8
Lives on the Forum
iTrader: (13)
If we are referring to the size of the axles then it is clear that the 84-85 are the larger axles with a different spline count and bigger bearings. There are no 83 models with the big bearings.
The only difference that you may be referring to is the flange on the pumpkin unit which generally as a whole is the larger one on the 83 models but has nothing to do with the axles.
As posted many times-
http://mazdatrix.com/g5.htm
Brake line threads changed in '81, shoes drums, and adjusters are much better 81-85. Driveshaft flange changed in '83.
3rd Member Interchangeable except must match drive shaft and flange (larger in '83)
The only difference that you may be referring to is the flange on the pumpkin unit which generally as a whole is the larger one on the 83 models but has nothing to do with the axles.
As posted many times-
http://mazdatrix.com/g5.htm
Brake line threads changed in '81, shoes drums, and adjusters are much better 81-85. Driveshaft flange changed in '83.
3rd Member Interchangeable except must match drive shaft and flange (larger in '83)
Last edited by Rx-7Doctor; 03-28-10 at 03:45 PM.
#11
Lives on the Forum
When it came time to replace the diff in my '85 GS, I chose to replace the entire rear end with a unit from a '84 GSL (84 or 85 would have worked). This gave me a couple of other upgrades, like rear disc brakes and a LSD, both of which are awesome. I think it was also a lot easier doing it this way than tearing it all apart to just replace the innards.
.
.
#12
Junior Member
Thread Starter
Join Date: Dec 2009
Location: Central Washington
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
The PO told me he attempted a burnout in his driveway and - BOOM - there went the rearend. If I could find a complete disc brake rearend, I'd jump on it; but we're out in the middle of the state and there's nothing near here for parts sources.
Yeah - I'm confused - so I have a big flange/small axle rearend? What would I measure to be sure? I mean, I could easily bring the old pumpkin and an axle with me when I get the replacement, I suppose...
Yeah - I'm confused - so I have a big flange/small axle rearend? What would I measure to be sure? I mean, I could easily bring the old pumpkin and an axle with me when I get the replacement, I suppose...
#13
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,853
Received 2,616 Likes
on
1,853 Posts
The PO told me he attempted a burnout in his driveway and - BOOM - there went the rearend. If I could find a complete disc brake rearend, I'd jump on it; but we're out in the middle of the state and there's nothing near here for parts sources.
Yeah - I'm confused - so I have a big flange/small axle rearend? What would I measure to be sure? I mean, I could easily bring the old pumpkin and an axle with me when I get the replacement, I suppose...
Yeah - I'm confused - so I have a big flange/small axle rearend? What would I measure to be sure? I mean, I could easily bring the old pumpkin and an axle with me when I get the replacement, I suppose...
the big driveshaft flange is the nut and bolt one, AFIK they will interchange, so if you found a small axle small flange rear, i think it just swaps over. they didn't change the case, bearings, ring and pinion, just the driveshaft flange and axle size.
big axle vs small axle? the difference is the diff side gears, the spot where the axle actually goes, and the rear end housing is changed to hold larger axle bearings. easy way is to just measure the axle, or hole and make sure that doesn't change.
sometimes there is a stamp on the ring gear, and you can look it up in the parts fische
#14
Junior Member
Thread Starter
Join Date: Dec 2009
Location: Central Washington
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Yup, the low-miles '82 pumpkin we got at the wrecking yard is a near-perfect fit. Colin's '83 does indeed have the smaller driveshafts. The only difference is the (front) pinion shaft seal - the seal shield on the '83 flange does not lap over the edge of the housing to protect the seal like the '82 does. We're not worried; I'm sure that someday, we'll replace that seal and it will be updated then.
Everything cleaned up nicely, black RTV to seal, overnight set, lubed & popped that puppy in next day and drove it around that afternoon!
BTW, we found a great use for that limited-service spare roller skate wheel - we mounted it, gently, patiently pounded it to pop out the axles - worked like a charm. When we reassembled the thing, we applied a little anti-seize to help everything go together.
I am a little concerned to see that the brake plates are all that keep the axles in; all that force...
I love rescuing cool things!
Everything cleaned up nicely, black RTV to seal, overnight set, lubed & popped that puppy in next day and drove it around that afternoon!
BTW, we found a great use for that limited-service spare roller skate wheel - we mounted it, gently, patiently pounded it to pop out the axles - worked like a charm. When we reassembled the thing, we applied a little anti-seize to help everything go together.
I am a little concerned to see that the brake plates are all that keep the axles in; all that force...
I love rescuing cool things!
#15
1 of 203 94 White PEP's
iTrader: (1)
Join Date: Sep 2001
Location: Suwanee, GA
Posts: 1,844
Likes: 0
Received 0 Likes
on
0 Posts
So if I was to want to put a Rx7 LSD in my Rx2 a 83 would not work correct? I thought it was all about the small vs large bearings but now it looks like its the driveshaft mount right?
#19
Full Member
iTrader: (3)
Join Date: May 2005
Location: Pennsylvania
Posts: 173
Likes: 0
Received 0 Likes
on
0 Posts
For clarification, i have an '82 small axle GSL, and an '84 large axle GS. I took the axles out and took measurements and pictures.
Here's both side by side, the large axle on the bottom and the small on the top in the picture
And side by side, large axle on the left, small on the rights
A measurment of the end nearest the splines on the large axle
A measurement of the end nearest the splines on the small axle
The large axle bearing.
And the small axle bearing
So one can infer that axle housings are different because the outer diameter of the axle bearings is different.
Here's both side by side, the large axle on the bottom and the small on the top in the picture
And side by side, large axle on the left, small on the rights
A measurment of the end nearest the splines on the large axle
A measurement of the end nearest the splines on the small axle
The large axle bearing.
And the small axle bearing
So one can infer that axle housings are different because the outer diameter of the axle bearings is different.
#20
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,853
Received 2,616 Likes
on
1,853 Posts
thanks for doing that!
