what is the lowest offset wheel possible on GSL-SE
10-11-10, 07:15 PM
#27
Senior Member
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
RotaryRvn,
YES..my car is an original GSL-SE. I installed RE-Speed's big brake kit both Front and Rear (complete with Moser axles) with TII calipers and disc all around. The offset did NOT change with the conversion as everything still is pretty much in stock location. As stated, the rear wheels do stick out about 2mm but with stretched tires it is a good fit. The front fit fine with the setup on it now, they are flush with the fenders. All 4 fenders have been rolled for better clearance.
On another note... I had 0 offset Panasports that I tried on the car prior to my 5-lug conversion and they stick out past the fenders on a true GSL-SE. It has been discussed on here before and 0 offset's will NOT work on a GSL-SE. They will work on all other FB's.
L8R
YES..my car is an original GSL-SE. I installed RE-Speed's big brake kit both Front and Rear (complete with Moser axles) with TII calipers and disc all around. The offset did NOT change with the conversion as everything still is pretty much in stock location. As stated, the rear wheels do stick out about 2mm but with stretched tires it is a good fit. The front fit fine with the setup on it now, they are flush with the fenders. All 4 fenders have been rolled for better clearance.
On another note... I had 0 offset Panasports that I tried on the car prior to my 5-lug conversion and they stick out past the fenders on a true GSL-SE. It has been discussed on here before and 0 offset's will NOT work on a GSL-SE. They will work on all other FB's.
L8R
10-11-10, 07:17 PM
#28
Senior Member
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the info so far guys. I am looking for the wheel to sit as close to the fender as possible without rubbing (that means no sticking out). I'll roll the fenders if needed. The car is lowered with Re speed adjustables front and rear. Zero offset will not work. I tried a set that my friend had on his corolla. With zero offset, they stuck out an inch or 2. Keep the ideas coming.
10-11-10, 10:42 PM
#33
Senior Member
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
?????????????????????????????????????????????????? ?????????????????????????????????????????????????? ?????????????????????????????????????????????????? ?????????Sorry, but 100% NONrelevant! So the definative answer is NO? Do I have this correct, please from someone who actually tried it themselves? If not, what is the correct answer for this thread assuming a 15"x7" wheel?
10-12-10, 12:17 AM
#35
Rotary Freak
Thread Starter
There is no way 15x7 with zero offset will work on a gsl-se without sticking past the fenders. I have tried it and didn't care for the look.
I don't have the perfect offset figured out yet but I do have a set of 16x7 +25 and 16x8 +26 but I don't have time to test fit them just yet.
I have a strong feeling 15x7 +25 is about as low as you can go on a 7" wheel without the wheels coming past the fenders. Hopefully one day we will get to the bottom of this discussion once and for all.
If you didn't lower your car, they might not rub but they would stick past the fender.
I don't have the perfect offset figured out yet but I do have a set of 16x7 +25 and 16x8 +26 but I don't have time to test fit them just yet.
I have a strong feeling 15x7 +25 is about as low as you can go on a 7" wheel without the wheels coming past the fenders. Hopefully one day we will get to the bottom of this discussion once and for all.
If you didn't lower your car, they might not rub but they would stick past the fender.
10-12-10, 08:33 AM
#37
1st gens only
iTrader: (6)
Join Date: Oct 2002
Location: Ormond Beach, FL
Posts: 1,125
Likes: 0
Received 0 Likes
on
0 Posts
I just put on a set of 15X8 with a +15 offset. They stick out just a tad but should work. My fenders are rolled. I would imagine with an 8 inch wheel a + 20 would be ideal.
10-12-10, 09:09 AM
#38
Senior Member
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
Allright, thanks for the relevant input, guys. So if I got this right, a positive 20 or 25 would be about the limit for an all stock SE. Forgive my ignorance, I've been searching, that's why I brought this thread back, but the more positive in offset you go, the more "clearance" you'll get at the fenders, correct? Thanks again.
10-12-10, 10:14 AM
#39
Actin Like I'm Drunk
iTrader: (4)
Join Date: Jul 2007
Location: Charleston, South Carolina
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
i'll make it simple. offset is the location of the hub to the wheel. 0 offset would put the hub directly in the middle of the wheel. make the number higher, the hub/face of the wheel will move forward. negative offset will do the opposite. the effects of offset wilk change depending on the width of the wheel. that's why most serious people will opt to use backspacing.
backspace is the distance of the hub to the back edge of the wheel. so nomatter how wide the wheel is, the backspace will stay cobstant.
they each have their own uses.
backspace is the distance of the hub to the back edge of the wheel. so nomatter how wide the wheel is, the backspace will stay cobstant.
they each have their own uses.
10-12-10, 10:18 AM
#40
Actin Like I'm Drunk
iTrader: (4)
Join Date: Jul 2007
Location: Charleston, South Carolina
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
i hope my post is legible.i hate the mobile version of this site. it's nearly impossible to see what you type and youcan't edit it after you hit enter...
10-12-10, 11:22 PM
#41
Rotary Freak
Thread Starter
Allright, thanks for the relevant input, guys. So if I got this right, a positive 20 or 25 would be about the limit for an all stock SE. Forgive my ignorance, I've been searching, that's why I brought this thread back, but the more positive in offset you go, the more "clearance" you'll get at the fenders, correct? Thanks again.
I think my fins are APPROX. +33 with 195 tires and if I didn't have the negative camber up front, and if the car was lower, I think they would be close to rubbing in the front (my fenders aren't rolled yet).
10-12-10, 11:52 PM
#42
Rotary Freak
Thread Starter
Allright, thanks for the relevant input, guys. So if I got this right, a positive 20 or 25 would be about the limit for an all stock SE. Forgive my ignorance, I've been searching, that's why I brought this thread back, but the more positive in offset you go, the more "clearance" you'll get at the fenders, correct? Thanks again.
10-13-10, 12:06 PM
#43
Actin Like I'm Drunk
iTrader: (4)
Join Date: Jul 2007
Location: Charleston, South Carolina
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
You can play around with this program to visual see what's going on
http://www.rimsntires.com/rt_specs.jsp
http://www.rimsntires.com/rt_specs.jsp
10-13-10, 04:51 PM
#45
how much clearance do you have on the inside of the wheel? from what i have read, the ideal back spacing is 4.5 inches for the SE's. on a 8" width that comes out to zero. with +15 offset, thats at least a 5" back spacing. my biggest concern is the inside of the wheel will rub on the suspension Springs. i currently run ground control coilovers. i had 17x7 with a 40mm offset which fit fine with my stock springs but when i switched to coilovers, the same wheels were rubbing with the springs on the inside of the rim. the reason i am asking is, i am doing the BBK kit which changes my bold pattern to a 5x114. i picked up some mustang gt wheels (17x8 +49 offset), the offsets are a bit high. i am trying to figure out how big of a wheel spacer i will need to make them work. any help will greatly appreciated. thanks.
hoang
your car looks awesome by the way!!!!
hoang
your car looks awesome by the way!!!!
Last edited by hoang5659; 10-13-10 at 04:52 PM. Reason: added text
10-13-10, 06:07 PM
#46
1st gens only
iTrader: (6)
Join Date: Oct 2002
Location: Ormond Beach, FL
Posts: 1,125
Likes: 0
Received 0 Likes
on
0 Posts
Thanks I like it.
I am running Re Speed Coilovers in the front and have just about one inch (maybe 3/4") in the front.
Close to 2 inches in the rear.
I am much more worried about rubbing the fenders than the springs right now. Initial test drive revealed no rubs but the next autocross might prove me wrong.
I am running Re Speed Coilovers in the front and have just about one inch (maybe 3/4") in the front.
Close to 2 inches in the rear.
I am much more worried about rubbing the fenders than the springs right now. Initial test drive revealed no rubs but the next autocross might prove me wrong.
10-13-10, 06:44 PM
#47
Junior Member
Join Date: May 2010
Location: Australia
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Thanks I like it.
I am running Re Speed Coilovers in the front and have just about one inch (maybe 3/4") in the front.
Close to 2 inches in the rear.
I am much more worried about rubbing the fenders than the springs right now. Initial test drive revealed no rubs but the next autocross might prove me wrong.
I am running Re Speed Coilovers in the front and have just about one inch (maybe 3/4") in the front.
Close to 2 inches in the rear.
I am much more worried about rubbing the fenders than the springs right now. Initial test drive revealed no rubs but the next autocross might prove me wrong.
10-14-10, 08:05 AM
#48
1st gens only
iTrader: (6)
Join Date: Oct 2002
Location: Ormond Beach, FL
Posts: 1,125
Likes: 0
Received 0 Likes
on
0 Posts
+25 would be 10mm closer which equals 3/8 of an inch.
It should work but will probably depend on the tire you run. Mine are 205/50/15 Hankook Ventus Road Racing Tires that came with the wheels. I drove it around last night and didnt have any problems.
It should work but will probably depend on the tire you run. Mine are 205/50/15 Hankook Ventus Road Racing Tires that came with the wheels. I drove it around last night and didnt have any problems.
10-14-10, 11:27 AM
#50
1st gens only
iTrader: (6)
Join Date: Oct 2002
Location: Ormond Beach, FL
Posts: 1,125
Likes: 0
Received 0 Likes
on
0 Posts

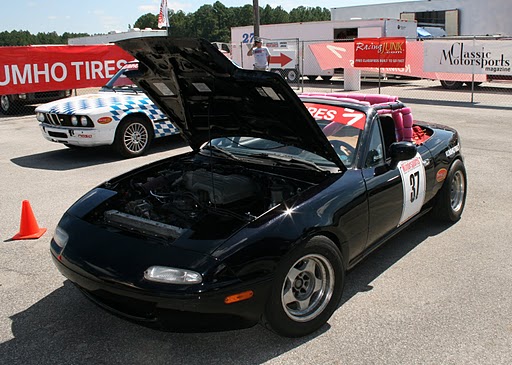

This guy (5.0 Miata) dominated almost all my time. We ran it at the Grassroots Challenge two weekends ago.
