wipe0ut

can someone help me identify where this vacuum line connects to:



this is on a 1983 12a with an automatic transmission stock nikki stock intake

the emissions diagrams i have found don't really show where this line gets connected

thanks

TimWilbers

iTrader: (1)

No image.

mazdaverx713b

iTrader: (91)

I believe that goes to the purge valve on the emissions rack.

TimWilbers

iTrader: (1)

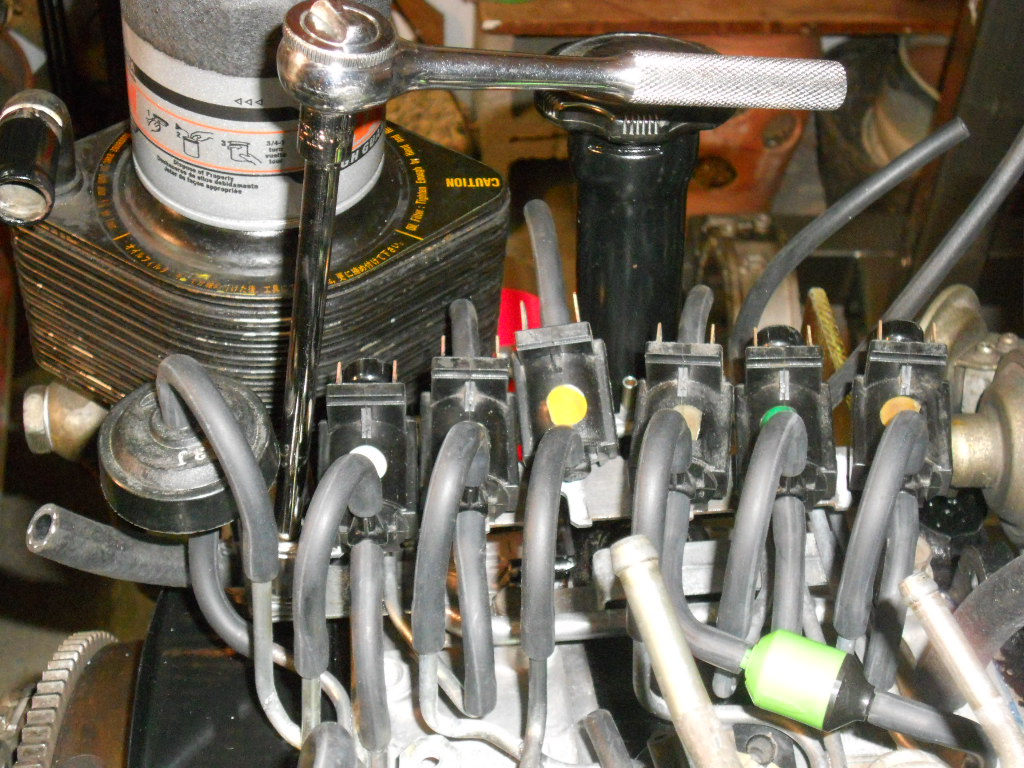

From an 84 12a stock. Manual trans.

wipe0ut

i think i figured it out. it looks like this line goes from the vacuum modulator on the automatic transmission and connects to a vacuum port on the intake manifold under the shutter valve.

thanks everyone
