Turbo swap progress pics

Been working on this for the past month or so. Engine is based on an "early" style 13B block. Fully rebuilt with large extend ports, doweled, S5 turbo rotors slotted for 3mm seals and clearanced, 3 window main bearings, nitrided HV oil pump, increased oil pressure, modified oil jets, swiss cheese flywheel , brass button, S5 water pump and housing. Turbo is a high-flow S5 item. Still need to finish up the fuel system, wiring, ECU, intercooler piping and exhaust.

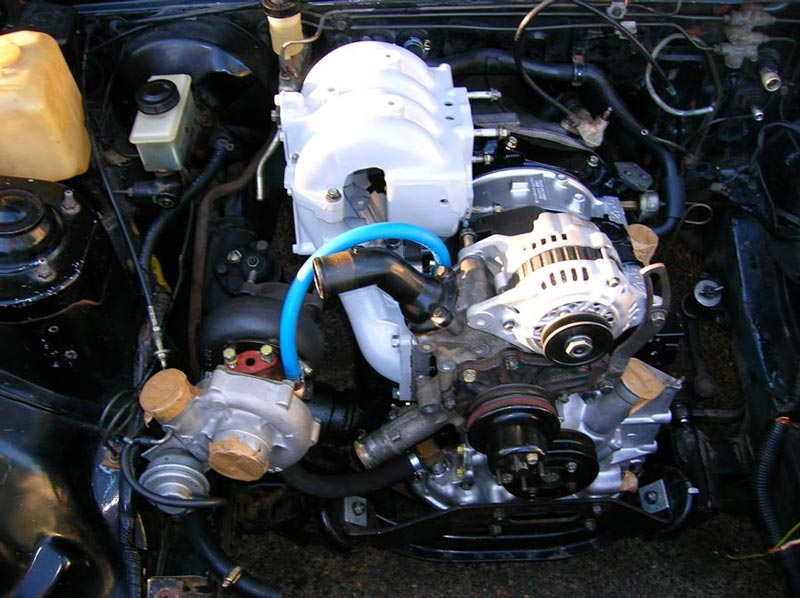

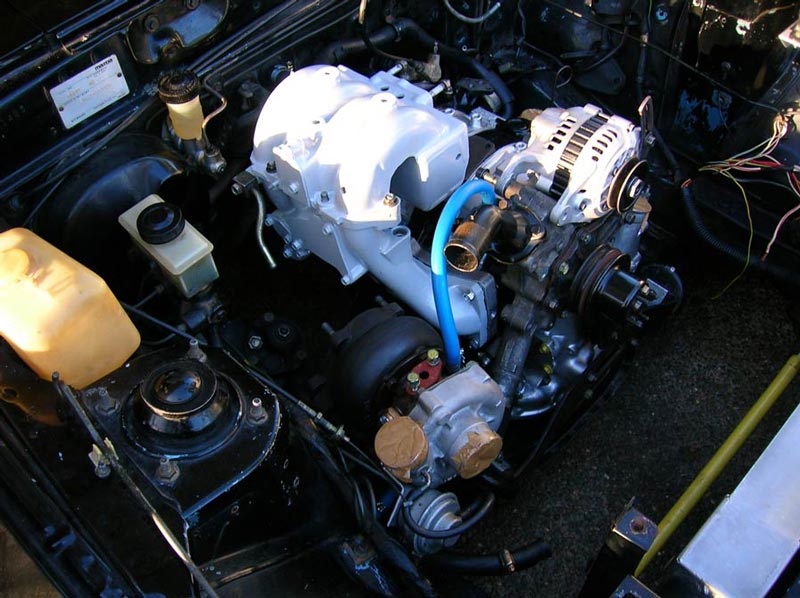

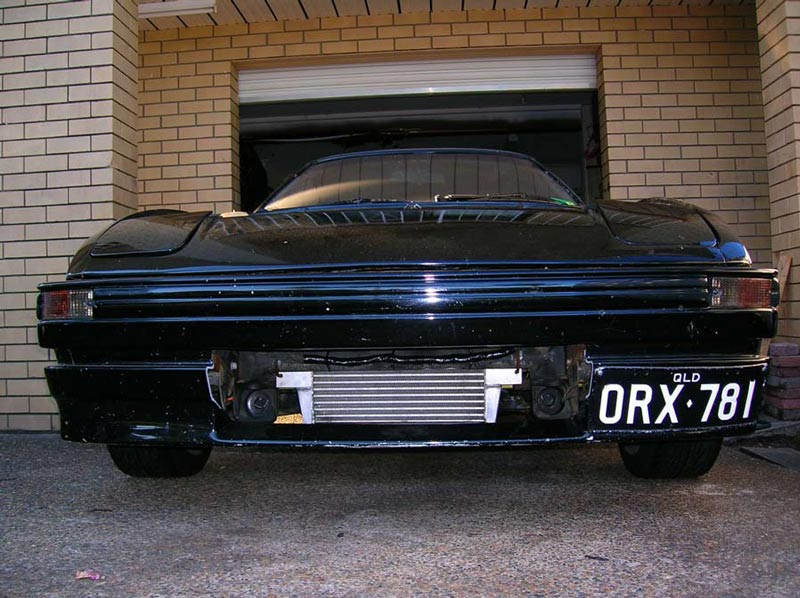

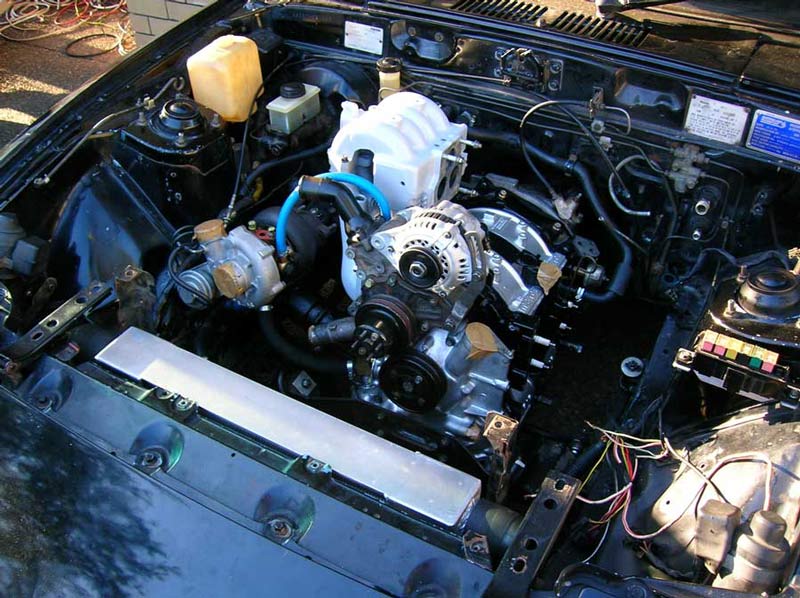

Attached Thumbnails Turbo swap progress pics-1.jpg   Turbo swap progress pics-2.jpg   Turbo swap progress pics-3.jpg   Turbo swap progress pics-4.jpg   Turbo swap progress pics-5.jpg


Last edited by REVHED; Sep 9, 2005 at 03:00 AM.
Reply
Old Sep 9, 2005 | 03:12 AM
  #2
Paradox's Avatar
backyard tuner
Tenured Member 10 Years
iTrader: (1)

Joined: Sep 2002
Posts: 1,265
Likes: 0
From: BC, Canada
dayum. nice and clean!
Reply
Old Sep 9, 2005 | 03:49 AM
  #3
FB II's Avatar
Banned. I got OWNED!!!

Joined: Dec 2002
Posts: 4,192
Likes: 0
From: wishing i was back in FL
agreed, lookin very nice! intercooler is a bit small no?
Reply
Old Sep 9, 2005 | 03:53 AM
  #4
REVHED's Avatar
Thread Starter
Hunting Skylines
Tenured Member: 20 Years

Joined: Apr 2001
Posts: 3,431
Likes: 4
From: Brisbane, Queensland, Australia.

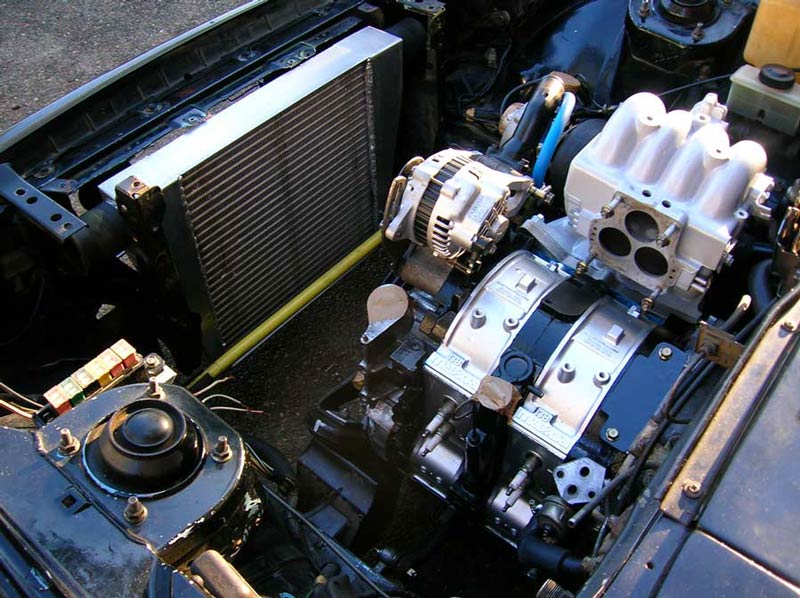

Small? Did you look at the 3rd pic down?
Reply
Old Sep 9, 2005 | 04:01 AM
  #5
FB II's Avatar
Banned. I got OWNED!!!

Joined: Dec 2002
Posts: 4,192
Likes: 0
From: wishing i was back in FL
LOL!!!! i thought that was your damn radiator OMFG. nevermind aahhahahahhaha YESSSSS!!!!!
Reply
Old Sep 9, 2005 | 04:09 AM
  #6
REVHED's Avatar
Thread Starter
Hunting Skylines
Tenured Member: 20 Years

Joined: Apr 2001
Posts: 3,431
Likes: 4
From: Brisbane, Queensland, Australia.
lol That's what I thought.

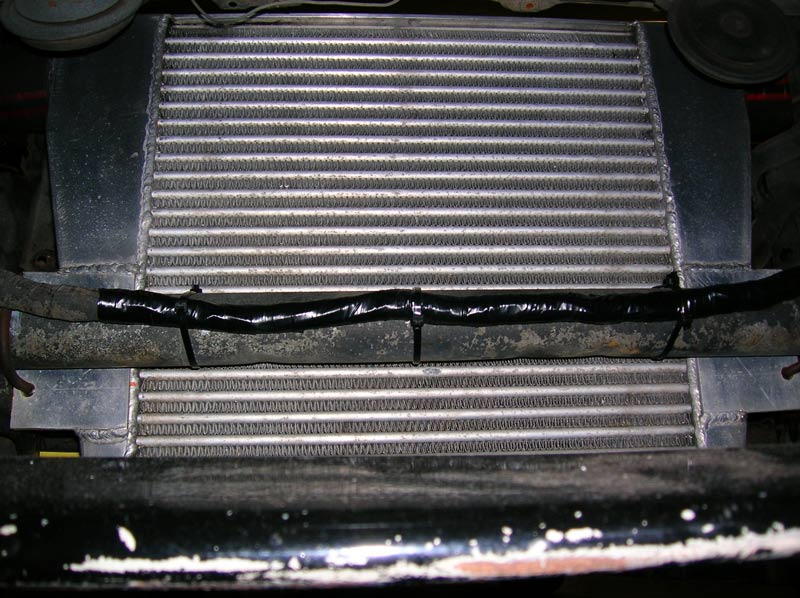

Attached Thumbnails Turbo swap progress pics-6.jpg
Reply
Old Sep 9, 2005 | 08:16 AM
  #7
rxseven07's Avatar
Registered pimp
Tenured Member 10 Years

Joined: Jan 2004
Posts: 1,286
Likes: 0
From: nashville
how much boost will you be running?
Reply
Old Sep 9, 2005 | 09:02 AM
  #8
Rx7Kidd's Avatar
Sp33d D3m0n
Tenured Member 05 Years

Joined: Jul 2005
Posts: 400
Likes: 0
From: colorado
god damn man, VERY nice.
Reply
Old Sep 9, 2005 | 10:35 AM
  #9
kc3414's Avatar
The Rocinante...
Tenured Member 05 Years

Joined: Sep 2005
Posts: 106
Likes: 2
From: Paris, France
Wow. A right hand drive car, too. But that's all they sold in Australia, huh? Do you guys drive on the "wrong" side of the road, too? I always thought it was just Japan and Britain. If it's any country that speaks English with an accent, I wonder if Ireland drives on the "right" side, also?
Reply
Old Sep 9, 2005 | 11:30 AM
  #10
REVHED's Avatar
Thread Starter
Hunting Skylines
Tenured Member: 20 Years

Joined: Apr 2001
Posts: 3,431
Likes: 4
From: Brisbane, Queensland, Australia.
Originally Posted by rxseven07
how much boost will you be running?
Whatever it takes to make over 300rwhp.
Reply
Old Sep 9, 2005 | 11:38 AM
  #11
LaRazaUnida's Avatar
Senior Member
Tenured Member 10 Years

Joined: Jul 2003
Posts: 648
Likes: 0
From: North Texas
where did you get your donor? Or did u buy it part by part? how much did it cost? Im currently looking.
Reply
Old Sep 9, 2005 | 12:00 PM
  #12
BLOWNandTWISTED's Avatar
project has just begun...
Tenured Member 05 Years

Joined: Mar 2005
Posts: 255
Likes: 0
From: California
Thumbs up

nice.

Last edited by BLOWNandTWISTED; Sep 9, 2005 at 12:26 PM.
Reply
Old Sep 9, 2005 | 08:13 PM
  #13
REVHED's Avatar
Thread Starter
Hunting Skylines
Tenured Member: 20 Years

Joined: Apr 2001
Posts: 3,431
Likes: 4
From: Brisbane, Queensland, Australia.
Originally Posted by kc3414
Wow. A right hand drive car, too. But that's all they sold in Australia, huh? Do you guys drive on the "wrong" side of the road, too? I always thought it was just Japan and Britain. If it's any country that speaks English with an accent, I wonder if Ireland drives on the "right" side, also?
We drive on the "right" (left) side.
Reply
Old Sep 9, 2005 | 10:32 PM
  #14
Directfreak's Avatar
I am a Jeeper Now.
Tenured Member 20 Years
iTrader: (2)

Joined: Dec 2001
Posts: 9,371
Likes: 4
From: 3OH5
He's baaaaaaaaaaaaaaaaaaack.

Very nice. Stock ECU? Or aftermarket. In AUS, everything is usually
run on an aftermarket ECU. (or so it seems.)
Reply
Old Sep 10, 2005 | 12:14 AM
  #15
kc3414's Avatar
The Rocinante...
Tenured Member 05 Years

Joined: Sep 2005
Posts: 106
Likes: 2
From: Paris, France
Originally Posted by REVHED
We drive on the "right" (left) side.
Now, what about Ireland.
Reply
Old Sep 10, 2005 | 04:54 AM
  #16
RotorMotorDriver's Avatar
Seven Is Coming
Tenured Member 20 Years
iTrader: (1)

Joined: Dec 2001
Posts: 6,503
Likes: 4
From: Washington
WTF? I thought you said no more when you got the Cosmo and sold your 7? I KNEW you would be back, haha.

Wait...Maybe that wasnt you? I dunno, so many damn people here...

~T.J.
Reply
Old Sep 10, 2005 | 10:41 PM
  #17
REVHED's Avatar
Thread Starter
Hunting Skylines
Tenured Member: 20 Years

Joined: Apr 2001
Posts: 3,431
Likes: 4
From: Brisbane, Queensland, Australia.
Originally Posted by Directfreak
He's baaaaaaaaaaaaaaaaaaack.

Very nice. Stock ECU? Or aftermarket. In AUS, everything is usually
run on an aftermarket ECU. (or so it seems.)
I'll be running the latest Microtech.
