Trans. adapter to run stronger 5-spd?
#1
Junior Member
Thread Starter
Join Date: Mar 2003
Location: ozark,missouri
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Trans. adapter to run stronger 5-spd?
Does anyone know of a company that makes a trans. adapter to run a strong/close ratio 5-spd?
Thanks!
"A Work In Progress"
Thanks!
"A Work In Progress"
#4
Senior Member
Join Date: Aug 2001
Location: Fort McMurray, Alberta
Posts: 723
Received 0 Likes
on
0 Posts
Prices are in Australian dollars, haven't delt with them personally, but I do plan on getting their Stage 1 clutch kit at some point.
Gearbox Conversions
Although Mazda S4/5 turbo gearboxes are quite strong, some people still prefer the strength and shift quality that only a Toyota gearbox can provide.
Mazda S4/5 5 speed gearbox's - From $400
Toyota Corona 4 speed gearbox's - From $150
Toyota Supra 5 speed gearbox's - From $475
Toyota Supra turbo 5 speed gearbox's - From $1800
--------------------------------------------------------------------------------
Adapter Kits
All kits apart from the Supra turbo are available to suit either S4/5 or early (RX4) type bell housings. Our adaptor plate kits use your original Mazda bell housing for strength and durability. They come complete with all the hardware necessary for successful fitting.
Toyota Corona and Celica 5 speed adaptor kits (steel case) - $195
Toyota Supra 5 speed adaptor kits - $240
Toyota Supra turbo 5 speed kits (indestructible) - $585
S4/5 Gearbox shifter modification (mounts shifter forward 100mm for easy fitting into your early Mazda) - $120
http://www.rotorworx.com.au/perfor_gearbox.html
Gearbox Conversions
Although Mazda S4/5 turbo gearboxes are quite strong, some people still prefer the strength and shift quality that only a Toyota gearbox can provide.
Mazda S4/5 5 speed gearbox's - From $400
Toyota Corona 4 speed gearbox's - From $150
Toyota Supra 5 speed gearbox's - From $475
Toyota Supra turbo 5 speed gearbox's - From $1800
--------------------------------------------------------------------------------
Adapter Kits
All kits apart from the Supra turbo are available to suit either S4/5 or early (RX4) type bell housings. Our adaptor plate kits use your original Mazda bell housing for strength and durability. They come complete with all the hardware necessary for successful fitting.
Toyota Corona and Celica 5 speed adaptor kits (steel case) - $195
Toyota Supra 5 speed adaptor kits - $240
Toyota Supra turbo 5 speed kits (indestructible) - $585
S4/5 Gearbox shifter modification (mounts shifter forward 100mm for easy fitting into your early Mazda) - $120
http://www.rotorworx.com.au/perfor_gearbox.html
#7
Junior Member
Thread Starter
Join Date: Mar 2003
Location: ozark,missouri
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Trans. adapter.
Originally posted by 680RWHP12A
what type or racing do you do? what is your budget? that will be the deciding factor!
what type or racing do you do? what is your budget? that will be the deciding factor!
I race the car on weekends in SCCA Solo II, nothing "Real" heavy, just need something that keeps the revs. up longer/higher during shift points.
Looking to spend around $700.00 for all parts.
Thanks!
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Mar 2003
Location: ozark,missouri
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Trans. adapter
Originally posted by Directfreak
What specific tranny do you want?
Also - more pics of the headlights please.
What specific tranny do you want?
Also - more pics of the headlights please.
Of course I would like something that parts are readly avaliable.
I used to run a 1971 Datsun 510 in which I install a 5-spd from a early model 200sx (dog leg type). THat tranny worked well.
I am running a 4:11 pos-a-trac rear which helps, but the engine still drops to quickly.
I see a drop of almost 1000rpm from 2nd to 3rd and would like to keep "All Shifts" around 500rpm drop.
Thanks!
#9
Junior Member
Thread Starter
Join Date: Mar 2003
Location: ozark,missouri
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Re: Trans. adapter
Originally posted by tatersgravy
It really doesn't matter to me what tranny, I just need something that keeps the revs up at a higher rate and longer between shifts.
Of course I would like something that parts are readly avaliable.
I used to run a 1971 Datsun 510 in which I install a 5-spd from a early model 200sx (dog leg type). THat tranny worked well.
I am running a 4:11 pos-a-trac rear which helps, but the engine still drops to quickly.
I see a drop of almost 1000rpm from 2nd to 3rd and would like to keep "All Shifts" around 500rpm drop.
Thanks!
It really doesn't matter to me what tranny, I just need something that keeps the revs up at a higher rate and longer between shifts.
Of course I would like something that parts are readly avaliable.
I used to run a 1971 Datsun 510 in which I install a 5-spd from a early model 200sx (dog leg type). THat tranny worked well.
I am running a 4:11 pos-a-trac rear which helps, but the engine still drops to quickly.
I see a drop of almost 1000rpm from 2nd to 3rd and would like to keep "All Shifts" around 500rpm drop.
Thanks!
#10
Junior Member
Thread Starter
Join Date: Mar 2003
Location: ozark,missouri
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Trans. adapter
Originally posted by NanaimoRx-7
Prices are in Australian dollars, haven't delt with them personally, but I do plan on getting their Stage 1 clutch kit at some point.
Gearbox Conversions
Although Mazda S4/5 turbo gearboxes are quite strong, some people still prefer the strength and shift quality that only a Toyota gearbox can provide.
Mazda S4/5 5 speed gearbox's - From $400
Toyota Corona 4 speed gearbox's - From $150
Toyota Supra 5 speed gearbox's - From $475
Toyota Supra turbo 5 speed gearbox's - From $1800
--------------------------------------------------------------------------------
Adapter Kits
All kits apart from the Supra turbo are available to suit either S4/5 or early (RX4) type bell housings. Our adaptor plate kits use your original Mazda bell housing for strength and durability. They come complete with all the hardware necessary for successful fitting.
Toyota Corona and Celica 5 speed adaptor kits (steel case) - $195
Toyota Supra 5 speed adaptor kits - $240
Toyota Supra turbo 5 speed kits (indestructible) - $585
S4/5 Gearbox shifter modification (mounts shifter forward 100mm for easy fitting into your early Mazda) - $120
http://www.rotorworx.com.au/perfor_gearbox.html
Prices are in Australian dollars, haven't delt with them personally, but I do plan on getting their Stage 1 clutch kit at some point.
Gearbox Conversions
Although Mazda S4/5 turbo gearboxes are quite strong, some people still prefer the strength and shift quality that only a Toyota gearbox can provide.
Mazda S4/5 5 speed gearbox's - From $400
Toyota Corona 4 speed gearbox's - From $150
Toyota Supra 5 speed gearbox's - From $475
Toyota Supra turbo 5 speed gearbox's - From $1800
--------------------------------------------------------------------------------
Adapter Kits
All kits apart from the Supra turbo are available to suit either S4/5 or early (RX4) type bell housings. Our adaptor plate kits use your original Mazda bell housing for strength and durability. They come complete with all the hardware necessary for successful fitting.
Toyota Corona and Celica 5 speed adaptor kits (steel case) - $195
Toyota Supra 5 speed adaptor kits - $240
Toyota Supra turbo 5 speed kits (indestructible) - $585
S4/5 Gearbox shifter modification (mounts shifter forward 100mm for easy fitting into your early Mazda) - $120
http://www.rotorworx.com.au/perfor_gearbox.html
I'll look into the info. provided.
Thanks!
#11
Junior Member
Thread Starter
Join Date: Mar 2003
Location: ozark,missouri
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Trans. Adapter
Originally posted by Jeff20B
I used to have a Corona with a 4 speed. 1900cc boinger. That little car could do a decent 2nd gear scoot. Not to mention the nice long 1st gear smoke shows
I used to have a Corona with a 4 speed. 1900cc boinger. That little car could do a decent 2nd gear scoot. Not to mention the nice long 1st gear smoke shows
Thanks!
#12
Lapping = Fapping
iTrader: (13)
A little more info.
It was a '69 Corona and the tranny was interesting, to say the least. It had shorter throws than my bro's '71 Celica, and would only go into 1st at a dead stop. I don't know if that's normal because my SA shifter sometimes goes into first in a slow roll. 2nd needed to be double clutched for a little while, but then something clunked inside the tranny and then it would go into 2nd no prob. The car had been sitting for a while before I got it. Maybe the synchro just needed to be worked loose? Anyway, I started wearing out the clutch from all the burnouts I did, but the tranny never complained. After the synchro came unstuck, there were no further hickups out of that tranny. I'd say to go for it if you've got one sitting around. It stood up to the torque of a 1900cc 'tractor engine', so it would probably be ok for a rotary.
It was a '69 Corona and the tranny was interesting, to say the least. It had shorter throws than my bro's '71 Celica, and would only go into 1st at a dead stop. I don't know if that's normal because my SA shifter sometimes goes into first in a slow roll. 2nd needed to be double clutched for a little while, but then something clunked inside the tranny and then it would go into 2nd no prob. The car had been sitting for a while before I got it. Maybe the synchro just needed to be worked loose? Anyway, I started wearing out the clutch from all the burnouts I did, but the tranny never complained. After the synchro came unstuck, there were no further hickups out of that tranny. I'd say to go for it if you've got one sitting around. It stood up to the torque of a 1900cc 'tractor engine', so it would probably be ok for a rotary.
#13
Junior Member
Thread Starter
Join Date: Mar 2003
Location: ozark,missouri
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Trans. adapter
Originally posted by Jeff20B
A little more info.
It was a '69 Corona and the tranny was interesting, to say the least. It had shorter throws than my bro's '71 Celica, and would only go into 1st at a dead stop. I don't know if that's normal because my SA shifter sometimes goes into first in a slow roll. 2nd needed to be double clutched for a little while, but then something clunked inside the tranny and then it would go into 2nd no prob. The car had been sitting for a while before I got it. Maybe the synchro just needed to be worked loose? Anyway, I started wearing out the clutch from all the burnouts I did, but the tranny never complained. After the synchro came unstuck, there were no further hickups out of that tranny. I'd say to go for it if you've got one sitting around. It stood up to the torque of a 1900cc 'tractor engine', so it would probably be ok for a rotary.
A little more info.
It was a '69 Corona and the tranny was interesting, to say the least. It had shorter throws than my bro's '71 Celica, and would only go into 1st at a dead stop. I don't know if that's normal because my SA shifter sometimes goes into first in a slow roll. 2nd needed to be double clutched for a little while, but then something clunked inside the tranny and then it would go into 2nd no prob. The car had been sitting for a while before I got it. Maybe the synchro just needed to be worked loose? Anyway, I started wearing out the clutch from all the burnouts I did, but the tranny never complained. After the synchro came unstuck, there were no further hickups out of that tranny. I'd say to go for it if you've got one sitting around. It stood up to the torque of a 1900cc 'tractor engine', so it would probably be ok for a rotary.
Thanks!
#14
Gone Race'n
iTrader: (4)
Join Date: Dec 2001
Location: Rockford, IL
Posts: 1,544
Likes: 0
Received 0 Likes
on
0 Posts
You could have the "guts" from a Miata tranny installed. I've heard that makes a pretty good auto cross setup. Check out Pineapple Racing
Ryan
Ryan
#16
Junior Member
Thread Starter
Join Date: Mar 2003
Location: ozark,missouri
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Headlight pics.
Originally posted by Directfreak
What specific tranny do you want?
Also - more pics of the headlights please.
What specific tranny do you want?
Also - more pics of the headlights please.

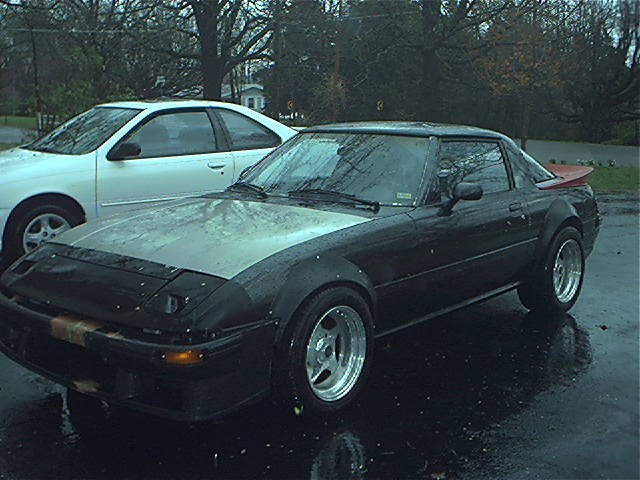

These are still in the design stage and I don't know if I like them or not. Any way here are a few pics.
#18
Blood, Sweat and Rotors
iTrader: (1)
The miata internals would bump you into e prepared
79-82 mazda 626 rwd also fit in a 1st gen case. i have one in my 1st gen now. do a search on 626 and you'll see how to do it. *very* cheap semi-close ratio transmission. revs drop much less inbetween shifts. any change in transmission ratios bump to e prepared. the 626 gears are physically thinner than 1st gen, therefore somewhat weaker. but they can handle a 12a j-bridgeport GT3 motor with fat slicks for 2.5 years my acquaintance did this.
if you want to spend $2000, you can get the input, output shaft and gears in chromolly, lighter than steel and hardened 20% stronger. In the good old MazdaComp close ratios. mazdamotorsports.com sells it to racers.
79-82 mazda 626 rwd also fit in a 1st gen case. i have one in my 1st gen now. do a search on 626 and you'll see how to do it. *very* cheap semi-close ratio transmission. revs drop much less inbetween shifts. any change in transmission ratios bump to e prepared. the 626 gears are physically thinner than 1st gen, therefore somewhat weaker. but they can handle a 12a j-bridgeport GT3 motor with fat slicks for 2.5 years my acquaintance did this.
if you want to spend $2000, you can get the input, output shaft and gears in chromolly, lighter than steel and hardened 20% stronger. In the good old MazdaComp close ratios. mazdamotorsports.com sells it to racers.
Last edited by DriveFast7; 04-11-03 at 03:41 PM.
