1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

Tranny swap!

Thread Tools

Search this Thread

Old Dec 31, 2006 | 09:37 PM
  #1
Gekitotsu's Avatar
Thread Starter
Junior Member
Tenured Member 05 Years

Joined: Sep 2005
Posts: 13
Likes: 0
From: Cincinnati
Tranny swap!

No before you all yell at me, I did try searching :P

My question is simple, Is it easy to replace a transmission in a 85 FB 12A by dropping it out the bottom?
I've pulled many with the engine and all out the top, but a buddy told me it would probably be easier doing it from below.

Is this true, or more importantly, Possible?

And if anyones done it this way before, a few pointers would be handy.

Thanks guys!
Reply
Old Dec 31, 2006 | 09:46 PM
  #2
steve84GS TII's Avatar
FB+FC=F-ME
Tenured Member 05 Years

Joined: Jul 2004
Posts: 3,353
Likes: 5
From: Rohnert Park CA
Very easy.
No need to pull the engine for a trans job.Youd have to deal with the electrical,cooling,oil lines and everything else if you pulled the whole thing from above.

Dropping the tranny is much less work,you just have to get the car off the ground and secure first (jackstands)
Reply
Old Dec 31, 2006 | 10:01 PM
  #3
Jeezus's Avatar
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL

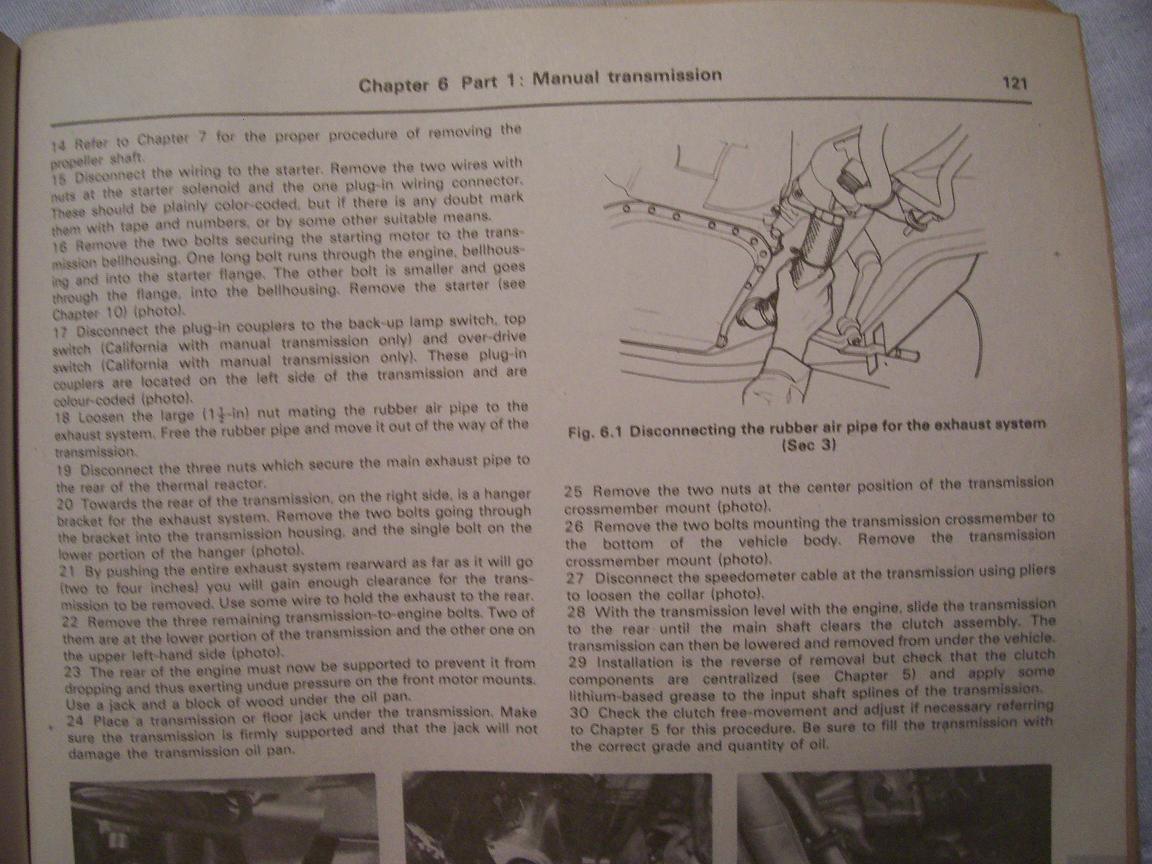

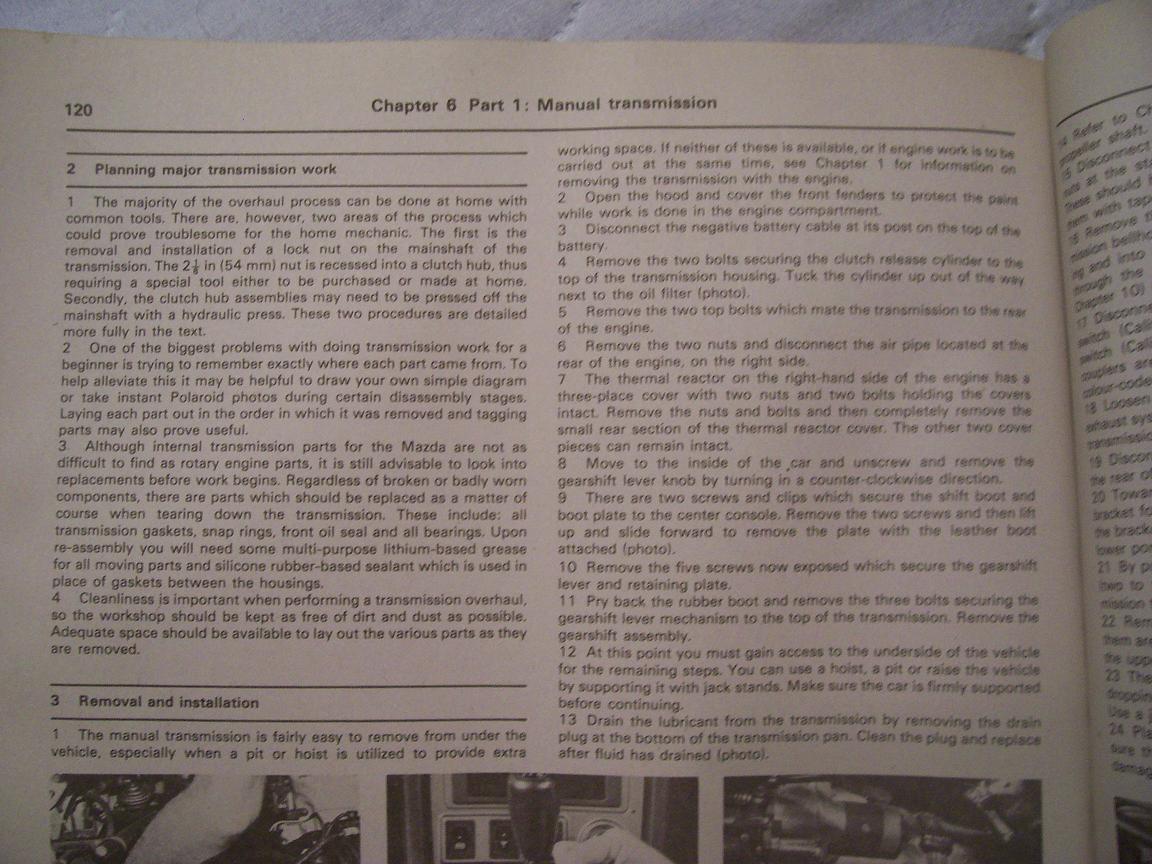

hope this helps, too big to post:

http://download.yousendit.com/0451FB794E8C87CE

http://download.yousendit.com/D7BE66B5627C2D26

EDIT: look at that, i shrinkedthem and you can still read it. let me know if you needthe pics at the bottom.
Attached Thumbnails Tranny swap!-100_1551.jpg   Tranny swap!-100_1552.jpg
Reply
Old Dec 31, 2006 | 10:14 PM
  #4
peejay's Avatar
Old [Sch|F]ool
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: May 2001
Posts: 12,862
Likes: 568
From: Cleveland, Ohio, USA
Last trans swap took me an hour flat. That is with removing the slave cylinder from underneath because the beehive is in the way.
Reply
Old Dec 31, 2006 | 11:35 PM
  #5
Gekitotsu's Avatar
Thread Starter
Junior Member
Tenured Member 05 Years

Joined: Sep 2005
Posts: 13
Likes: 0
From: Cincinnati
Okay, that settles it.
I'll try it from underneath!

Thanks guys. This will make life a lot easier (maybe!)
Reply
Old Dec 31, 2006 | 11:45 PM
  #6
Paradox's Avatar
backyard tuner
Tenured Member 10 Years
iTrader: (1)

Joined: Sep 2002
Posts: 1,265
Likes: 0
From: BC, Canada
pretty easy job, just alingment is a pain. g'luck dude
Reply
Old Jan 1, 2007 | 12:51 AM
  #7
dean23's Avatar
pwned
Tenured Member 05 Years

Joined: Sep 2005
Posts: 1,296
Likes: 0
From: Northern Indiana
i just used a hydrolic jack to hold mine up while i aligned it. makes it much easier imo.
