Dead thread doesn't bother me. I'm about to build a hitch for this '83 I'm working on. Just picked up a new bare receiver 6" long for 1.25" stingers. $28. Haven't yet figured out what support structure I want to fabricate, but it needs to be strong and hidden. After all, with a 200 HP 3.8L V6, a GM 7.625" rear axle, and 11.75" Brembo brakes up front with Trans Am rear discs, this thing will be ready for more than a mere 1000#.
03-10-15, 07:21 PM
#30
Senior Member
iTrader: (8)
Join Date: May 2013
Location: 94086
Posts: 280
Likes: 0
Received 0 Likes
on
0 Posts
I will be doing one soon as well. I like the idea Blake has, it looks like it will work with my lowering springs. Other designs are usually coming out underneath the plate.
03-28-15, 10:53 AM
#34
Full Member
Join Date: Oct 2014
Location: Smithfield, UT
Posts: 207
Likes: 0
Received 0 Likes
on
0 Posts

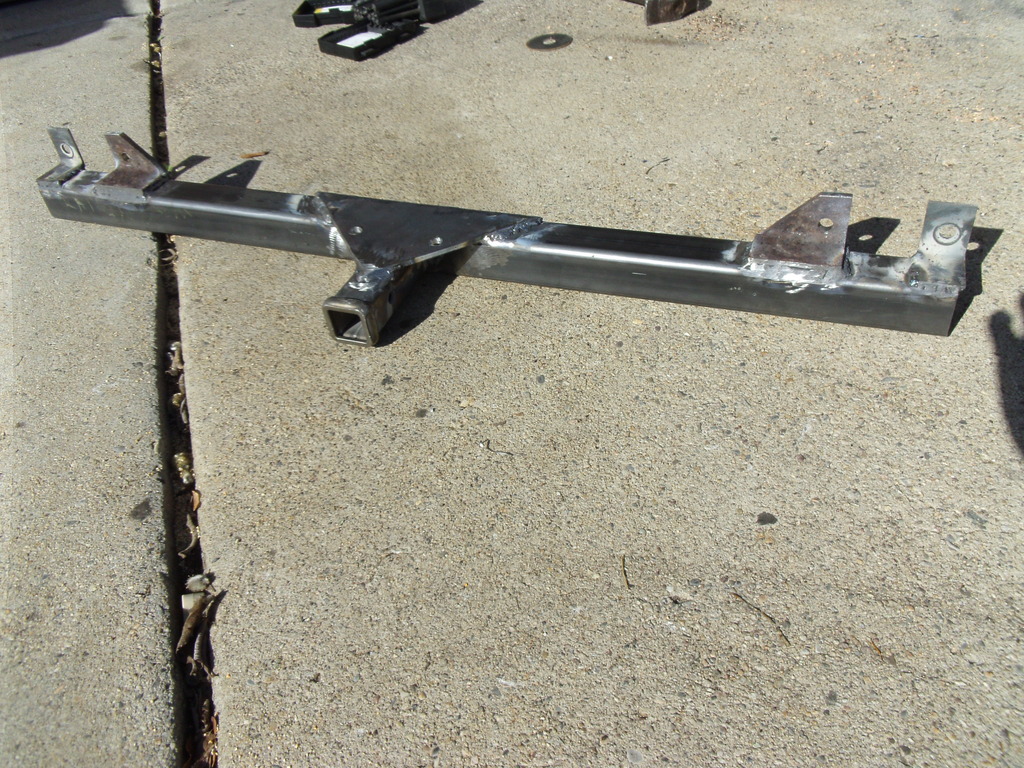

It can't be stolen since I'm offering it freely. The main tube is 2" x 2" x 0.187" x 40", the top triangle is just 1/4" plate, I sized it with a cheap plastic little "speed square", the inner top brackets are 1/4", the outers are 1/8" x 1.5", the holes are 1/2", and the centers need to be 7/8" up.
I haven't finished the install yet, pic when I do. I did a test fit, then sprayed it black. That's why it isn't installed, waiting for it to dry, then when it was dry I was elsewhere.
I haven't finished the install yet, pic when I do. I did a test fit, then sprayed it black. That's why it isn't installed, waiting for it to dry, then when it was dry I was elsewhere.
03-31-15, 07:09 PM
#39
Senior Member
iTrader: (8)
Join Date: May 2013
Location: 94086
Posts: 280
Likes: 0
Received 0 Likes
on
0 Posts
Gmc Sierra Flip Up License Plate Mount Installed Photo 9
Flip up plate, just like the old cars like mustangs that have the fuel filler hidden.
I might have to do this myself!
Flip up plate, just like the old cars like mustangs that have the fuel filler hidden.
I might have to do this myself!
04-11-15, 01:27 PM
#40
Senior Member
iTrader: (8)
Join Date: May 2013
Location: 94086
Posts: 280
Likes: 0
Received 0 Likes
on
0 Posts

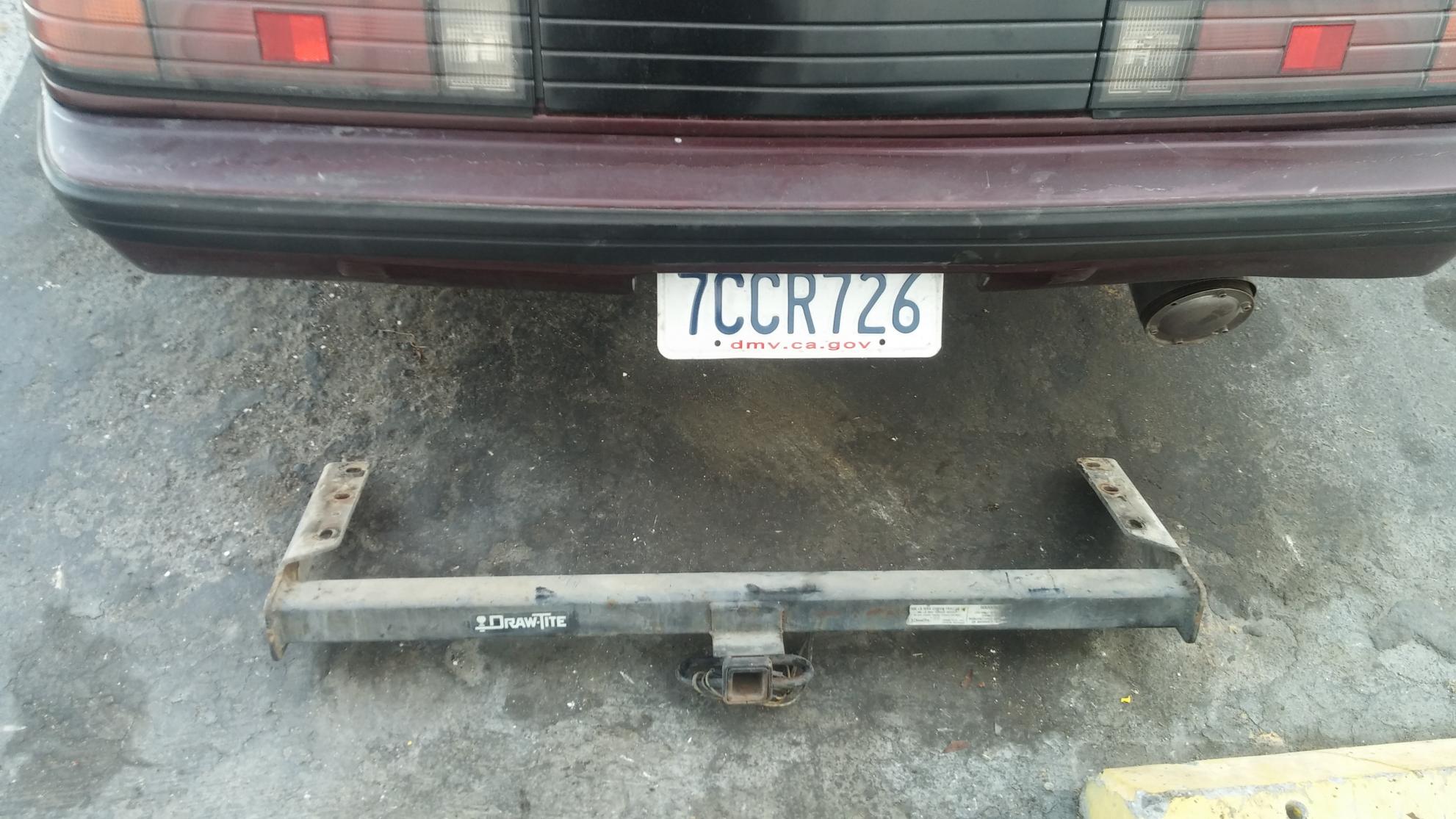

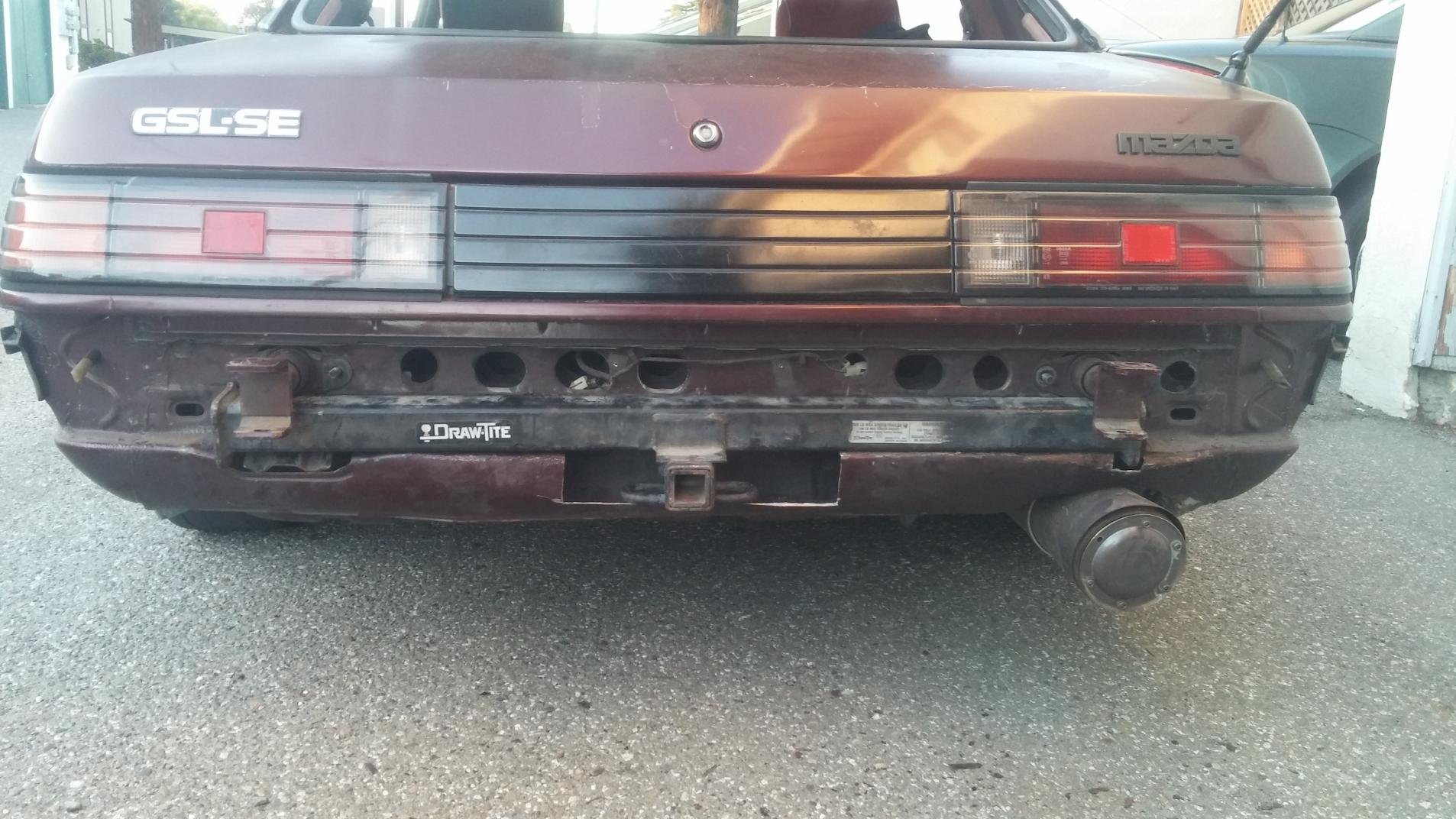

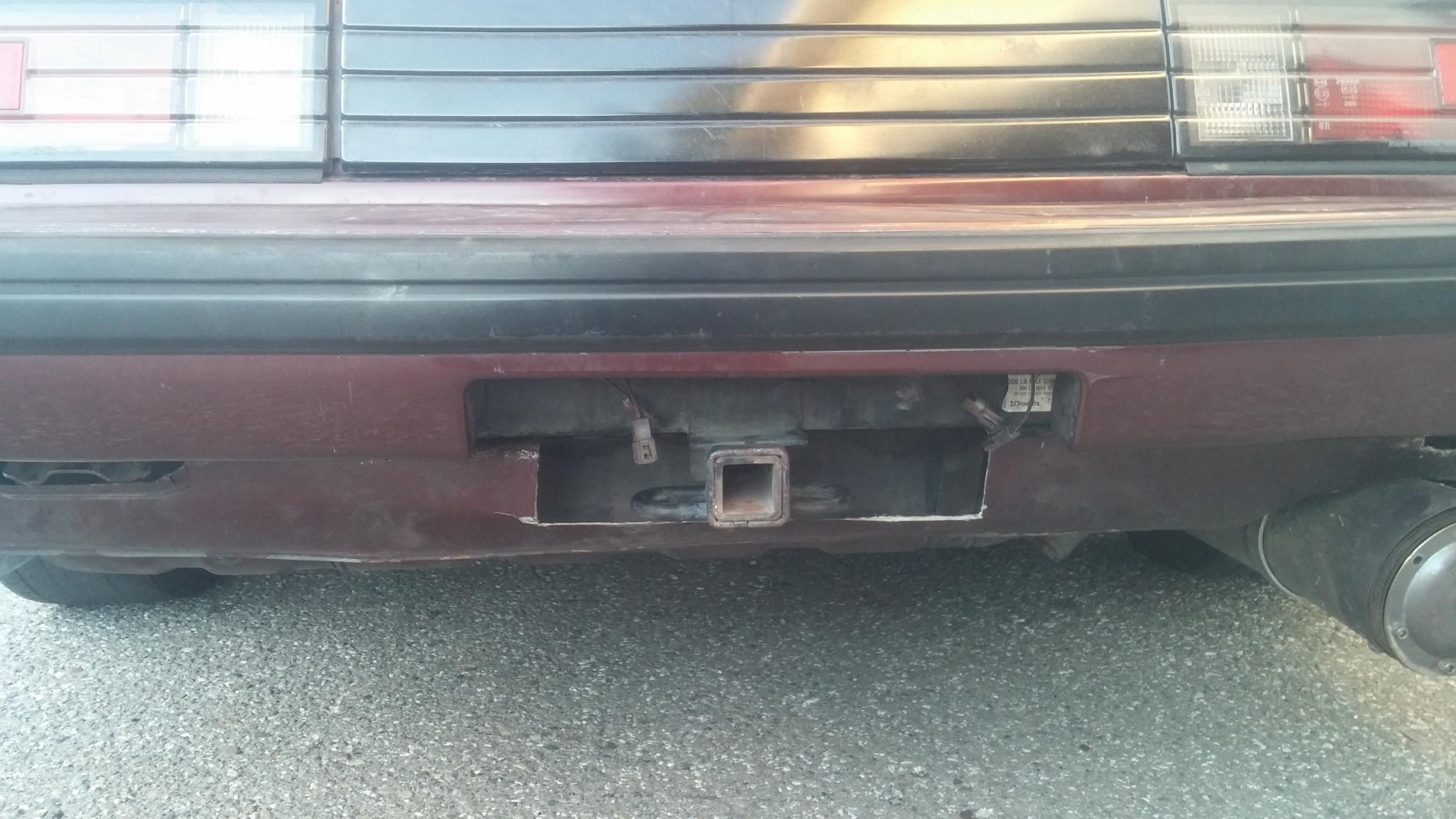

This is where im at now. Grabbed a tow bar from a jeep Cherokee at the junk yard. Chopped off the two ears and did a little cutting on the lower valance to fit everything in snug. Ill be centering it and adding tabs on today so it will bolt up to the bumper supports.
04-11-15, 01:51 PM
#41
Old [Sch|F]ool
Eh, I just ordered a Curt hitch from Summit. No big deal.
The biggest PITA was finding out that I had to wire relays into the brake/turn signal multiplexer if I wanted to tow a trailer with incandescent lights.
The biggest PITA was finding out that I had to wire relays into the brake/turn signal multiplexer if I wanted to tow a trailer with incandescent lights.
04-13-15, 12:32 AM
#42
Senior Member
iTrader: (8)
Join Date: May 2013
Location: 94086
Posts: 280
Likes: 0
Received 0 Likes
on
0 Posts
Finished!
Total spent...
$22 plus ca tax on the original tow receiver from a cherokee
$ 3 per cutoff/grinding wheel - x4
Free tow ball and arm... Score!
Not a bad deal for a fun useful project!
Total spent...
$22 plus ca tax on the original tow receiver from a cherokee
$ 3 per cutoff/grinding wheel - x4
Free tow ball and arm... Score!
Not a bad deal for a fun useful project!
04-13-15, 10:12 AM
#43
Full Member
Join Date: Oct 2014
Location: Smithfield, UT
Posts: 207
Likes: 0
Received 0 Likes
on
0 Posts
This would get cited, around here. They'd want a flip-down that kept the whole plate vertical.
04-13-15, 10:38 AM
#44
Full Member
Join Date: Oct 2014
Location: Smithfield, UT
Posts: 207
Likes: 0
Received 0 Likes
on
0 Posts
I thought it grossly overpriced, even from Amazon or etrailer, especially considering what a low rating Curt gives it. Same thing with my Camaros. Why make a 1000#-rated hitch for a car rated to tow 2000#? Curt are stupid. But so are Reese for not taking advantage.
04-13-15, 10:40 AM
#45
Full Member
Join Date: Oct 2014
Location: Smithfield, UT
Posts: 207
Likes: 0
Received 0 Likes
on
0 Posts
It can't be stolen since I'm offering it freely. The main tube is 2" x 2" x 0.187" x 40", the top triangle is just 1/4" plate, I sized it with a cheap plastic little "speed square", the inner top brackets are 1/4", the outers are 1/8" x 1.5", the holes are 1/2", and the centers need to be 7/8" up.
I haven't finished the install yet, pic when I do. I did a test fit, then sprayed it black. That's why it isn't installed, waiting for it to dry, then when it was dry I was elsewhere.
I haven't finished the install yet, pic when I do. I did a test fit, then sprayed it black. That's why it isn't installed, waiting for it to dry, then when it was dry I was elsewhere.
04-13-15, 10:57 AM
#46
Senior Member
iTrader: (8)
Join Date: May 2013
Location: 94086
Posts: 280
Likes: 0
Received 0 Likes
on
0 Posts

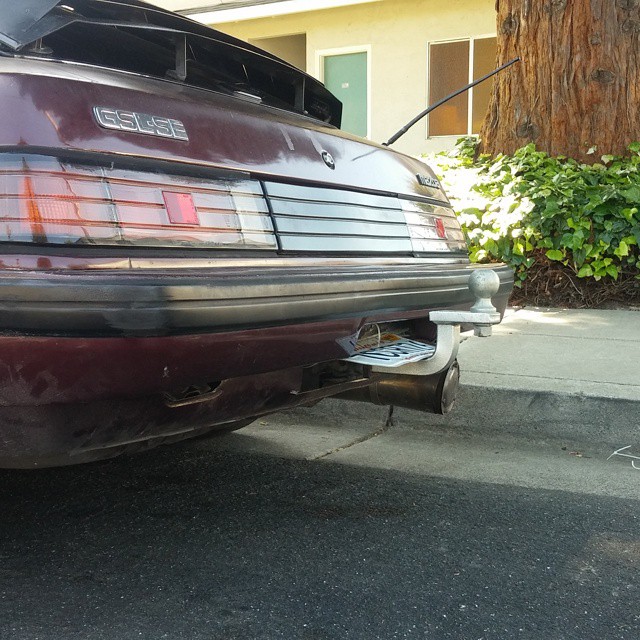

My plate sits in the same exact spot and angle that it did before the hitch. I only flip it up for towing, in which the plate is blocked anyways. My trailer will display its own plate and that is totally legal.
How did your plate turn out? I tucked my hitch back a few inches compared to yours just so that I could keep a stock appearance.
How did your plate turn out? I tucked my hitch back a few inches compared to yours just so that I could keep a stock appearance.
04-13-15, 12:54 PM
#47
Old [Sch|F]ool
But the real important thing is, by buying a trailer hitch and installing it by the book, IF I were ever in an accident while towing, I don't have to worry about someone's insurance company suing me with the claim that my hitch was not engineered properly.
That's worth $160 to me. (Which is how much I paid for it from Summit, with free shipping since it was over $99. And it knocked me over a 500-point threshold so I got a $15 rebate in the mail, too.)
04-14-15, 04:50 PM
#49
Old [Sch|F]ool
Maybe. Legalese may not see it that way. If you design and build it, it's your liability and your insurance may cancel. on you.
It's not like $160 is all that expensive given how expensive these cars are to buy and maintain.
It's not like $160 is all that expensive given how expensive these cars are to buy and maintain.
04-15-15, 10:19 AM
#50
Full Member
Join Date: Oct 2014
Location: Smithfield, UT
Posts: 207
Likes: 0
Received 0 Likes
on
0 Posts
First, why are you crashing when towing? I've done over 100,000 miles with a "bumper-hitch" ( non-gooseneck ) trailer attached, never a glitch yet.
Second, not only can't my hitches fail, but they're overkill enough by the time I pronounce them tow-ready, that the vehicle they're attached to really can't be ripped apart in the hitch area, either.

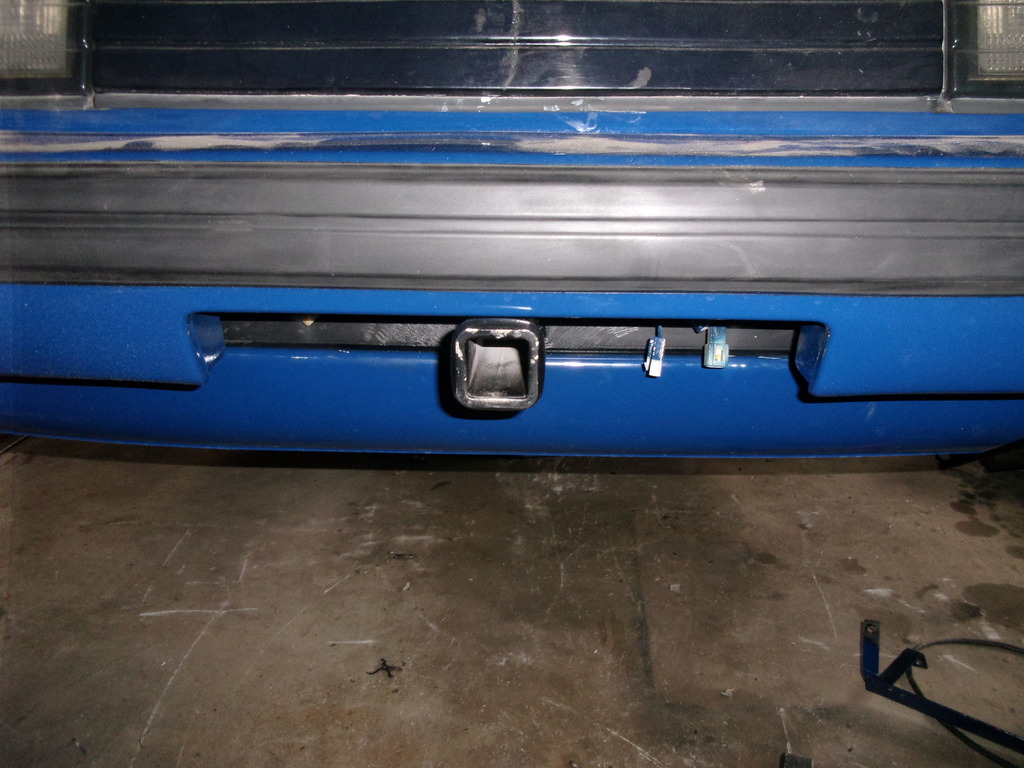

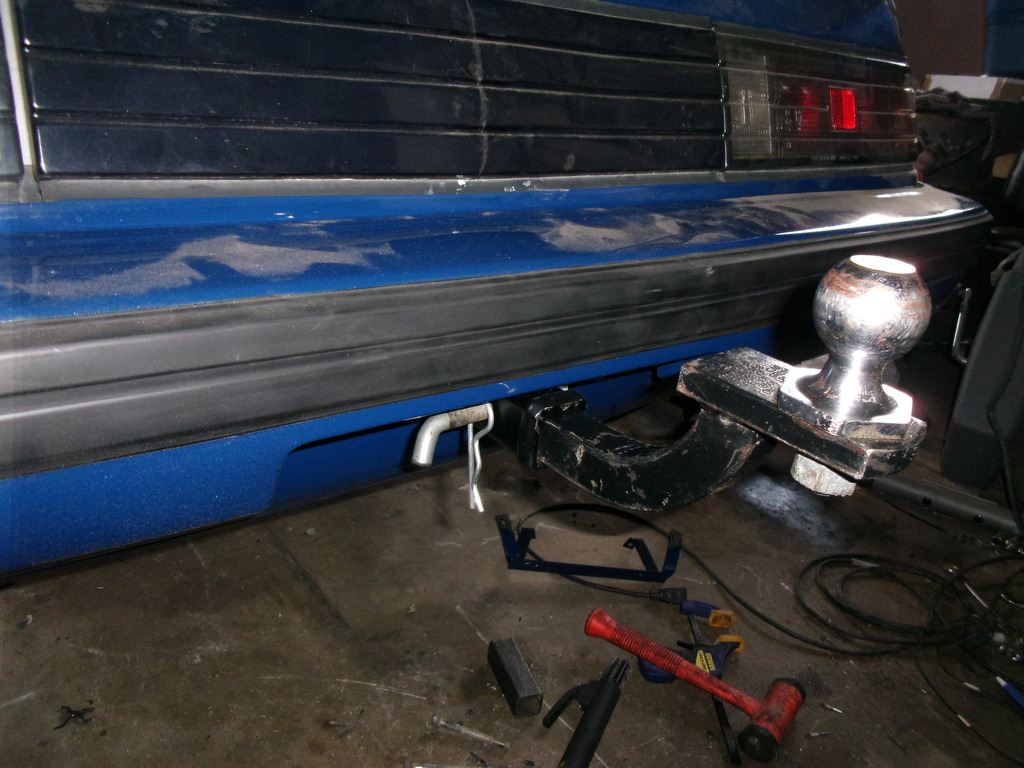

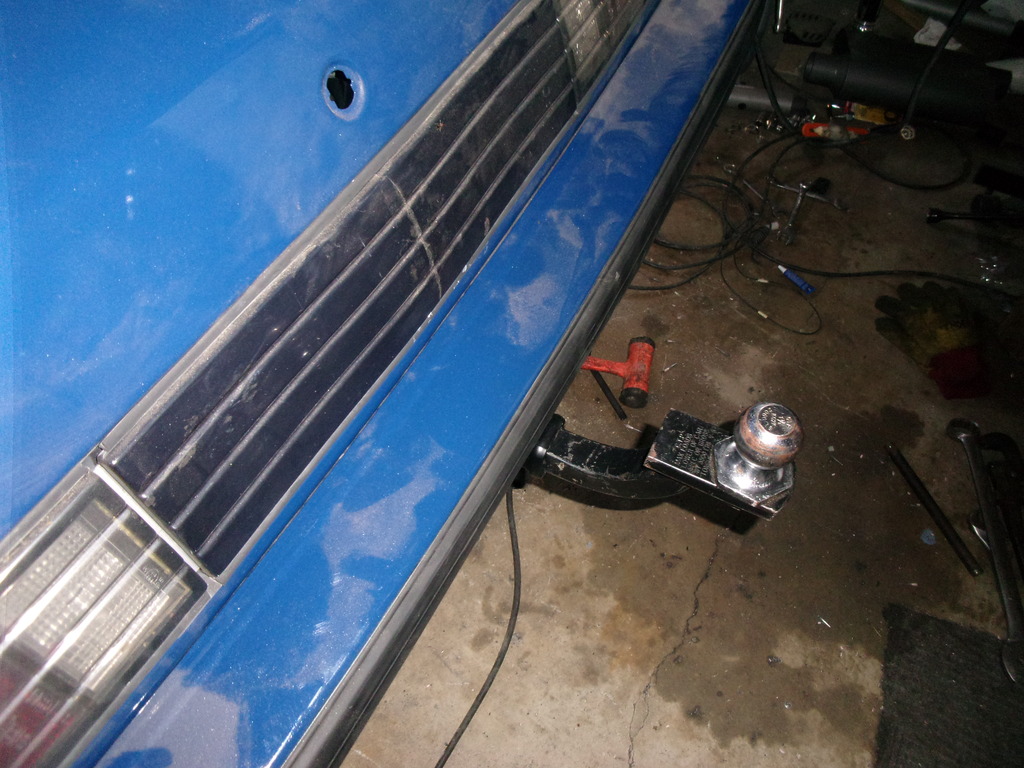

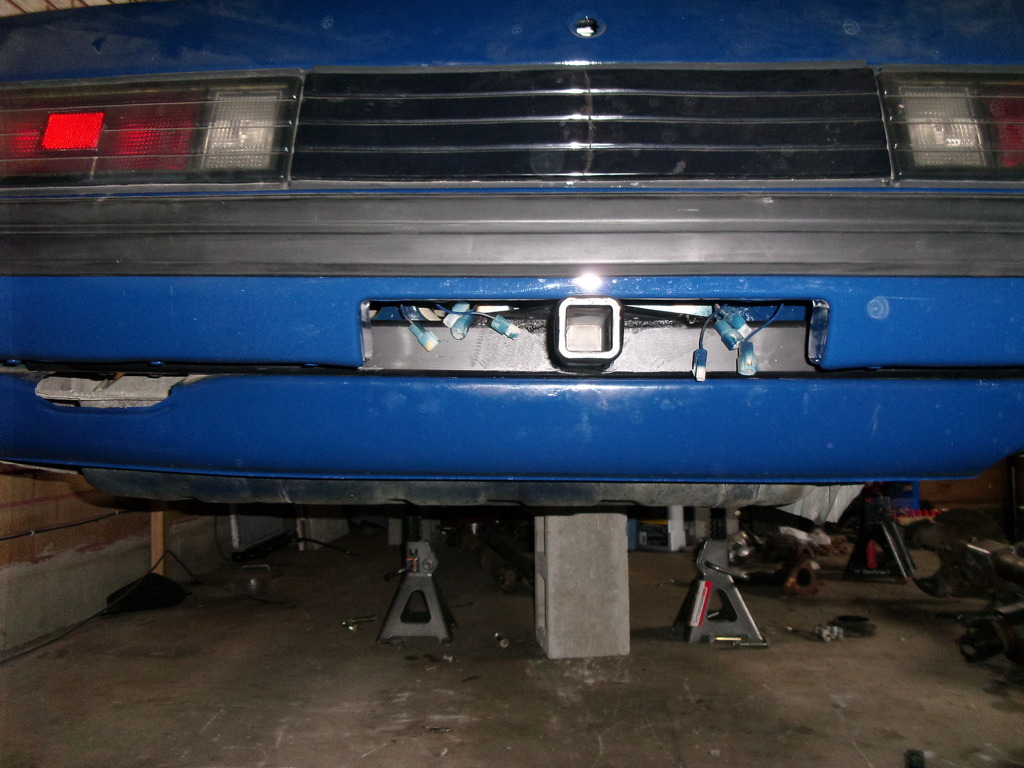

This RX-7 hitch I'm showing isn't tow-ready yet, I just haven't yet had a chance to add the attachment to the bottom left, nor the hidden angle bars in my sketch. As is, it's more than adequate for my Harbor Freight trailer to haul tree branches to the local recycling center's mulching area, and that's about all a rotary should ever tow anyway. I have a real American torque engine, plus serious brakes, wide wheels, and much more to let me tow more.
Sorry your skills don't approach mine, but stop crying to me about it.
Second, not only can't my hitches fail, but they're overkill enough by the time I pronounce them tow-ready, that the vehicle they're attached to really can't be ripped apart in the hitch area, either.
This RX-7 hitch I'm showing isn't tow-ready yet, I just haven't yet had a chance to add the attachment to the bottom left, nor the hidden angle bars in my sketch. As is, it's more than adequate for my Harbor Freight trailer to haul tree branches to the local recycling center's mulching area, and that's about all a rotary should ever tow anyway. I have a real American torque engine, plus serious brakes, wide wheels, and much more to let me tow more.
Sorry your skills don't approach mine, but stop crying to me about it.
