I saw a pic that made it seem the camber plates have a gap at the sides that goes to the wheel well. Is that the case?



Just finished installing the coilovers. I'm tired *** hell, so I'm going to bed. I'll just add a few pics for now.


free screen capture software


click image upload


click image upload


adult image


forum image hosting


upload images free


upload pictures free


free image upload


how to capture screen


screenshot tool


image hosting 10mb limit


image upload no compression



The car is rubbing in the front. I think I lowered the car a bit too much. I need to adjust camber to stop it from rubbing the fender. The 17's are too big for this little car. I think with some 15" wheels, I should have a bit more travel in the rear. As it is at the moment, the rear is bottoming out.









Looks good though

url=http://postimage.
upload gambarorg/]upload gambar[/url]



Nice! Did you have to cut much material off the rear tower to make them fit? I know Gabriel told me I will have to cut some.



We did not have to cut anything in the rear? We did have to shave red bushings with the grinder just a little, to make the spacers and washers fit in the rear.



The end result looks awesome. She sits at just the right level. Seriously considering dropping the cash for a T3 coilover system.



Yikes, that's way too low. You need a good inch higher on all four corners, IMHO.



Looks like you had a special bracket for the rear? I wish they would've mentioned those to me before I sold mine cause they didn't fit....

I ordered the rear coilovers from them around a year ago. I had the spring hitting the inner body wells and the adjuster perch would hit my upper end links.

I sold the rears because of this. I also have a 84 GSL rear end with moser axles and T2 brakes in the rear, so I don't know if that had something to do with it.

Would like more info on your setup?



This is the drop mount they came with.


screen shots

The previous owner of the car, told me the car had an 83 gsl suspension, but the bolt pattern is 4x114.3 with drum brakes in the rear? I have not removed the rear wheels yet, to check if the hubs where redrilled.


img host

I'll check tonight, but they must have been redrilled. No other explanation?

Front hub 4x114.3. GSL-SE?


url=http://postimage.org/][/url]
upload pics



Update: I raised the car about 1" 1/2 all around and set the koni's and rear shocks to soft. Car feels like a Damn Lexus



Very cool! I'll have to maybe try and order again with one of those mounts. Looks nice!

That's strange if you have 4x114.3 bolt pattern. Definitely redrilled since you have drums in the rear.



What spring rates are you running?



Think he said he's running 200 fronts and 150 rear. That's a nice ride for sure lol



That is correct.

As far as the the rear drums go, the where not redrilled. They where bent outwards to fit in the GSLSE wheels. I guess I will now have to find an SE rear end, because I cant leave it like this. Look at the pic closely again.

I will try and bend them back into 4x100 until I fix this problem





So the more and more i research, the less inclined I am to go with the rear coil-over-strut design.

Here's some info that Berny dug up after I mentioned that the AE86 suspension design is the same, and that those guys have been doing this for a while:

Project 1985 Toyota Corolla GT-S AE86 Setup- Sport Compact Car Magazine Page 2

And then here's a pic he found of an AE86 with coilovers in the rear:



Looks great! A little thought on the matter and one might think the designers of the cars were trying to minimize weight. In so doing they designed shock mounts strong enough to do what shock mounts do, while designing spring perches to do what they do. Which typically involves supporting not only the weight of the car, but absorbing the forces applied by cornering, potholes, and being driven off curbs and such.
Edit: dang! I just read the article. The experts concur!



Well you could buy 5 inch springs and use these the stock location:

http://www.summitracing.com/int/part...6119/overview/

The only thing I can't figure out is how the adjusting nut locks into place. How does the nut lock into place on the respeed rear kit?

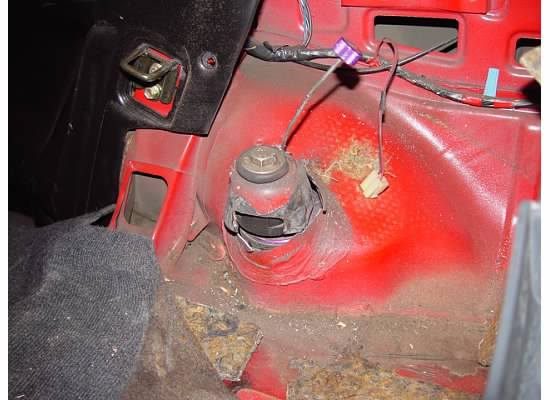

That picture of a corolla with coilovers in the rear - is illustrating what it looks like WHEN the strut punches through the welds... not good at all.
