Taurus fan help
#1
Taurus fan help

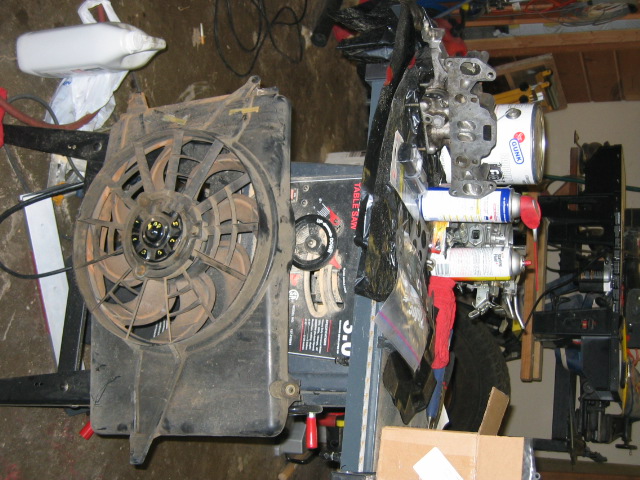

so i go up to my local junkyard this saturday and ask for a 95 taurus fan. he said that they had one in the car that hadnt been pulled yet, come back monday. well i couldnt go back monday but today i called my dad and asked him if he could stop by and pick it up for me... when he get home i was dissapointed. all they gave me was the actual fan core. no wires and no shroud. AHHH!!! i was planning on getting my car running this weekend.. but everything has to be so diffucult. first of all do i need the shroud? and it looks like there is a 3 prong plug that has to go in to the fan for power...... how should i solve that problem? if you need pics ill take them but the guys with taurus fans should know what im talking abot...
erick
erick
#4
PSHH! PSHH! HEAR ME NOW?
iTrader: (3)
You will need the shroud. If you look in the archives, there is a whole big write up on the swap. The reason the Taurus fan has three wires going to it is becuase it has two speeds. you need to be cafefull when you wire it up becuase you can reverse the flow of the fan. Searh the archives..............
#7
kiwi from downunder..
iTrader: (4)
ok i got a ford tauras 95 3L fan today
i also did s search but no one giving me any good info
anyone who has done this do i have the right fan it going on a 83rx7 radiator
did you have to redrill holes,cut modify in any way,get new bolts? etc just asking before i rip my rad outcan any one identify which is ground speed1 speed2
and how they hooked it up
cheers chris
i also did s search but no one giving me any good info
anyone who has done this do i have the right fan it going on a 83rx7 radiator
did you have to redrill holes,cut modify in any way,get new bolts? etc just asking before i rip my rad outcan any one identify which is ground speed1 speed2
and how they hooked it up
cheers chris
Trending Topics
#8
Grey-Bruce Rotorhead
Join Date: Apr 2002
Location: Chesley, Ontario, Canada
Posts: 1,484
Received 0 Likes
on
0 Posts
I modified the original fan shroud and bolted the ford fan's shroud to this and then just bolted the original shroud back onto the rad. I also cut away the larger section of the original to clean it up a little.
#10
RTFFAQ
Join Date: Jun 2003
Location: Olathe, KS USA
Posts: 1,049
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Bass
I modified the original fan shroud and bolted the ford fan's shroud to this and then just bolted the original shroud back onto the rad. I also cut away the larger section of the original to clean it up a little.
#11
Rotary Enthusiast
iTrader: (2)
If you want to do it right, you need to remove the radiator. Then you can lay the rad face down and put the fan on top where you want it. Then it's just a matter of getting some metal strap. (can be found in any hardware store.) And making up some brackets. drill a small hole in the schroud to mount the brackets. I used a screw and locking nut. Leave pleanty of strap like 6 inches or so then go back and trim them after they are mounted. Obviously don't use to long of a screw it will hit the fan.
I would also suggest maybe getting a new radiator at this point. Other wise a month down the road when you decide U need a new rad you'll have to remake all the brackets again just like I had to do. A new one is only like 90 bucks to your door from radiators.com. The new radiator had different schroud mounting points so I had to cut and bend the new rad brackets. you shouldn't have to do that if your useing the factory rad.
Good luck!
I would also suggest maybe getting a new radiator at this point. Other wise a month down the road when you decide U need a new rad you'll have to remake all the brackets again just like I had to do. A new one is only like 90 bucks to your door from radiators.com. The new radiator had different schroud mounting points so I had to cut and bend the new rad brackets. you shouldn't have to do that if your useing the factory rad.
Good luck!
#13
Play Well
Join Date: Feb 2005
Location: We're all fine here now, thank you. How are you?
Posts: 4,218
Likes: 0
Received 0 Likes
on
0 Posts
In the case of not being able to go out into the yard. Just have them right you a waver and sighn it along with 2 other people as witnesses. This is how we get away playing paintball without field insurance. And I have done this to get into a pay and pull.
