Surge Tank set up

Reply Subscribe

Thread Tools

Search this Thread

07-12-08, 07:32 AM

#26

elwood

Rotary Freak

iTrader: (1)

Join Date: Mar 2003

Location: https://t.me/pump_upp

Posts: 1,540

Likes: 1

Received 24 Likes on 19 Posts

Exactly. I always look for OE parts when possible / practical. They're usually a lot more durable -- and cheaper, too. Both the Bosch pumps I used in my setup are OE pumps. Other good brands to look for are Denso and Walbro.

Reply Like

07-12-08, 08:01 AM

#27

jcfrx7

Senior Member

Thread Starter

Join Date: Jul 2003

Location: Port Saint Lucie

Posts: 296

Likes: 0

Received 0 Likes on 0 Posts

Quote:

Originally Posted by REVHED

That's what I did except I used a Carter as the filler pump and Bosch as the main pump. There's enough room under the car to shoehorn it all in.

The SE pump should be ok as you'd have to be under full load for quite some time to suck the surge tank dry.

Very nice the only thing is that I have a bigger tank and I dont know if it fits under.

Reply Like

07-12-08, 09:17 AM

#28

nick812

13b P-port on a budget

Join Date: Nov 2004

Location: Louisville KY

Posts: 3,003

Likes: 0

Received 0 Likes on 0 Posts

how big are the surge tanks you all are using?

Reply Like

07-12-08, 04:04 PM

#29

jcfrx7

Senior Member

Thread Starter

Join Date: Jul 2003

Location: Port Saint Lucie

Posts: 296

Likes: 0

Received 0 Likes on 0 Posts

I had bought this fuel cell a long time ago for a different car set up that I had and never used it. But tham I dont even know were to mount this ******.

Attached Thumbnails

Reply Like

07-13-08, 02:41 AM

#30

Hyper4mance2k

The Shadetree Project

iTrader: (40)

Join Date: Jul 2002

Location: District of Columbia

Posts: 7,301

Likes: 2

Received 3 Likes on 3 Posts

Walbro's are great but I've heard about 50% of the ones being sold are shitty chinese rip off's

Reply Like

07-13-08, 09:44 AM

#31

elwood

Rotary Freak

iTrader: (1)

Join Date: Mar 2003

Location: https://t.me/pump_upp

Posts: 1,540

Likes: 1

Received 24 Likes on 19 Posts

Quote:

Originally Posted by jcfrx7

I had bought this fuel cell a long time ago for a different car set up that I had and never used it. But tham I dont even know were to mount this ******.

That's a big tank to use as a surge tank. I'm sure it would work, but you can probably make something that will work as well and package easier. The skinnier and taller, the better. My tank is 3" dia aluminum X 10.2" tall, and REVHED's looks to be about the same. Tall skinny tanks don't allow the fuel to slosh away from the pickup.

Here's an excellent guide on swirl pot design: http://www.fortunecity.com/silversto.../swirlfaq.html

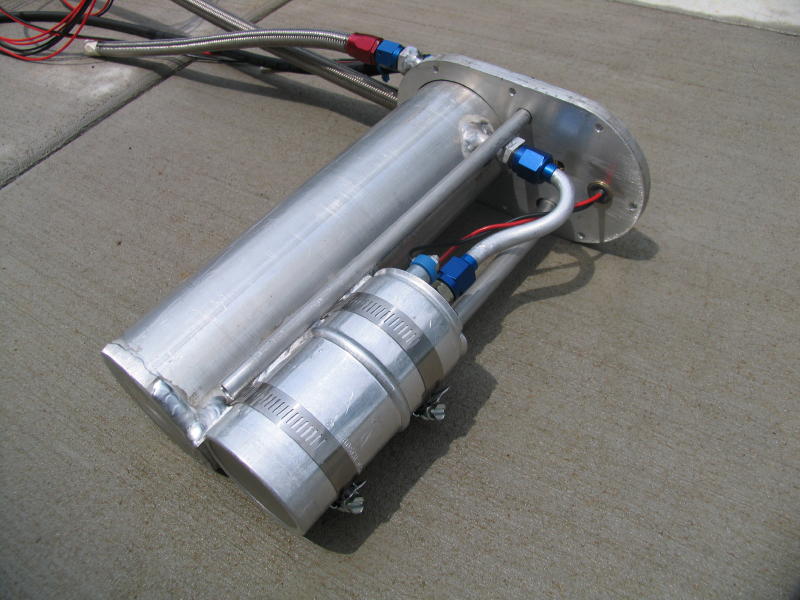

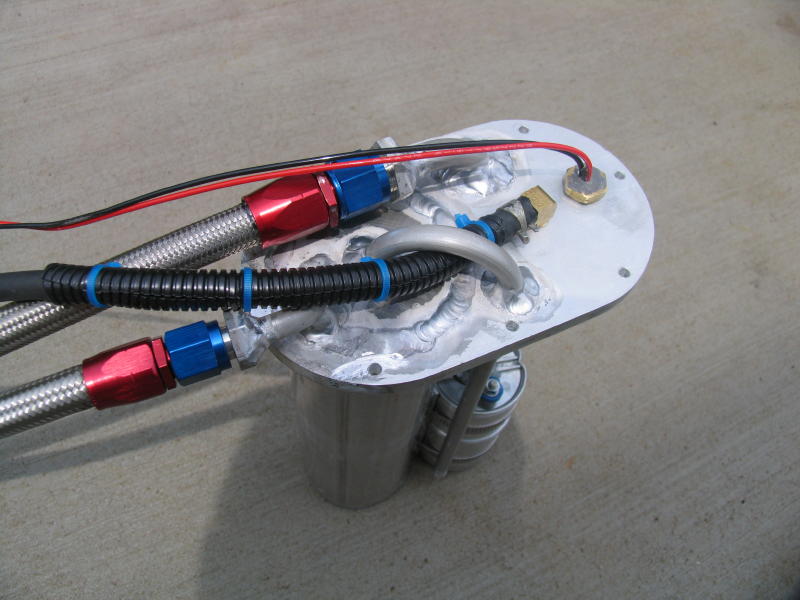

And here's a picture of mine, which satisfies most of the guidelines.

Attached Thumbnails

Reply Like

07-13-08, 12:17 PM

#32

jcfrx7

Senior Member

Thread Starter

Join Date: Jul 2003

Location: Port Saint Lucie

Posts: 296

Likes: 0

Received 0 Likes on 0 Posts

Quote:

Originally Posted by elwood

Thats a great set up there. It looks like I have to make me a smaller tank. I wanted to make this happen before I go to the Dyno. But since is a big task I guess I just run with a full tank for right now.

Reply Like
