Can anyone suggest a good source for aftermarket exhaust tips for an 84 GSL that look like the original stock muffler tips and can be installed on the stock muffler? I've been checking the local auto parts stores but haven't come up with anything. I even bought a pair from Mazda ($20 each!) but had to return them because they didn't come with the mounting hardware (this would have been another $20 each, no way). There must be some good aftermarket ones out there, anybody know where?

Thanks
Ray



I don't know about muffler tips by themselves, but I know that the RB PowerPulse has stock looking tips....



Mazdatrix sells them for about $70 a piece for the FC. And they sell stock front diff mounts for $140....lol



This means nothing to us unless the stock FC tips are the same as the 1st gen ones, and why are you putting the price of a diff mount in there?

I don't know what you guys have down there in the US for parts stores, but here in Canada I found a pair of stock looking tips at Canadian tire for like 7 bux a peice. Only problem with them is that the tip was rolled over, not straight like the 7 tips.



I posted the price of that mount just to show how expensive mazdatrix is when it come to "some" parts.

Part # for 79-85 tips from mazdatrix is

40-5510-8871 $17.43 a piece.



Heres a stock muffler tip - get rid of it.

Save up and buy a Racing Beat muffler and be done with it No need for tips on a muffler youre just gonna junk down the road anyway, then you have tips with no use for them. You could always try Ebay, or the junk yard. I know at Schucks they have a stock tip that looks identical to the RX-7 tip, but as stated, theyre rolled instead of straight cut, but its better looking IMO. I like the rolled tip look a lot, like on the RB muffler. I loved my RB muffler, both the look and the sound - then again, so did the thieves

~T.J.





It's an original muffler on an 84 GSL with 85,000 miles and a recently installed cat that works and sounds great. I have an intact, legal and perfectly functioning exhaust system, why would I want to get rid of it and spend $800 on an RB system? I just need some tips to replace the original ones, which are 20 year old. It shouldn't be more than $15-20, they are just short, fat chrome-coated tubes. If anybody has found something that works, please let me know.

Thanks
Ray



yea big tips on a 1st gen 7 will get you pulled. Stay stock looking man. I'm looking to go RB now.



I didnt say blow the money on the whole unit, just the muffler. Its a bolt in part for the original and a great upgrade for a little more pep. My 83 GSL had 80xxx miles on it when I first got it running, and I thought it was nice sounding. I pulled the muffler in favor of a RB unit, and the difference in sound and performance was definatly noticeable. I eventually bought a header and presilencer for it too, and then it was really quick . Youre right, the tips are an easy way to go if you truly dont want to replace the whole unit, and I have seen them in stores. Just keep looking for em

~T.J.



I recently added tips over the my 15 year old RB Primaflow muffler (didn't care for the angled end) very similar looking to stock now... $20 for both tack welded on



have you looked at magnaflow?



http://www.magnaflow.com/02product/s...ne=main&id=671



Thanks TJ, now you've got me thinking that an RB muffler might be a good idea. Still, if I could get a pair of inexpensive aftermarket tips that look something like the original, I could put them on in the mean time (I just have a hard time removing something that is still working, when I have so much else to do and especially when it's 20 year old stock, kind of a respect thing, you know?).

Racer X7, where did you get those $20 tips, sounds like what I'm looking for? Autozone has something that might work, but they are angled, maybe if I just take a hack saw to them.

candyass, those magnaflow tips look great and would do the trick, only problem is $66.00 each plus shipping, that's about $150 towards an RB muffler!

Thanks for the suggestions, if anyone finds the perfect stock tips please let me know!

Ray



I dont know if you have a "Pep Boys" near you but i am running the stock exhaust still (although the cats are empty) and i was missing the tips. I went into a Pep Boys and they had some really nice stainless steel tips that were not quite round and not quite square. I was at rotorfest with them and i got alot of compliments. The fact that they are not round accents the body real well. I will try to get pics

Jay

1984 GSL Misty Blue Metallic



Ray, Ill stop by the Shucks (I have to get a master cylinder for my Toyota anyway) here in town again and see if they still have em. If so, Ill see if I can snap a pic with my camera phone and post it. If you like em, I can pick em up for you if you can get some money to me. Give me some dimensions youre looking for too, how big of pipe is the stock outlet off the muffler, and how big of a total outside diameter you are looking for?

~T.J.

EDIT: Here, these are 9" long, but you could maybe cut off the straight end a little? Poke around Ebay, there are tons of em.

http://cgi.ebay.com/ebaymotors/2-Sta...94488963QQrdZ1

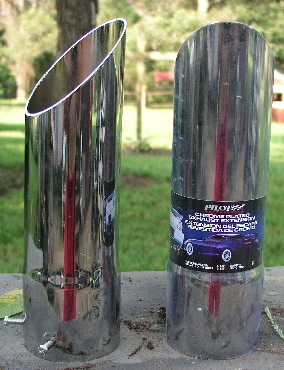

Thanks RotorMotor, I found some at the local autozone like the one's in your link except they are chrome, only cost me $12 for the pair. They are well made but might be a bit long. I'm going to put them on for awhile, if I don't like the angle I'll get out the hack saw.



Hope yours do not rust. Autozone exhaust tips have been known to rust.



At $12 a pair, I expect they will, but if they last a year or two they will have done their job. I'm am concerned that if I cut off the angle part to make them look more original this will promote corrosion around the outer edge that has no chrome plate and shorten their life even more. But it seems to be the best alternative out there, I'll make the cuts this weekend and post the results.



At least you guys have the original muffler style. Someone in my cars past installed a "stock" muffler with only one outlet pipe, and then they stuck on a really long chrome tip that rusted out. I pulled that off and got one at Pep Boys that "Y"s out into two tips, So at least it looks original, until I do the new exhaust.

Later,
Bill



Hey just wanted to let you know that mazdatrix also sells them :

http://www.mazdatrix.com/getprice.as...m=40-5510-8871

but they're 17.43 each ...



Thanks dj, yes I did see these but from the cost and the rather crummy photo on the preceding page in their on-line catalogue, it looks like they are reselling the stock Mazda replacements (a lot of their body parts are, which is good). But the stock ones require a special inside bracket to mount them - I learned this after special ordering the parts from Mazda ($40 for the two), only to have to return them when I realized I would have to spend another $30 for the brackets. That's when my aftermarket search got serious. I think the autozone ones are going to work and they will look just like the originals once I get them sawed off - they are actually heavier and better made than the stock parts I got and returned and returned to Mazda, but they only cost $6.00 each. I'll post the photos of the final product in a few days.
Ray



Muffler?!



From the SA22C.org mailing list:

"Date: Sun, 21 Aug 2005 09:29:04 -0400
From: "Jim Rothe" <sa22c@jimrothe.com>
Subject: (sa22c) Re: MindTrain Exhaust Tip Replacements

On 2 Aug 2005 at 11:39, I wrote:

> After eight years of rust-belt driving, including some salted-road
> winters on my old car, the chrome tips of my MindTrain BigThroats
> muffler have rusted through. Needless to say, the rest of the
> MindTrain exhaust is just fine, and will likely last another eight
> years. So I need to replace those tips.
>
> My recollection is that they're 3" tips, and I'm thinking that a pair
> of these would do it:
>
> http://tinyurl.com/bfgz6
>
> I'd weld 'em on in place of the original chrome tips. Unfortunately, I
> forgot to take any confirming measurements of the original tips this
> morning like I wanted to, and I want to go ahead and order the new
> tips in time for repairs this weekend.
>
> Is there anybody with a MindTrain system who can confirm that the
> BigThroats mufflers use 3" tips? Mike, are you online?

Just as a follow up to this post, because there are a few MindTrain
mufflers out there, the JC Whitney parts were a perfect fit. I was
able to cut off the old, badly rusted chrome tips with sheet metal
shears, leaving about an inch of material to slide the new tips onto.
After removing most of the external rust from the small length of old
tips, I slipped the new tips over them and hammered them on snug with
a rubber mallet. Another two minutes with a welder, and I was all
done. (I can't believe how much easier it is to weld exhaust systems
than it is to weld sheet metal!)

The whole job took under an hour -- mostly finding my tools! -- and
was done with the muffler still mounted on the car. I used a lift,
but could have easily done this on my back in a driveway.

Now I have two nice, shiny, 3-inch stainless steel tips sticking out
from under the rear bumper.

Jim Rothe
'85 RX-7 GSL-SE
http://www.jimrothe.com/mazda/



====

Please submit messages to list@sa22c.org
Please direct subscribe/unsubscribe requests to list-request@sa22c.org
Online archive of mail is at http://www.sa22c.org/

------------------------------

Date: Sun, 21 Aug 2005 08:12:35 -0700 (PDT)
From: Richard J Lebens <rick-l@rocketmail.com>
Subject: Re: (sa22c) Re: MindTrain Exhaust Tip Replacements

Did this job weld stainless steel to steel? Did you use a MIG with 25%
CO2? Did it look ok when you were done? I want to do something
similar to my ugly exhaust that is suppsed to have the original (long
gone) chrome tips screwed on.

- --- Jim Rothe <sa22c@jimrothe.com> wrote:

> On 2 Aug 2005 at 11:39, I wrote:
>
> > After eight years of rust-belt driving, including some salted-road
> > winters on my old car, the chrome tips of my MindTrain BigThroats
> > muffler have rusted through. Needless to say, the rest of the
> > MindTrain exhaust is just fine, and will likely last another eight
> > years. So I need to replace those tips.
> >
> > My recollection is that they're 3" tips, and I'm thinking that a
> pair
> > of these would do it:
> >
> > http://tinyurl.com/bfgz6
> >
> > I'd weld 'em on in place of the original chrome tips.
> Unfortunately, I
> > forgot to take any confirming measurements of the original tips
> this
> > morning like I wanted to, and I want to go ahead and order the new
> > tips in time for repairs this weekend.
> >
> > Is there anybody with a MindTrain system who can confirm that the
> > BigThroats mufflers use 3" tips? Mike, are you online?
>
> Just as a follow up to this post, because there are a few MindTrain
> mufflers out there, the JC Whitney parts were a perfect fit. I was
> able to cut off the old, badly rusted chrome tips with sheet metal
> shears, leaving about an inch of material to slide the new tips onto.
>
> After removing most of the external rust from the small length of old
>
> tips, I slipped the new tips over them and hammered them on snug with
>
> a rubber mallet. Another two minutes with a welder, and I was all
> done. (I can't believe how much easier it is to weld exhaust systems
> than it is to weld sheet metal!)
>
> The whole job took under an hour -- mostly finding my tools! -- and
> was done with the muffler still mounted on the car. I used a lift,
> but could have easily done this on my back in a driveway.
>
> Now I have two nice, shiny, 3-inch stainless steel tips sticking out
> from under the rear bumper.
>
> Jim Rothe
> '85 RX-7 GSL-SE
> http://www.jimrothe.com/mazda/
>
>
>
> ====
>
> Please submit messages to list@sa22c.org
> Please direct subscribe/unsubscribe requests to
> list-request@sa22c.org
> Online archive of mail is at http://www.sa22c.org/
>
>




__________________________________
Yahoo! Mail for Mobile
Take Yahoo! Mail with you! Check email on your mobile phone.
http://mobile.yahoo.com/learn/mail
====

Please submit messages to list@sa22c.org
Please direct subscribe/unsubscribe requests to list-request@sa22c.org
Online archive of mail is at http://www.sa22c.org/

------------------------------

Date: Sun, 21 Aug 2005 14:44:30 -0400
From: "Jim Rothe" <sa22c@jimrothe.com>
Subject: Re: (sa22c) Re: MindTrain Exhaust Tip Replacements

On 21 Aug 2005 at 8:12, Richard J Lebens wrote:

> Did this job weld stainless steel to steel?

Yes.

> Did you use a MIG with 25% CO2?

MIG, yes. If the most common argon mix for MIG welding is 25% CO2,
then yes.

> Did it look ok when you were done?

The first bead that I laid down was a little choppy. Then I turned
the heat up all the way. The second bead was near-professional
looking.

> I want to do something
> similar to my ugly exhaust that is suppsed to have the original (long
> gone) chrome tips screwed on.

Those JC Whitney tips seem to be just the ticket. The muffler side of
the tips have been opened up slightly, so as to create a snug fit on
a 3" pipe -- in other words, they're a 3" outer diameter on the end,
and a 3" inner diameter on the muffler side.. I expect that their
other sizes are similar.

Jim Rothe
'85 RX-7 GSL-SE
http://www.jimrothe.com/mazda/"

I have no idea if the stock tips are 3". The tips referenced from JCWhitney are $26 each.
