Steering Angle...Fab guys enter.
10-09-08, 08:15 AM
#1
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2005
Location: south dakota
Posts: 547
Likes: 0
Received 0 Likes
on
0 Posts
Steering Angle...Fab guys enter.
OK guys, as some of you know im turning my FB into a drifter (among other things) and im trying to think of ways to get my FB to get my steering angle. Now i dont want...oohh its impossible. i know its not. Hence why i said Fab guys enter, as this isnt something just anyone knows how to do. Unfortuantly at this time my FB is nearly 30mi away from me, and i dont have the time to stare at the suspension, and decide the best course of action. So FB guys. any ideas?
10-09-08, 10:07 AM
#2
Beater King
Join Date: Aug 2005
Location: Victoria BC
Posts: 313
Likes: 0
Received 0 Likes
on
0 Posts
You can grind off the stopper tabs, but you may rub your wheel into suspension bits.
The problem is that it uses a steering box. So you can't just take the rack apart and make the interal stops wider like the rack and pinion guys do.
A longer steering arm would resulting in more steering angle with objects removed such as the stoppers, and you'd need to move/bend the steering arm/knuckles out of the way of the lower control arm.
From FB drifter to another.
The problem is that it uses a steering box. So you can't just take the rack apart and make the interal stops wider like the rack and pinion guys do.
A longer steering arm would resulting in more steering angle with objects removed such as the stoppers, and you'd need to move/bend the steering arm/knuckles out of the way of the lower control arm.
From FB drifter to another.
10-09-08, 11:44 PM
#7
Senior Member
Join Date: Dec 2006
Location: Sylva, NC
Posts: 272
Likes: 0
Received 0 Likes
on
0 Posts
If you have the money, why not get the rack and pinion conversion from respeed?
That way, you could use rack spacers and you would eliminate the sloppy box.
If you are to the point in drifting where you want more steering angle, then you should also be willing to shell out some more money for good products.
That way, you could use rack spacers and you would eliminate the sloppy box.
If you are to the point in drifting where you want more steering angle, then you should also be willing to shell out some more money for good products.
Trending Topics
10-10-08, 05:10 PM
#10
Beater King
Join Date: Aug 2005
Location: Victoria BC
Posts: 313
Likes: 0
Received 0 Likes
on
0 Posts
During slides you want more steering angle no matter the reason. A few of the ae86 guys have like 70 degrees, it's nuts. It all helps to keep your drift going at a larger angle. The more angle the faster you can enter the corner.
The only draw backs are, increased number of turns in the wheel and greater understeer on corner entry if your too aggressive with the turn in.
The only draw backs are, increased number of turns in the wheel and greater understeer on corner entry if your too aggressive with the turn in.
10-10-08, 07:10 PM
#11
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2005
Location: south dakota
Posts: 547
Likes: 0
Received 0 Likes
on
0 Posts
Pretty much bingo. or if there is other things that will allow me to get an extra amount that always helps also.
During slides you want more steering angle no matter the reason. A few of the ae86 guys have like 70 degrees, it's nuts. It all helps to keep your drift going at a larger angle. The more angle the faster you can enter the corner.
The only draw backs are, increased number of turns in the wheel and greater understeer on corner entry if your too aggressive with the turn in.
The only draw backs are, increased number of turns in the wheel and greater understeer on corner entry if your too aggressive with the turn in.
I however will not have issues with wheel turns. im running a steering quickener
If you have the money, why not get the rack and pinion conversion from respeed?
That way, you could use rack spacers and you would eliminate the sloppy box.
If you are to the point in drifting where you want more steering angle, then you should also be willing to shell out some more money for good products.
That way, you could use rack spacers and you would eliminate the sloppy box.
If you are to the point in drifting where you want more steering angle, then you should also be willing to shell out some more money for good products.
I cant buy the Respeed kit....as much as i would LOOVEE to...however my oil pans in the way
10-10-08, 07:13 PM
#12
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2005
Location: south dakota
Posts: 547
Likes: 0
Received 0 Likes
on
0 Posts
Though I'd rather swap in a 4ag, as I'm a Toyota boy.
10-10-08, 10:18 PM
#15
Old [Sch|F]ool
The stock steering arms are simple. I keep thinking about making my own from steel stock, and using a high strength 3/4" Heim as a ball joint.
FC knuckles, by themselves, will add steering angle, since the arms on them are a little shorter. Oddly enough, it looks like you can use a 3/4" aircraft bolt in the balljoint stud hole and then use a 3/4" Heim... if you didn't want to modify the FB control arms to take FC ball joints.
Shameless hotlinking:

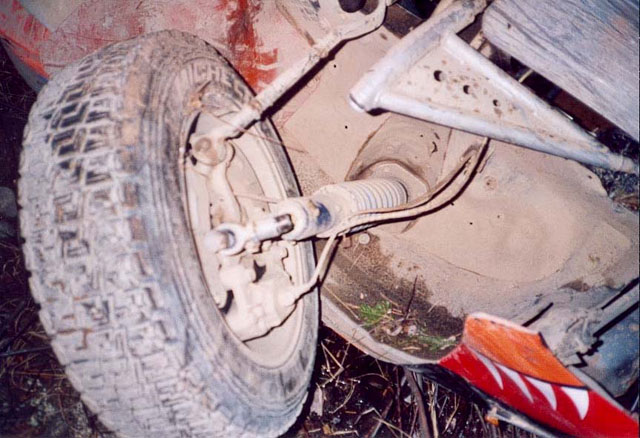

That's an SA, with FC knuckles, and custom control arms using Heims. Rolling a few times will break pretty much anything, don't let the carnage worry you...
FC knuckles, by themselves, will add steering angle, since the arms on them are a little shorter. Oddly enough, it looks like you can use a 3/4" aircraft bolt in the balljoint stud hole and then use a 3/4" Heim... if you didn't want to modify the FB control arms to take FC ball joints.
Shameless hotlinking:
That's an SA, with FC knuckles, and custom control arms using Heims. Rolling a few times will break pretty much anything, don't let the carnage worry you...
Last edited by peejay; 10-10-08 at 10:20 PM.
10-11-08, 09:11 AM
#17
My 7 is my girlfriend.
iTrader: (5)
Join Date: Feb 2006
Location: London, Ontario, Canada
Posts: 3,162
Likes: 0
Received 1 Like
on
1 Post
The stock steering arms are simple. I keep thinking about making my own from steel stock, and using a high strength 3/4" Heim as a ball joint.
FC knuckles, by themselves, will add steering angle, since the arms on them are a little shorter. Oddly enough, it looks like you can use a 3/4" aircraft bolt in the balljoint stud hole and then use a 3/4" Heim... if you didn't want to modify the FB control arms to take FC ball joints.
Shameless hotlinking:
That's an SA, with FC knuckles, and custom control arms using Heims. Rolling a few times will break pretty much anything, don't let the carnage worry you...
FC knuckles, by themselves, will add steering angle, since the arms on them are a little shorter. Oddly enough, it looks like you can use a 3/4" aircraft bolt in the balljoint stud hole and then use a 3/4" Heim... if you didn't want to modify the FB control arms to take FC ball joints.
Shameless hotlinking:
That's an SA, with FC knuckles, and custom control arms using Heims. Rolling a few times will break pretty much anything, don't let the carnage worry you...
......... I was wondering why the ground was where the sky should be.
10-11-08, 06:26 PM
#18
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2005
Location: south dakota
Posts: 547
Likes: 0
Received 0 Likes
on
0 Posts
this one...havent installed it yet as i have other stuff im working on ATM. however should be pretty snappy. only issue i can run into really is splines being wrong. its about 180 shipped.
thanks for the info Peejay. i'll have to look into that.
Last edited by driftking777; 10-11-08 at 06:28 PM.
10-12-08, 10:03 AM
#20
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2005
Location: south dakota
Posts: 547
Likes: 0
Received 0 Likes
on
0 Posts
^^^me too ever since is sold my s13, i haven't slide. makes me cry..
we.. i guess i do assdrag my accord..lol
....oh and Disco...no there is no KA or SR swap kit. as far as i know my car is a one off
we.. i guess i do assdrag my accord..lol
....oh and Disco...no there is no KA or SR swap kit. as far as i know my car is a one off
10-12-08, 02:53 PM
#22
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2005
Location: south dakota
Posts: 547
Likes: 0
Received 0 Likes
on
0 Posts
This isnt necessarily the best way to get your car back on the road...lol. however if your seriously interested PM me, i dont want to clutter up the thread on specifics. I will tell you this wasnt super cheap. however there is probably cheaper methods i've learned.
