SA22C ratsnest
ok heres my problem, im in the progress of removing my rats nest.

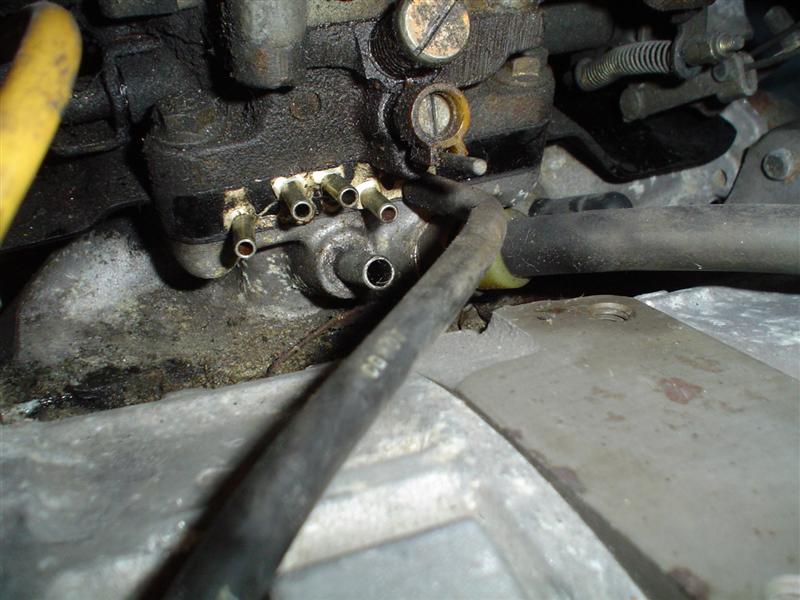

I have an 1980 so the carb is slightly diffrent than FB`s, as you see in the first pic.
There are 4 small holes and a large one below that is giving me a headache,
As i read in the tutorial the vacuum lines from the dizzy goes to hole number 2, but the carb in the tutorial is diffrent when it comes to holes so im confused.
The shutter valve and purge valve are two things i dont have, arent those supposed to be on 80`s ?

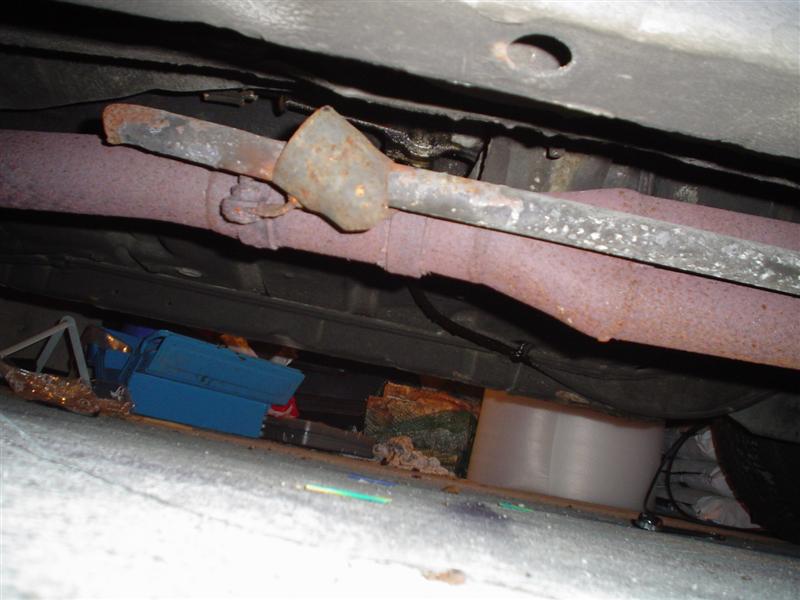

On picture number 2 you see another hole i dont know where goes

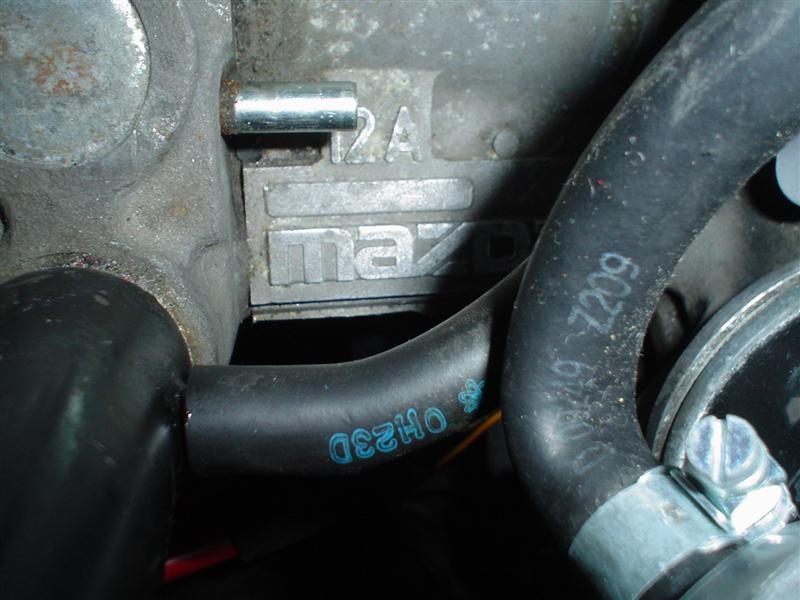

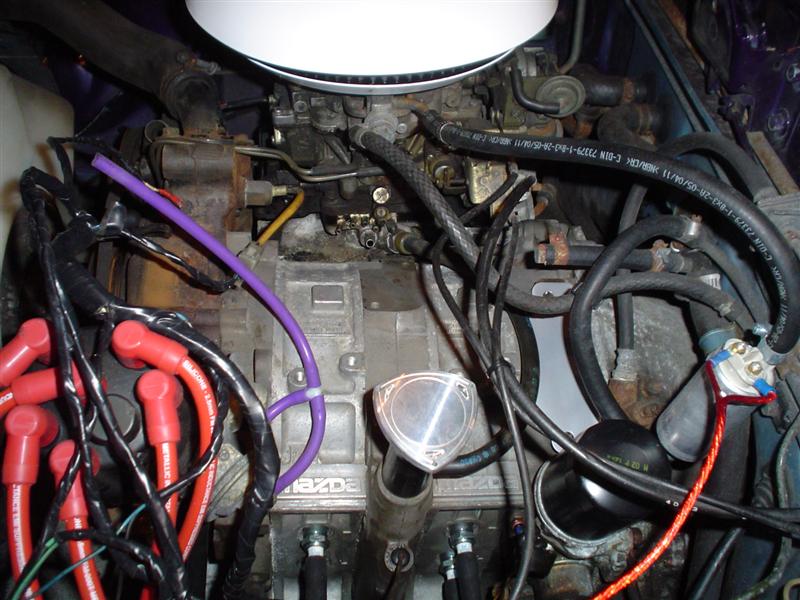

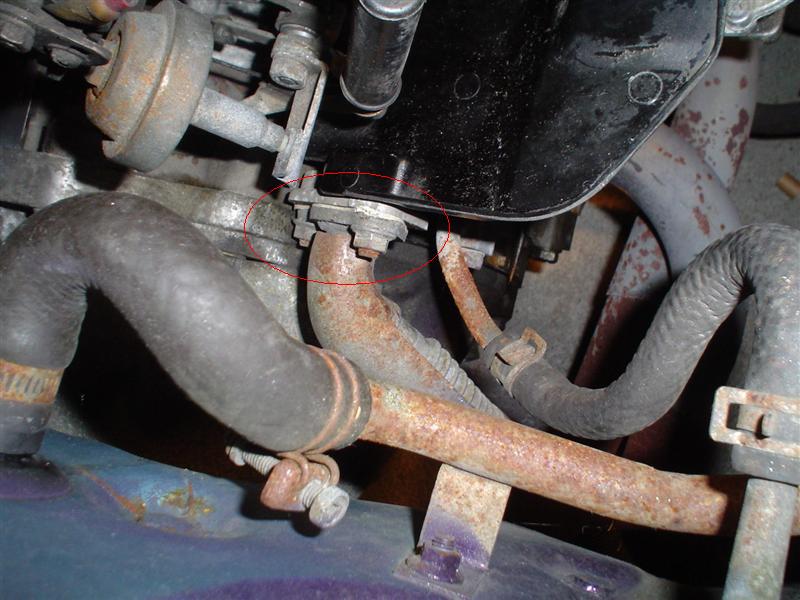

And on picture number 3 and 4 there is a metall pipe that`s running from the carb and under the car along with the exhaust.
It`s not connected to a thing it`s just ends halfway under the car.
A big thanks to those off you helping me
I have an 1980 so the carb is slightly diffrent than FB`s, as you see in the first pic.
There are 4 small holes and a large one below that is giving me a headache,
As i read in the tutorial the vacuum lines from the dizzy goes to hole number 2, but the carb in the tutorial is diffrent when it comes to holes so im confused.
The shutter valve and purge valve are two things i dont have, arent those supposed to be on 80`s ?
On picture number 2 you see another hole i dont know where goes
And on picture number 3 and 4 there is a metall pipe that`s running from the carb and under the car along with the exhaust.
It`s not connected to a thing it`s just ends halfway under the car.
A big thanks to those off you helping me
