Rx-7Doctor

iTrader: (13)

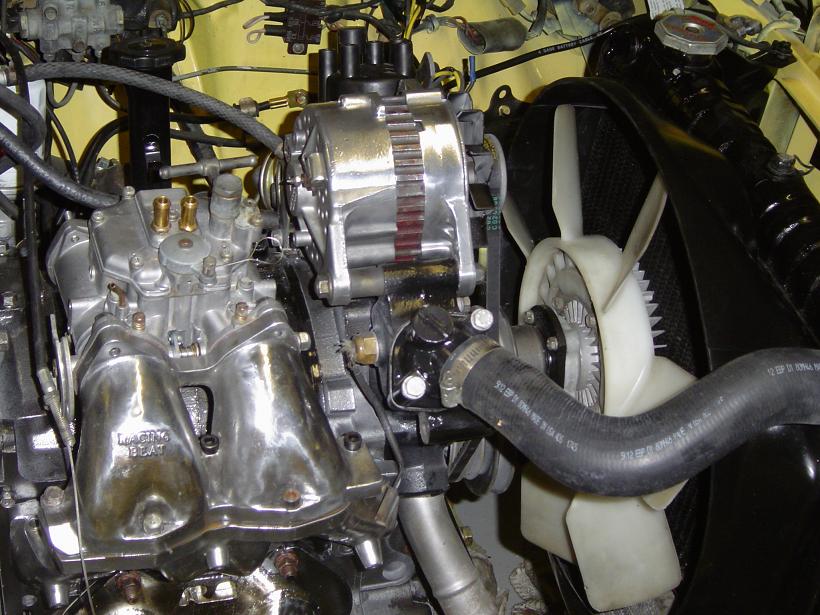

Fellow members Sa projcet almost done. Here are some more pics of the engine bay. Almost ready to turn the key.

craigw1

nice job. very clean. lots of 'RB' in that engine bay

what made you decide to go for side draught over down draught ?

64mgb

iTrader: (1)

Very nice A.J.! Keep the updates coming.

Rich

dj55b

iTrader: (2)

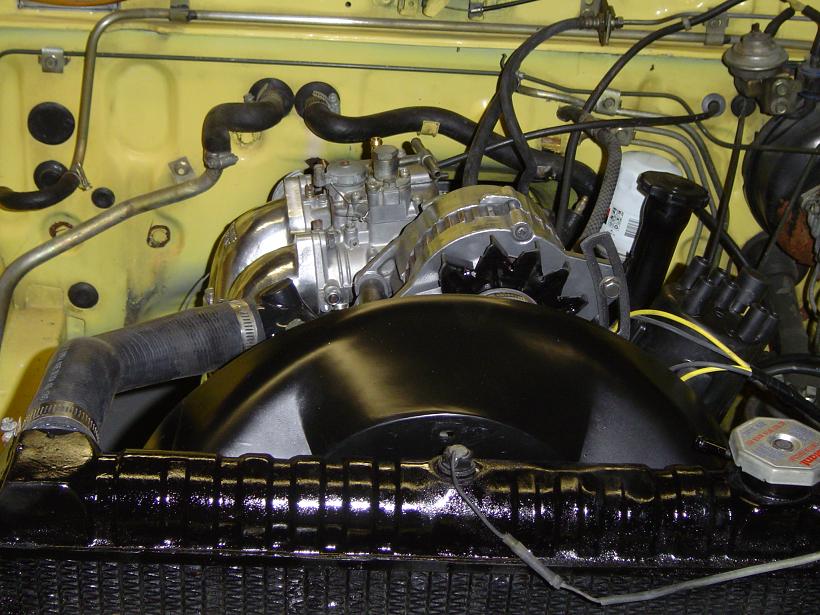

Is that a gloss black that you used on the Radiator?

I've been told before that adding a color like that will reduce cooling. This is what i've been told by my radiator cleaning shop. I did an oil cooler and I had to paint it flat black due to that reason.

Yellow '79

awsome!

dbragg

iTrader: (7)

i like!! we need more pics and specs

boyee

iTrader: (3)

lookin very cleannnnnnn... specs please! =]

Latin270

Yea me likey too! Nice work!

Naegleria_Fowleri

Great looking work. Now hurry up and finish it so you can enjoy that thing. Also give out some specs on it.

Mazdax605

iTrader: (5)

Hooray Spark Yellow!!!!!

Rx-7Doctor

iTrader: (13)

Well, thanks for the compliments guys. The car belongs to fellow member Kory_yahi. I am putting it together for the sevenstock meet. It's a 79 with a 83 12a. Stock with the mikuni 44phh and racing beat manifold and header system. It has performance springs,shocks and sway bars.
Holley red fuel pump and FPR.

After i get her running then i will probably update the coil system for him, it already has been updated with the electronic dist. I am in the middle of custom fitting a cold air box to go over the mikuni. It will take some fabricating and alot of think time but i will manage.

The trans is the stock 5 speed with a lightened steel flywheel and of course the 225mm clutch setup. Tires will be mounted after i finish polishing the weels. Tires are 195-60-13 sumitomo HTR200. Later on the brakes and rearend will probably be updated to the GSL with drilled and slotted rotors.

More pics to follow as it nears completion.

Naegleria_Fowleri

I can't wait for the more pics.

Rx-7Doctor

iTrader: (13)

Performance and decent fuel economy. Always have had good luck with sidedraft. It's a stock motor, if it was ported, would of recommended downdraft to Kory for performance.
