S4 swap wiring question
Im in the middle of doing an 88 S4 NA swap and im having problems with my fuel pump relay (ciurcut opening relay) i think i got it figuered out but i still have one question about the wiring harness.

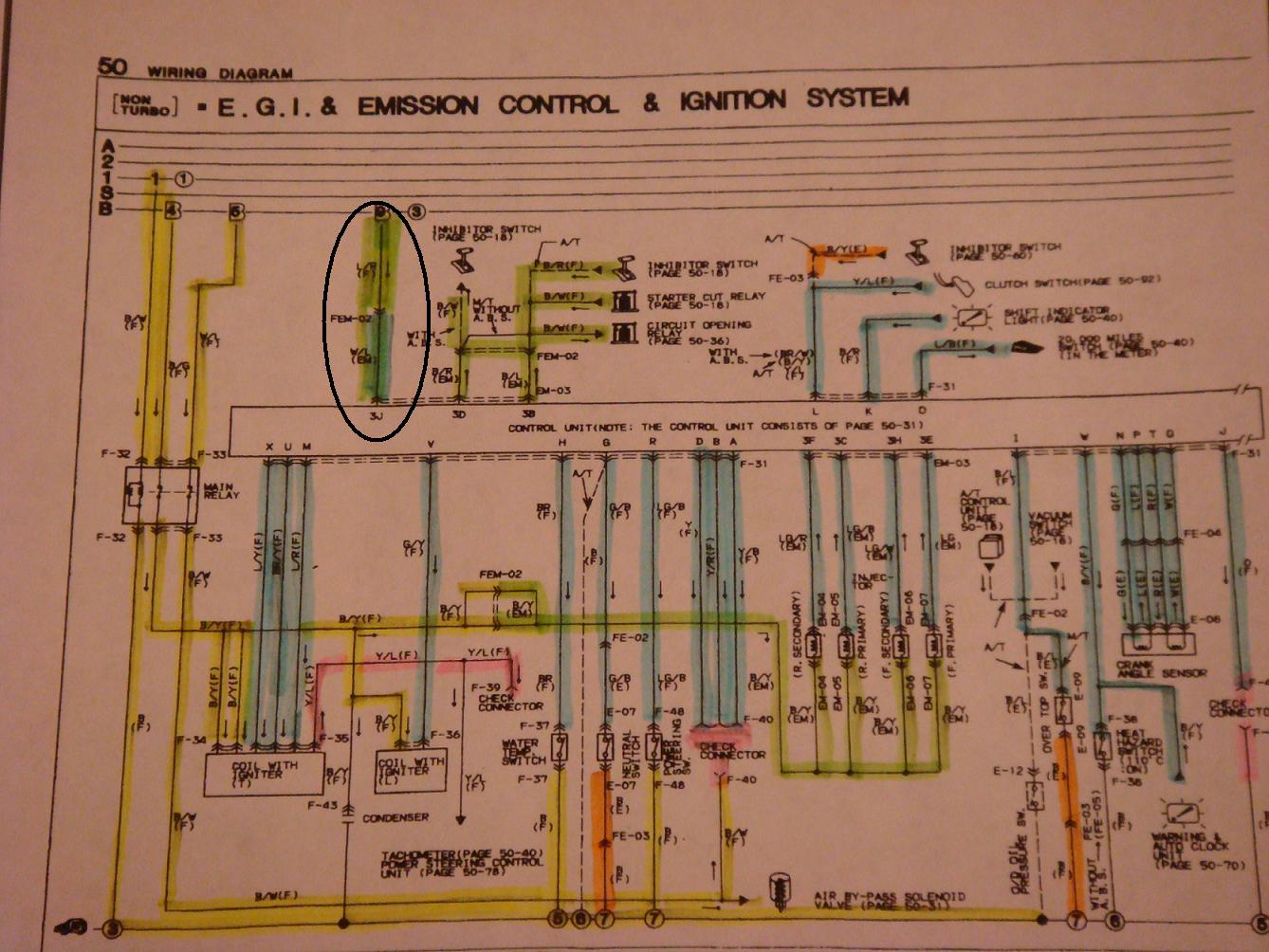

in the pic below with a manual trans is wires 3D and 3B suppose to combined together?
in the pic below with a manual trans is wires 3D and 3B suppose to combined together?
05-01-08, 11:31 PM
#2
Nekurd
Join Date: Feb 2006
Location: California
Posts: 1,129
Likes: 0
Received 0 Likes
on
0 Posts
I don't know if this is right but this is kind of what I interpret from looking at the crappy s4 wiring diagram. (the S5 diagram just looks cleaner... but irrelavant)
3J connects to the thing next to the circled 3 (on the B line). When the signal is sent to the ECU, through 3J, the signal is distributed to the components that are led from 3B and 3D.
3J connects to the thing next to the circled 3 (on the B line). When the signal is sent to the ECU, through 3J, the signal is distributed to the components that are led from 3B and 3D.
