Arrow s4 FC transmission in a FB, shift linkage and gear selector forks HELP!!!

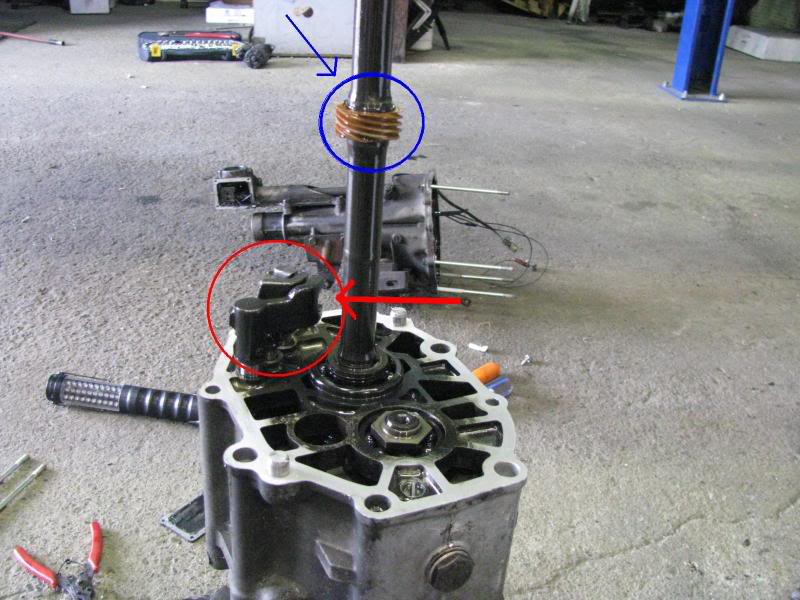

Hi, so I'm in the middle of putting a fb gsl se tailshaft housing onto a s4 fc transmission. I'm a little stuck with putting the tail shaft housing back on. I'm a little confused on how the shifter linkage is supposed to sit in the gear selector forks. Right now I have it only sitting in one of the gear selector forks, that was the only way the tail shaft housing would go on. Did I do this right or is the shifter linkage suppose to go in all 3 of the gear selector forks? I tried to put it in all 3 but it would not work. Red arrow with a ring around it are the 3 gear selector forks, pic is not mine and from another thread but should give you guys an idea. If someone could help me out that would be much appreciated. Thank you.
Attached Thumbnails s4 FC transmission in a FB, shift linkage and gear selector forks HELP!!!-trans.jpg
