Request 1st gen Wheel Pic Comparisons - 15mm vs 20mm vs. 40mm offset, etc.
09-23-08, 10:23 PM
#104
aint a rotor aint a motor

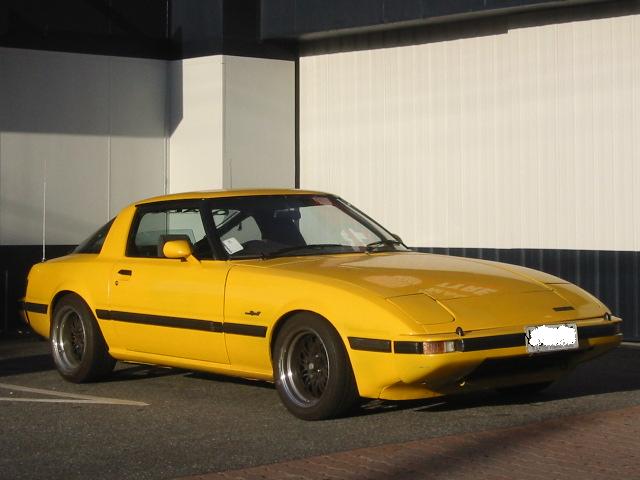

Im assuming it would be the same but in Australia the 1st gen cars with 4/110 stud pattern have the low offset +20
and cars with the 4/114.3 stud have the high +35
we call 1st gens S1, S2, S3, rather than sa fb etc
S1 plastic cap steel bumpers, drum rears and 4x110 stud
S2 wrap-around plastic bumpers, rear discs, power windows 4x110 stud
S3 bigger brakes F&R & brake vent slits in front air dam under bumper, thicker/longer axles, 4x114.3 stud
my car is 4x110eg low offset
I have 15x7 (+10) fronts 195/50/15
and 15x8 (+5ish) rears 205/50/15....ill confirm when i get access to my wheels
perfect fitment, low as, no scrape, couldnt get closer to gaurds without scrape
get the highest offset wheel u can at the required width
slowly add washers to stack the wheel out to where u want it
measure the amount of washers and take this from offset
eg 15x7(+40) +20mm of washers stacked on hub
makes it a 15x7 (+20)
hey Red95T-rex:
check the stamping on the back of your wheel
something very fishy here.....
if u put low offset wheels on a car that needs high offset they will stick out the gaurds......
If u put high offset wheels on a low offset car they sit way under the car and foul on the suspension
since you dont have wheels sticking out the side of your car,
that means the supplied wheels are too high offset......
but +20 isnt high its low, so somethings wrong
maybe they supplied wrong offset by mistake???
wrong wheels in boxes????who knows???
+40 wheels definately fit with approx 1in spacer(20-25mm)
mate bought a set of 17x7(+40) wheels off ebay from a 4/114.3 Rx7
when they arrived they didnt fit...he wasnt aware of the stud pattern offset issue we added 25mm hub adapters which runs the wheels at +15 and they corrected the stud pattern to 4x110 problem solved!!!!
now im tired of typin hahahaha
and cars with the 4/114.3 stud have the high +35
we call 1st gens S1, S2, S3, rather than sa fb etc
S1 plastic cap steel bumpers, drum rears and 4x110 stud
S2 wrap-around plastic bumpers, rear discs, power windows 4x110 stud
S3 bigger brakes F&R & brake vent slits in front air dam under bumper, thicker/longer axles, 4x114.3 stud
my car is 4x110eg low offset
I have 15x7 (+10) fronts 195/50/15
and 15x8 (+5ish) rears 205/50/15....ill confirm when i get access to my wheels
perfect fitment, low as, no scrape, couldnt get closer to gaurds without scrape
get the highest offset wheel u can at the required width
slowly add washers to stack the wheel out to where u want it
measure the amount of washers and take this from offset
eg 15x7(+40) +20mm of washers stacked on hub
makes it a 15x7 (+20)
hey Red95T-rex:
check the stamping on the back of your wheel
something very fishy here.....
if u put low offset wheels on a car that needs high offset they will stick out the gaurds......
If u put high offset wheels on a low offset car they sit way under the car and foul on the suspension
since you dont have wheels sticking out the side of your car,
that means the supplied wheels are too high offset......
but +20 isnt high its low, so somethings wrong
maybe they supplied wrong offset by mistake???
wrong wheels in boxes????who knows???
+40 wheels definately fit with approx 1in spacer(20-25mm)
mate bought a set of 17x7(+40) wheels off ebay from a 4/114.3 Rx7
when they arrived they didnt fit...he wasnt aware of the stud pattern offset issue we added 25mm hub adapters which runs the wheels at +15 and they corrected the stud pattern to 4x110 problem solved!!!!
now im tired of typin hahahaha
09-23-08, 11:09 PM
#105
Bill Hates
Join Date: Oct 2005
Location: Earth
Posts: 1,469
Likes: 0
Received 0 Likes
on
0 Posts

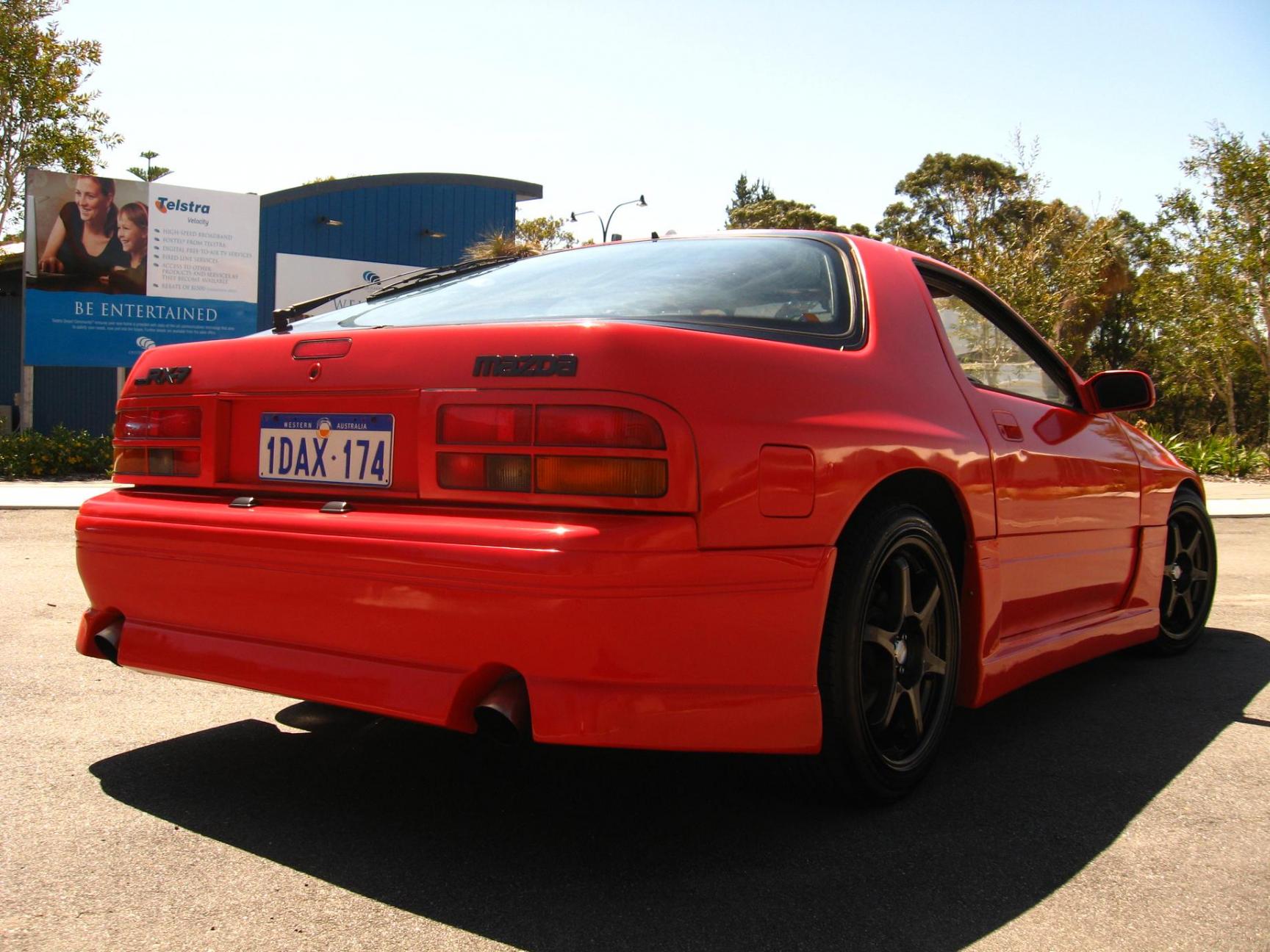

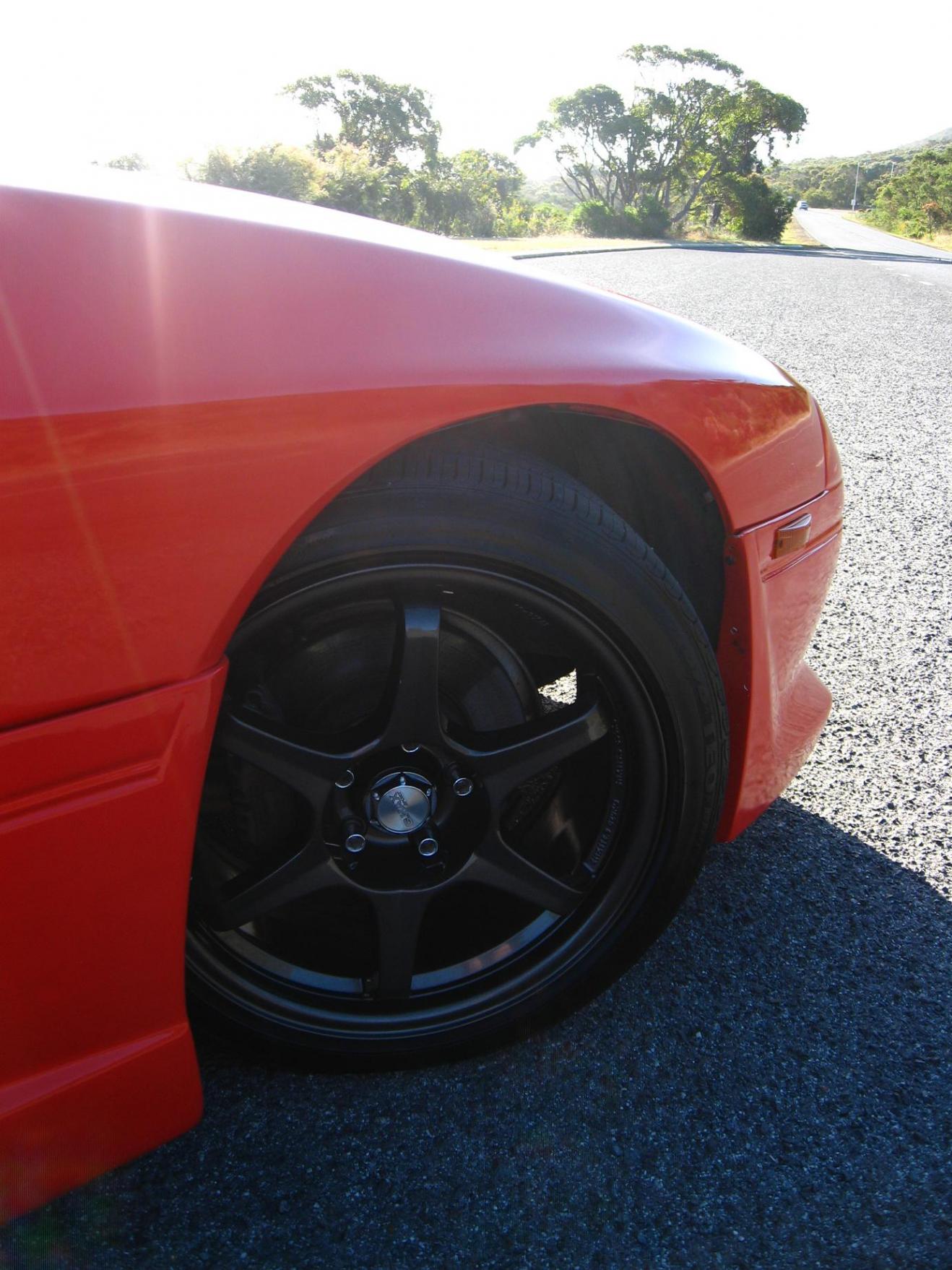

Very well explained yellow. I have 17"x7"s +40 offset with adaptors. I found I had to go back to 20mm adaptors at the front (partly because of brake conversion) and even with rolled guards and Noltec strut tops at max camber I still get the occasional scrub (very light)
10-06-08, 05:47 PM
#107
Full Member
Join Date: Nov 2007
Location: South Florida
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
10-06-08, 09:53 PM
#108
CPS Motorsport
iTrader: (1)
Join Date: Oct 2005
Location: Fremont, CA
Posts: 1,358
Likes: 0
Received 0 Likes
on
0 Posts
15x7 +0 offset 4x114.3 with Falken Azenis RT215 205/50/15
Stock fenders, going to roll/pull it a little bit. The ground is a bit uneven, so it looks high on the left side.
Stock fenders, going to roll/pull it a little bit. The ground is a bit uneven, so it looks high on the left side.
Last edited by justint5387; 10-06-08 at 10:22 PM.
12-11-08, 08:50 PM
#114
dorifuto soko!
Join Date: Apr 2008
Location: winston salem NC
Posts: 123
Likes: 0
Received 0 Likes
on
0 Posts
Ahhhhhhhh! what are those blue mesh wheels!!!? haha they are so badass!!
12-12-08, 09:14 AM
#117
Rotary Freak
iTrader: (19)
Join Date: Oct 2007
Location: Colorado Springs, CO
Posts: 2,014
Likes: 0
Received 0 Likes
on
0 Posts
I'm looking for a wheel like the Rota or Konig gunmetal in 4x110 15x8 0 offset. I plan on using a fender flare. Does this exist or do I need spacers?
12-14-08, 10:09 PM
#118
BRAP!
Join Date: Jan 2005
Location: Maryland
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
http://www.re4life.com/Galleries/Mem...eeting1/09.JPG
where can i get one of those bumper lips!!!
Oh yea, im a bit clueless when it comes to wheels and offsets. If the wheel is say -16 offset, would that be sticking out too much and leaving the car undriveable? anywhere i can read more on offsets and pros/cons of having wide wheels
where can i get one of those bumper lips!!!
Oh yea, im a bit clueless when it comes to wheels and offsets. If the wheel is say -16 offset, would that be sticking out too much and leaving the car undriveable? anywhere i can read more on offsets and pros/cons of having wide wheels
Last edited by x0ny; 12-14-08 at 10:12 PM.
10-18-09, 07:01 PM
#119
13b booosting!
Join Date: Oct 2009
Location: Los Angeles
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
FS riverside stars 15x6.5 / 15x7 staggered 4x114.3 to be exact
Last edited by YouGotSmoked; 10-18-09 at 07:04 PM.
11-22-09, 03:43 PM
#120
Full Member
Join Date: Apr 2009
Location: Cincinnati
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
So im looking for this kind of poke, or more, on my '85 GS, and i want to run 15x9 or 10 in the rear, and 15x8 in front.
any idea what kind of offset and backspacing i would need?
Im getting custom wheels thats why i ask.
Last edited by JuicyK; 11-22-09 at 03:53 PM.
11-26-09, 06:22 PM
#122
Full Member
Join Date: Jul 2002
Location: san diego
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
16x7 panasorts
i will look up the offset next time i pull the wheels. I want them to stick out a little more. I will be converting to gsl-se suspension soon and will get custom adapters to keep the wheels and make them stick out a little more to get the look I want hopefully
12-01-09, 07:00 AM
#123
Junior Member
Join Date: Jul 2009
Location: Albany
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
G-MAX Wheels
dunno if its of any use to anyone but my wheels are G-MAX Drift 6, 17x8 with +35 offset, they fit perfect with the standard body work, minus GP style kit (standard guards, no wide body)
