replacing fuseable links. what is this?
#1
replacing fuseable links. what is this?

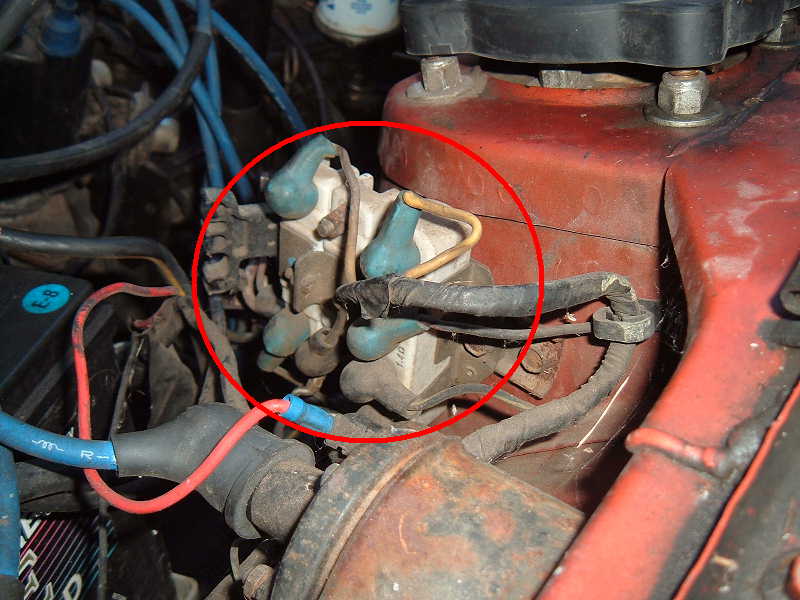

I'm using my wrecked FC parts car to swap parts over to this '79 SA. I'm doing the leading coils, alternator and fuses. I see there are only 3 fuses, and when I looked where everyone mounted there fuse box after changing to standard type fuses, there is this weird old-school electrical thing.
can anyone identify this and tell me how I could do away with it using parts off my FC?
And one more thing, The '80 FSM covers the '79 as well, correct? or do I need to a find a '79 specific?
can anyone identify this and tell me how I could do away with it using parts off my FC?
And one more thing, The '80 FSM covers the '79 as well, correct? or do I need to a find a '79 specific?
Last edited by Enthu; 09-24-06 at 08:02 AM.
#2
79 GS,74 RE/PU
iTrader: (5)
That is a set of ballast resistors to drop the voltage through the points on the 79.If you swap over to an electronic ignition(80-85) then you would take them out of the circuit,and splice the wires on the 2 large ones to each other,and disregard the other 4 wires.Or you can take them completely out of the picture,and wire in your on ignition system through a relay,and eliminate the factory wiring.You need to upgrade to different coils at the same time as well,because the 79 coils were rated at 9 volts I think.Do a search on direct fire ignition,and you will more than likely find more info than you can process on the swap to an ignition system either using 3 FB coils,or a second gen coil pack.Good luck.
Chris
Chris
Last edited by Mazdax605; 09-24-06 at 08:28 AM.
#7
Too old to act my age
Join Date: Feb 2005
Location: Tulsa, Ok.
Posts: 3,164
Likes: 0
Received 0 Likes
on
0 Posts
Swap the dizzy for an 81-85 before trying to bypass those resistors, or using the FC coil.
I really don't think points would be a good trigger for a direct fire setup.
I really don't think points would be a good trigger for a direct fire setup.
Trending Topics
#8
Full Member
iTrader: (3)
Join Date: Mar 2006
Location: Huntersville, NC and occasionally back in Freeport, NY
Posts: 207
Likes: 0
Received 0 Likes
on
0 Posts
the ignition swap link: http://www.mazspeed.com/ignitionswap.htm
