It looks like gold flakes from the gold rush days,lol.
Looks like you may be tearing her apart. Looks like bearing material.



Are the larger pieces, silver, or clumps of gold?



i think theres enough gold to pay for my rebuild

still havin trouble with the eshaft bolt iv locked the flywheel really good heated the bolt for 5 mins or so takin to it with my 1/2" air gun,compressor cranked up to 140psi with the shortest hose i got still aint budgining the engines in mid air so ill put it on the floor and give it another go..



That's not a good sign. The last 2 motors I tore down, I did it on the ground with no air tools. I locked the flywheel, put my 1/2" drive ratchet on the e-shaft bolt then stompped on it with my foot. Both of the motors that I did like this the nut loosened right up. I don't ever heat them up.



heating them up is to melt the thread lock mazda puts on ill try with a ratchet and stomp on it the air gun dont seem harsh enough



ureakka i could kiss u hahaha



If you have a 1/2" breaker bar that will give you more leverage.



If the still have the starter in tact, wedge a breaker to the frame and then crank the motor for a quite snap.



sad to see its going to be a rebuild on the bright side, it could just be an opportunity to cut some huge ports :P


isaac

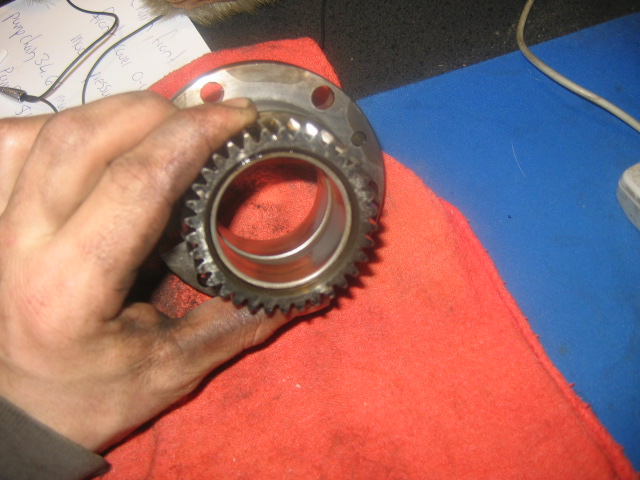

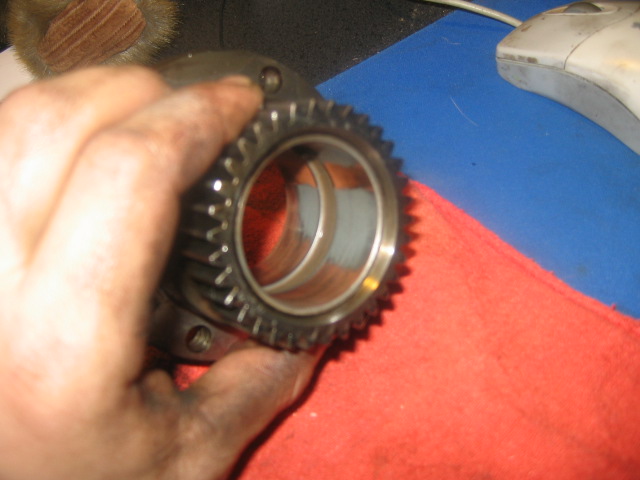

the stat gear is sweet but the bearing is totally gone..
guess its time to get out the spare motor and see how the compression on that is


i will do a rebuild someday but if i can get around it with another motor i will

future plans involve my streetport motor and a dremal

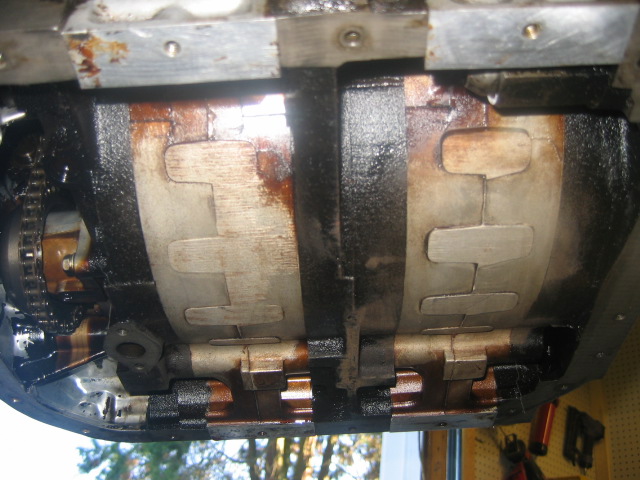

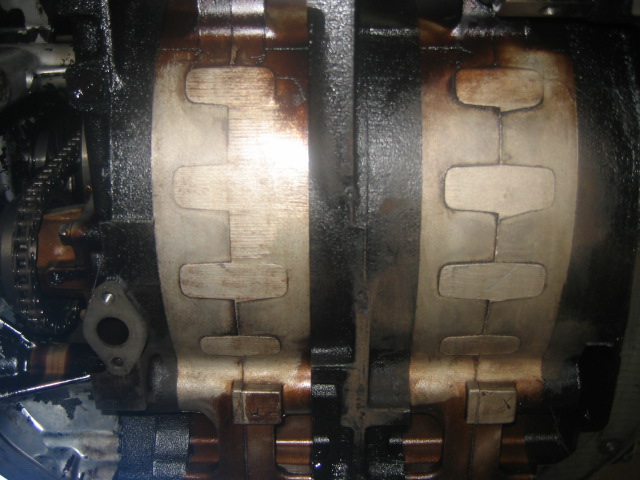

could some tell me if these housings look discoloured from over heating
im not to sure i clean the botoms as much as i could



That's the color they should be Chris. No worrys there. Overheated ones are darker than your's.

While you have the oil pan off, mod the rear oil pressure regulator. There is a thread in the archives on how to do it. It also wouldn't hurt to pull the ropr and the front bypass regulator off to clean and check them. Along with pulling the front cover to check the tension on the oil pump chain and upgrading to the 17.5 mm oil pump if you want to lay out a little extra cash.
