Radiators, Shrouds and Efans
04-26-06, 04:01 PM
#1
Radiators, Shrouds and Efans
Hey Guys,
Well I finally got the rebuilt radiator!

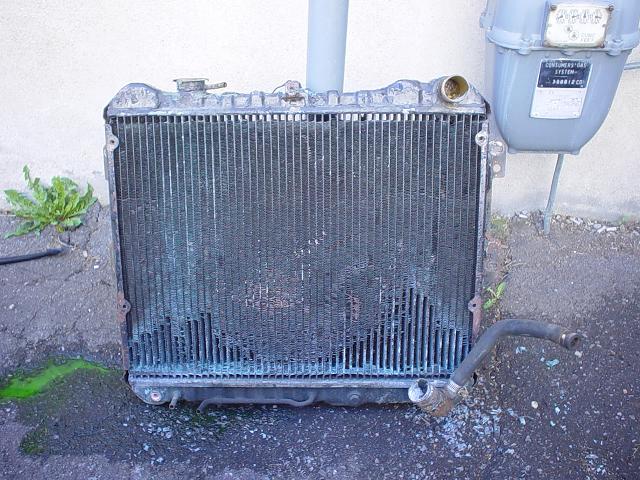

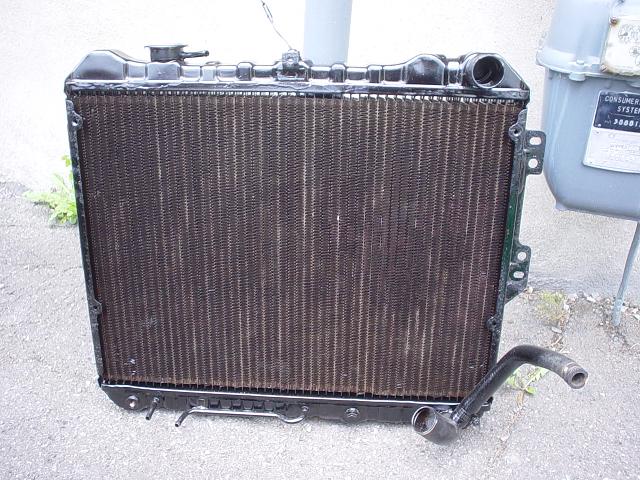

So I figured I'd post with pics of old vs. rebuilt for your enjoyment.

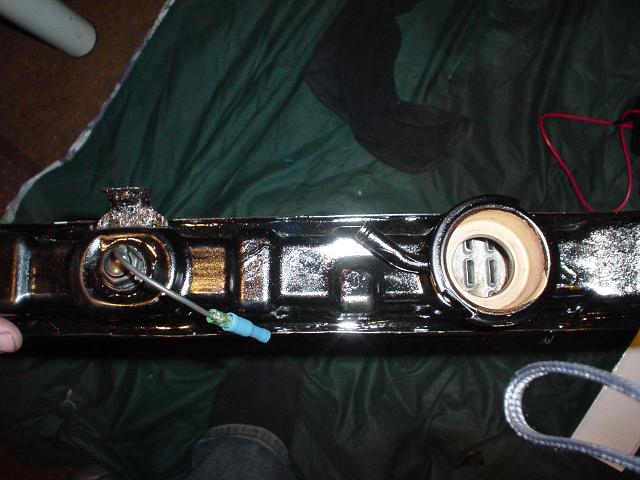

I think they put 3 cores in it, but I don't know how to tell so I shot a pic looking down the filler cap. It shows three tubes going down, so I assume that's what they mean when they say "3 core". This is an '84-85 radiator so it's the tall and slim one, but I told the rad rebuilder guy to squeeze the best damn core he could into this thing.

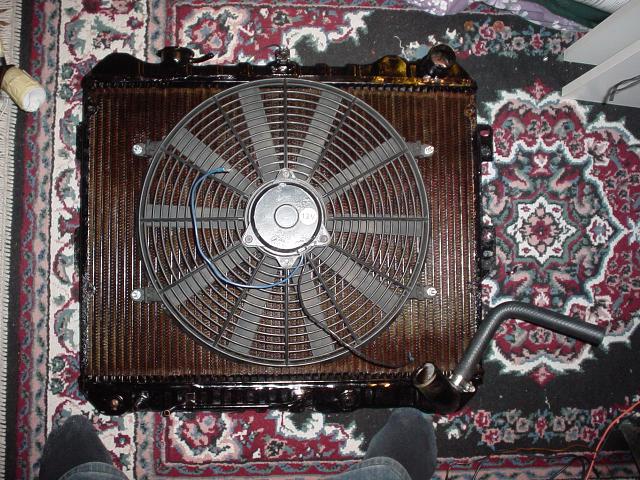

So now my attention turns to mounting the new e-fan. I've included a pic of it sitting on the radiator but as you can see, I don't have any way to affix it to the rad right now. The metal strips the fan's previous owner used to bolt it to the rad aren't long enough, because he had an '83. I'm also thinking that I probably need a shroud for it, because I often hear people saying that you'll run too hot without one.
I don't know any local places that do sheet metal work, but I'm thinking of mocking up a shroud using bristol board and taking it to a sheet metal place and saying "make me this".
For the time being though, do you guys think I'll get enough cooling without the shroud? (I'll just use small strips of metal to bolt to the brackets). Do any of you run without one?
Jon
Well I finally got the rebuilt radiator!
So I figured I'd post with pics of old vs. rebuilt for your enjoyment.
I think they put 3 cores in it, but I don't know how to tell so I shot a pic looking down the filler cap. It shows three tubes going down, so I assume that's what they mean when they say "3 core". This is an '84-85 radiator so it's the tall and slim one, but I told the rad rebuilder guy to squeeze the best damn core he could into this thing.
So now my attention turns to mounting the new e-fan. I've included a pic of it sitting on the radiator but as you can see, I don't have any way to affix it to the rad right now. The metal strips the fan's previous owner used to bolt it to the rad aren't long enough, because he had an '83. I'm also thinking that I probably need a shroud for it, because I often hear people saying that you'll run too hot without one.
I don't know any local places that do sheet metal work, but I'm thinking of mocking up a shroud using bristol board and taking it to a sheet metal place and saying "make me this".
For the time being though, do you guys think I'll get enough cooling without the shroud? (I'll just use small strips of metal to bolt to the brackets). Do any of you run without one?
Jon
Last edited by vipernicus42; 04-26-06 at 04:03 PM.
04-26-06, 04:18 PM
#2
Senior Member
Join Date: Oct 2002
Location: Hampton, VA
Posts: 596
Likes: 0
Received 0 Likes
on
0 Posts
The new rad looks good, as do the socks. :P
Depending on the CFM of the fan, I imagine you could get by without the shroud. It doesn't look like it'd be too much of a PITA to make a shroud for it though.
Depending on the CFM of the fan, I imagine you could get by without the shroud. It doesn't look like it'd be too much of a PITA to make a shroud for it though.
04-26-06, 04:29 PM
#3
Well I debated just making a sheetmetal cover for the parts of the rad not covered by the fan, but realized that would mean no air would ever go through those parts of the rad :o
So then I figured I'd need something to mount the fan about 1" off the rad, and funnel the air to the fan. At least that's the working plan.
So I'll mock that up by making a 1" thick square around the edge of the rad, and another 1" thick square around the edge of the fan, then connecting those two squares with pieces at 45* angles to make it lift off the rad. I guess that doesn't sound like it makes much sense when I type it, but in my head it does.
Jon
So then I figured I'd need something to mount the fan about 1" off the rad, and funnel the air to the fan. At least that's the working plan.
So I'll mock that up by making a 1" thick square around the edge of the rad, and another 1" thick square around the edge of the fan, then connecting those two squares with pieces at 45* angles to make it lift off the rad. I guess that doesn't sound like it makes much sense when I type it, but in my head it does.
Jon
04-26-06, 04:52 PM
#6
Senior Member
Join Date: Oct 2002
Location: Hampton, VA
Posts: 596
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by vipernicus42
So I'll mock that up by making a 1" thick square around the edge of the rad, and another 1" thick square around the edge of the fan, then connecting those two squares with pieces at 45* angles to make it lift off the rad. I guess that doesn't sound like it makes much sense when I type it, but in my head it does.
Don't forget the powdercoat. Hehe
Trending Topics
04-26-06, 08:58 PM
#10
Good.. so that means I can drive with it like that until I get the shroud I want fabbed from sheet metal.
I was just worried about it being so imperative that overheating was guaranteed without it. I kinda figured it wasn't that bad.... but I wanted to make sure.
It's still spring here, hovering between 10-20 degrees C (50-70F), so if I drive for another month like that, I don't expect any problems.
Thanks guys
Jon
I was just worried about it being so imperative that overheating was guaranteed without it. I kinda figured it wasn't that bad.... but I wanted to make sure.
It's still spring here, hovering between 10-20 degrees C (50-70F), so if I drive for another month like that, I don't expect any problems.
Thanks guys
Jon
04-26-06, 09:39 PM
#12
Senior Member
Join Date: Apr 2004
Location: Ottawa, Canada
Posts: 454
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by vipernicus42
Good.. so that means I can drive with it like that until I get the shroud I want fabbed from sheet metal.
I was just worried about it being so imperative that overheating was guaranteed without it. I kinda figured it wasn't that bad.... but I wanted to make sure.
It's still spring here, hovering between 10-20 degrees C (50-70F), so if I drive for another month like that, I don't expect any problems.
Thanks guys
Jon
I was just worried about it being so imperative that overheating was guaranteed without it. I kinda figured it wasn't that bad.... but I wanted to make sure.
It's still spring here, hovering between 10-20 degrees C (50-70F), so if I drive for another month like that, I don't expect any problems.
Thanks guys
Jon
I think that fan is a 2700 cfm fan, so no worries.
04-26-06, 09:58 PM
#16
Certified Old Fart
Join Date: Oct 2004
Location: Inkerman, On, South of Ottawa, the 2nd coldest Capital in the World
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts
Jon, that fan covers so much percentage of the radiator, I can't see you having any problems. Some of the e-fans people have posted cover a lot less of the rad. Than I'd be concerned. But especially with a 3 core rad, I think you're fine.
What you could do is rig a manual override so you can also turn the fan on by a switch, that way if in doubt, you can flick it on.
What you could do is rig a manual override so you can also turn the fan on by a switch, that way if in doubt, you can flick it on.
04-26-06, 10:00 PM
#17
Lives on the Forum
As long as you mount the fan up close to the radiator, you should be fine without a shroud. I'm currently running only one of my two MR2 fans due to mounting issues, and it only covers about 35% of the radiator. My engine always runs cool, so I'm in no real hurry to get the other fan mounted up. I'm also using a 2nd gen radiator, but with your 3 core I'd imagine you'll have far more cooling capacity than you'll ever need, especially in Canada.
04-26-06, 10:07 PM
#20
Senior Member
Join Date: Oct 2002
Location: Hampton, VA
Posts: 596
Likes: 0
Received 0 Likes
on
0 Posts
Yea that looks like the one in the BD mag.
http://blackdragonauto.com/icatalog/rx/0058.html
http://blackdragonauto.com/icatalog/rx/0058.html
04-26-06, 10:08 PM
#21
wheres the water goin?
iTrader: (9)
Join Date: May 2005
Location: Nor Cal
Posts: 1,586
Likes: 0
Received 0 Likes
on
0 Posts
can do what i did with mine (b4 i sold it) if you have access to aluminum sheet metal about 1/16 or an 1/8 of an inch. i used aircraft grade. and go to town with a derimal and you can use bolts on the top holes on the radiator and zip ties on the bottom. i used 1 inch bolts to mount the fan to the shroud with self locking nuts(the ones that irregularly shaped not the nylon lock nut)
04-26-06, 10:09 PM
#23
You brought up the VB fan at just the right time. The answer is no. It is an Imperial fan, 1600 cfm, and can be found at most auto part stores for $40-50 less. I have 2 of them, one bought at VB, the other one I saved by buying it at Advanced Auto.
The fan keeps my bp cool, so far, no summer heat test yet. I did not keep my 2nd gen cool enough, to the point I put the stock fan back on the 2nd gen.
The fan keeps my bp cool, so far, no summer heat test yet. I did not keep my 2nd gen cool enough, to the point I put the stock fan back on the 2nd gen.
04-26-06, 10:48 PM
#24
Certified Old Fart
Join Date: Oct 2004
Location: Inkerman, On, South of Ottawa, the 2nd coldest Capital in the World
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts
Ok guys, I just gotta say this.
In Canada, it isn't winter all the time, and we don't live in igloos (at least most of us, lol). In the summer is easily peaks over 90 F with 85+% humidity for many days at a time. Where Jon and I live the average is well over 80 for most of the summer.
End of Rant/thread hijack lol
In Canada, it isn't winter all the time, and we don't live in igloos (at least most of us, lol). In the summer is easily peaks over 90 F with 85+% humidity for many days at a time. Where Jon and I live the average is well over 80 for most of the summer.
End of Rant/thread hijack lol
04-26-06, 11:01 PM
#25
Lives on the Forum
LOL, this from the guy who states he is from "the 2nd coldest capital in the world".
Anyway, I live in Michigan and I'm pretty sure that Canada is somewhere to the North of me... So you're probably not living in an environment that is hotter than mine, unless you guys know something that we don't. lol
Anyway, I live in Michigan and I'm pretty sure that Canada is somewhere to the North of me... So you're probably not living in an environment that is hotter than mine, unless you guys know something that we don't. lol
