Radiator Setup.....
#1
Radiator Setup.....
Hello guys,
Now that the body restoration part is over, I need to start with all the mechanics...
Thinking about the radiator, which setup are you guys running???
Checking out eBay, they all look quite the same and price around $130 like this one.
ALUMINUM RADIATOR FOR 1979-1985 MAZDA RX7 RX-7 S1 S2 S3 3ROW MT
This one is $200... looks the same to me
3 Row KR Champion Radiator For 79-82 Mazda RX7 | eBay
Thanks!!!!
Now that the body restoration part is over, I need to start with all the mechanics...
Thinking about the radiator, which setup are you guys running???
Checking out eBay, they all look quite the same and price around $130 like this one.
ALUMINUM RADIATOR FOR 1979-1985 MAZDA RX7 RX-7 S1 S2 S3 3ROW MT
This one is $200... looks the same to me
3 Row KR Champion Radiator For 79-82 Mazda RX7 | eBay
Thanks!!!!
#4
radiator
I got one from DNA Motoring on ebay. The first one got the lower got inlet bent a little in shipping. I could have straightened it but I told them. They had me send it back, they paid for return, refunded me some money and sent me another radiator.
It works great and runs so much cooler than my old stock one. The price was very reasonable.
Here's a link to ebay.
83-85 MAZDA RX-7/RX7 FB S3 3-ROW FULL ALUMINUM RACING PERFORMANCE RADIATOR+FAN | eBay
It works great and runs so much cooler than my old stock one. The price was very reasonable.
Here's a link to ebay.
83-85 MAZDA RX-7/RX7 FB S3 3-ROW FULL ALUMINUM RACING PERFORMANCE RADIATOR+FAN | eBay
#6
bought an Ebay radiator...much like the one you picked. Many are the "Champion" brand, and that is what I got.saw them advertised in the"Race Pages" (Drag Race publication) must be good...LOL... look carefully at the different units, as some have drains and some do not.....also, different bungs for accessories..if that matters)....so, just look closely before you choose; I think mine is great! I have the petcock drains and provisions for additional coolers...paid $160 total, build quality is great, quick shipping ...lowered water temp (on the needle) by a whole bunch.
#7
RX HVN
iTrader: (2)

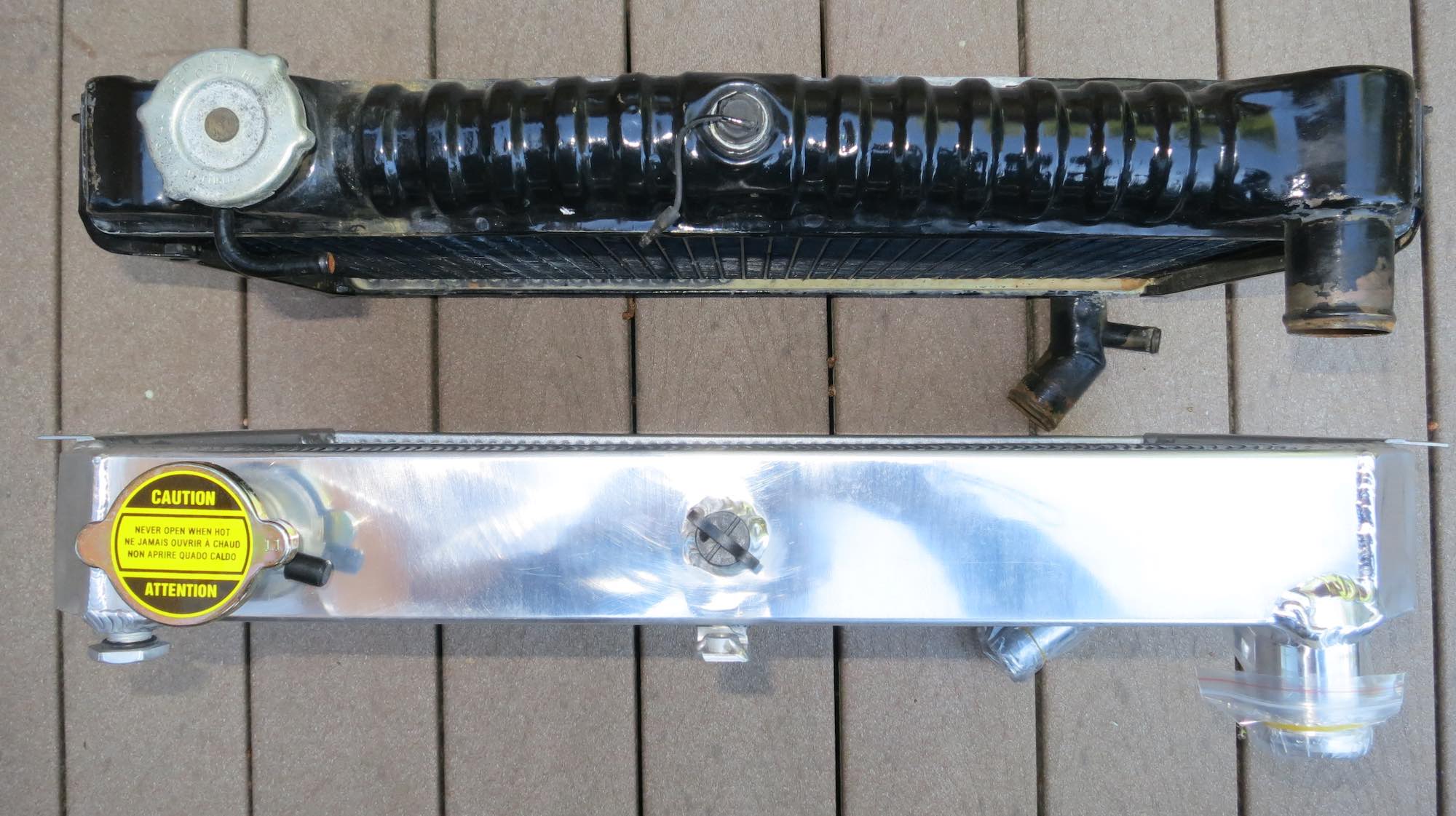

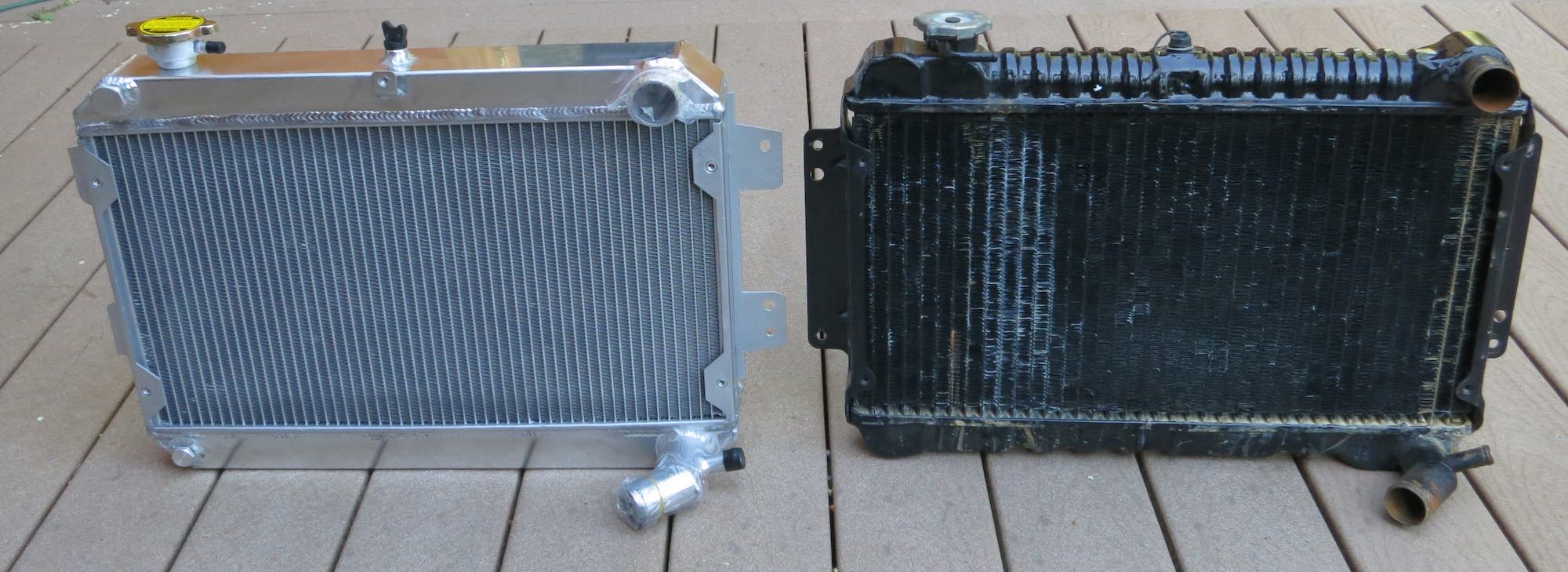

$102 ebay 3-core alum. Perfect match to old OE unit (based on side-by-side, see pix). As SkyDrift sez, many of the ebay units are basically the same one, with different names (but all with same CA delivery point). Shipping was even FREE to Alaska, which is Epic. Not installed, so caveat on user-quality, but looks and feels well made. Figured it was worth $100 to find out...
Stu Aull
80GS
Alaska
Stu Aull
80GS
Alaska
Trending Topics
#8
Out In the Barn
iTrader: (9)
These Champion 3 core rads are pretty good but not perfect. You may need to trim the tabs a little or re-drill a mounting hole and the heater output my not be clocked perfectly but overall not bad. I noticed on mine it hit the battery tray a little. Still a good buy.
My plans are to replace the input and output with -24AN fittings, change the overflow to a -4AN, and put a better petcock on. I don't like the plastic one and want one I can control the output when draining.
My plans are to replace the input and output with -24AN fittings, change the overflow to a -4AN, and put a better petcock on. I don't like the plastic one and want one I can control the output when draining.
Last edited by KansasCityREPU; 12-17-16 at 07:32 PM.
#9
Senior Member
-24 is huuuuuge?! The setups I've seen with AN fittings mostly seem to be -16. Some using -20. They're the sizes that come on EWP adapters also haha. I'm planning -16
#11
Junior Member
Join Date: Aug 2012
Location: phoenix az
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Champion radiators caution
Has anyone been running the champion alum radiator off ebay long? I recently went through 3 of these on my jeep xj 4.0 a real p.i.t.a. during a phx summer. On a d.d.! The tanks kept separating from the core in under 6 months all same fail ended up getting refunded but took months i put a csf oem style back on it anyhow need something now for the t2 swap in 1st gen something ill trust in heavy traffic at 119 degree temps
#13
Did you ever got a new radiator???
Since I'll have the car looking like the new from factory, I'm leaning towards Spectra Premium...
Now, I'm quite intrigued since they have completely different sizes for an 82 and 85. Shouldn't they be the same???
CU701
eCatalog - Product
CU97
eCatalog - Product
#14
Out In the Barn
iTrader: (9)
Hey Buddy, how are you???
Did you ever got a new radiator???
Since I'll have the car looking like the new from factory, I'm leaning towards Spectra Premium...
Now, I'm quite intrigued since they have completely different sizes for an 82 and 85. Shouldn't they be the same???
CU701
eCatalog - Product
CU97
eCatalog - Product
Did you ever got a new radiator???
Since I'll have the car looking like the new from factory, I'm leaning towards Spectra Premium...
Now, I'm quite intrigued since they have completely different sizes for an 82 and 85. Shouldn't they be the same???
CU701
eCatalog - Product
CU97
eCatalog - Product
The following users liked this post:
knight_rx7 (08-03-17)
#18
Out In the Barn
iTrader: (9)
Since you have a clean slate, you have many ways to go. I like the taller rads for the extra cooling. If you want to use the stock mounting location for the front mount oil cooler, a short rad will be required.
You could make your own cooler mount and hoses and move it forward. Just depends on how much fab work you want to do. This is what I did in my 1985 that had the beehive. I moved the cooler forward and used the CU97 rad.
You could make your own cooler mount and hoses and move it forward. Just depends on how much fab work you want to do. This is what I did in my 1985 that had the beehive. I moved the cooler forward and used the CU97 rad.
