For starters I have an 85 GSL

I am putting a new rad in so I am switching over all the sensors and whatnot.

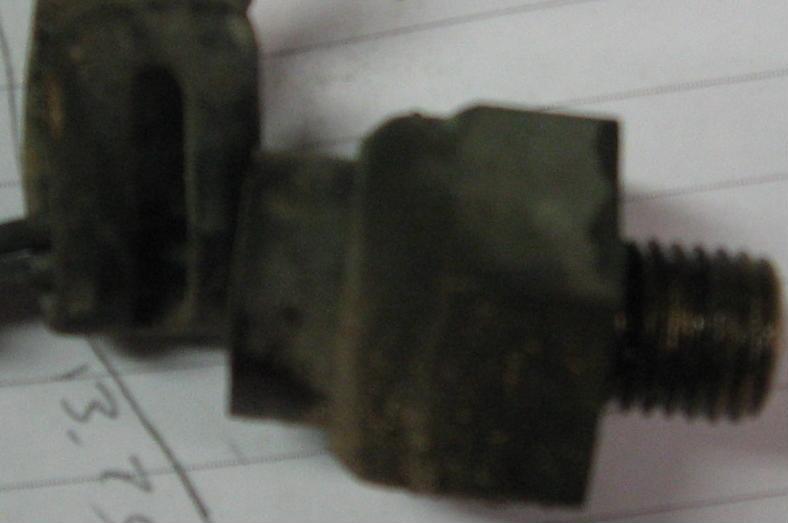

What is the sensor on the bottom of the rad. Clips into a small harness type thing on the same cluster of wires as the coolant level sensor wire

Checked the manuals. Out of all the wiring diagrams i could NOT find this sensor or even any sensors with the same color of wires (blue with yellow or maybe white stripe and black which im assuming is ground)

Can someone tell me what this sensor is. To me it looks like a temp sensor but i know thats near the oil filter.

Cant check what doesnt work by unpluggin it as non of my guages work.

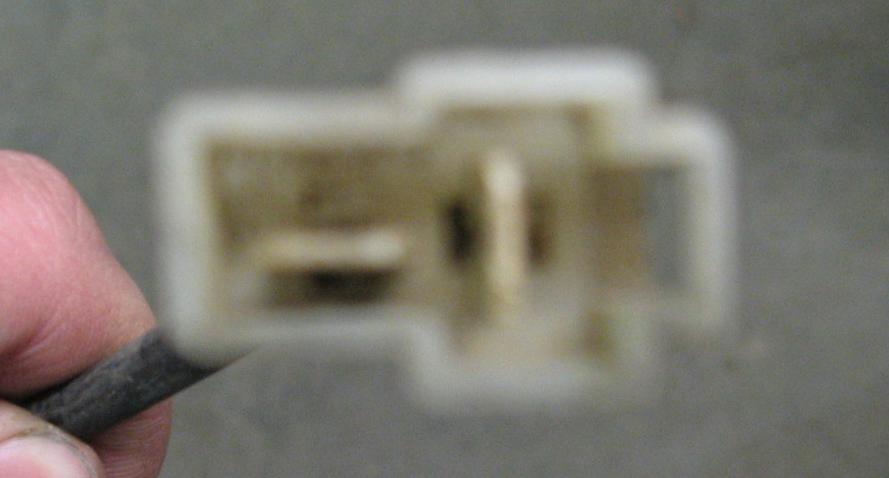

A few pics are there

Jess

j_tso

iTrader: (2)

I believe it controls the fan clutch.

djessence

I thought the fan clutch was entirely mechanical and not electrical... and thats why it looks similar to a heatsink

Or am i mistaken?

j_tso

iTrader: (2)

I could be wrong, I'm going by the Victoria British catalog. I can't find it in the parts catalog.

djessence

and its not in any of the wiring diagrams or pics in haynes, but its definetly stock wiring and colors. I never thought of taking a look in VB or maybe ill check mazdatrix see if they have somethin

djessence

Screws into the bottom drivers side pointing back (so its in the engine compartment) plugs into clip near the battery where a bundle of wires mosy back thru firewall

j_tso

iTrader: (2)

found it, parts catalog lists it as Thermo Switch

bad 83

iTrader: (3)

This is part of the automatic chock pull off. If you have a 79-82 or SE carbed, and you order an aftermarket radiator, they will send you one without the hole for that sensor. I have seen that a billion times.

djessence

awesome thanks bad 83.

j_tso

iTrader: (2)

Isn't the choke switch behind the water pump ?

I've got an '82 and a replacement 3 row radiator with that hole.

djessence

hmmm. second opinions then? and it should still be in the wiring diagrams...

j_tso

iTrader: (2)

looks like I'm wrong.

In the '82 wiring diagram, Section B, component B-11.

Goes from ECU, that thing is No 2 Water Temp Switch (rad), then goes to No 1 Water Temp Switch (Eng), then to wire that comes off the Choke Switch to Hot Start Relay.
