EvilWankel

iTrader: (2)

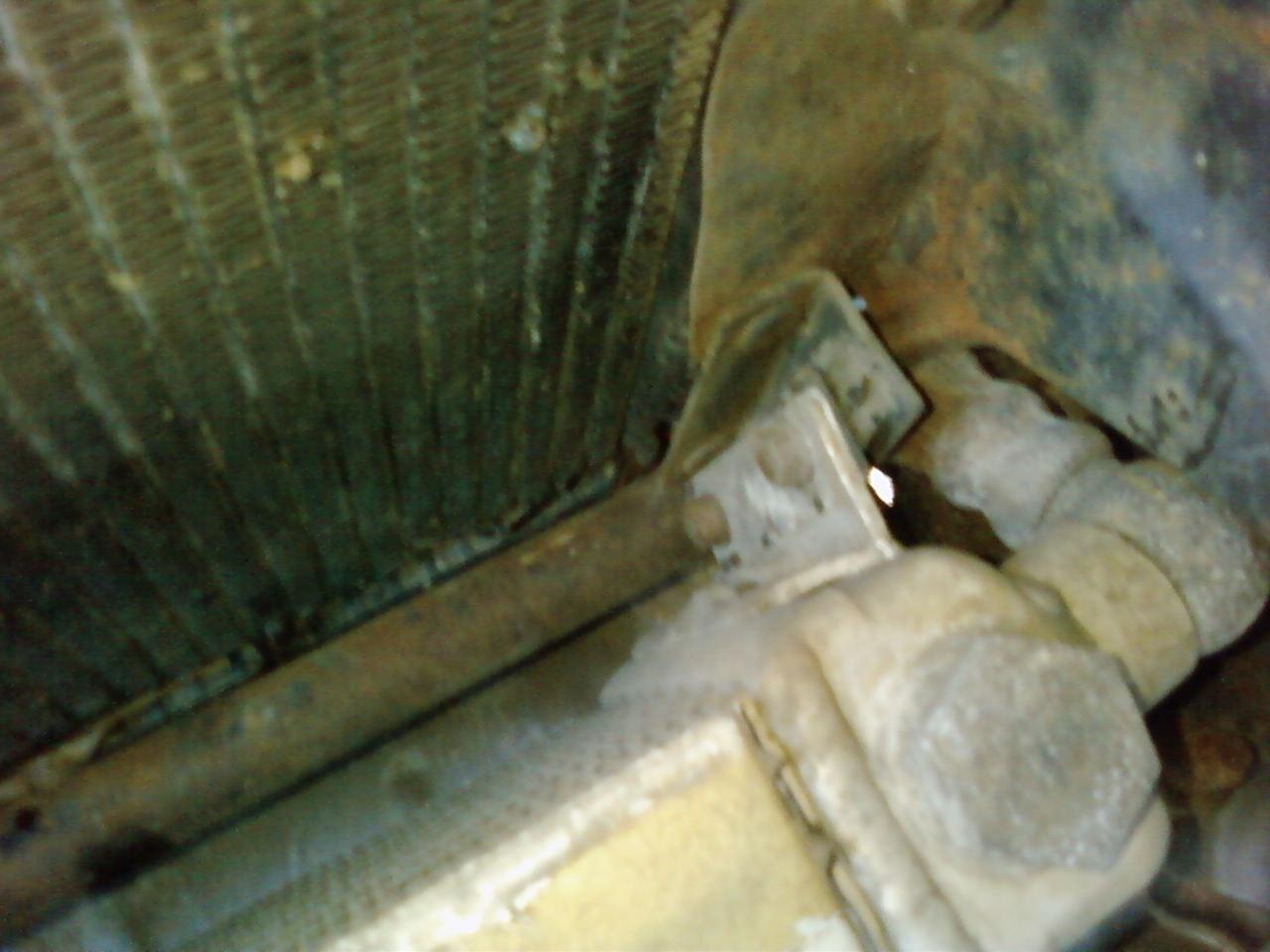

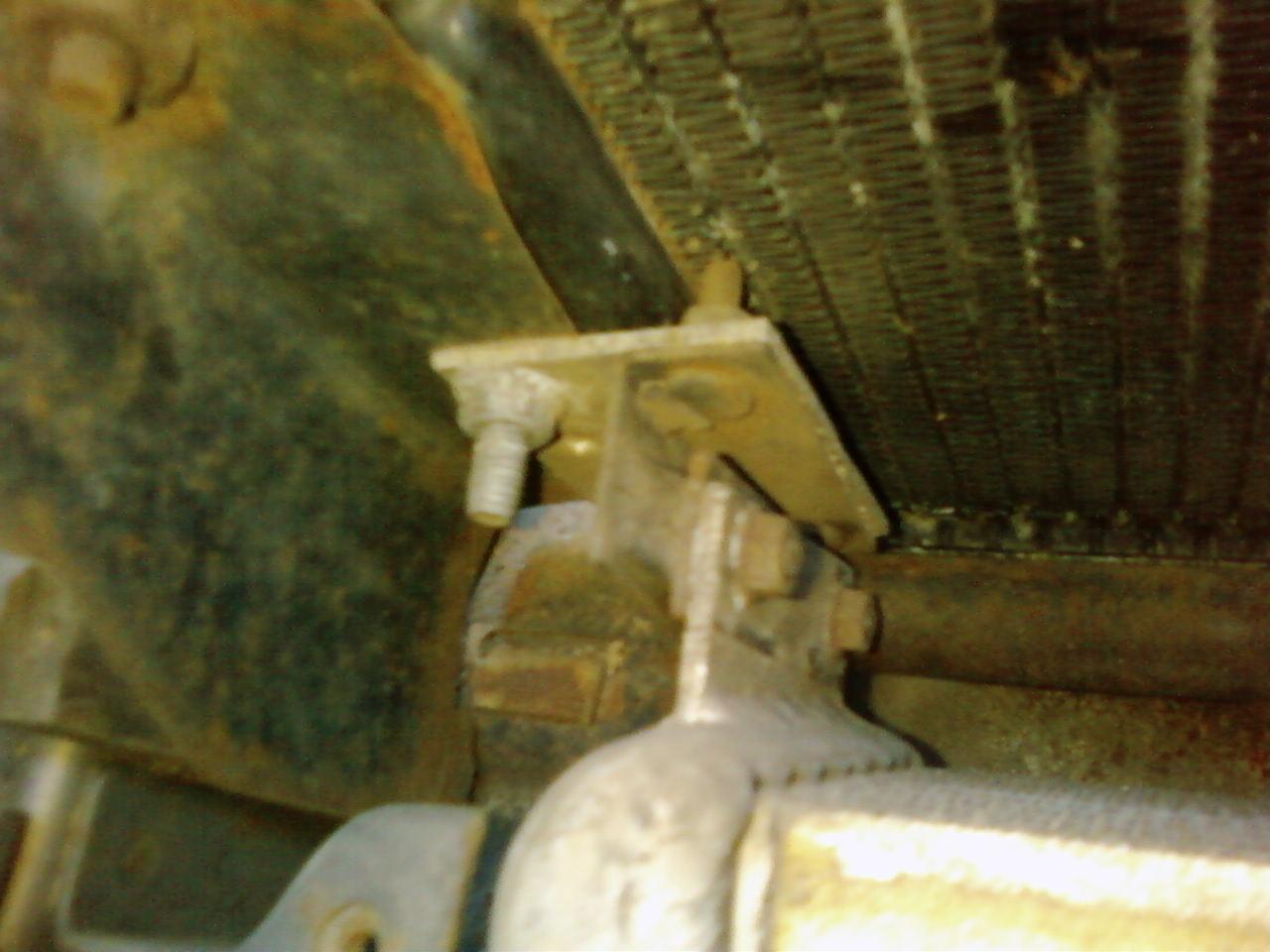

Hello again, everyone. I've got the archived thread bookmarked to use for ideas and suggestions (https://www.rx7club.com/1st-gen-archive-71/cooling-oil-how-install-fc-oil-cooler-1st-gen-write-up-pics-478521/), but I seem to have ran into a snag. The mounts for the cooler seem to hit on either side of the crossmember. I cannot move it more toward the passenger side because it hits the radiator support (see image).

I purchased some angle iron (thought it was 2"), but each side of the angle is only 1". If I get the larger angle iron will this help my issue? Looking at the thread from the archives, it seems that way. Just wanted some insight. Also, ignore the stock fc rubber mounts (weren't used in the thread trochoid made), I was trying to figure out solutions.

Sgt Fox

iTrader: (3)

I ground off the stock PS cooler mount to give myself more room. Its the one on the driver's side. I also used the stock rubber mounts to isolate the cooler from vibrations.

trochoid

iTrader: (6)

Since I have PS, you can see why I mounted mine lower and forward. If you don't need the bracket, remove it and go with the wider angle. A big reason for mounting it lower was to increase air flow to the cooler, especially with the stock body,

350swapblzr

iTrader: (2)

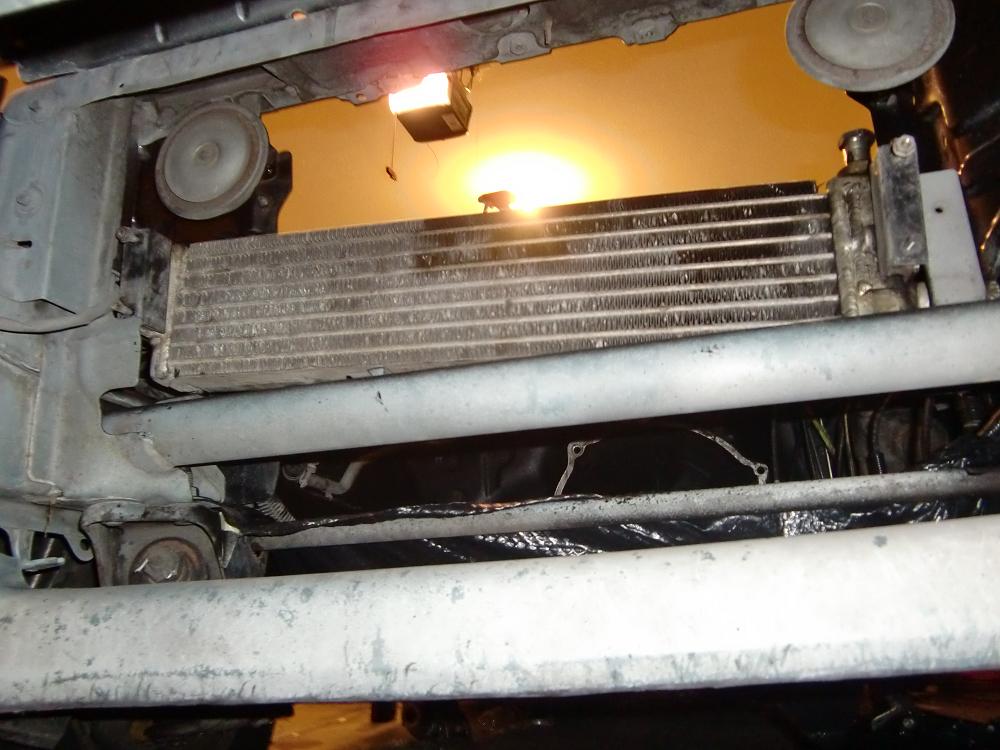

this is how i mounted my oil cooler its worked for 50,000 miles with no issues i flipped the oil cooler upside down and used the stock fc rubber mounts

mikevoch89146

iTrader: (1)

Zip ties slim!! did you see how me and Ray did it on SCR?

FIBREMAZ

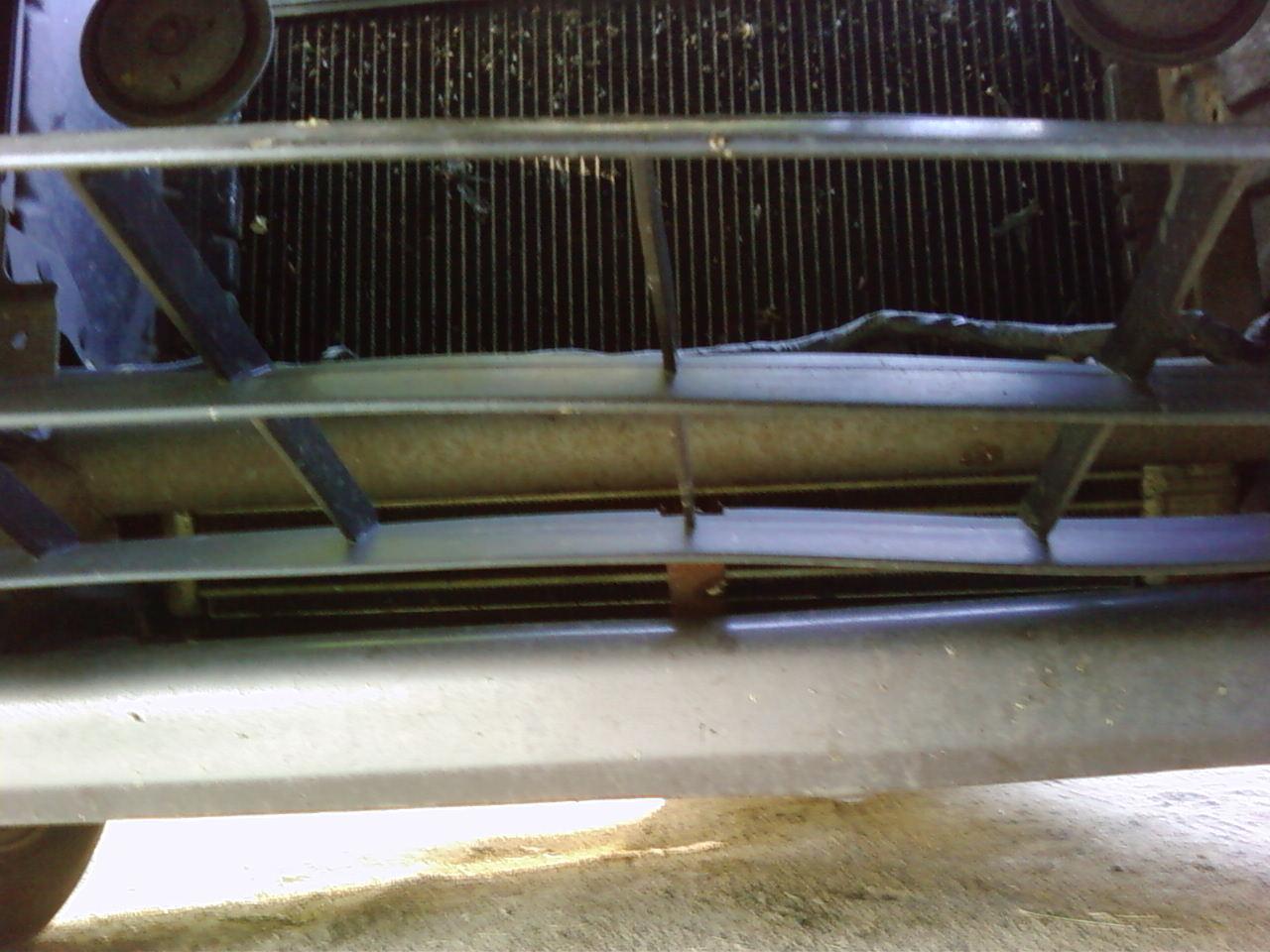

mine is in front of and below the bar yours is attatched to, has plenty of room and doesn't block radiator airflow

Slammed_GSL

iTrader: (14)

Try this option, works well, get lots of fresh air and there is plenty of room.
https://www.rx7club.com/showthread.p...=fc+oil+cooler
