Put Power FC in my Turbo 82!!
#1
The Outsider
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: Deep in 6th
Posts: 1,050
Likes: 0
Received 0 Likes
on
0 Posts
Put Power FC in my Turbo 82!!

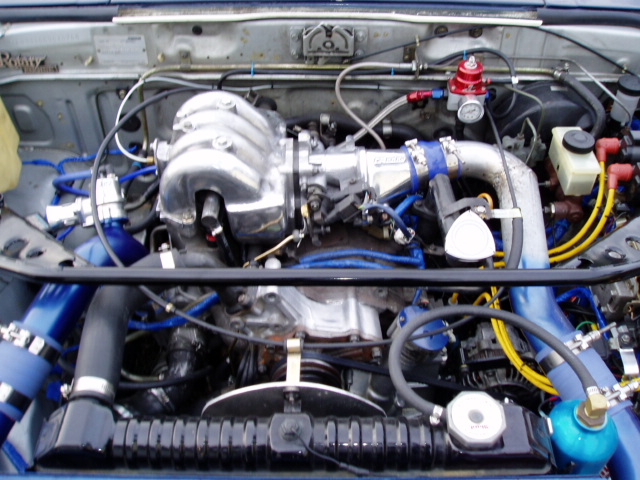

I did my S-5 T2 swap nearly two years ago. Full motor and tranny swap all S-5 parts. Anyways I finally got it all sorted out and running strong this summer. In October it Dynoed 249 at 10 psi. Then I ran across Banzairacing's how to on putting a FD power fc into S-5 turbo 7. All and all it was pretty straight forward, even easier for me, because I am notting running emissions..

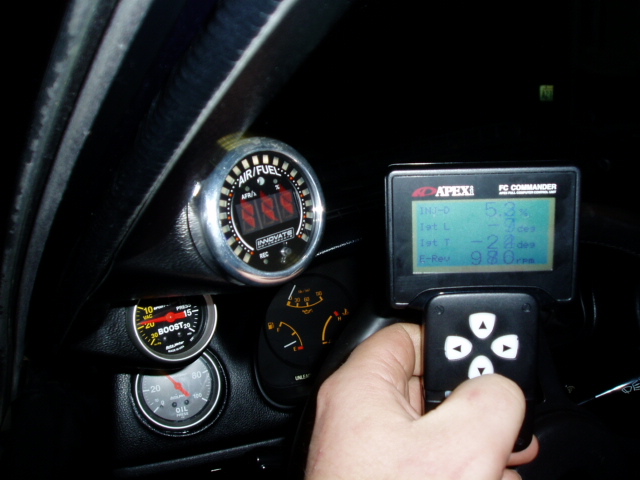

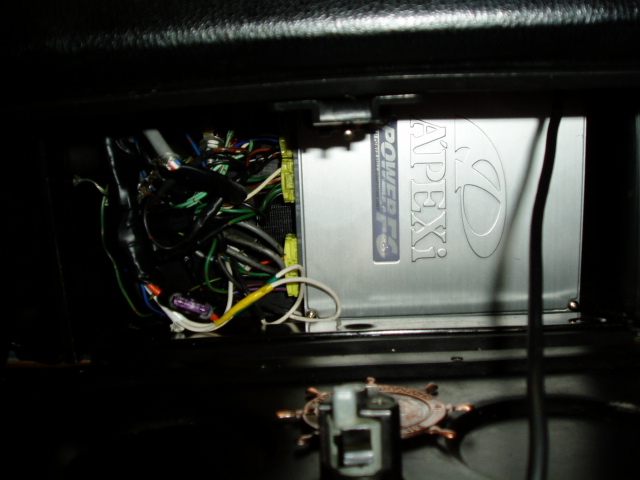

The best part is I got to get rid of the electric oil metering pump and the air flow meter, I was on my third stock ecu because of the god dam electric omp. So I gathered the parts all used, except for the FD ait sensor,. The pfc, commander, fd map sensor, fd ait sensor, and fd ignitor, and you can use the stock S-5 harness, it takes a little repinning but no big deal. I started tearing everything out on new years day and had it running on the 6th. The most time consuming project was wiring in the FD ignitor, the pfc wont work with the fc trailing ignitor, so you have to use the fd ignitor pack. Other than that pretty straight forward stuff.
I have an appointment next Saturday for a tuning session at Ground Zero in Portland, I just put in 1000's in the secondaries and moved the 750's down to the primaries. So I am safe to like 400 flywheel horse power, I wont be close to that, but easier to tune it down, than up. Anyways, I thought some one might be interested in the swap.
The best part is I got to get rid of the electric oil metering pump and the air flow meter, I was on my third stock ecu because of the god dam electric omp. So I gathered the parts all used, except for the FD ait sensor,. The pfc, commander, fd map sensor, fd ait sensor, and fd ignitor, and you can use the stock S-5 harness, it takes a little repinning but no big deal. I started tearing everything out on new years day and had it running on the 6th. The most time consuming project was wiring in the FD ignitor, the pfc wont work with the fc trailing ignitor, so you have to use the fd ignitor pack. Other than that pretty straight forward stuff.
I have an appointment next Saturday for a tuning session at Ground Zero in Portland, I just put in 1000's in the secondaries and moved the 750's down to the primaries. So I am safe to like 400 flywheel horse power, I wont be close to that, but easier to tune it down, than up. Anyways, I thought some one might be interested in the swap.
Trending Topics
#8
The Outsider
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: Deep in 6th
Posts: 1,050
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Directfreak

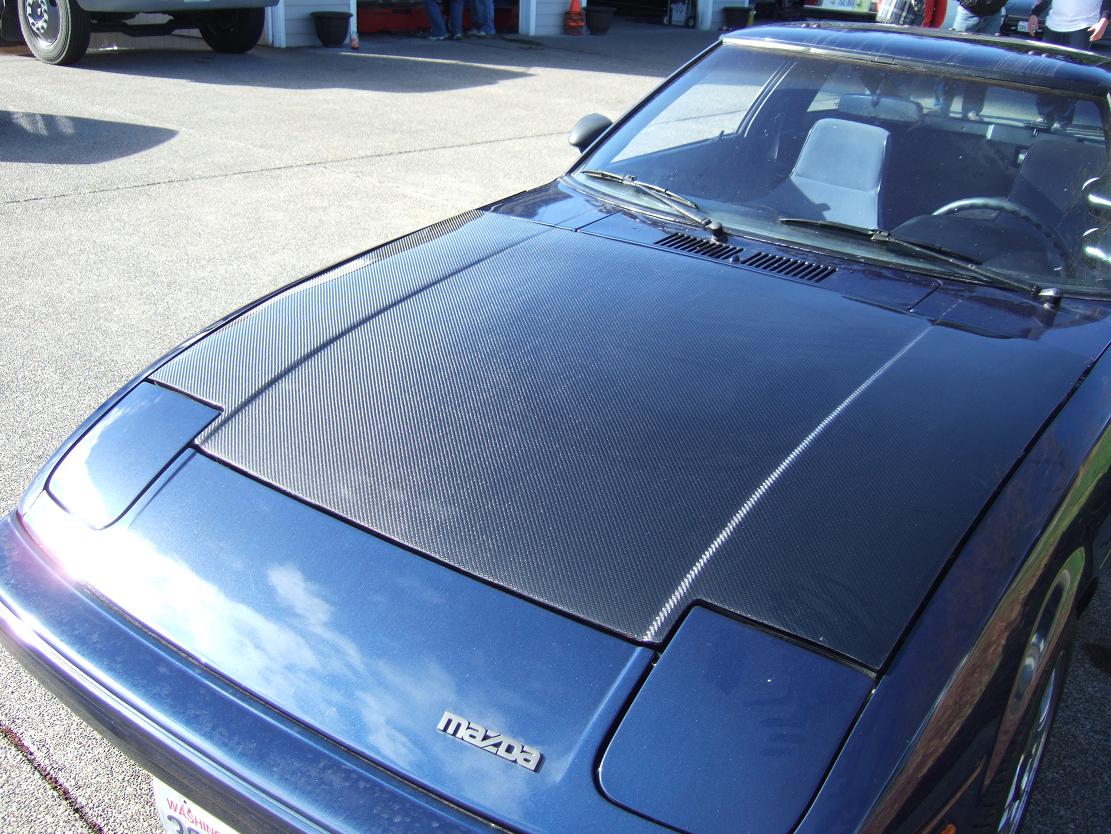

Where'd you get the hood? Looks nice!
The S-5 electric omp if it goes bad it will put your ecu into limp mode, if it goes really bad, it will fire the ecu, I didn't have a cel wired up and it went bad, really bad, twice. That is one of the main reasons for going standalone.
#10
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts
Originally Posted by Paradox
that thing must be nuts!
why was the electric OMP causing your AFM to fail?
why was the electric OMP causing your AFM to fail?
#14
FB+FC=F-ME
Originally Posted by j9fd3s
ive seen this a couple of times, theres a way for the omp to fail where it becomes the ground for everything, and it usually fries the ecu, and omp, then if you're unlucky the harness too
Guess Ill have to hope I never experience that lovely scenario.......5 years,so far so good!
#17
The Outsider
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: Deep in 6th
Posts: 1,050
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by REVHED
It's a S5 TII.
The hood, the metal bar that latches it down to the fire wall popped out, The underside frame started to seperate from the hood side, I could go on for a whille yet. Suprisingly enough the clear coat is the best part of the hood.
The omp fried one ecu, I didn't know it went bad, no cel. Put in a second ecu yup fried that one to. So then I figured out it was the electric omp. So now I am on my third ecu and second omp. Just gave me back up omp to a buddy because his was acting up and sending the car into limp mode. But not a problem anymore, the pfc can go either way.
#18
Banned. I got OWNED!!!
iTrader: (2)
Originally Posted by woundup7
Exactly, thank you,
The hood, the metal bar that latches it down to the fire wall popped out, The underside frame started to seperate from the hood side, I could go on for a whille yet. Suprisingly enough the clear coat is the best part of the hood.
The omp fried one ecu, I didn't know it went bad, no cel. Put in a second ecu yup fried that one to. So then I figured out it was the electric omp. So now I am on my third ecu and second omp. Just gave me back up omp to a buddy because his was acting up and sending the car into limp mode. But not a problem anymore, the pfc can go either way.
The hood, the metal bar that latches it down to the fire wall popped out, The underside frame started to seperate from the hood side, I could go on for a whille yet. Suprisingly enough the clear coat is the best part of the hood.
The omp fried one ecu, I didn't know it went bad, no cel. Put in a second ecu yup fried that one to. So then I figured out it was the electric omp. So now I am on my third ecu and second omp. Just gave me back up omp to a buddy because his was acting up and sending the car into limp mode. But not a problem anymore, the pfc can go either way.
Have you brought this up with FiberMaz (13beef)? So that the next ones wouldn't have this issue?
#19
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts
Originally Posted by steve84GS TII
*Crosses fingers*
Guess Ill have to hope I never experience that lovely scenario.......5 years,so far so good!
Guess Ill have to hope I never experience that lovely scenario.......5 years,so far so good!
#20
The Outsider
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: Deep in 6th
Posts: 1,050
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dj55b
Have you brought this up with FiberMaz (13beef)? So that the next ones wouldn't have this issue?
