Hey guys- I need some help on how exactly to go about installing a push-button in the race car.

right now the only thing that the key does is activate the starter. The ignition is switched fuel is switched... However I just cant think of how to install a push button start... Can someone give me some advice...



I did this on my crx. Just run a line that goes from the starter to the battery with a switch inbetween. Will turn the starter on when the switch is activated.

You want to hook it up to the small push on wire on the starter.



wire it off the starter wire in the steering column harness it is a wire tha shows 12volts for a split second when you turn the key.. pm me later when I get home I can tell you the color of the wire



Anyone have an idea of what that wire looks like?



its either a huge brown wire or something.. i did this last summer.. red or brown or yellow..



its black and yellow

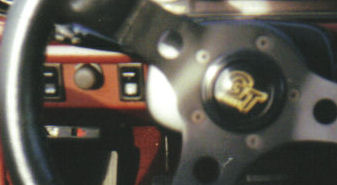

I believe the starter wire is black and with a yellow stripe. What year is your Rx7 (79') ? I had a push button starter for my 83' Rx7. It was wired so I could either start the car by key or the push button. I'll try and get you some pictures of a starter wire and post them later.



Its easier to just run new wires from the battery to a fog lights relay, then to the starter. Now, for the relay's contactor, use a test light and find any ignition wire (for you smart asses, this is any wire that has power when the key is "ON"). THis wire has to go to a push button switch, then to the relay.

You can do the other post also but..



sent a pm
