problems with electronic ignition upgrade
#7
RX for fun
iTrader: (13)
Originally Posted by JerryPerez

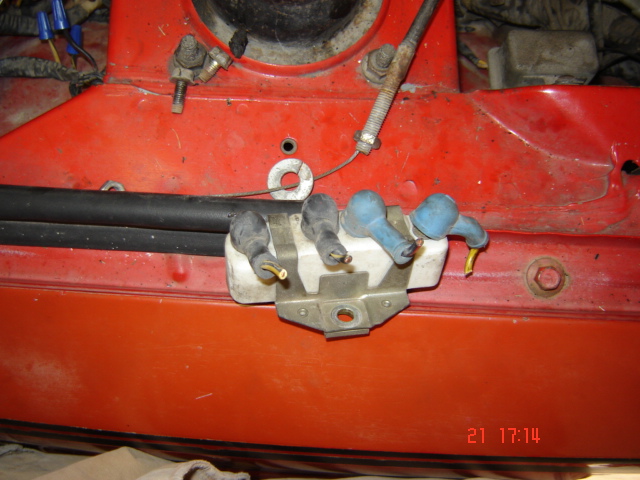

did you delete the ballast resistors and junped both coils together for + ?????
Originally Posted by Midwest 7's
where does the juice on the + terminal suppose come from?
there's ur answer. For a quickie troubleshooting, remove all the wires on leading/trailing coils + terminal only (except the wires that goes to the dizzy's igniters). Run a piece of wire from the battery's + terminal to leading/trailing's + terminals.
Trending Topics
#13
sellout
Thread Starter
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
ok.

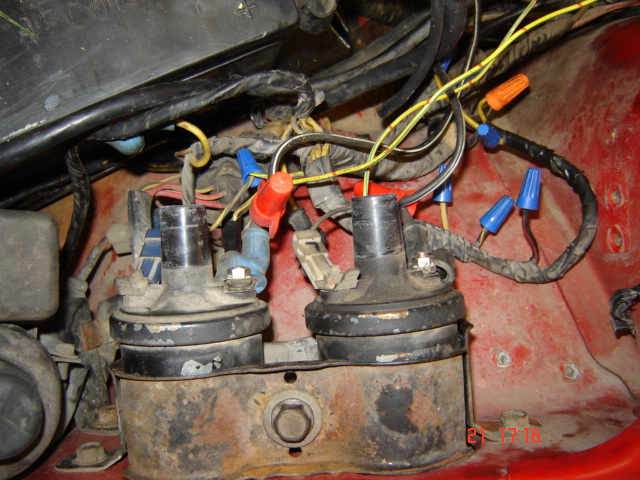

i put a positive on each + terminal on the coils and wired it directly to the batt.
started right up.
so where am i suppose to get power from?
the way i have it now it doesnt shut off with the key, lol.
i put a positive on each + terminal on the coils and wired it directly to the batt.
started right up.
so where am i suppose to get power from?
the way i have it now it doesnt shut off with the key, lol.
#14
RX for fun
iTrader: (13)
Here's a quick fix. Grab a fog lights relay. battery to the relay, ground, two terminals IIRC 87 and 87-A hook them up to the coil's + terminal. Now for find a wire in the wire loom that has voltage when the key is ON position. this wire needs to trigger the relay's low voltage. this is your ON & OFF switch. No key, no voltage.
Sorry, cant help you much on the rest as currently, I have a car in the oven.
Sorry, cant help you much on the rest as currently, I have a car in the oven.
#15
sellout
Thread Starter
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
i found my mistake.

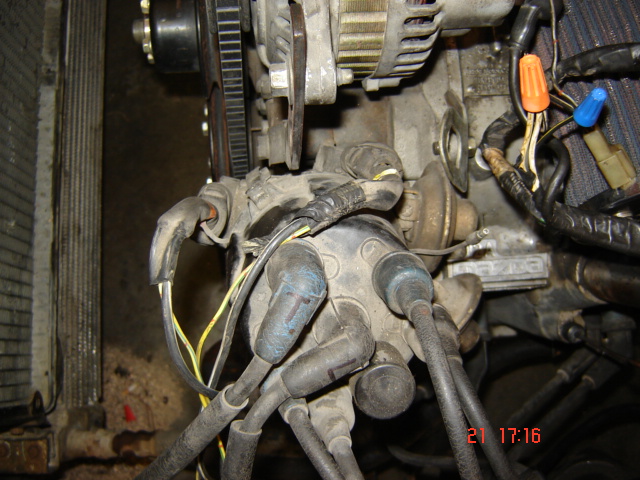

when i hooked up the new positive wires to the coils that go to the ignitors i forgot to put the old positives that supply power to the coils.
now for the soldering and cleaning up.
runs awesome, excellent upgrade.
cant seem to figure out my tach though....
when i hooked up the new positive wires to the coils that go to the ignitors i forgot to put the old positives that supply power to the coils.
now for the soldering and cleaning up.
runs awesome, excellent upgrade.
cant seem to figure out my tach though....
#17
sellout
Thread Starter
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
http://www.mazspeed.com/ignitionswap.htm
heres the write up i used.
yea just double up the old positive wires and the new ones.
i still cant get my tach to work....
heres the write up i used.
yea just double up the old positive wires and the new ones.
i still cant get my tach to work....
