Port Air Valve on the ACV Question

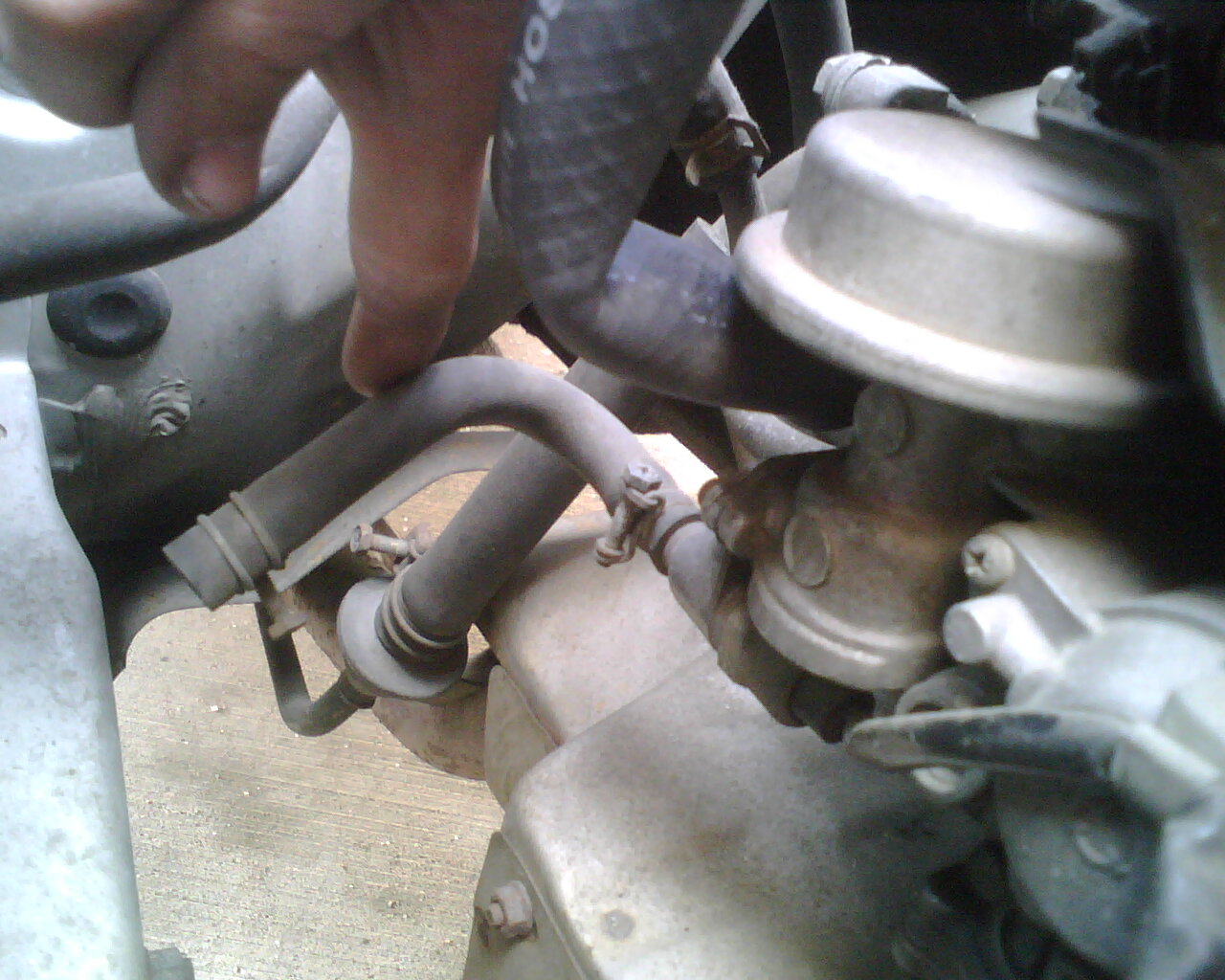

I was wondering if anyone knew where the hose that comes out of the Port Air Control valve goes. Check the picture.
03-20-09, 11:32 PM
#2
Junior Member
Thread Starter
Join Date: Oct 2006
Location: California
Posts: 27
Likes: 0
Received 0 Likes
on
0 Posts
Its too short to go to the air filter. Is it suppose to "T" into the hose that routes to the cat? (Also in the pic) Can't find any help in the archives or in the service manual. Setting up to go to emissions on monday....
03-22-09, 03:44 PM
#6
You only have half of the hose and I'm not sure it's half of the stock hose. Is the car running like this? If so the other end must be plugged at the intake manifold or you'd have a major vacuum leak.
See the pictures in this thread.
https://www.rx7club.com/1st-generation-specific-1979-1985-18/hose-question-750125/
See the pictures in this thread.
https://www.rx7club.com/1st-generation-specific-1979-1985-18/hose-question-750125/
03-23-09, 04:11 PM
#7
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts
the early 84 cars have that extra hose, it goes to one of the pre cats.
since your car is an 85 someone put the wrong ACV on it, or something
since your car is an 85 someone put the wrong ACV on it, or something
Trending Topics
03-23-09, 06:13 PM
#8
"81 RX-7
Join Date: Nov 2008
Location: Easton,PA
Posts: 324
Likes: 0
Received 0 Likes
on
0 Posts
03-25-09, 02:08 PM
#9
Junior Member
Thread Starter
Join Date: Oct 2006
Location: California
Posts: 27
Likes: 0
Received 0 Likes
on
0 Posts
That makes quite a bit of sense. There is only one cat in the car. This one already has a hose running to it.
The car runs fine with out it connected.
Also I could not find any markings for the CA or Federal emissions. The car is in CA.
The car runs fine with out it connected.
Also I could not find any markings for the CA or Federal emissions. The car is in CA.
03-25-09, 06:05 PM
#10
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts
in the parts fische they list an early and late (basically) it also varies with mt vs at and CA and fed, although the differences at this point probably dont matter.
early will have that extra tube, late does not.
i think i might OWN one, but i have no idea how it works
if you put the later valve in there without the hose, nobody will notice
early will have that extra tube, late does not.
i think i might OWN one, but i have no idea how it works
if you put the later valve in there without the hose, nobody will notice
