Pan-hard and Tr-link install pics?
02-02-05, 10:27 PM
#7
Banned. I got OWNED!!!
Join Date: Nov 2002
Location: KING COUNTY, WA
Posts: 4,980
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by SS124A
who gives a **** about what it looks like??
Will it make the car handle better???
YES!!!
So do itl
Will it make the car handle better???
YES!!!
So do itl
Trending Topics
you know its all in good fun man
02-02-05, 10:50 PM
#10
Full Member
Thread Starter
Join Date: Oct 2004
Location: Tucson, Az
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
Yeah i dont give a **** what it looks like!
I was just wanting to mainly see the mounting locations for the panhard.
and how exactly the tri link works.
Poorly drawn MS Pint pictures are fine too!
I was just wanting to mainly see the mounting locations for the panhard.
and how exactly the tri link works.
Poorly drawn MS Pint pictures are fine too!
02-02-05, 10:59 PM
#11
^^rotard for life^^
iTrader: (3)
Join Date: Sep 2004
Location: Orlando
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
sorry man i don't have any pics of mine (no camera). the installation directions that come with both have plenty of pics and excellent directions so you shouldn't have any problems with getting everything in.
P.S. take out the gas tank like the directions say, you can't really get around that one!
have fun
P.S. take out the gas tank like the directions say, you can't really get around that one!
have fun
02-02-05, 11:54 PM
#13
Interstate Chop Shop CEO
Join Date: Mar 2002
Location: Running an Interstate Chop Shop
Posts: 1,110
Likes: 0
Received 1 Like
on
1 Post
Take a look at Izzy's setup at Izzy's Custom Cages. Lots of good pics and source links for the parts.
http://www.izzyscustomcages.com/suspension.html
http://www.izzyscustomcages.com/suspension.html
02-03-05, 02:22 AM
#15
Banned. I got OWNED!!!

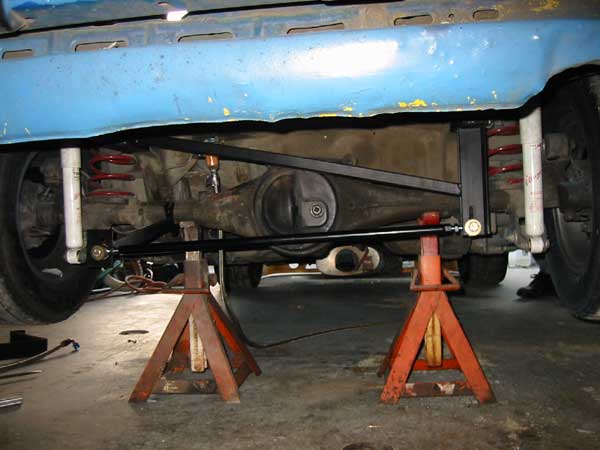

I've only got one picture from my install on a customer car. The only thing I'll add is to follow his directions COMPLETELY. It should take you about 2 hours to make sure everything is right, and about 30 minutes to weld and bolt everything in. Oh, and the 2-hours is with help.
The setup guide is pretty trick, too. Jim really knows his stuff, despite what two other RX-7 "setup experts" <cough>Mazdatrix/ISC<cough> say.
And you'll really like the handling difference. I know both owners of the car I put it on were amazed at the difference. One of them can almost keep up with me now in his superiorly-prepped car!
EDIT: The fuel cell is out of the car, so that's why you get such a clear picture of the setup.
The setup guide is pretty trick, too. Jim really knows his stuff, despite what two other RX-7 "setup experts" <cough>Mazdatrix/ISC<cough> say.
And you'll really like the handling difference. I know both owners of the car I put it on were amazed at the difference. One of them can almost keep up with me now in his superiorly-prepped car!
EDIT: The fuel cell is out of the car, so that's why you get such a clear picture of the setup.
02-03-05, 09:56 AM
#16
ok guys calm down seriously. As greg correctly pointed out I don't give a **** if its pretty, and I am definatly getting it, cause I know it will make a difference. I just like to see what I'm getting into before I shell out $600. Just curious. calm it down Oh and those pics are exactly what I was looking for. Shouldn't be a hard install.
Oh and those pics are exactly what I was looking for. Shouldn't be a hard install.
02-03-05, 09:17 PM
#20
Airflow is my life
I agree, Jim (aka Gforce) knows his **** and specializes in our cars. What more could you ask for. I am nothing short of thrilled with his knoweledge, quality, support and friendlieness. And his stuff kicks serious butt too. I have the track bar, tri link and his springs along with the setup manual. I hope to get the advance shocks when I learn enough to justify the expense. Right now Im still an oaf in advanced suspension tuning so they would do me no good over my tokicos.
I have the track bar, tri link and his springs along with the setup manual. I hope to get the advance shocks when I learn enough to justify the expense. Right now Im still an oaf in advanced suspension tuning so they would do me no good over my tokicos.
02-03-05, 10:37 PM
#21
Banned. I got OWNED!!!
Did he not advise against using his springs with the shocks when you ordered? We were going to order the springs for said customer car but Jim said it wasn't a good idea as the shocks weren't up for his incredibly high spring rates. I can't remember what's on the front, but it's got Illuminas in the back.
02-03-05, 11:02 PM
#22
Full Member
Thread Starter
Join Date: Oct 2004
Location: Tucson, Az
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
once i get the book i will be able to studie up, and know what setup i will need.
I will be doing up hill and dwn hill mountain driving. think of pikes peak but paved and longer.
I will be doing up hill and dwn hill mountain driving. think of pikes peak but paved and longer.
02-04-05, 01:02 AM
#24
^^rotard for life^^
iTrader: (3)
Join Date: Sep 2004
Location: Orlando
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
in jims book he says that 400 lb in the front and 275 lb springs in the rear is the stiffest you can go with tokicos. i guess i'll find out for sure when it warms up
02-04-05, 07:35 AM
#25
Interstate Chop Shop CEO
Join Date: Mar 2002
Location: Running an Interstate Chop Shop
Posts: 1,110
Likes: 0
Received 1 Like
on
1 Post
Originally Posted by rob81gsl
in jims book he says that 400 lb in the front and 275 lb springs in the rear is the stiffest you can go with tokicos. i guess i'll find out for sure when it warms up
The link I posted for Izzy's is the same set up I believe he uses at the track in IT-7 down at St. Louis Gateway International.
