Overhead Dome Light Help!
#1
Junior Member
Thread Starter
Overhead Dome Light Help!
Hi! I own a 1984 mazda rx7 GSL 1.1L and I'm having an issue with my dome light... it also affects a few other things like buzzer and chimes. When I went to replace the bulb I inadvertently touched metal because the bulb blew and left burn marks on either side of the bulb. Checked fuses and I can't seem to locate any that are blown? Tried replacing it with another but no go. Is anyone here familiar with this kind of situation?
Thanks in advance for any help,
David
Bulb replaced/nothing!
Burn marks where the bulb shorted
Another angle
Thanks in advance for any help,
David
Bulb replaced/nothing!
Burn marks where the bulb shorted
Another angle
#3
Junior Member
Thread Starter
Hi, yes..: power to cig lighter. Car starts and runs fine. No chimes and clock. Orig radio lights up when button pressed but no sound. Changed out 10a fuses even though they look good but no luck.
I thought originally that a simple fuse might be the problem?
any ideas? Thanks
I thought originally that a simple fuse might be the problem?
any ideas? Thanks
#4
Junior Member
Thread Starter
Hi, yes..: power to cig lighter. Car starts and runs fine. No chimes and clock. Orig radio lights up when button pressed but no sound. Changed out 10a fuses even though they look good but no luck.
I thought originally that a simple fuse might be the problem?
any ideas? Thanks
I thought originally that a simple fuse might be the problem?
any ideas? Thanks
#5
Out In the Barn
iTrader: (9)
Have you tested the switch? You should be able to use an ohm meter and document what readings you get when operating the switch depowered. Also, do the start cylinder, cig ring, and door light on the exterior work?
Area 50H page 5:30 https://www.foxed.ca/rx7manual/manua...g_Diagrams.pdf
Area 50H page 5:30 https://www.foxed.ca/rx7manual/manua...g_Diagrams.pdf
Last edited by KansasCityREPU; 07-21-23 at 09:33 PM.
#6
Junior Member
Thread Starter
Hi, the rear view mirror is removed from the car. Cig lighter works but no chimes, radio or clock. I’m not really equipped to test the switch. Even removed does that switch matter?
David
David
#7
Out In the Barn
iTrader: (9)
The mirror switch can be tested off the car with a $7 Harbor Fright multimeter. If your more comfortable with wiring, Amazon has some cheap multimeter that do a lot more for under $15. Really depends on how much you you'd use it.
https://www.harborfreight.com/7-func...gaAnCWEALw_wcB
I like this one on Amazon because it will check if AC power is on using Non-Contact induction plus all the car DC stuff.
https://www.amazon.com/dp/B0BLZ7GN2X/ref=sspa_dk_detail_0?pd_rd_i=B0BLZ7GN2X&pd_rd_w=oymJC&content-id=amzn1.sym.f734d1a2-0bf9-4a26-ad34-2e1b969a5a75&pf_rd_p=f734d1a2-0bf9-4a26-ad34-2e1b969a5a75&pf_rd_r=H5MGXRMANGCMKB82CNCN&pd_rd_wg=2F79x&pd_rd_r=7412b817-2c71-49f8-83fe-8fd07afbc6b7&s=industrial&sp_csd=d2lkZ2V0TmFtZT1zcF9kZXRhaWw&th=1
Last edited by KansasCityREPU; 07-22-23 at 10:06 AM.
Trending Topics
#8
Junior Member
Thread Starter
Ok, does the switch complete the circuit? I did connect the dome light again but still nothing. Cig lighter still getting power. Why would the clock, chimes and radio (lights up but no sound) still not work. Maybe the dome switch. I’d love to see how you would approach this.
wouldnt a fuse blow?
wouldnt a fuse blow?
#9
Out In the Barn
iTrader: (9)
Ok, does the switch complete the circuit? I did connect the dome light again but still nothing. Cig lighter still getting power. Why would the clock, chimes and radio (lights up but no sound) still not work. Maybe the dome switch. I’d love to see how you would approach this.
wouldnt a fuse blow?
wouldnt a fuse blow?
The door switch would control the chimes and door handle light. It could be that that there is a common ground that is effecting everything you mention.
#12
Out In the Barn
iTrader: (9)
Your lighting is wired different then the light on my 1984 base model. The light prong on yours has a black wire. Mine has does not have a wire on the drivers side. If you look at the back, mine has a Blue/Yellow (LY) and that supplies 12V to the overhead light. That same Blue Yellow has a T before going to the overhead light that supplies 12V to the clock. This 12V circuit is fused by a 15A fused at X-03 in the schematic which is the main fuse block.
Can you take a pic of the back of your with the drivers side on the left of the pic?
(Drivers side is the left side in this photo)
(Drivers side is the left side in this photo)

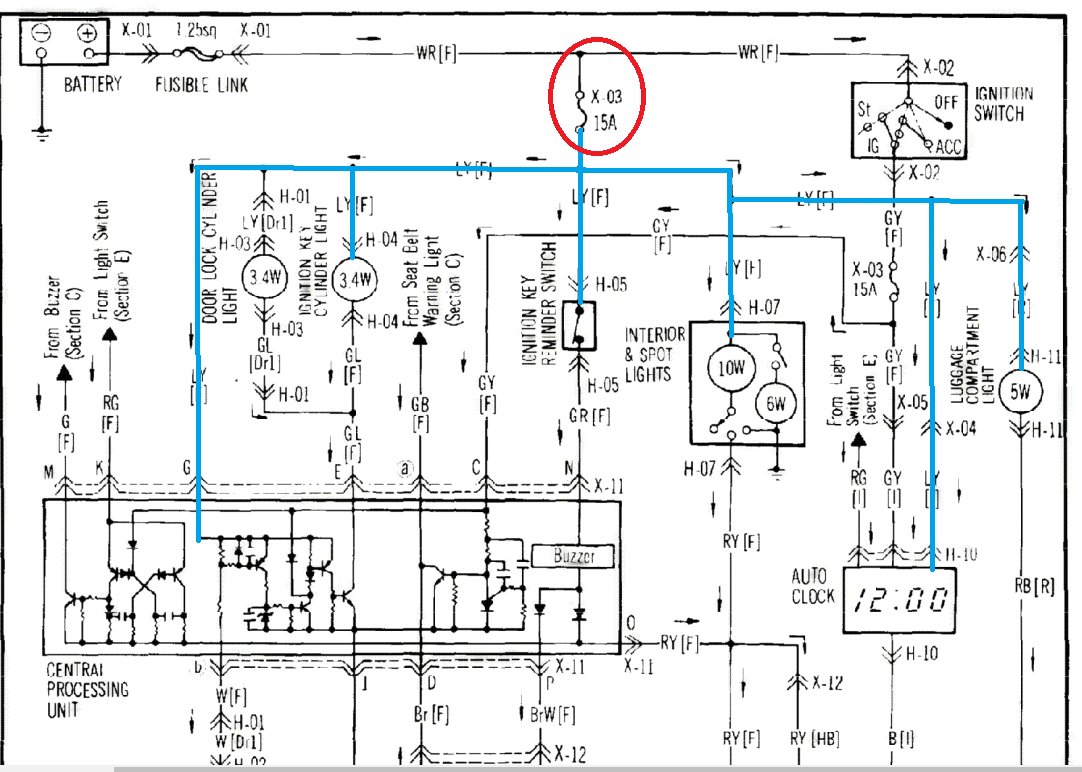

I've marked all the things that are controlled by this 15A fuse in blue.
Can you take a pic of the back of your with the drivers side on the left of the pic?
(Drivers side is the left side in this photo)
(Drivers side is the left side in this photo)
I've marked all the things that are controlled by this 15A fuse in blue.
Last edited by KansasCityREPU; 07-22-23 at 01:15 PM.
#17
Junior Member
Thread Starter
Do you know how to test the two wires that the dome light attaches to? When I removed the dome light on mine… the two wires on the back connect to the two wires for power?
Thanks so much
Thanks so much
#18
Out In the Barn
iTrader: (9)
On the car side harness, the Blue/Yellow is 12VDC. With the black probe on the volt meter on a good metal ground (the screw hole for the overhead light will work), put the red probe on the volt meter on the Blue/Yellow harness side bullet connector. It should read 12VDC or something close. If you do not have 12VDC, then neither the fuse is blown or you have cut/open inn that wire.
#22
Out In the Barn
iTrader: (9)
1. To measure voltage, the battery must be connected.
2. There is no relay.
3. Set the meter to the DC setting.
4. So the ignition to the ON position (just before starting) OR you can start if you want. To test to ensure you have the ignition in the ON position, You should be able to turn the headlight on and they should be light.
2. There is no relay.
3. Set the meter to the DC setting.
4. So the ignition to the ON position (just before starting) OR you can start if you want. To test to ensure you have the ignition in the ON position, You should be able to turn the headlight on and they should be light.
Last edited by KansasCityREPU; 07-22-23 at 09:27 PM.
#24
Out In the Barn
iTrader: (9)
Here is how to test the light assembly removed from the car. Take a 12V source, wire to battery or a 12V standalone power supply, and connect to the Blue/Yellow male bullet connector.
1. Take the ground and connect it the the female bullet connecter. Move the On-Door-Off switch to the Door position. Light should light.
2. Move the ground to the super small ground screw with the two black wires. Move the On-Door-Off switch to the On position. Light should light.
3. Flip the map light to both the right and left. Map light should light.
This test will confirm the dome light assembly itself is working.
1. Take the ground and connect it the the female bullet connecter. Move the On-Door-Off switch to the Door position. Light should light.
2. Move the ground to the super small ground screw with the two black wires. Move the On-Door-Off switch to the On position. Light should light.
3. Flip the map light to both the right and left. Map light should light.
This test will confirm the dome light assembly itself is working.
Last edited by KansasCityREPU; 08-22-23 at 08:56 AM.
